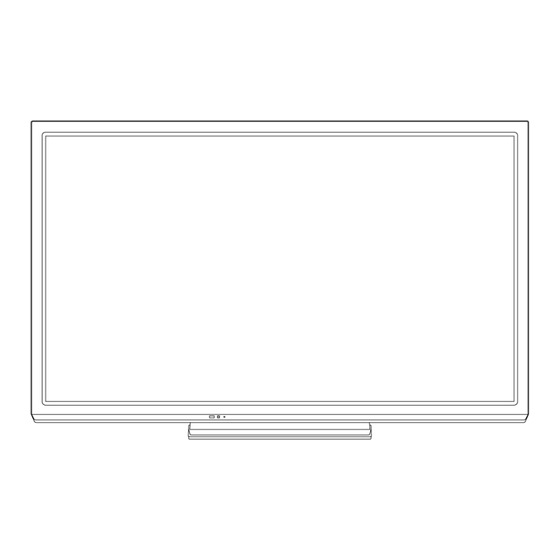

Panasonic TC-P50X60 Service Manual

50 inches class 720p plasma hdtv gph16du chassis
Hide thumbs Also See for TC-P50X60:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
For detailed troubleshooting information and circuit explanations,
refer to the "QSM/Service Hints/Troubleshooting Information(TI)" and Seminar/Training Manual/Technical
Guide(TG) documents posted on the TSN web site.
For information about this model, type TC-P2013 in the model box under "Direct Search".
50 Inches Class 720p Plasma HDTV
TC-P50X60
Model No.
GPH16DU Chassis
© Panasonic Corporation 2013 Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. MTNC130217CE
B34 Canada: B62

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TC-P50X60

Summary of Contents for Panasonic TC-P50X60

  • Page 1 "QSM/Service Hints/Troubleshooting Information(TI)" and Seminar/Training Manual/Technical Guide(TG) documents posted on the TSN web site. For information about this model, type TC-P2013 in the model box under "Direct Search". © Panasonic Corporation 2013 Unauthorized copy- ing and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE 1 Safety Precautions -----------------------------------------------3 1.1. General Guidelines ----------------------------------------3 2 Warning --------------------------------------------------------------4 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4 2.2. About lead free solder (PbF) ----------------------------5 3 Service Navigation------------------------------------------------6 3.1. PCB Layout --------------------------------------------------6 3.2.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. PCB Layout Board Name Function Power Supply, Sustain Drive Non serviceable. PSS-Board should be exchanged for service. Main AV input, processing Remote receiver, Power LED, C.A.T.S sensor Data Driver (Lower Right) Data Driver (Lower Left) Scan Drive...

  • Page 7: Applicable Signals

    3.2. Applicable signals Applicable input signal for Component (Y, P ), HDMI horizontal frequency (kHz) vertical frequency (Hz) 525 (480) / 60i 15.73 59.94 525 (480) /60p 31.47 59.94 750 (720) /60p 45.00 59.94 1,125 (1,080) /60i 33.75 59.94 1,125 (1,080) /60p 67.43 59.94 1,125 (1,080) /60p...

  • Page 8: Specifications

    4 Specifications...

  • Page 9: Service Mode

    5 Service Mode 5.1. How to enter into Service Mode 5.1.1. Purpose After exchange parts, check and adjust the contents of adjustment mode. While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds 5.1.2.

  • Page 10: Contents Of Adjustment Mode

    Contents of adjustment mode 5.1.4. • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark WB-ADJ...

  • Page 11: Option - Mirror

    5.2. Option - Mirror Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down. Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

  • Page 12: Troubleshooting Guide

    6 Troubleshooting Guide For detailed troubleshooting information and circuit explanations, refer to the "QSM/Service Hints/Troubleshooting Information(TI)" and Seminar/Training Manual/Technical Guide(TG) documents posted on the TSN web site. For information about this model, type TC-P2013 in the model box under "Direct Search".

  • Page 13: Disassembly And Assembly Instructions

    7 Disassembly and Assembly Instructions 7.1. Disassembly Flow Chart for the Unit When assembling, perform this chart conversely. This is a disassembly chart. 7.2. Disassembly Procedure for the Unit 7.2.1. Pedestal 7.2.2. AC cord clamper B 1. Remove the Plasma panel section from the servicing 1.
  • Page 14 7.2.3. Back Cover 2. Remove the Key buttom. 1. Remove the 2 screws (XTV3+8GFJK). 2. Remove the 6 screws (THEC1509). 3. Remove the 24 screws (THTD030J). 4. Remove the Back cover. 7.2.5. PSS-Panel Caution: To remove the P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.
  • Page 15 8. Remove the PSS-Panel. 5. Remove the Side shield metal. 6. Remove the 3 screws (XYN3+F6FJ). 7. Remove the A-Panel. 7.2.6. A-Panel 1. Disconnect the connectors A12 and A1. 2. Disconnect the flexible cables A20 and A30. 3. Disconnect the bridge connector A6-P6. 4.
  • Page 16 7.2.7. SN-Panel 7.2.9. K-Panel 1. Disconnect the flexible cables SN21, SN22, SN23, SN24, 1. Disconnect the conector K1. SN25, SN26, SN27 and SN28. 2. Remove the screw (THEJ036J). 2. Disconnect the conector SN2. 3. Disconnect the flexible cable SN20. 4. Remove the 5 screws (XYN3+F6FJ). 5.
  • Page 17 7.2.10. Stand Bracket 7.2.12. Cabinet 1. Remove the clamper. 1. Remove the 2 screws (XTB4+8GFJ). 2. Remove the screw (THTD030J). 2. Remove the 3 screws (THTD030J). 3. Remove the 5 screws (XYN4+F8FJ). 4. Remove the Stand Bracket. 3. Remove the Cabinet from the Plasma panel. 7.2.11.
  • Page 18 2. Remove the 8 screws (THEJ036J). 7.2.14. C1-Panel 1. Disconnect the flexible cable C10. 2. Disconnect the flexible cables CB1, CB2, CB3 and CB4. 3. Remove the C1-Panel. 7.2.15. C2-Panel 1. Disconnect the flexible cables C20 and C21. 2. Disconnect the connector C25. 3.
  • Page 19 7.2.16. EMI Processing...

  • Page 23: Measurements And Adjustments

    8 Measurements and Adjustments 8.1. Adjustment 8.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed. 2.

  • Page 24: White Balance Adjustment

    8.1.2. White balance adjustment Name of measuring instrument Remarks Color analyzer (Minolta CS-1000 or equivalent) Procedure Remarks 1. Enter the Service mode. 2. Receive the Analog-RF (except for no signal) or set CVBS/YUV/HDMI (no signal is avail- able). 3. Select [WB-ADJ] by using [1] and [2] key in the remote controller. 4.

  • Page 25: Block Diagram

    9 Block Diagram 9.1. Main Block Diagram MAIN AV INPUT,PROCESSING HDMI1-2 (HDMI2) TMDS DATA HDMI I/F USB I/F USB_1 IFD_OUT RF IN TUNER TUNER I/F V/Y/PB/PR VIDEO/ V/YPbPr/RGB/YC COMPONENT DIGITAL DIGITAL AUDIO OUT SPDIF_OUT AUDIO OUT ASDOUT0 SUB3.3V SUB3.3V STB3.3V STB3.3V POWER_LED(R) LED_R...

  • Page 26: Block (1/4) Diagram

    9.2. Block (1/4) Diagram SPEAKER_L SPEAKER_R D3201 JK8601 DIGITAL JK6750 JK4700 JK4701 AUDIO USB1 MAIN AV INPUT,PROCESSING HDMI1 HDMI2 RF IN X6750 ANT IN 24MHz IC6750 IC4900 TUNER AUDIO AMP Q4705 SOUND15V PANEL_MAIN_ON SUB5V SUB3.3V ASIC_SD3.3V X8301 27MHz IF_P/N IF_AGC LVDS DATA FE_RST HDMI I/F...

  • Page 27: Block (2/4) Diagram

    9.3. Block (2/4) Diagram MAIN AV INPUT,PROCESSING IC9300 PD5L VIDEO DATA PLASMA AI VIDEO DATA LVDS DATA H/V Sync Control VIDEO DATA Sub Filed Processor VIDEO DATA IC9803 P+1.2V DCDC15V P+1.2V IIC0 DATA DRIVER CONTROL +1.2V 1.2V P+3.3V DCDCEN2 D_UHZ P+3.3V SOS_DCC SUB3.3V...

  • Page 28: Block (3/4) Diagram

    9.4. Block (3/4) Diagram PSS POWER SUPPLY,SUSTAIN DRIVE Vsus Vsus COLD COLD FREQUENCY RANGE (110Khz) FREQUENCY RANGE SUSOUT (120Khz) AC CORD F201 PLASMA B+(390V) PANEL EMI FILTER Vsus SUSTAIN CONTROL DC/DC SS-BLOCK P+5V HB LLC PANEL 15Vc SUSTAIN ELECTRODE STB5V OCP/OVP UVP/OVP FPC PROTECTOR...

  • Page 29: Block (4/4) Diagram

    9.5. Block (4/4) Diagram SCAN DRIVE Reference Voltage Vsus Lo : 189V TPVSUS Vsus Hi : 194V IC16784,85 Reference Voltage Vsus Vad = 205 PC16897 IPD CIRCUIT TPVAD T16471 IC16600 D16618 VAD GEN. IC16603 SHUNT REG CERS BUFFER NCPH Q16601 IC16501 Q16401 BUFFER...

  • Page 30: Wiring Connection Diagram

    10 Wiring Connection Diagram 10.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 10.2. Wiring (1)

  • Page 31: Wiring (2)

    10.3. Wiring (2)

  • Page 32: Wiring (3)

    10.4. Wiring (3) 10.5. Wiring (4)
