Page 1: Operating Instructions

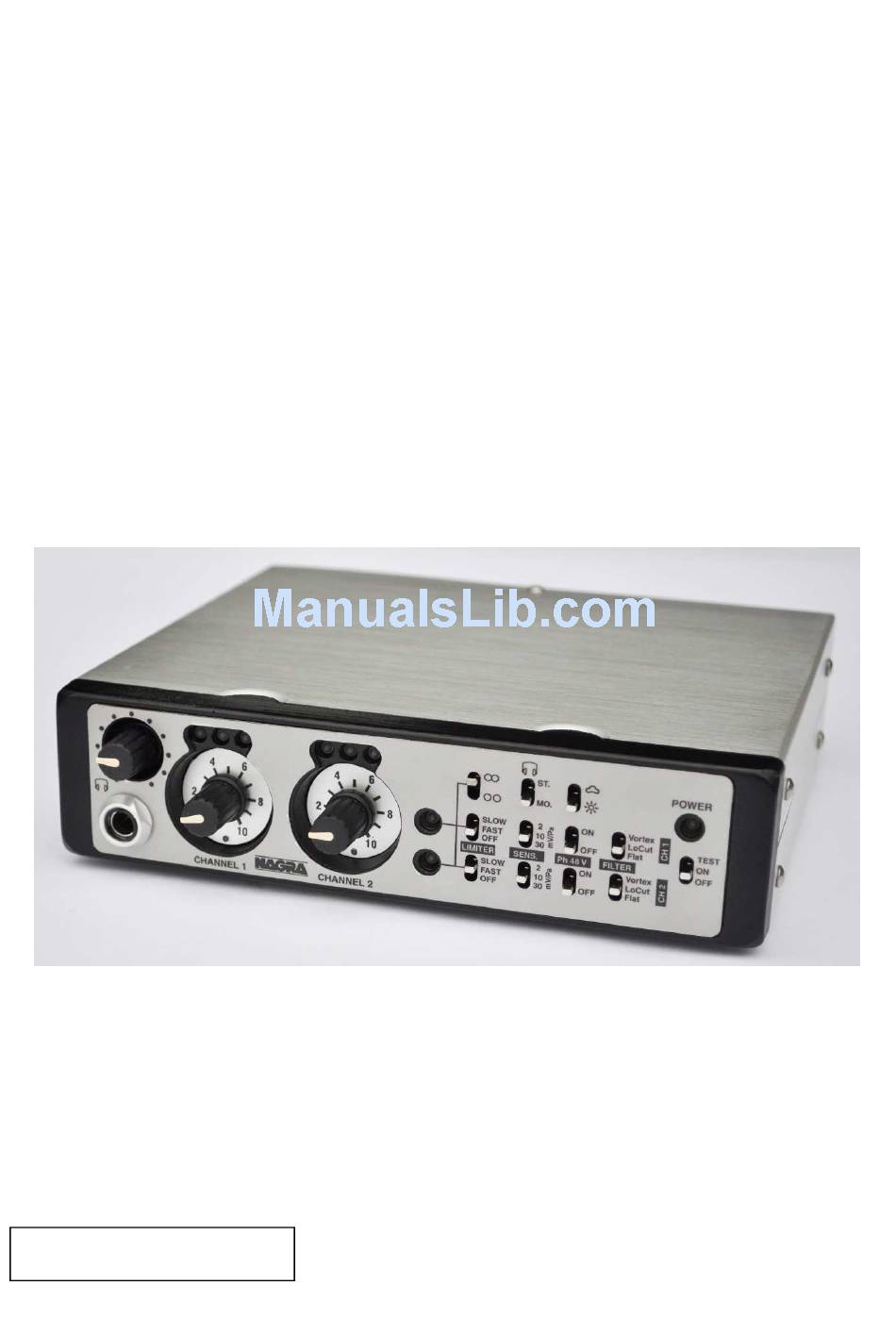

OPERATING INSTRUCTIONS REFERENCE MANUAL NAGRA EMP Version Nagra EMP PC: V1.024 Version Recorder: V6.00... -
Page 2: Table Of Contents
Guarantee / Warranty ............................3 Introduction to the Nagra EMP .........................4 Power introduction ............................5 Fuses ................................5 Power indication ............................5 Front panel description ..........................6 Headphone jack output & level adjustment (1) ..................6 Input sensitivity pots and modulometers (2 & 3) ..................6 Limiter activity led’s (4) ..........................6 Limiter selection (5 &... -
Page 3: Guarantee / Warranty
We guarantee the Nagra EMP of our own manufacture against any defect arising from faulty manufacture for a period of TWO years from the date of delivery. -
Page 4: Introduction To The Nagra Emp
Connected to a Nagra VI, you obtain 6 high quality microphone inputs instead of 4. Any questions you may have concerning the Nagra EMP can be sent to us through the “Contact us” form on the professional side of our web site www.nagraaudio.com... -
Page 5: Power Introduction
Power introduction The Nagra-EMP can be powered by internal or external power. Internal power is on 4 “AA” cells. To install the batteries, remove the bottom cover by sliding the pad. Install the batteries in such away that the 2 plastic ribbons are below the cells. This makes it easier to extract them later. -
Page 6: Front Panel Description
The 2 microphone inputs can be selected to one of three different sensitivity settings, of 2.8 mV/Pa, 10 mV/Pa or 30 mV/Pa. The 2.8 mV/Pa sensitivity position goes trough a high quality Nagra input transformer and is designed for use with dynamic microphones. -
Page 7: Led Dimmer (13)
The filters in the Nagra EMP roll off -3 dB at 150 Hz and then at 12 dB per octave. If an alternative curve is required, then provision is made on the input circuit board to add capacitors accordingly and the necessary values can be supplied if necessary. -
Page 8: Rear Panel Description
Line output XLR’s. The line output level can be preset inside the Nagra-EMP (jumpers S4, S5, S6 for CH1and S7, S8, S9 for CH2). 3 levels are available. To set the jumpers, switch the unit off and remove the bottom panel. -
Page 9: Nagraemp" Software Installation
Connect the EMP (in power off mode) via the USB cable to the PC or laptop. The EMP will be powered via the USB cable from the PC or laptop (No need to turn on the Nagra EMP). The first time it is connected, the Nagra EMP will be recognised by the PC or laptop. -
Page 10: File Type
As standard, all file extensions have the name xxx.WAV. In the case that some players, analysers or editors are requesting a dedicated extension, apply the same rules as for the file name. Once all the information is entered, press the “Apply” button to save those settings in the EMP recorder (check the status bar). -
Page 11: Player
USB key or even create a CD/DVD. The player shows the list (Index column) of recordings in the memory of the Nagra EMP. As an example, the first index 110818_063453_abce0001.WAV was recorded in 2011, 8... - Page 12 The following sub-window appears. This informs already that the correct burner was selected and that the support inside the burner is correct. Press the “Start” button. The next sub-window appears. The files start to be downloaded from the Nagra EMP into a temporary folder before burning.
-
Page 13: Specifications
Specifications Inputs Analogue inputs 2 x symmetrical XLR Microphone (Dynamic, +48V Phantom) Microphone input sensitivity 2.8, 10 and 30 mV/Pa selectable Limiters Selectable on microphone inputs, individual or in pairs. Active at -9.5dBFS, max +40dB for -2 dBFS THD at 1 kHz <0.15 % Mic, <0.01% line Frequency response 10Hz - 48 kHz ±... -
Page 14: Ce Norm
CE norm Page 14 of 15 Copyright © NAGRAVISION S.A. 2011 August 19, 2011... - Page 15 NAGRAVISION SA KUDELSKI GROUP Route de Genève 22 CH-1033 Cheseaux Switzerland Phone +41 (0)21 732-0101 Fax +41 (0)21 732-0100 E-mail: audio_pro@nagra.com All rights reserved-© August, 2011 Page 15 of 15 Copyright © NAGRAVISION S.A. 2011 August 19, 2011...
