Carrier 25HBA3 Series Product Data

Base 13 heat pump with puron refrigerant 1-1/2 to 5 nominal tons (sizes 18 to 60)
Hide thumbs Also See for 25HBA3 Series:
Table of Contents

Advertisement

Quick Links

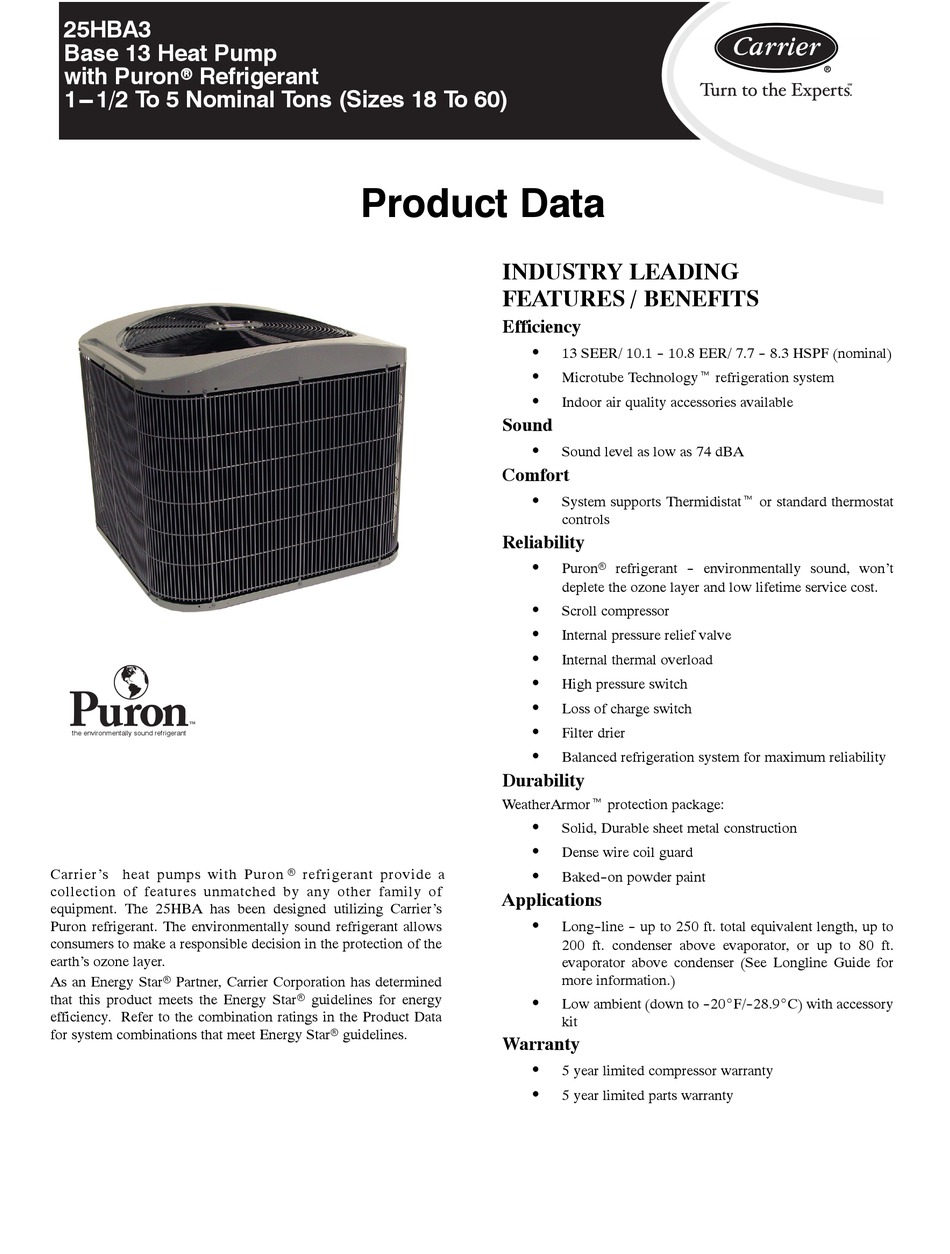

25HBA3
Base 13 Heat Pump
with Puronr Refrigerant
1---1/2 To 5 Nominal Tons (Sizes 18 To 60)
the environmentally sound refrigerant
Carrier's heat pumps with Puron r refrigerant provide a
collection of features unmatched by any other family of
equipment. The 25HBA has been designed utilizing Carrier's
Puron refrigerant. The environmentally sound refrigerant allows
consumers to make a responsible decision in the protection of the
earth's ozone layer.
As an Energy Starr Partner, Carrier Corporation has determined
that this product meets the Energy Starr guidelines for energy
efficiency. Refer to the combination ratings in the Product Data
for system combinations that meet Energy Starr guidelines.

Product Data

INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
S
S
S
Sound
S
Comfort
S
Reliability
S
S
S
S
S
S
S
S
Durability
WeatherArmort protection package:
S
S
S
Applications
S
S
Warranty
S
S
13 SEER/ 10.1 - - 10.8 EER/ 7.7 - - 8.3 HSPF (nominal)
Microtube Technologyt refrigeration system
Indoor air quality accessories available
Sound level as low as 74 dBA
System supports Thermidistatt or standard thermostat
controls
Puronr refrigerant - - environmentally sound, won't
deplete the ozone layer and low lifetime service cost.
Scroll compressor
Internal pressure relief valve
Internal thermal overload
High pressure switch
Loss of charge switch
Filter drier
Balanced refrigeration system for maximum reliability
Solid, Durable sheet metal construction
Dense wire coil guard
Baked- -on powder paint
Long- -line - - up to 250 ft. total equivalent length, up to
200 ft. condenser above evaporator, or up to 80 ft.
evaporator above condenser (See Longline Guide for
more information.)
Low ambient (down to - -20_F/- -28.9_C) with accessory
kit
5 year limited compressor warranty
5 year limited parts warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25HBA3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier 25HBA3 Series

Summary of Contents for Carrier 25HBA3 Series

  • Page 1: Product Data

    Durability WeatherArmort protection package: Solid, Durable sheet metal construction Dense wire coil guard Carrier’s heat pumps with Puron r refrigerant provide a Baked- -on powder paint collection of features unmatched by any other family of Applications equipment. The 25HBA has been designed utilizing Carrier’s Puron refrigerant.

  • Page 2: Model Number Nomenclature

    MODEL NUMBER NOMENCLATURE Product Product Major Cooling Minor Tier SEER Variations Open Open Voltage Series Family Series Capacity Series 0=Not 0=Not 3=208/230 ---1 25 = HP H = RES HP B=Base A = Puron 3=13 SEER A = Standard 0, 1, 2... Defined Defined ISO 9001:2000...

  • Page 3: Physical Data

    PHYSICAL DATA UNIT SIZE SERIES 18---32 24---31 30---31 36---31 42---31 48---31 60---31 Operating Weight (lb) Shipping Weight (lb) Compressor Type Scroll REFRIGERANT Puron® (R--- 410A) Control TXV (Puron Hard Shutoff) Charge (lb) 7.65 11.75 12.35 COND FAN Propeller Type, Direct Drive Air Discharge Vertical Air Qty.
  • Page 4 * Do not use in zoning heat pump applications. ** Outdoor temperature sensor is an accessory for all Carrier electronic thermostats, except the non ---programmable air conditioner version and builder;s thermostats. It allows the temperature at a remote location (outdoors) to be displayed on the thermostat. The outdoor air temperature sensor must be used with the dual fuel thermostat.
  • Page 5 * For tubing line sets between 80 and 200 ft. and/or 20 ft. vertical differential, refer to Residential Split---System Longline Application Guideline. { Required for Low---Ambient Controller MotorMasterr Control only. Hard Shut---Off TXV is standard on new Carrier evaporator coils and fan coils.
  • Page 6 Accessory Description and Usage (Listed Alphabetically) - - CONTINUED 10. Outdoor Air Temperature Sensor 13. Sound Hood Designed for use with Carrier Thermostats listed in this Wraparound sound reducing cover for the compressor. Reduces publication. This device enables the thermostat to display the the sound level by about 2 dBA.

  • Page 7: Electrical Data

    ELECTRICAL DATA MIN WIRE UNIT SIZE --- MAX FUSE** OPER VOLTS* COMPR WIRE LENGTH LENGTH SIZE{ VOLTAGE, V/PH or CKT BRK SIZE{ (ft.)} (ft.)} SERIES AMPS RLA FLA 60° C 75° C 60° C 75° C 18---32 0.75 11.9 24---31 12.8 0.75 16.8 30---31...
  • Page 10 COMBINATION RATINGS ARI Standard Ratings Unit Cooling Heating Size --- Cooling Indoor Model High Temp Low Temp Voltage, Capacity Furnace Model Factory Standard SEER HSPF Series Enhance Rating Capacity Capacity *FY4ANF018 17,100 TDR&TXV 13.00 10.50 18,000 3.38 10,700 2.20 FF1ENP018 17,100 TDR&TXV 13.00...

  • Page 11: Combination Ratings Continued

    COMBINATION RATINGS CONTINUED ARI Standard Ratings Unit Cooling Heating Size --- Cooling Indoor Model High Temp Low Temp Voltage, Capacity Furnace Model Factory Standard SEER HSPF Series Enhance Rating Capacity Capacity CNPH*2417A** 22,800 TDR&TXV 14.00 11.60 23,600 3.72 14,400 2.62 58CV(A,X)090---16 CNPH*2417A** 22,800...
  • Page 12 COMBINATION RATINGS CONTINUED ARI Standard Ratings Cooling Heating Unit Cooling Indoor Model Size --- High Temp Low Temp Capacity Furnace Model Factory Standard SEER Series HSPF Enhance Rating Capacity Capacity FX4CNF030 29,600 TDR&TXV 14.00 10.80 31,400 3.60 21,000 2.66 FY4ANF036 29,600 TDR&TXV 13.00...
  • Page 13 COMBINATION RATINGS CONTINUED ARI Standard Ratings Cooling Heating Unit Cooling Indoor Model Size --- High Temp Low Temp Capacity Furnace Model Factory Standard SEER Series HSPF Enhance Rating Capacity Capacity CSPH*3012A** 29,200 TDR&TXV 14.00 11.00 30,800 3.50 20,600 2.64 58CV(A,X)135---22 CSPH*3012A** 29,200 TDR&TXV...
  • Page 14 COMBINATION RATINGS CONTINUED ARI Standard Ratings Cooling Heating Unit Size Cooling Indoor Model High Temp Low Temp --- Series Capacity Furnace Model Factory En- Standard SEER HSPF hance Rating Capacity Capacity CNPH*3617A** 33,400 13.00 10.50 35,600 3.44 22,000 2.38 CNPH*4221A** 33,600 TDR&TXV 14.00...
  • Page 15 COMBINATION RATINGS CONTINUED ARI Standard Ratings Unit Size Cooling Heating --- Volt- Cooling Indoor Model High Temp Low Temp age, Se- Capacity Furnace Model Factory En- Standard SEER HSPF ries hance Rating Capacity Capacity CAP**4221A** 39,500 TDR&TXV 13.50 10.90 41,500 3.42 25,400 2.46...
  • Page 16 COMBINATION RATINGS CONTINUED ARI Standard Ratings Unit Cooling Heating Size --- Cooling Indoor Model High Temp Low Temp Voltage, Capacity Furnace Model Factory En- Standard SEER HSPF Series hance Rating Capacity Capacity CNPV*4824A** 41,000 TDR&TXV 14.00 11.60 41,000 3.70 25,200 2.60 58CV(A,X)135---22 CNPV*4824A**...
  • Page 17 COMBINATION RATINGS CONTINUED ARI Standard Ratings Cooling Heating Unit Cooling Indoor Model Size --- High Temp Low Temp Capacity Furnace Model Factory Standard SEER Series HSPF Enhance Rating Capacity Capacity CNPH*4821A** 45,000 13.00 10.80 49,000 3.68 30,400 2.60 CNPH*6024A** 46,500 TDR&TXV 14.00 11.70...
  • Page 32 — Refer to section of this literature identifying accessories and descriptions for specific features and available enhancements. Catalog No: 25HBA3---2PD Copyright 2007 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 02/07 Replaces: 25HBA3--- 1PD...
