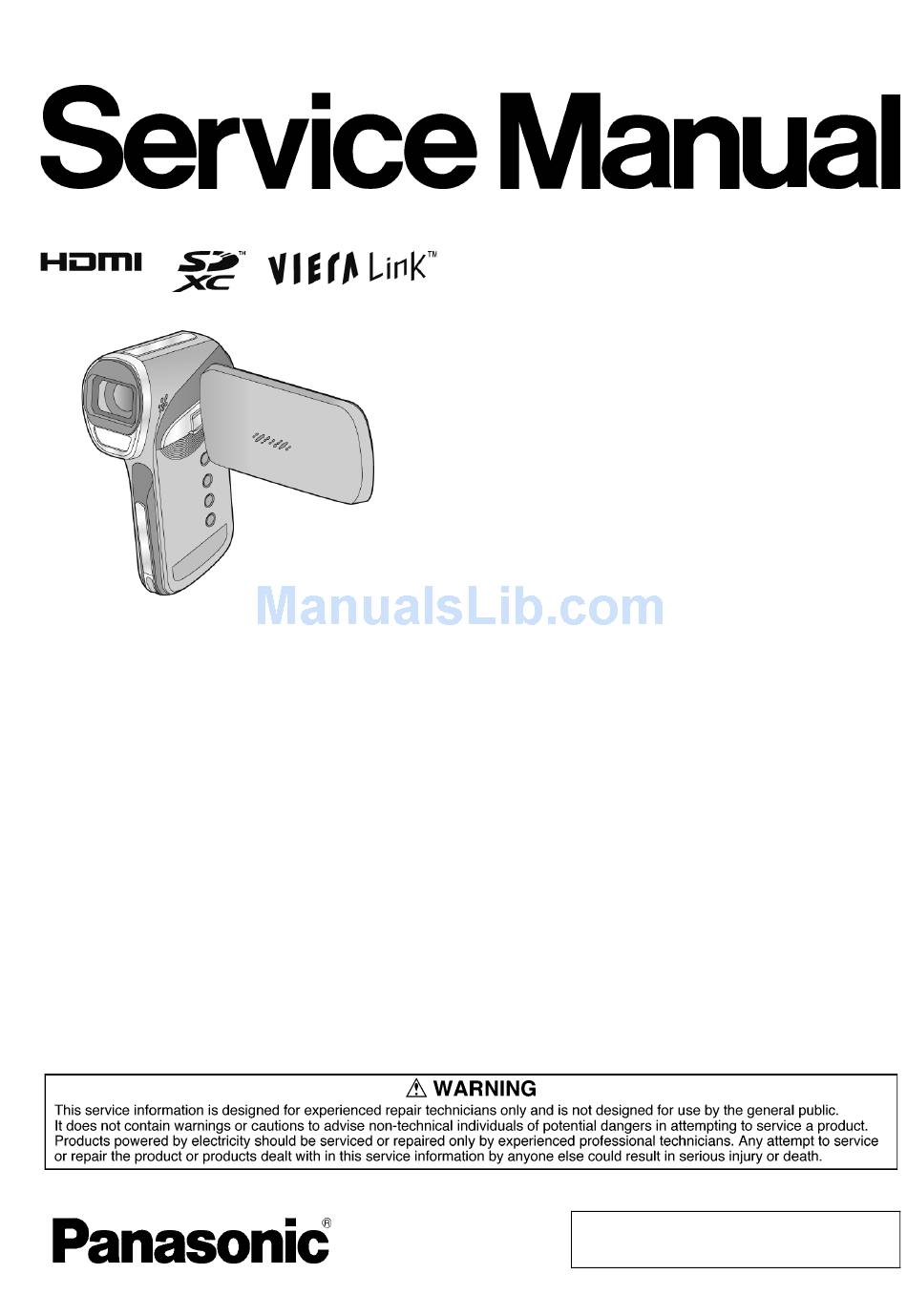

  • Page 1 ORDER NO. VM1202008CE Dual Camera HX-WA2P Model No. HX-WA2PC HX-WA2PU HX-WA2EB HX-WA2EC HX-WA2EE HX-WA2EF HX-WA2EG HX-WA2GA HX-WA2GC HX-WA2GD HX-WA2GK HX-WA2GN HX-WA2GT Colour (D)...Orange Type (A)...Blue Type (except GK) © Panasonic Corporation 2012 Unauthorized copy- ing and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure 1.)--------3 1.4. How to Discharge the Capacitor on Main P.C.B.----------------------------------------------------------4 2 Warning --------------------------------------------------------------5 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------5 2.2.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check (See Figure 1.) 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check.

  • Page 4: How To Discharge The Capacitor On Main P.c

    1.4. How to Discharge the Capacitor on Main P.C.B. CAUTION: 1. Be sure to discharge the capacitor on MAIN P.C.B.. 2. Be careful of the high voltage circuit on MAIN P.C.B. when servicing. [Discharging Procedure] 1. Refer to the disassemble procedure and Remove the necessary parts/unit. 2.

  • Page 5: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...

  • Page 6: How To Replace The Lithium Battery

    2.3. How to Replace the Lithium Battery 2.3.1. Replacement Procedure 1. Remove the MONITOR P.C.B.. (Refer to Disassembly Procedures.) 2. Unsolder the each soldering point of electric lead terminal for Lithium battery (Ref. No. “Z6301” at component side of MONI- TOR P.C.B.) and remove the Lithium battery together with electric lead terminal.

  • Page 7: Service Navigation

    3 Service Navigation 3.1. Introduction This service manual contains technical information, which allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2.

  • Page 8: How To Define The Model Suffix (Ntsc Or Pal Model)

    3.4. How to Define the Model Suffix (NTSC or PAL model) There are eight kinds of HX-WA2. • a) HX-WA2 (Japan domestic model) • b) HX-WA2P/PC • c) HX-WA2EB/EC/EF/EG/GN • d) HX-WA2EE • e) HX-WA2GK • f) HX-WA2GT • g) HX-WA2GD •...

  • Page 9: Formatting

    3.5. Formatting 3.6. Baking of IC and P.C.B. The baking mentioned here is the way of dehumidification of IC and P.C.B.. It's possible to improve the success rate of IC replacement for repair by baking of IC and P.C.B.. When replacing the hygroscopic IC and P.C.B., the problem of IC crack or foil pattern breaking in the P.C.B. might sometimes occur by rapid heating.

  • Page 10: Specifications

    4 Specifications...

  • Page 13: Location Of Controls And Components

    5 Location of Controls and Components LCD monitor It can open up to 90 , rotate up to 180 towards the lens or 105 towards the opposite direction. Due to limitations in LCD production technology, there may be some tiny bright or dark spots on the LCD monitor screen. However, this is not a malfunction and does not affect the recorded picture.
  • Page 14 19 Lens 20 Built-in flash The flash reaches high temperatures and may cause burns if touched. Please do not touch the flash. 21 Hand strap fixture Adjust the length after passing your arm through the hand strap. 22 Speaker 23 Internal stereo microphones 24 Tripod receptacle If you attach a tripod which has a 5.5 mm (0.22 ) screw or larger, it may damage this unit.

  • Page 15: Troubleshooting Guide

    6 Troubleshooting Guide 6.1. Confirmation Flow of Waterproof...

  • Page 16: Airtight Inspection With Air Leak Tester

    6.2. Airtight Inspection with Air Leak Tester...

  • Page 17: Air Leak Tester (Rfkz0528) Operating Instruction

    6.3. Air Leak Tester (RFKZ0528) Operating Instruction...

  • Page 21: Service Fixture & Tools

    7 Service Fixture & Tools 7.1. When Replacing the Main P.C.B. After replacing the MAIN P.C.B. or IC121, be sure to achieve update the Firmware and adjustment. 1. The firmware together with version up procedure are available at "software download" on the "Support Information from NWBG/VDBG-AVC"...

  • Page 22: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Disassembly Flow Chart This is a disassembling chart. When assembling, perform this chart conversely.

  • Page 23: Pcb Location

    8.2. PCB Location Item Removal Main P.C.B. Fig. D15 1 Screw (I) Battery Case 1 Screw (J) 2 Solders CN103 (Connector) CN301 (Flex) 2 Screws (K) 3 Solders Fig. D16 Battery Case Earth Plate Main P.C.B. Lens Holder Fig. D17 3 Screws (L) Lens Holder Speaker...
  • Page 24 8.3.2. Removal of the Front Cabinet Unit 8.3.1. Removal of the Top Ornament Fig. D2 8.3.3. Removal of the Side-L Cabinet Unit Fig. D1 Fig. D3...
  • Page 25 Fig. D5 Fig. D4...
  • Page 26 Fig. D8 8.3.5. Removal of the Waterproof Rubber Fig. D6 8.3.4. Removal of the Battery Cover Fig. D7 Fig. D9...
  • Page 27 8.3.6. Removal of the Capacitor & Capacitor Holder Fig. D11 Fig. D10...
  • Page 28 8.3.7. Removal of the Lens Unit Fig. D13 Fig. D12...
  • Page 29 8.3.8. Removal of the Flash Unit 8.3.9. Removal of the Main P.C.B. and Battery Case Fig. D14 Fig. D15...
  • Page 30 8.3.11. Removal of the Speaker Fig. D16 8.3.10. Removal of the Lens Holder Fig. D18 Fig. D17...
  • Page 31 8.3.12. Removal of the LCD Unit Fig. D19 Fig. D20...
  • Page 32 Fig. D21 Fig. D22...
  • Page 33 Fig. D23 8.3.13. Removal of the Hinge Cover & LCD Case (T) Unit Fig. D24 Fig. D25...
  • Page 34 8.3.14. Removal of the LCD O-Ring Fig. D26 Fig. D28 Fig. D27...
  • Page 35 8.3.15. Removal of the LCD Panel Fig. D29 Fig. D30...
  • Page 36 Fig. D31 8.3.16. Removal of the Mic Unit & Monitor P.C.B. Fig. D33 Fig. D32...
  • Page 37 8.3.17. Removal of the LCD Hinge Unit Fig. D34 Fig. D35...
  • Page 38 Fig. D36 Fig. D37...
  • Page 39 8.3.18. Removal of the Switch Unit Fig. D38 Fig. D39...

  • Page 40: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Electric Adjustment • Adjustment method is different from a conventional High definition video camera. • An exclusive jig and PC (including software for adjustment “DSCcal”) are necessary for electric adjustment. • A USB driver for service is necessary to communication with PC. •...
  • Page 41 Note: Remove the Front block of the Lightbox. (Refer to following Fig. for details). Adjustment Items • Adjustment item as follows. The adjustment instruction is available at "Software download" on the "Support Information from NWBG/VDBG-AVC" web-site in "TSN System". *The firmware together with version up procedure are available at "Software download" on the "Support Information from NWBG/VDBG-AVC"...

  • Page 42: Maintenance

    10 Maintenance 10.1. Regular Maintenance Flow...

  • Page 43: Component Kits Of Waterproof

    10.2. Component Kits of Waterproof...

  • Page 44: Block Diagram

    11 Block Diagram 11.1. Overall Block Diagram OVERALL BLOCK DIAGRAM FLASH STA BLOCK MAIN P.C.B. CAPACITOR LENS UNIT x5 F3.5 LENS BLOCK IC541 FLASH CHARGE FLASH REFLECTOR CMOS IMAGE BtoB PWA BLOCK SENSOR X3001 32.768KHz CAA BLOCK IC911 SPRING IC951 14M CMOS CONTACT LENS DRIVER...

  • Page 45: Main Block Diagram

    11.2. Main Block Diagram MAIN BLOCK DIAGRAM LCD[AN,CA] X1102 BACKUPBAT TO CN103 48.000MHz XOUT PWA BLOCK X3001 BSRST POWER SUPPLY 32.768KHz EXCLKS DQ[0:31],DQSP[0:3],DQSN[0:3] DA[0:12],DQM[0:3],DBA[0:2] DSCK[P,N,E] IC103, IC104 ZRAS,ZCAS,ZDSWE USB_SUSPWR DDR3 SDRAM ZDRST PWA BLOCK USB CHARGE CONTROL ZDCS SCANIN[0:4] ONENAND_RESET SCANOUT[0,1,3] D[0:15] KEY_1ST...

  • Page 46: Cmos Block Diagram

    11.3. CMOS Block Diagram 11.4. Lens Block Diagram CMOS BLOCK DIAGRAM LENS BLOCK DIAGRAM ZOOM_PI_E CN951 FOCUS_PI_E LENS BLOCK ZOOM_PI_AC VDD3 TO IC101 IC951 ZOOM_PI LENS DRIVER ZOOM_PI_K PIOUT2 FOCUS_PI_AC VDD3 BOOST5.0V MVCC12,MVCC34,MVCC5, (CAA) (DMA) IC101 CMOS1.8 VDDIO VDDPLL VAA2.8 VAAPIX VDD_SLVS_TX VDDAMP...

  • Page 47: Power Block Diagram

    11.5. Power Block Diagram 11.6. Flash Block Diagram POWER BLOCK DIAGRAM FLASH BLOCK DIAGRAM TO DMA IC521 USB_VBUS SUSP USB_SUSPWR CHARGE BATT/OUT BAT+ TO BATTERY I2C_SDA BAT+SY CHARGING CIRCUIT TO DMA I2C_SCL TO DMA D5402 C5401 T5401 POWER FILTER OSCILLATION RECTIFIER UNREGST I2C_SDA...

  • Page 48: Wiring Connection Diagram

    12 Wiring Connection Diagram 12.1. Interconnection Diagram INTERCONNECTION DIAGRAM CN173 JW184 MGNDL HINGE BLACK MIC (L) VDD3 JW183 MONITOR P.C.B. MIC(L) GRAY JW181 MIC(R) MIC (R) GRAY JW182 MGNDR LENS BLACK CN912 CN901 CL502 VAA2.8 VAA2.8 VAA2.8 VAA2.8 BAT+ AGND AGND AGND AGND...
  • Page 49 Model No. : HX-WA2 Schematic Diagram Note...
  • Page 50 Model No. : HX-WA2 Parts List Note...
  • Page 51 Model No. : HX-WA2 Main(CAA) Schematic Diagram(Main P.C.B.)
  • Page 52 Model No. : HX-WA2 Main(DMA) Schematic Diagram(Main P.C.B.)
  • Page 53 Model No. : HX-WA2 Main(PWA) Schematic Diagram(Main P.C.B.)
  • Page 54 Model No. : HX-WA2 Main(STA) Schematic Diagram(Main P.C.B.)
  • Page 55 Model No. : HX-WA2 Monitor Schematic Diagram(Monitor P.C.B.)
  • Page 56 Model No. : HX-WA2 Main P.C.B. (Component Side)
  • Page 57 Model No. : HX-WA2 Main P.C.B. (Foil Side)
  • Page 58 Model No. : HX-WA2 Monitor P.C.B. (Component Side)
  • Page 59 Model No. : HX-WA2 Monitor P.C.B. (Foil Side)
  • Page 60 Model No. : HX-WA2 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C1002 F1G1A1040006 C.CAPACITOR CH 10V 0.1U C1005 F1G1A1040006 C.CAPACITOR CH 10V 0.1U C1006 F1G1A1040006 C.CAPACITOR CH 10V 0.1U C1007 F1G1A1040006 C.CAPACITOR CH 10V 0.1U C1008 F1G1A1040006 C.CAPACITOR CH 10V 0.1U...
  • Page 61 Model No. : HX-WA2 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C1726 F1H1A475A083 C.CAPACITOR C1801 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C1802 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C1803 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C1804 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C1805 F1G0J1050007 C.CAPACITOR CH 6.3V 1U...
  • Page 62 Model No. : HX-WA2 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C9010 F1H0J106A052 C.CAPACITOR C9011 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C9012 F1H0J106A052 C.CAPACITOR C9013 F1G0J1050007 C.CAPACITOR CH 6.3V 1U C9016 F1G0J225A034 C.CAPACITOR CH 6.3V 2.2U C9017 F1H0J106A052 C.CAPACITOR...
  • Page 63 Model No. : HX-WA2 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q3003 VU4052254523 TRANSISTOR 1 E.S.D. Q3004 VU4052254523 TRANSISTOR 1 E.S.D. Q3005 B1GFBEYY0002 TRANSISTOR 1 E.S.D. Q5402 VU4052257712 TRANSISTOR 1 E.S.D. R1001 D0GA102JA042 RESISTOR R1010 D0GA470JA042 RESISTOR R1011...
  • Page 64 Model No. : HX-WA2 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R3013 D0GA223ZA029 RESISTOR R3014 D0GA223ZA029 RESISTOR R3016 D0GA104JA042 RESISTOR R3018 D0GA104JA042 RESISTOR R5004 D0GA6R8JA042 RESISTOR R5041 D0GA114ZA029 RESISTOR R5042 D0GA243ZA029 RESISTOR R5044 D0GA222JA042 RESISTOR R5061 D0GA472ZA029 RESISTOR...
  • Page 65 Model No. : HX-WA2 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks S3003 VU6450452857 SWITCH S3004 VU6450452857 SWITCH T5401 G5ZZ00000137 TRANSFORMER TH301 D4CCY104A004 THERMISTOR X1102 H0J480500056 CRYSTAL OSCILLATOR X3001 H0J327200255 CRYSTAL OSCILLATOR Z6301 VU6450989551 BATTERY...
  • Page 66 Model No. : HX-WA2 Frame and Casing Section(1)
  • Page 67 Model No. : HX-WA2 Frame and Casing Section(2)
  • Page 68 Model No. : HX-WA2 Packing Parts and Accessories Section...
  • Page 69 Model No. : HX-WA2 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks VU6361566391 TRIPOD VU6361566353 SHAFT VU6361570541 GRIP ORNAMENT 1 (-D) VU6361576888 GRIP ORNAMENT 1 (-A) VU6361590327 FLASH UNIT VU6361570565 FRONT CABINET UNIT 1 (-D) VU6361576628 FRONT CABINET UNIT 1 (-A) VU6361566124...
  • Page 70 Model No. : HX-WA2 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks VU6361590150 LCD CASE(T) UNIT 1 (-A) VU6361574051 O-RING VU6361574051 O-RING VU6361223423 O-RING VU6361223423 O-RING VU6361500548 CUSHION VU6361500548 CUSHION VU6361500548 CUSHION VU6361500548 CUSHION VU6361415651 LCD COVER VU6361415651 LCD COVER VU6361501972...
  • Page 71 Model No. : HX-WA2 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks VU4120800700 SCREW 1 (-A) VU4112144805 SCREW 1 (-D) VU4112207807 SCREW 1 (-A) VU4112144805 SCREW 1 (-D) VU4112207807 SCREW 1 (-A) VU4111779503 SCREW VU4111779503 SCREW VU4111779503 SCREW VU4111779503...
  • Page 72 Model No. : HX-WA2 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks OPERATING INSTRUCTIONSS (RUSSIAN/UKRAINI VQT4F41 1 EE OPERATING INSTRUCTIONS (CHINESE(SIMPLIFI VQT4F42 1 GK ED)) BATTERY PACK...
