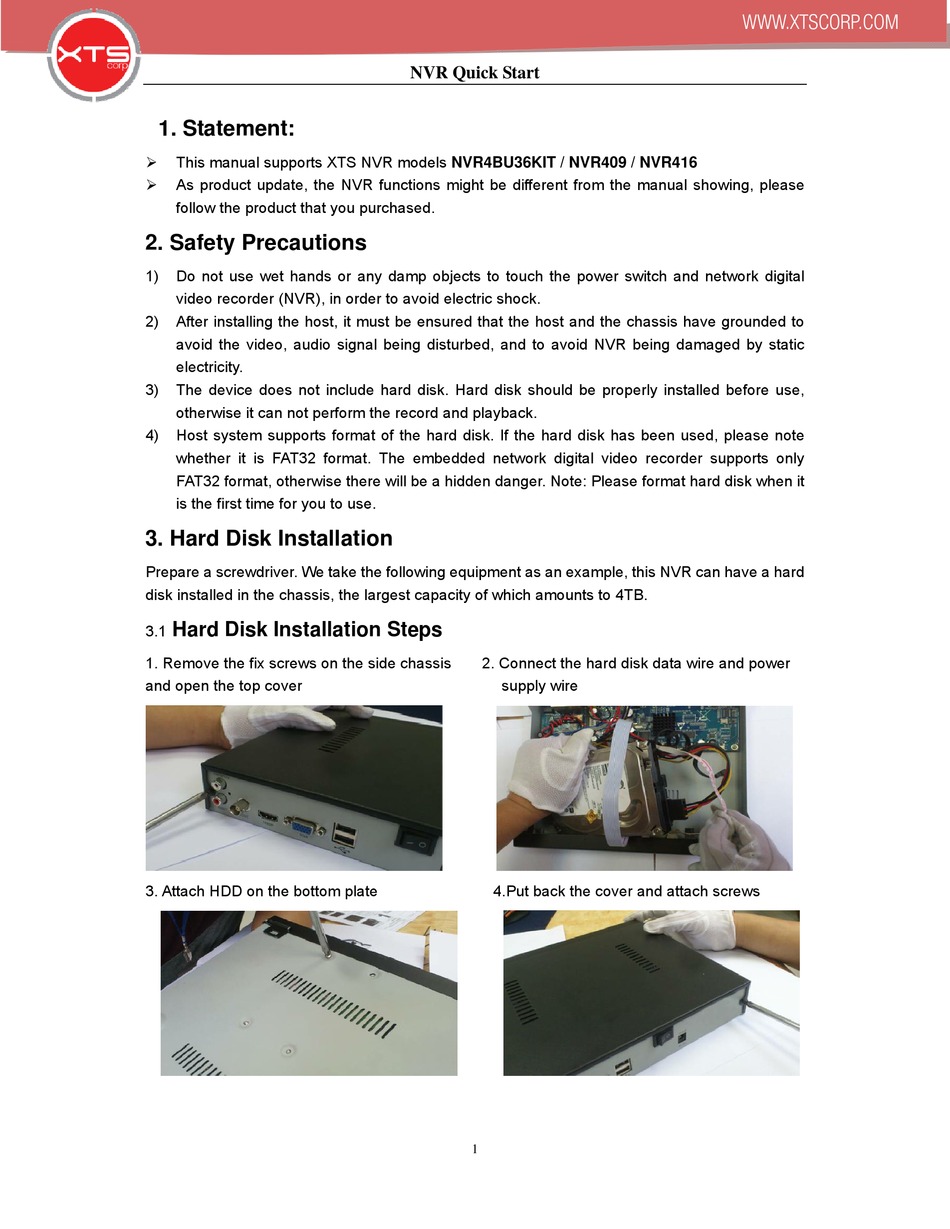

1. Statement:
This manual supports XTS NVR models NVR4BU36KIT / NVR409 / NVR416
As product update, the NVR functions might be different from the manual showing, please
follow the product that you purchased.
2. Safety Precautions
1)
Do not use wet hands or any damp objects to touch the power switch and network digital
video recorder (NVR), in order to avoid electric shock.
2)
After installing the host, it must be ensured that the host and the chassis have grounded to
avoid the video, audio signal being disturbed, and to avoid NVR being damaged by static
electricity.
3)
The device does not include hard disk. Hard disk should be properly installed before use,
otherwise it can not perform the record and playback.
4)
Host system supports format of the hard disk. If the hard disk has been used, please note
whether it is FAT32 format. The embedded network digital video recorder supports only
FAT32 format, otherwise there will be a hidden danger. Note: Please format hard disk when it
is the first time for you to use.
3. Hard Disk Installation
Prepare a screwdriver. We take the following equipment as an example, this NVR can have a hard
disk installed in the chassis, the largest capacity of which amounts to 4TB.
3.1
Hard Disk Installation Steps
1. Remove the fix screws on the side chassis
and open the top cover
3. Attach HDD on the bottom plate
NVR Quick Start
2. Connect the hard disk data wire and power
supply wire
4.Put back the cover and attach screws
1
WWW.XTSCORP.COM
Advertisement
Table of Contents
Related Manuals for XTS NVR4BU36KIT
Summary of Contents for XTS NVR4BU36KIT
-
Page 1: Safety Precautions
WWW.XTSCORP.COM NVR Quick Start 1. Statement: This manual supports XTS NVR models NVR4BU36KIT / NVR409 / NVR416 As product update, the NVR functions might be different from the manual showing, please follow the product that you purchased. 2. Safety Precautions Do not use wet hands or any damp objects to touch the power switch and network digital video recorder (NVR), in order to avoid electric shock. - Page 2 WWW.XTSCORP.COM NVR Quick Start 4.1 XTS current models rear panel Interface NVR4BU36KIT rear panel NVR409/NVR416 rear panel NVR432 rear panel...
- Page 3 WWW.XTSCORP.COM NVR Quick Start 5.1 Host Side Operation 5.1.1 Start System Plug power cable, press power switch, the power led will be on and the NVR will start. After booting, the video output default to multi-window output mode. If the booting time is within the record setting time-period, the system will auto enable the record function.
-
Page 4: Network Setting
WWW.XTSCORP.COM NVR Quick Start supply first. 5.2 Display Setting Click icon show the menu as the right side: 1 Resolution setting: the default resolution is 1024x768, please select the best resolution according the monitor stipulation or it will affect the image definition. There are 6 modes for this option. - Page 5 WWW.XTSCORP.COM NVR Quick Start Example: show as the above right picture, access NVR by IE in LAN, first add 2 forwarding rules in the router, the IP address is 192.168.1.188, the forwarding ports are 5050-5053, 80. Please input http://192.168.1.188:80 at IE browser and download ActiveX, then close the IE before install the ActiveX, after installing it successfully, then reopen IE with http://192.168.1.188:80, it will show login menu, input device port:5050, user name: admin, no password, can access NVR.
- Page 6 WWW.XTSCORP.COM NVR Quick Start 6.2.2 Automatic Search Right click to select IP channel Setting Auto If the IP camera has private protocol with NVR, NVR will assign IP address to the camera automatically, after finishing a search, the image will connect automatically. Camera IP addresses will be added automatically in the preview channel area.
-
Page 7: Manual Capture
WWW.XTSCORP.COM NVR Quick Start Magnifying glass: digital zooming, the red number in the middle is magnification number, click this icon, it can change to PTZ control 6.4 Manual Capture Right click to bring main menu, click Capture , it supports all channels manual capturing. - Page 8 WWW.XTSCORP.COM NVR Quick Start Notice: Attention: select mode according the connected IP camera channels and resolution, after changing the model,click save and reboot the device. When the image is good in 9/16/25/26 screen modes, after double click the image to zoom, if the image is stuck or becomes a black screen change to 1080 mode to solve it.
- Page 9 WWW.XTSCORP.COM NVR Quick Start corresponding channel will begin recording. 7.1.2 Schedule Record Right click to bring main menu, click Setting ChannelSchedule Record, the default setting is 24 hour recording, user can set the recording plan according to the necessity and copy it to the other channels Notice: If NVR stops recording in a regular time, please check schedule record status, the schedule might be keyed in wrong, please adjust them to manual record.
-
Page 10: Record Backup
WWW.XTSCORP.COM NVR Quick Start 7.2 Playback Right click to bring main menu, click playback to open the menu Channel Select: select the channels that need playback, system will find the required recording file. The recording date is highlighted in red color in calendar. Date Select: select the playback date. -
Page 11: File Manager
WWW.XTSCORP.COM NVR Quick Start play back recorded video first, then select the backup time and channel, insert the USB memory to backup. Insert a USB external storage device, click Refresh to detect USB devices. There are three backup file format: H.264, MP4, AVI. Recommended back up to MP4 format which can use document management to check the backup file, and computer player to play. - Page 12 WWW.XTSCORP.COM NVR Quick Start Except USB memory upgrade, it also supports upgrade by network. Note:when the NVR is upgrading,don’t perform any other operations or power off, otherwise NVR will fail to enter the system ,and have to send back to factory for repairing. After upgrading,the device need to be rebooted.
- Page 13 WWW.XTSCORP.COM NVR Quick Start 8.1.2 User Login 1 Enter the domain+colon+Http port . or enter the static IP +colon +http port . You can download and install IE ActiveX from NVR through the Internet. Then input the IP address of the NVR in the IE browser, port number 5050, user name and password, then the below interface will pop-up: 8.1.3 IE Operation The operation of IE is same as in the local NVR.
- Page 14 WWW.XTSCORP.COM NVR Quick Start 9.1.2 The Parameter Settings of the NVR Which Supports Mobile Surveillance Resolution: CIF or QCIF; Frame Rate: 5-10fps; Stream Type: Limited Stream: 64-256Kb/S Remark: you can adjust the settings according to the performance and network condition. Mobile phone with higher performance and network condition will display better effect.
- Page 15 WWW.XTSCORP.COM NVR Quick Start 3) Click login to access main interface. 9.1.5 Windows Mobile System Mobile client software supports 2003 windows mobile system versions and above. Currently it only supports touch screen version. Installation and Operation Instruction 1) The Installation is carried out by copying to phone with data cable via MEYE_WM.cab.
- Page 16 WWW.XTSCORP.COM NVR Quick Start Appendix: NVR Faults and Troubleshooting 1. Device Fails to Start or Restart Continuously 2. Failure to Use Remote Controller Possible Reasons: Possible Reasons: 1)NVR’s upgrading wrong program leads to the 1) Please check whether the batteries in damage of system software.
- Page 17 WWW.XTSCORP.COM NVR Quick Start 9. There is no sound when preview or playback the NVR, why? A. Check if there is an audio in your IPC: you can test it through IE or the built-in client or through computer. B. Wrong audio format: NVR only supports G711 audio compressed format. Please adjust your format through IE of the built-in client.
