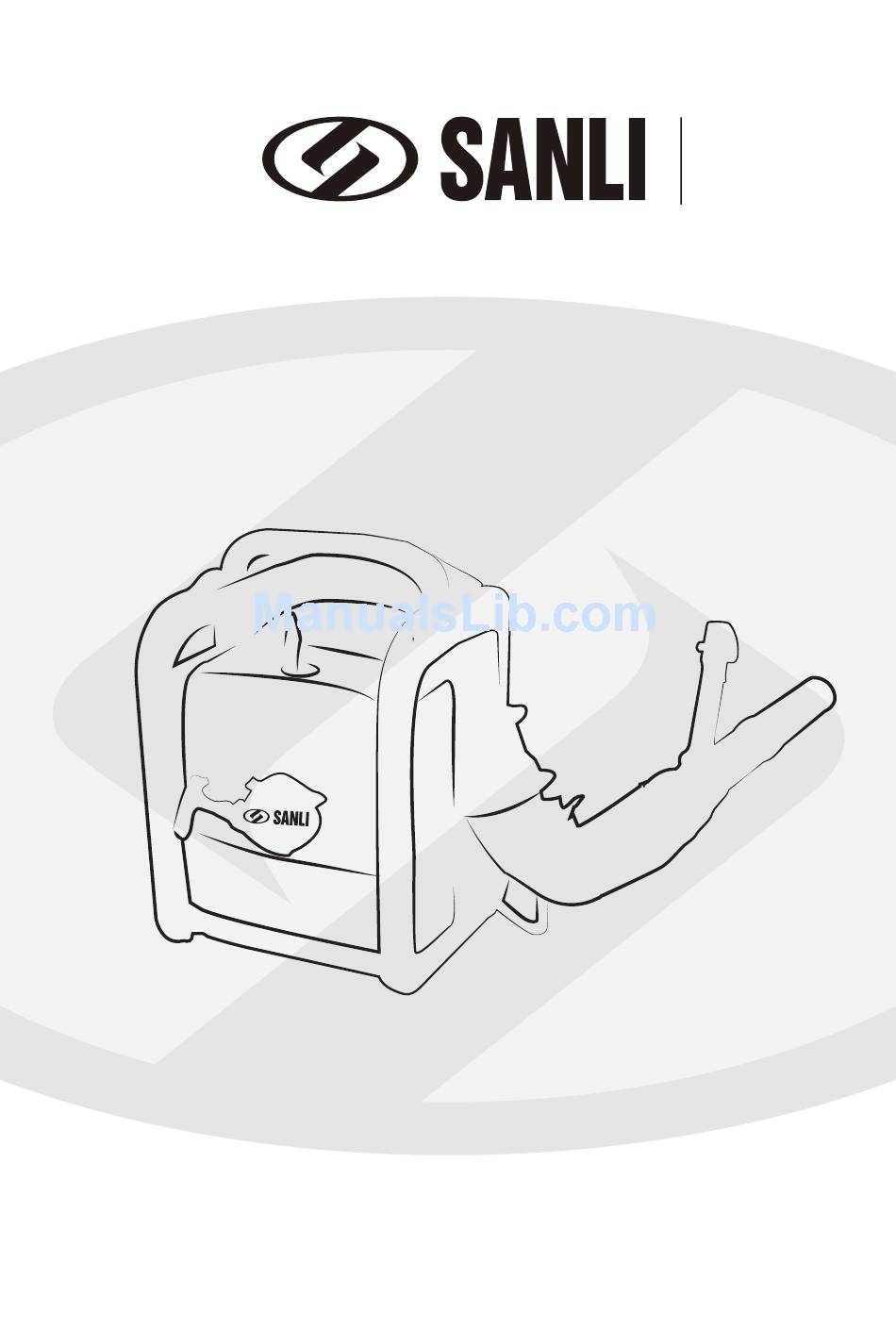

  • Page 1 BSB 60 Back-Pack Leaf Blower PLEASE KEEP THIS MANUAL IN A SAFE PLACE...

  • Page 2: Table Of Contents

    Contents 1. Guide to using this manual………………………………………..1 2. Safety precautions………………………………………………… .2 3. Maintenance and repair…………………………………………..6 4.Technical specifications…………………………………….…….…7 5. Parts list.…………………………………………………...….…..8 6. Assembling the unit……….………………………………..……..8 7. Fueling……………………………………………………..….…..9 8. Starting/Stopping…………………………………………….….…11 9. Operating instructions………………………………………….….13 10. After finishing work…………………………………………..….13 11.Storing the machine…………………………………………...…..15 12.Part pictures and lists……………………………………………..17 13.CE conformity……………………………………………………21 14.Notes……………………………………………………………...22 15.Warranty Card…………………………………………………….28...

  • Page 3: Guide To Using This Manual

    Guide to Using this Manual Pictograms All the pictograms attached to the machine are shown and explained in this manual. The operating and handling instructinns are supported by illustrations. Symbols in text The individual steps or procedures described in the manual may be marked in different ways: Step or procedure without direct reference to an illustration.
  • Page 4 Careless or improper use of any blower may cause serious or fatal injury. Have your dealer show you how to operate your blow et.Observe all applicable local safety regulatio- ns,standards and ordinances. Minors should never be allowed to use a blower. Bystanders, especially children, and animals should not be allowed in the area where a blower is in use.
  • Page 5 Always shut off the engine before fefueling. Gasoline is an extremely flammable fuel. Do not smoke or bring any fire or flame near the fuel. Do not fuel a hot engine - fuel may spill and cause a fire. Remove the fuel filler cap on the unit carefully so as to allow any pressure build-up in the tank to release slowly.
  • Page 6 During operation Warning! Your blower produces toxic exhaust fumes as soon as the engine is running. These gases (e.g. carbon monoxide ) may be colorless and odorless. To reduce the risk of serious or fatal injury from breathing toxic fumes, never run the blower indoors or in poorly ventilated locations. Ensure proper ventilation when working in trenches, hollows or other confined areas.

  • Page 7: Maintenance And Repair

    Hand protection (wearing warm gloves) breaks The period of usage is shortened by: Any personal tendency to suffer from poor circultaion (symptoms: frequently cold fingers, itching). Low outside temperatures. Gripping force (a tight grip hinders circulation). Continual and regular users should monitor closely the condition of their hands and fingers. If any of the above symptoms appear, seek medical advice.
  • Page 8 Mounting the spraying attachment Push the extension tube into the pleated hose as far as it will go. Rotate the tube to the left (counter-clockwise) as far as stop and leave it in that position until you have completed the following adjustments. Turn the control handle counterclockwise to the horizontal position.

  • Page 9: Fueling

    Fuel Your engine requires a mixture of gasoline and engine oil. The quality of these constituents and the mix ratio have a decisive influence on the function and scervice life of the engine. Loosening the harness straps Lift the tabs of the two sliding adjusters. Adjust the straps so that the backplate is held firmly and comfortably against your back.

  • Page 10: Starting/Stopping

    Before fueling, clean the filler cap and the area a around it to ensure that no dirt falls into the tank. Position the unit so that the filler cap is facing up. Take care not to spill fuel while fueling and do not overfill the tank. After fueling, tighten down filler cap by hand as securely as possible.
  • Page 11 Observe safety precautions - see chapter" Safety Precautions". Slide the stop switch (1) to ON Move the setting lever (2) to the center position - this is the starting throttle position Note: The setting lever can be used to select any throttle opening between idle speed (lower stop) and full throttle (upper stop).
  • Page 12 Guide it slowly back into the housing so that the starter rope can rewind properly. When engine begins to fire: If engine is cold: Turn choke knob to and continue cranking until engine runs. If engine is warm: Continue cranking until engine runs. As soon as engine runs: Move the setting lever (2) to the lower stop so that the engine settles down to idle speed.

  • Page 13: Operating Instructions

    Set the stop switch to OFF Open the throttle fully. Pull the starter rope several times to clear the combustion chamber. Fit the spark plug and reconnect the spark plug boot. Move the stop switch to ON Turn the choke knob to even if the engine is cold.
  • Page 14 Dirty air filers reduce engine power increase fuel consumption and make starting more difficult. If there is a noticeable loss of engine power Turn choke knob to Release the screws (1) and pull off the filter cover (2). Remove the filter from the cover and inspect it - if it is dirty or damaged, clean the filter or fit a new one.

  • Page 15: Checking The Spark Plug

    Fine Tuning for Operation at High Altitude A slight correction of the setting may be necessary if engine power is not satisfactory when operating at high altitude: check the standard setting. Warm up the engine. Turn the high speed screw (H) slightly clockwise (leaner). On models with limiter caps, turn high speed screw (H) 1/4 turn, but no further than stop.

  • Page 16: Engine Running Behavior

    If the spark plug comes with a detachable adapter nut (1), screw it on fi rm ly. On all spark plugs: Always press the boot (2) firmly on to the spark plug (3). Engine Running Behavior If engine running behavior is unsatisfactory even though the air filter is clean and the carburetor properly adjusted, the cause may be in the muffler.
  • Page 17 Remove the spring clip (3). Remove the rope rotor with washer (4) and pawl (5). Ease the cap (6) out of the starter grip. Remove remaining rope from the rotor and grip. Tie a simple overhand knot in the end of the new starter rope (see Specifications) and then thread the rope through the top of the grip and the rope bush (7).

  • Page 18: Storing The Machine

    Make a loop in the unwound starter rope and use it to turn the rope rotor six full revolutions in the direction of the arrow (see illustration). Hold the rotor steady -.straighten the twisted rope. Release the rotor and let go of rope slowly so that it winds onto the rotor.

  • Page 19: Minimize Wear And Avoid Damage

    Minimize Wear and Avoid Damage Observing the instructions in this manual helps reduce the risk of unnecessary wear and damage to the power tool. The power tool must be operated, maintained and stored with the due care and attention described in this owner's manual.

  • Page 20: Specifications

    Specifications Ignition System Single cylinder two-stroke engine Type: Electronic magneto ignition Displacement: 56.5 cm Bore: 46 mm Spark Plug (suppressed) BPMR 7 A Stroke: 34 mm Idle speed: 2.800 rpm Electrode gap: 0.5 mm Engine power: 2.5 kw Spark plug thread: M 14 x 1.25;...
  • Page 21 IE46F-3 GASOLINE ENGINE EXPLOSIVE PICTURE...
  • Page 22 1E46F-3 GASOLINE ENGINE Ser.No.Erp No. Part Name Ser.No. Erp N . Part Name Ser.N . Erp No. Part Name Ser.No.Erp No. Part Name 2903 2885 1173 STARTER CRANKCASE GASKET MUFFLER COMP SCREW M5*20 1-16 1-31 1-46 6083 2812 1167 2982 NUT M8 FRANT CRANKCASE SCREW...
  • Page 23 BSB60 EXPLOSIVE PICTURE OF FRAME AND SPRAYING...
  • Page 24 BSB 60 SPARE PARTS LIST OF IMPLEMENT PICTURE Ser.No. Erp No. Part Name Ser.No. Erp No. Part Name Ser.No. Erp No. Part Name Ser.No. Erp No. Part Name 2-16 2-31 2-46 1826 6982 7657 4419 BELT ASS'Y RIGHT FRAME LONG JOINT TUBE...

  • Page 25: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY Fujian Jinjiang Sanli Engine Co., Ltd. Declares that the following equipment manufactured by Fujian Jinjiang Sanli Engine Co., Ltd conforms to the following Directive(s):2000/14/EC,2006/42/EC,2004/108/EC and 97/68/EC of the European Parliament and of the council on the approximation of the laws of the Member States relating to the noise emission in the environment by equipment for use outdoors.

  • Page 26: Notes

    Notes...
  • Page 27 BSB 60...

  • Page 28: Warranty Card

    WARRANTY CARD REGISTER YOUR MACHINE TO VALIDATE YOUR WARRANTY. To validate your warranty, register your equipment with SANLI after its purchase by returning the warranty card provided at the back of the user's manual or on the website www.sanli.co.uk/register,www.sanli.fr,www.sanli.com.au Reference...
