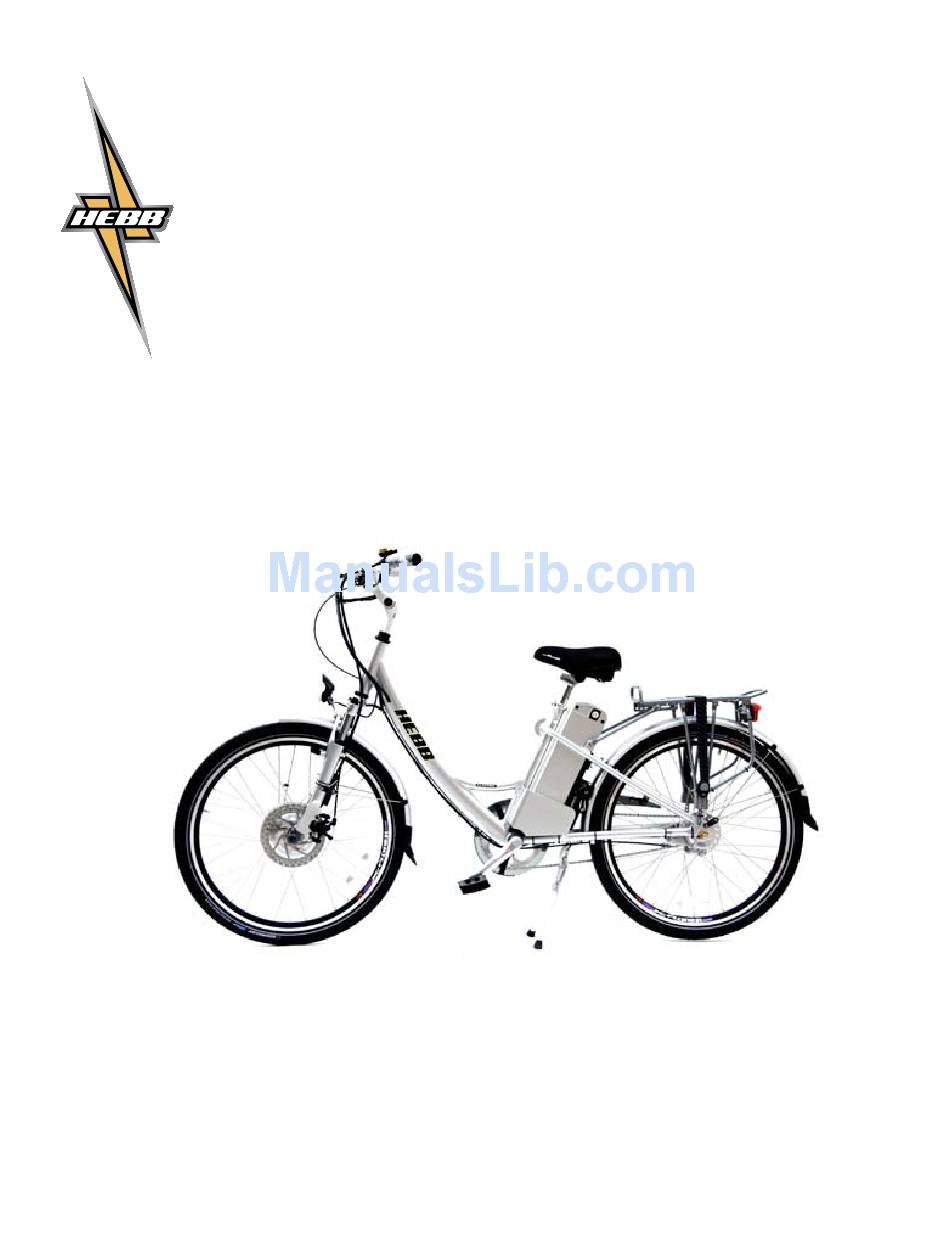

HEBB E-BIKES
ElectroGlide 1000
OWNER'S MANUAL
WARNING: Wear a helmet and safety equipment.
An unprotected head is highly susceptible to
Hebb E-Bikes
injury, even from the slightest contact, but wearing
www.hebbebikes.com
a helmet that meets CPSC or CE safety testing
standards may help prevent injury.
ph. (888) 454-4322
Advertisement
Table of Contents
Related Manuals for Hebb ElectroGlide 1000
Summary of Contents for Hebb ElectroGlide 1000
- Page 1 HEBB E-BIKES ElectroGlide 1000 OWNER’S MANUAL WARNING: Wear a helmet and safety equipment. An unprotected head is highly susceptible to Hebb E-Bikes injury, even from the slightest contact, but wearing www.hebbebikes.com a helmet that meets CPSC or CE safety testing standards may help prevent injury.
-
Page 2: Table Of Contents
Contents Thank You ........................2 Warranty..........................3 Regulations and Technical data ..................4 Parts Identification ......................5 Unpacking ........................6 Battery Charging and Care ....................7 Assembly........................,.9 Using your Hebb Electric Bike ..................14 Maintenance .........................18 Troubleshooting......................19 Contact us........................20... -
Page 3: Thank You
Making it by far the most efficient vehicle ever made. While the Hebb pledge to quality means our components are high value and reliable, it’s your part to understand safety implications and the possible risks of cycling. So please take some time and read this manual. -
Page 4: Warranty
Warranty How the warranty applies As the makers, we warranty against possible material or construction defects, provided the following conditions are satisfied : • Proof of purchase. The warranty starts on the date of purchase. • Only the first owner is entitled to the warranty. •... -
Page 5: Regulations And Technical Data
Technical Data for the ElectroGlide 1000 Motor 500 watt electric brushless motor with planetary gears Battery Pack Lithium polymer with battery management system 37V 14Ah; weight 9 pounds Optional battery is 37V 10Ah; weight 7 pounds Low voltage protection 31.5V... -
Page 6: Parts Identification
Parts Identifcation Sprint Parts Identifcation 26 27 28 29 30 31 32 33 34 35 36 37 21 20 19 18 17 16 15 14 13 12 11 10 Brake cables Chainguard Front LED lighting Shimano roller brakes Mudguards Shimano Nexus Internal gears V-Brakes Tensioning bolt and plate 1 Brake cables... -
Page 7: Unpacking
1 - Battery charger and cord 2 - 30 Amp fuses 4 - Hex keys - 2mm, 4mm, 5mm, 6 mm 1 - Hebb owner’s manual 1 - Shimano gear and brakes manual 1 - Cateye digital computer manual 1 - Disk brake manual Various nylon ties and heat shrink tubes •... -
Page 8: Battery Charging And Care
4. The battery may be also charged on the bicycle, do make sure that the bicycle is switched off. Do not charge the battery in wet conditions. 5. If the battery refuses to accept a charge, refer your Hebb dealer or call 888-454- 4322 for more information and technical assistance. - Page 9 Battery Care 6. Although there is no danger of over-charging, we advise that you disconnect the battery and switch the charger off when the charging process is completed. 7. Although batteries can be stored on the bike in the garage or a good weather- enclosed storage area, it is recommended that the batteries not be stored for extended periods of time at a temperature of over 80F or below freezing.
-
Page 10: Assembly
Assembly Tools Required: You receive with your bike four (4) hex wrenches, 2mm, 4mm, 5mm, and 6mm. You will also need an adjustable wrench and a slotted head screwdriver. 1. Pedals are marked “L” and “R” for left and right respectively. Screw in clockwise for the “R”... - Page 11 Assembly 4. If necessary, adjust left and right brake levers and tighten using 5mm wrench. 5. The Cateye computer is set to metric system. If you wish to change to miles, do the following: a. Remove the Cateye Computer from the bike by pressing on the lever below the computer and sliding out the computer.
- Page 12 Assembly b. Press the front button and using a pencil or pen, press the gray button on the back. b. Kmh (kilometers per hour) will flash on the screen. To change to miles per hour, press the front button and mph will be displayed. Press the gray button on the back.
- Page 13 Assembly c. 26” will be flashing. This is to adjust the tire size. Since the bike has 26” tires, accept this reading by pressing the gray button on the back. d. Press the front button three (3) times until time is displayed. Press the gray button on the back and the hour will blink.
- Page 14 Assembly 8. If you wish to change the angle of the front stem, you can adjust it by loosening the adjustment screw with a 5mm wrench, and re-tighten after adjustment. Seat Post Do not adjust the seat post beyond its maximum extension mark. Always keep a minimum of 3 1/2”...
- Page 15 Assembly Battery (Note: Make sure the battery is fully charged before the first use): Insert key into keyhole and turn the key counter clockwise while pressing in, so that the battery holder is in the open, unlocked position. Release the catch located on the underside of the seat saddle to flip up the seat.
-
Page 16: Using Your Hebb Electric Bike
Using Your Hebb Electric Bike Usage The Hebb E-Bike is best described as an urban bike and is best suited for usage in an urban environment and paved roads. While cycling, it is your responsibility to be attentive of your surroundings and traffic rules. - Page 17 Using Your Hebb ElectroGlide 1000 Bike Turn the key to the “On” position. During power on, the information panel will do an initialization with all the lights displaying for two seconds before entering normal operation. If all the LEDs fail to light up, there is a fault in the information panel.
- Page 18 Using Your Hebb Electric Bike If you have little experience with bicycle maintenance, we recommend you Your first ride Before you wheel your bike out into traffic, we recommend you practice handling the bike in a safe area, with the power setting at zero. After you are comfortable with the operation of the bike, set the power setting at one. Keep in mind that with the power setting at one, the throttle can still be used at full power, so be careful using the throttle.
-
Page 19: Maintenance
Maintaining your bicycle ensures you’ll get the most out of every ride and out of the entire life of your Hebb bike. How much of your bike’s maintenance you can do yourself will depend on your knowledge, skill, experience and whether you have the necessary tools for the job. -
Page 20: Troubleshooting
Troubleshooting This manual simply cannot cover every detail that might occur during the lifetime of your product. A more detailed repair manual is found on our web site at www.hebbebikes.com. Every 10 hours of riding: Clean the bike, including chain rings and sprocket.
