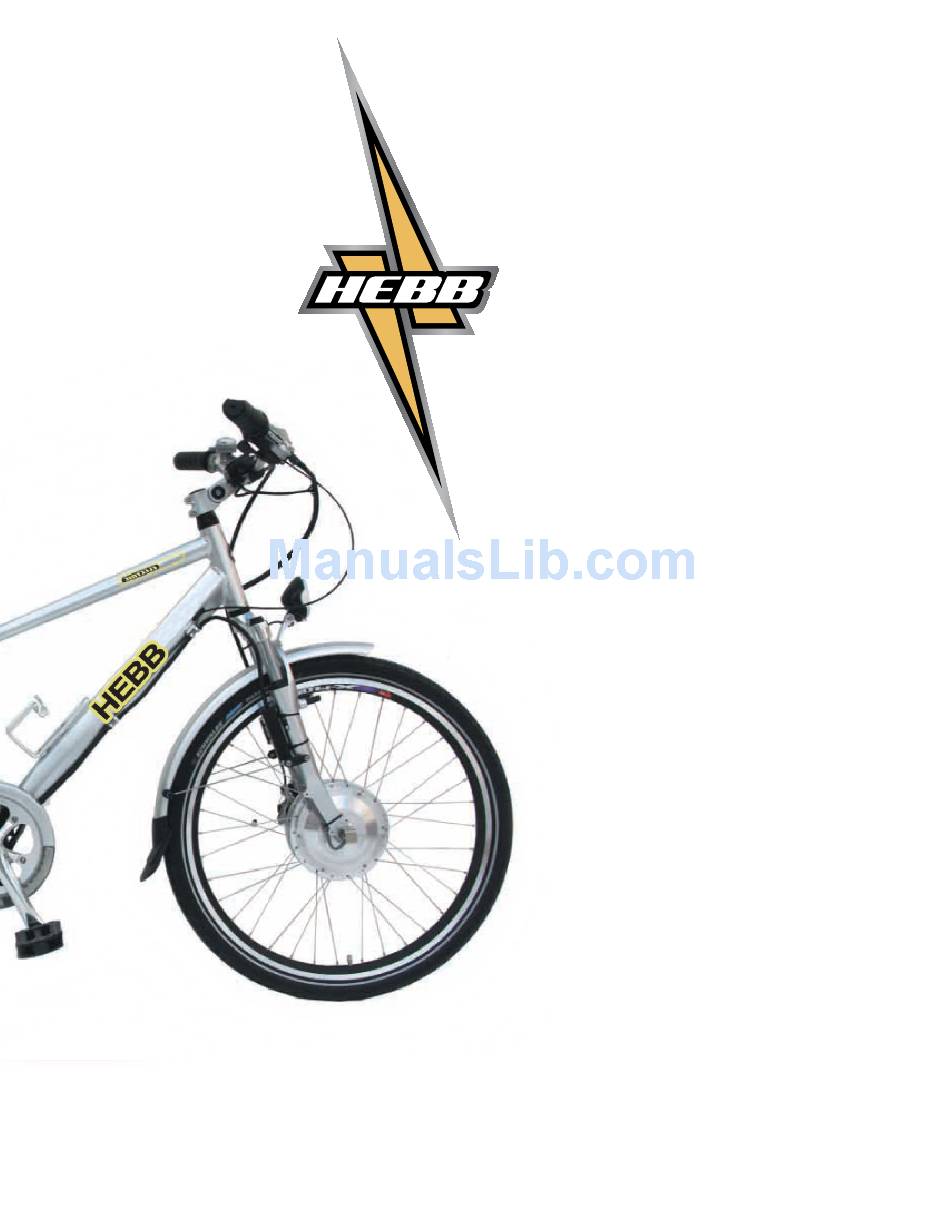

- Page 1 Model 500 USER MANUAL Hebb E-Bikes P.O. Box 133096 Tyler, TX 75713 Bill.Hebb@HebbEbikes.com www.HebbEbikes.com...
-
Page 2: Table Of Contents
Warranty ..................3 Regulations and Technical data ............4 Parts Identification ................5 Unpacking ..................6 Battery charging and Care .............. 7 Assembly..................10 Checklist ..................13 How the Hebb E-Bike works ............14 Maintenance .................. 16 Troubleshooting ................18 Contact us ..................20... -
Page 3: Welcome
Making it by far the most efficient vehicle ever made. While the Hebb pledge to quality means our components are high value and reliable, it’s your part to understand safety implications and the possible risks of cycling. -
Page 4: Warranty
Warranty How the warranty applies As the makers, we warranty against possible material or construction defects, provided the following conditions are satisfied : • Proof of purchase. The warranty starts on the date of purchase. • Only the first owner is entitled to the warranty. •... -
Page 5: Regulations And Technical Data
Regulations Technical Data USA regulations allow a power assisted maximum speed of 20 mph. Hebb E-Bikes made for the USA have a motor speed of 250 rpm for a 20 mph top speed and a maximum rated power of 700 watts. The power assist utilizing a throttle can function without the aid of pedaling, however there’s nothing to stop you from doing so. -
Page 6: Parts Identification
Model 500 Parts Identifcation Sprint Parts Identifcation 26 27 28 29 30 31 32 33 34 35 36 37 21 20 19 18 17 16 15 14 13 12 11 10 Brake cables Chainguard Front LED lighting Shimano roller brakes... -
Page 7: Unpacking
Discard box and packaging material only. Dispose responsibly, recycle when possible. This box should contain the Hebb Model 500 bicycle! • An accessory box included and contains: a. 3 Ignition keys b. -
Page 8: Battery Charging And Care
Battery Charging Model 500 Model 500 Model 500 Battery Charging Battery Charging Unpacking Unpacking Check the indicator lights on the front of the charger. and Care Before your first ride, the battery needs charging. Bring it to a light indicates that the charger is connected and wall socket. - Page 9 It’s important that to follow this sequence of actions everytime you dition, the Li Ion battery will perform 500 charge cycles, with a retention of 70% from its charge the battery. Please use only the Li ion charger as provided.
- Page 10 Model 500 Model 500 Model 500 Battery Charging Unpacking Unpacking Sometimes after temporary disconnection, the charging status light may give a false green reading. To verify that your battery is fully charged, switch the charger off, wait for the charger lights to go out and switch it back on again. The charging status light should quickly return from amber to green when the battery is fully charged.
-
Page 11: Assembly
Model 500 Model 500 Model 500 Assembly Unpacking Unpacking Sprint Assembly Tools required • Allen / Hex key metric set • Open-end flat wrenches 6mm - 17mm Tools required Tools are the first step to proper assembly, you will need a Seat post Insert into the seat tube of the bicycle frame and align. - Page 12 Model 500 Model 500 Model 500 Assembly Unpacking Unpacking Front Fender The supports are attached to the sides and top of the front fork. The fenders are made of poly carbonate and should not rattle when they’re securely fastened. Brakes One of the most important safety features on the bicycle is the brakes. To minimize the risk of injury, it’s vital to ensure they are correctly adjusted.
- Page 13 Model 500 Model 500 Model 500 Assembly Unpacking Unpacking Battery (Note: Make sure the battery is fully charged before the first use): Insert key into keyhole located by the controller box and turn key counter clockwise while pressing it in, so that it arrives in the open, unlocked position.
-
Page 14: Checklist
Unpacking Unpacking Usage The Hebb 500 is best described as an urban bike and is best suited for usage in an urban environment and paved roads. While cycling, it is your responsibility to be attentive of your environment and traffic rules. -
Page 15: How The Hebb E-Bike Works
Model 500 Model 500 How the Hebb E-Bike Works Unpacking Unpacking Your first ride Before you wheel your bike out into the world, we recommend you practice handling the bike in a safe area away from obstructions and traffic. The motor may look small, but it’s powerful! You’ll be riding faster than you think. - Page 16 E-Bike Works Unpacking Unpacking Lighting system Hebb bikes features wide angle high performance reflectors at the front, sides and rear. Front and rear LED lights are powered by the main battery; electrical consumption is negligible, be safe, use them often.
-
Page 17: Maintenance
Maintaining your bicycle ensures you’ll get the most out of every ride and out of the entire life of your Hebb bike. How much of your bike’s maintenance you can do yourself will depend on your knowledge, skill, experience and whether you have the necessary tools for the job. - Page 18 Model 500 Model 500 Maintenance Unpacking Unpacking Repairing a punctured tire If you have a punctured tire, we recommend that you get a bike dealer to repair the tire. You can always, of course, carry out the repairs on your own. As there are no electronic components on the rear wheel, follow standard procedures as with normal bicycles with internal gears.
-
Page 19: Troubleshooting
Model 500 Model 500 Troubleshooting Unpacking Unpacking Troubleshooting Electronic self-diagnostic system Electronic self-diagnostic system When the bicycle is functioning normally, the red LED that is situated by the con- When the bicycle is functioning normally, the red LED that is troller is lit continually. - Page 20 The faults listed may not cover every possible failure. In the event of moisture or water entering the controller, haphazard signals might appear. We’ve designed the Hebb E-Bike to repel water as much as possible, encapsulating circuit boards with silicone resins and connections with silicone grease.
-
Page 21: Contact Us
As people all around the world have begun to realize how easy and beneficial it is to ride our electric bike. At Hebb, our mission is simple - to continue to make the best electric. We’re on the constant lookout for ways to evolve our bikes, to find methods and adapt solutions for our bikes to enrich lives everywhere.
