Summary of Contents for Indesit FIU20

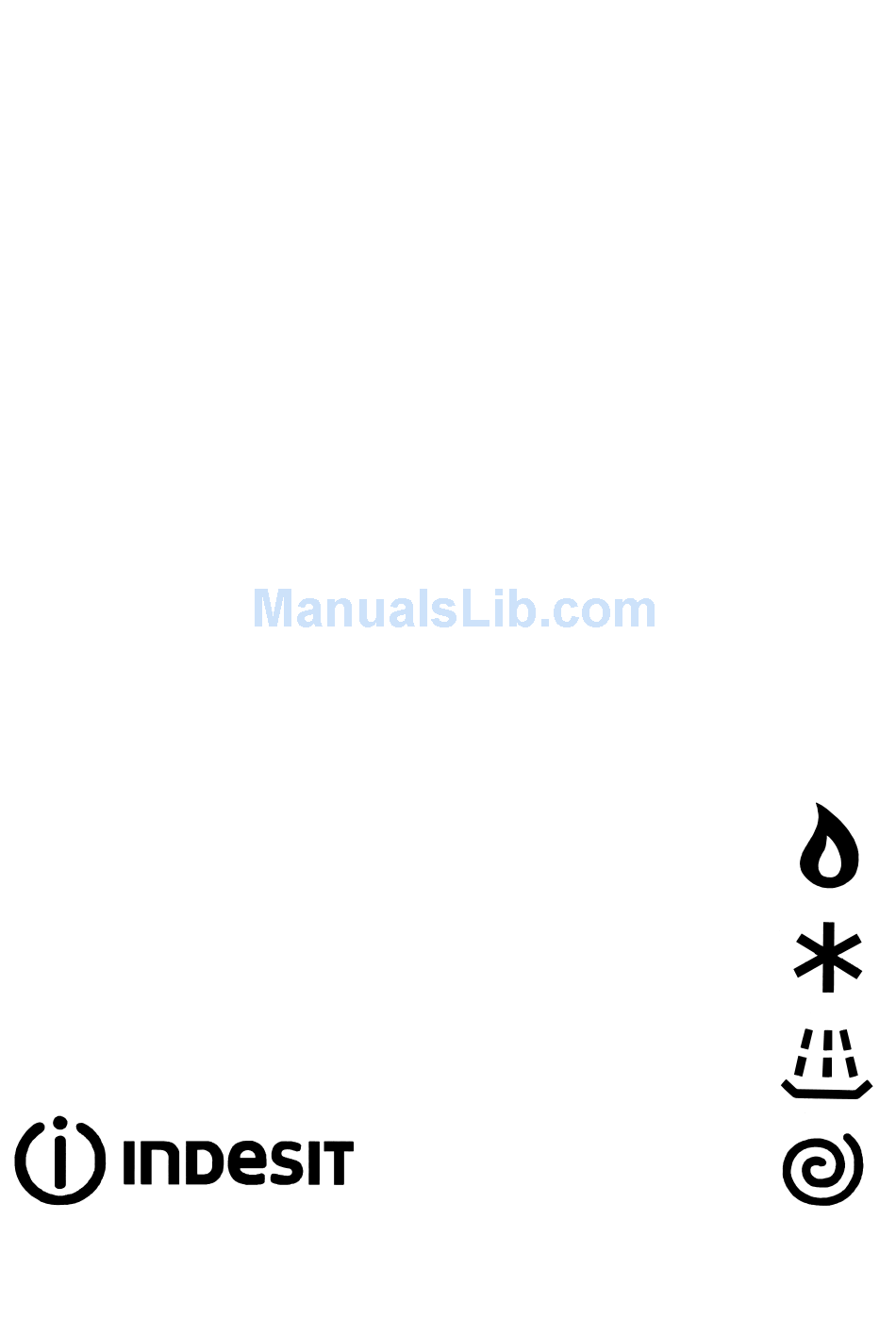

- Page 1 Electric built in Double oven Instructions for installation and use FIU20...
-
Page 3: Table Of Contents
Grill Pan and Handle Operation when using Top Oven for Grilling Using the Top Oven as a Convection Oven Operation when using the Top Oven as a Convection Oven Using the Main Oven for Fan Cooking Using the Main Oven for other Functions... -
Page 4: Introduction
To help remove the ‘new’ smell, heat up the empty ovens to maximum temperature for a minimum of two or three hours, keeping the oven doors closed. Ensure that the room is well ventilated (e.g. open a window or use an extractor fan) and that persons who may be sensitive to the odour avoid any fumes. -
Page 5: Safety Information
Always make sure all controls are turned off when you have finished cooking and when not in use. Always stand back when opening an oven door to allow any build up of steam or heat to disperse. Always use dry, good quality oven gloves when removing items from the oven/grill. - Page 6 Never allow anyone to sit or stand on any part of the appliance. Never store items above the appliance that children may attempt to reach. Never remove the oven shelves whilst the oven is hot. Never heat up unopened food containers as pressure can build up causing the container to burst.
-
Page 7: Features
Features WARNING: Do not touch the glass doors when the oven is in use as these areas can become hot. TOP OVEN TEMPERATURE & GRILL MAIN OVEN TEMPERATURE SELECTION CONTROL & FUNCTION CONTROL TIMER GRILL SETTING CONTROL GRILL ELEMENT CATALYTIC... -
Page 8: Controls
The heating element and fan oven will not operate until the oven door is closed. Note: It is advisable to check that all oven controls have been switched off when you have TIMER Description... -
Page 9: Oven Timer Operation
5. If cooking food that requires frying before placing in the oven for auto cooking, keep the delay start time to a minimum. 6. Never place hot or warm food in the oven for delay start cooking as it could cause the oven to be warm and produce harmful bacteria in the food. -
Page 10: Know Your Timer
For Example: If you set a “Cook Period” for 2 hours, and “End Time” of 11:00. The timer will switch the oven(s) on at 9:00 and turn the oven(s) off at 11:00. You will hear a audible tone at 11:00, to indicate that the Auto Cooking Programme has finished. -
Page 11: Setting The Time Of Day
Electronic Clock and Automatic Oven Timer Operation SETTING THE TIME OF DAY Step 1 Make sure all oven controls are turned Off. Step 2 Check the electricity supply to the cooker is turned on. Step 3 When switched on the display will show 0.00 and the Auto symbol, Step 4 Press &... -
Page 12: Auto Cooking Programmes
(b) To set timer to switch on immediately and OFF automatically after a set cook period. a) TO SET THE TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY This allows you to cook at a specified time for a chosen period before the oven switches off Automatically. - Page 13 Check that the correct time of day is set, if not follow instructions for setting the time of day. Step 2 Place food onto the correct shelf position in the oven and close the oven door(s). Step 3 Turn the oven control(s) to the required temperature, and if necessary select the appropriate oven function.
- Page 14 5. If at any time the display shows three flashing zero’s 0.00 and ‘Auto’ , it is likely that the electricity supply to the oven has been interrupted. Reset the timer to the correct time of day. Food in the oven may, therefore, not have been cooked, before serving check food is thoroughly heated and completely cooked.
-
Page 15: Grill Pan And Handle
If a detachable handle is required, do not replace the screw and washers. Note: If a fixed handle is required, the grill pan cannot be kept in the main oven with the door closed but may be stored in the top oven with the door closed, when the top oven is not in use.. -
Page 16: Operation When Using The Top Oven For Grilling
Step 2 Turn knob (B) clockwise to select grill function setting: Set to: Note: As you turn past the end of the oven temperature scale, you will feel resistance on the knob - continue turning clockwise until the grill setting position is selected. -
Page 17: Using The Top Oven As A Convection Oven
WARNING: Items stored in the top oven will get hot when the main oven is in use. DO NOT allow young children near to the appliance when the top oven is in use as the C. It may also be necessary to increase... -
Page 18: Operation When Using The Top Oven As A Convection Oven
Top Oven Utensils Do Not use: Meat Pans and Baking Trays larger than – 225mm x 300mm (9”x12”) DO NOT use the grill pan or main oven meat pan as a meat pan in the top oven, as TIMER AND GRILL SELECT... -
Page 19: Using The Main Oven For Fan Cooking
Baking trays should have an even gap around the oven. -
Page 20: Using The Main Oven For Other Functions
(allowing 5-6 hours per lb.) or at room temperature (allowing 2-3 hours per lb.). Frozen meat or poultry must be completely defrosted before cooking in the oven. However, to decrease the amount of time required to defrost food items, a non-heating fan only setting may be selected for the main oven only. -
Page 21: Temperature Conversion Chart
2. Always thaw frozen food completely in the refrigerator before re-heating. 3. Always reheat food thoroughly and ensure it is piping hot before serving. 4. Only reheat food once. MAIN CONVENTIONAL CONVENTIONAL OVEN ˚C MAIN OVEN OVEN ˚C ˚C... -
Page 24: Oven Temperature Charts
Remember to reduce cooking temperatures by 10˚C from standard recipes when using the top oven. Ensure that the cooking utensil used in the top oven is not larger than 300mm x 225mm (12"x 9"), e.g. Do Not use the main oven meat pan. -
Page 25: Care And Cleaning
AND REAR PANEL DO NOT use biological washing powder, harsh abrasives or chemical oven cleaners of any kind as this could damage the oven liners. The surfaces of the oven liners are treated with a special vitreous enamel which absorbs cooking soils. - Page 26 MAIN OVEN BASE (a) Base & Rear of Top Oven and Base of Main Oven. Wipe out the oven with a damp soapy cloth. For more stubborn stains on the base of the oven use a well soaped fine steel wool soap pad.
- Page 27 Open the oven door and remove the oven shelves. Using a thick cloth, grip the lamp lens, unscrew anti- clockwise and remove the lens.
- Page 28 INNER PANEL Fig. 4 1. Position top or main oven door as shown in fig. 1. Note: The door can be wedged open using a towel between the door and the side trim thus leaving your hands free. 2. Grip inner door panel and handle/outer glass assembly.
-
Page 29: Installation
Installation Electrical Requirements For your own safety, we recommend that your cooker is installed by a competent person such as one who is registered with NICEIC (National Inspection Council for Electrical Installation Contracting). The cooker should be installed in accordance with the latest edition of the IEE Regulations. -
Page 30: Final Installation
Then lock the feet into position by tightening the locking nut using an open ended spanner. h. Open the top oven door and fix the cooker to the brackets through the holes in the side trims. Fix the plinth in position. -
Page 31: Tall Cabinet Ventilation
Tall Cabinet Ventilation Ventilation Slot required here if cabinet does not fit to ceiling -51mm x 457mm min. area Ventilation Slot required here if the cabinet does fit to the ceiling - 51mm x 457mm min. 50mm area Air Gap 50mm Air Gap Ventilation Slot... - Page 32 Installation 597mm min 720mm min 565mm 150mm Min 170mm Max A minimum distance of 25mm should be maintained between the front face of the cabinet side and the front face of the plinth.
-
Page 33: Something Wrong
(a) Check If you find :- Display is blank. Then it is likely that there is no electricity supply to your oven. Check: That the main cooker wall switch is turned on. (ii) Check other appliances to see if you have a power cut. -
Page 34: If It Still Won't Work
If It Still Won’t Work... Contact the Service Office ( If something is still wrong with your appliance after you have been through the ‘Something Wrong’ list: 1. Switch off and unplug the appliance from the mains. 2. Call your nearest Service Office or local importer. When you contact us we will want to know the following: 1. -
Page 36: Key Contacts
Repair Service and Information Help Desk Note: Our operators will require the following information: Indesit Company UK Limited, Morley Way, Peterborough, PE2 9JB PRINTED BY SIMLEX . FOUR ASHES, WOLVERHAMPTON. Key Contacts...
