EMU 2012 Mini Owner's Manual

Electric multi use trike
Hide thumbs
Table of Contents

Advertisement

Quick Links

BEING GREEN HAS NEVER LOOKED SO COOL!
EMU Trike
E
M
U
lectric
ulti
se Trike
Owners
Manual
2012-2013
Models – EMU-Mini & EMU-Max
American Scooter Company, L.L.C.
Please note that due to continuing improvements to our products and services, pictures
and/or descriptions may differ from the model and/or parts depicted in this manual.
READ THIS MANUAL COMPLETELY BEFORE ASSEMBLING
AND RIDING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2012 Mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMU 2012 Mini

Summary of Contents for EMU 2012 Mini

  • Page 1: Front Cover

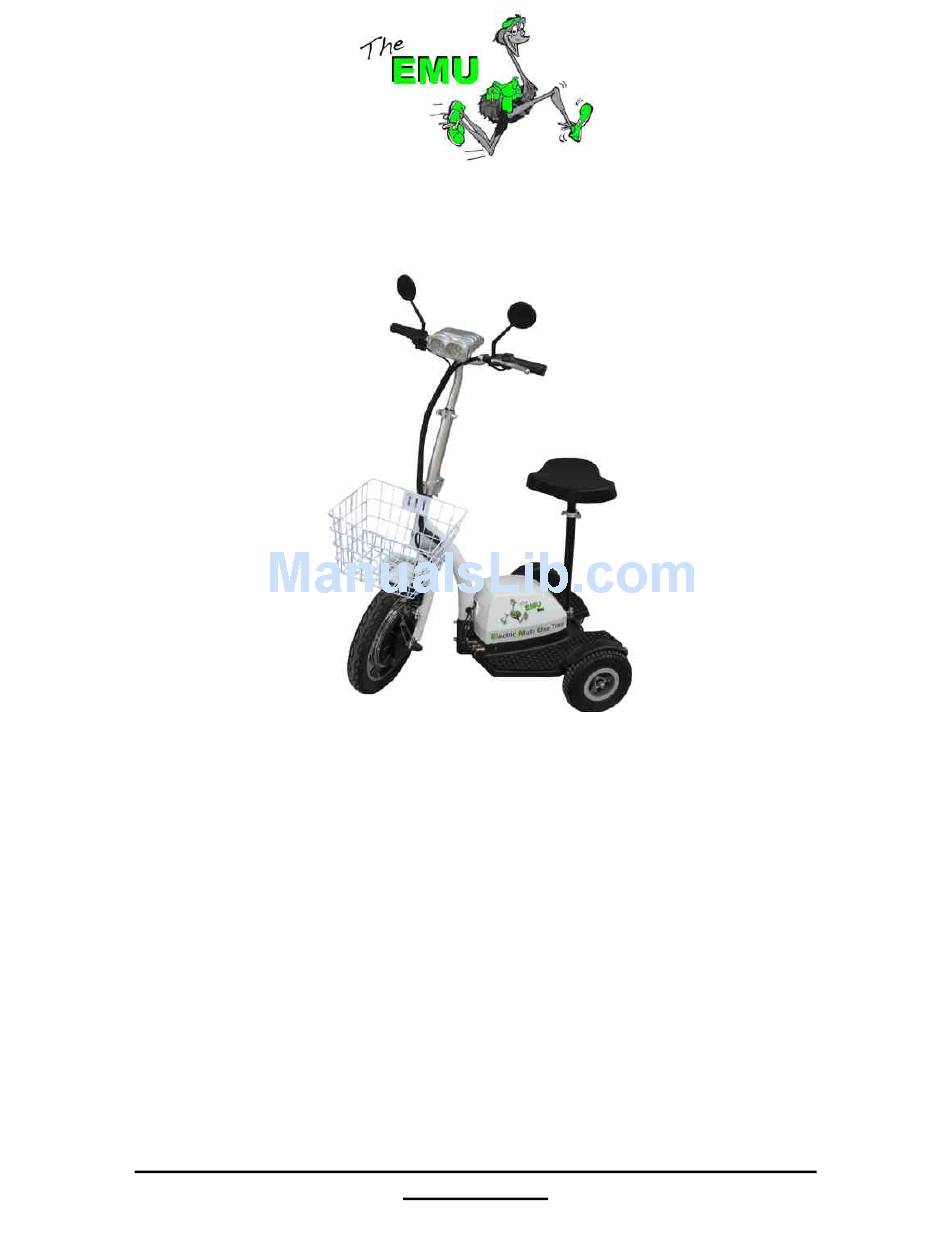

    Trike Owners Manual 2012-2013 Models – EMU-Mini & EMU-Max American Scooter Company, L.L.C. Please note that due to continuing improvements to our products and services, pictures and/or descriptions may differ from the model and/or parts depicted in this manual.

  • Page 2: Table Of Contents

    Table of Contents Front Cover-----------------------------------1 Table of Contents---------------------------2 Technical Information----------------------3 Warning Statement-------------------------4 Safety Warning------------------------------5 EMU Parts List-------------------------------6 Tool Kit & Assembly------------------------7 Installing the Handlebar-------------------9 Connecting Electric Plugs----------------10 Removal of Battery Cover---------------11 Battery Connection------------------------12 Folding the Handlebar--------------------13 Installing Basket----------------------------14 Charging Batteries-------------------------15...

  • Page 3: Technical Information

    Technical Information Type of Motor 48V Permanent Magnet Brushless DC Motor Motor Power 350W (Mini) 500W (Max) Battery Type Sealed Lead Acid Batteries (Mini) x 4 Lithium Batteries (Max) Battery 14AH 48V Charger UL Approved 110v Charging Time 4-8 hours Rated Speed (2 speed) Mini 0-5mph &...

  • Page 4: Warning Statement

    EMU trike of electric vehicles. You should contact your insurance company to confirm if coverage is provided. Please do not ride your EMU until you have read this owners manual completely and you fully understand all its contents. This manual contains critical information for your safety.

  • Page 5: Safety Warning

    Before riding your EMU please read and be sure you understand this manual completely. The EMU is not a toy and should always be operated in a safe manner. American Scooter Company will not be liable for any damages or injuries to any person.

  • Page 6: Emu Parts List

    EMU Parts List 1. Front(Wheel( 11. Green(Button(for(Horn( 2. Drum(Brake( 12. Handlebar(height(adjustment( 3. Electric(motor( 13. Power(Indicator((pod)( 4. Headlight((pod)( 14. Seat(Post((Optional)( 5. Front(fork( 15. Seat(Height(Adjustment( 6. Basket((optional)( 16. Handbrake( 7. Folding(Handlebar(Connection( 17. Safety(Wheels( 8. Ignition(Key((pod)( 18. Rear(Wheels( 9. Throttle( 19. Battery(Cover( 10. (Headlight(Switch( 20.

  • Page 7: Tool Kit & Assembly

    Tool Kit Charger Tool Kit Assembling the EMU 1/ Unpack the E.M.U. and inspect all the parts to insure all are included. Please contact your E.M.U. dealer immediately if any parts are missing or damaged when shipped. Place your E.M.U. on a flat, clean surface.
  • Page 8 2/ Remove the bolts and nuts from the connecting tube clamp (B). place the connecting tube into the top opening (A). Align the bolt holes. 3/ Slide the two bolts (1) through the holes connecting tube and neck. Twist the bolts, do not hammer them through.

  • Page 9: Installing The Handlebar

    Installing the Handlebar Extend the handlebar tube to full upright position and insert it into the connection hole on the front forks. 6/ Ensure the handlebars are facing front with the brake on the left and the throttle on the right, then tighten the handle bar hex bolt securely.

  • Page 10: Connecting Electric Plugs

    Connecting the Electrical power plugs 6/ Make sure you connect the 4 the connectors to the right outlets. You will damage your emu electrics if you connect them wrong. All connectors are color-coded. 7/ Match the pins of the plugs to the holes of the sockets, align the notches and secure.

  • Page 11: Removal Of Battery Cover

    Removal of Battery Cover (service only) Undo the 4 screws (one on each side of the cover and 2 on the back). Gently pull the cover upwards to remove. Reverse operation 1 & 2 to re-install cover. Be careful not to trap wires when putting the cover back on.

  • Page 12: Battery Connection

    Page 12...

  • Page 13: Folding The Handlebar

    Note the handlebar remain attached to pole. Fold down handlebars. Carefully place the handlebar tube on the footrest frame. Reverse this procedure to re-attach handlebar. Picture of EMU handlebar folded. Note arrow show the direction they fold. Page 13...

  • Page 14: Installing Basket

    Installing the Basket Position the basket as shown. The “U” Bracket attaches to both sides of the forks, in the middle of the three holes. Attach the basket to the “U” bracket using the included hardware. Attach the back of the basket to the mounting bracket using the included hardware.

  • Page 15: Charging Batteries

    Charging the Batteries Before riding your EMU for the first time, the unit should be fully charged. Ride your EMU until the battery is fully discharged before recharging it. Doing this 3-5 times will insure maximum battery efficiency and scooter performance. Once this has been done, for best results.

  • Page 16: Riding Your Emu

    Riding your EMU Always wear a helmet when riding the EMU If you are using your EMU outdoors please be aware of all state and local laws governing the use of such vehicles. State and local ordinances may vary and it is your responsibility to make sure you comply with all applicable laws.
  • Page 17 To stop your E.M.U., disengage the throttle and apply pressure to the handbrake. Beware the brake is very sensitive. When the brake is applied this kills the power to the throttle If you are parking your scooter on an incline, engage the handy parking brake by tightly holding the hand brake and pushing the black parking brake paddle towards you.

  • Page 18: Remote Key Fob

    Page 18...

  • Page 19: Adjusting Brakes

    Adjusting Brakes In order to adjust the sensitivity of the hand brake, either tighten or loosen the wire shown on the left. First loosen the nut and then push the wire back toward the brake to lessen sensitivity, or pull the wire to increase sensitivity.

  • Page 20: Maintenance

    Maintenance Your EMU requires minimum maintenance to give you years of service. Always follow these simple procedures before your ride. • Make sure battery is fully charged. • Never leave battery uncharged for more than 30 days, as this will negatively impact performance and battery lifespan.

  • Page 21: Trouble Shooting

    Contact your EMU dealer. EMU will not recharge within 10 hours. Check connector is correctly inserted into back of your EMU. Check power to outlet. Battery may be malfunctioning. Contact your EMU dealer. Page 21...

  • Page 22: Warranty

    EMU owners manual. This warranty does not apply to any damage to the EMU trike that is the result of improper maintenance or to any EMU trike that has been altered or modified so as to adversely affect the products operation, or performance or durability or that has been altered or modified to change its intended use.
  • Page 23 EMU. This warranty is void if the EMU is sold to a third party. Some states do not allow limitations on how long an implied Warranty lasts, so the above limitation may not apply to you.

This manual is also suitable for:

2012 max2013 mini2013 max
