EMU Trike MAX Owner's Manual

Electric multi use trike
Hide thumbs
Table of Contents

Advertisement

Quick Links

BEING GREEN HAS NEVER LOOKED SO COOL!
American Scooter Company
EMU Trike
™
E
M
U
lectric
ulti
se Trike
Owners
Manual
2013-2014
Models – EMU-Max
American
Scooter
Company
EMU
Trikes™
LLC,
Please note that due to continuing improvements to our products and services, pictures
and/or descriptions may differ from the model and/or parts depicted in this manual.
READ THIS MANUAL COMPLETELY BEFORE ASSEMBLING AND RIDING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trike MAX and is the answer not in the manual?

Questions and answers

Janine mcfarland
May 1, 2025

What is the wiring for the controller what are the wires and where do they go to

0

Related Manuals for EMU Trike MAX

Summary of Contents for EMU Trike MAX

  • Page 1: Front Cover

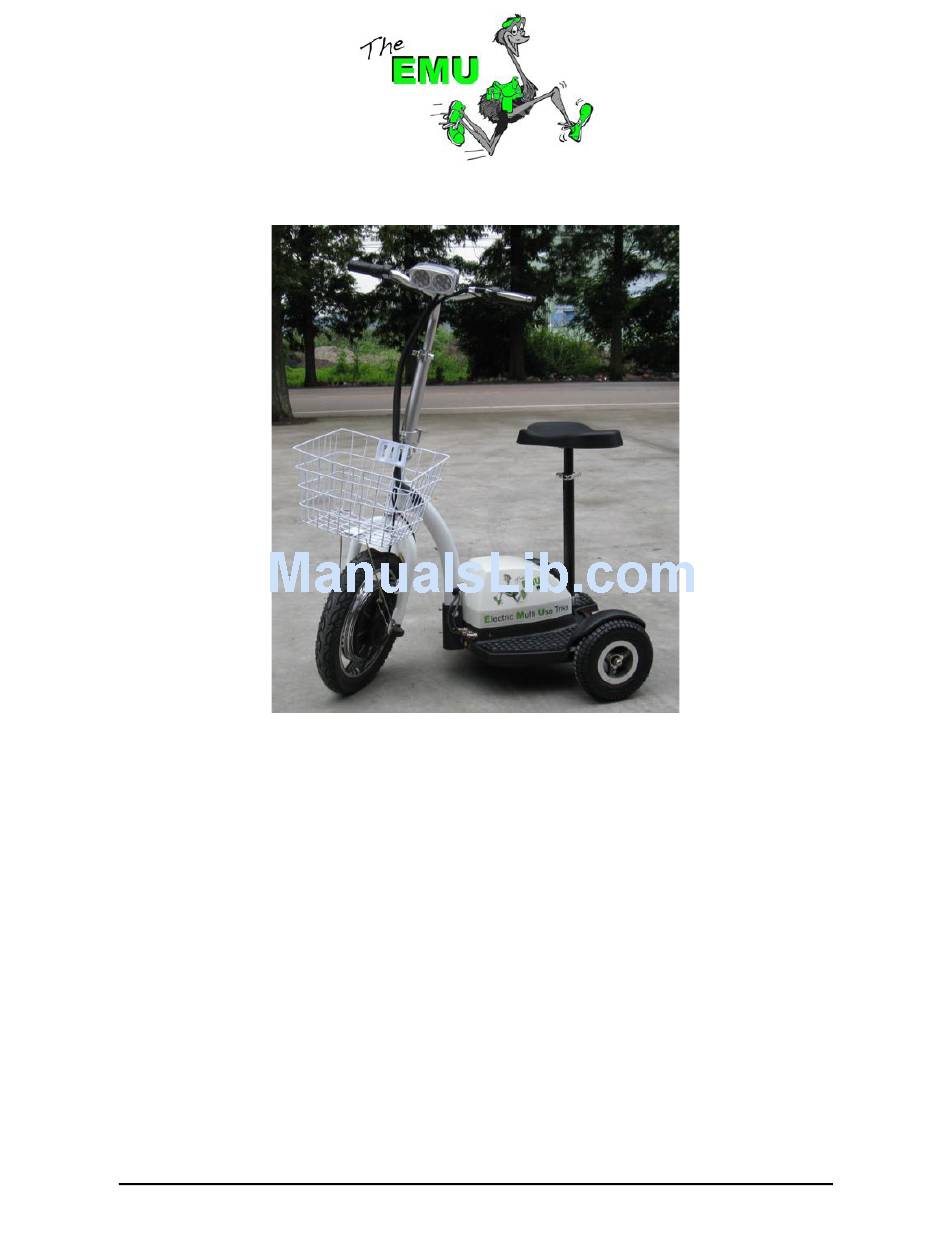

    ™ lectric ulti se Trike Owners Manual 2013-2014 Models – EMU-Max American Scooter Company Trikes™ LLC, Please note that due to continuing improvements to our products and services, pictures and/or descriptions may differ from the model and/or parts depicted in this manual.

  • Page 2: Table Of Contents

    Table of Contents Front Cover-----------------------------------1 Table of Contents---------------------------2 Technical Information----------------------3 Warning Statement-------------------------4 Safety Warning------------------------------5 EMU Parts List-------------------------------6 Tool Kit & Assembly------------------------7 Installing the Handlebar-------------------9 Connecting Electric Plugs----------------10 Removal of Battery Cover---------------11 Folding the Handlebar--------------------12 Installing Basket----------------------------13 Charging Batteries-------------------------14 Riding your EMU---------------------------15...

  • Page 3: Technical Information

    Rated Speed (2 speed) 0-8mph & 0-21mph * Single Charge distance Max up to 20 miles* Maximum Capacity 265 lbs EMU. Net Weight Max around 70 lbs *Note: Speed and distance may vary depending upon the terrain and weight load. Page 3...

  • Page 4: Warning Statement

    EMU trike of electric vehicles. You should contact your insurance company to confirm if coverage is provided. Please do not ride your EMU until you have read this owners manual completely and you fully understand all its contents. This manual contains critical information for your safety.

  • Page 5: Safety Warning

    Before riding your EMU please read and be sure you understand this manual completely. The EMU is not a toy and should always be operated in a safe manner. American Scooter Company will not be liable for any damages or injuries to any person.

  • Page 6: Emu Parts List

    EMU Parts List 1. Front(Wheel( 11. Green(Button(for(Horn( 2. Drum(Brake( 12. Handlebar(height(adjustment( 3. Electric(motor( 13. Power(Indicator((pod)( 4. Headlight((pod)( 14. Seat(Post((Optional)( 5. Front(fork( 15. Seat(Height(Adjustment( 6. Basket((optional)( 16. Handbrake( 7. Folding(Handlebar(Connection( 17. Safety(Wheels( 8. Ignition(Key((pod)( 18. Rear(Wheels( 9. Throttle( 19. Battery(Cover( 10. (Headlight(Switch( 20.

  • Page 7: Tool Kit & Assembly

    Tool Kit Charger Tool Kit Assembling the EMU Help me be required to assemble your new EMU 1/ Unpack the E.M.U. and inspect all the parts to insure all are included. Please contact your E.M.U. dealer immediately if any parts are missing or damaged when shipped.
  • Page 8 2/ Remove the bolts and nuts from the connecting tube clamp (B). place the connecting tube into the top opening (A). Align the bolt holes. 3/ Slide the two bolts (1) through the holes connecting tube and neck. Twist the bolts, do not hammer them through.

  • Page 9: Installing The Handlebar

    Installing the Handlebar Extend the handlebar tube to full upright position and insert it into the connection hole on the front forks. 6/ Ensure the handlebars are facing front with the brake on the left and the throttle on the right, then tighten the handle bar hex bolt securely.

  • Page 10: Connecting Electric Plugs

    Connecting the Electrical power plugs 6/ Make sure you connect the 4 the connectors to the right outlets. You will damage your emu electrics if you connect them wrong. All connectors are color-coded. 7/ Match the pins of the plugs to the holes of the sockets, align the notches and secure.

  • Page 11: Removal Of Battery Cover

    Removal of Battery Cover (service only) Undo the 4 screws (one on each side of the cover and 2 on the back). Gently pull the cover upwards to remove. Reverse operation 1 & 2 to re-install cover. Be careful not to trap wires when putting the cover back on.

  • Page 12: Folding The Handlebar

    Note the handlebar remain attached to pole. Fold down handlebars. Carefully place the handlebar tube on the footrest frame. Reverse this procedure to re-attach handlebar. Picture of EMU handlebar folded. Note arrow show the direction they fold. Page 12...

  • Page 13: Installing Basket

    Installing the Basket Position the basket as shown. The “U” Bracket attaches to both sides of the forks, in the middle of the three holes. Attach the basket to the “U” bracket using the included hardware. Attach the back of the basket to the mounting bracket using the included hardware.

  • Page 14: Charging Batteries

    Charging the Batteries Before riding your EMU for the first time, the unit should be fully charged. Ride your EMU until the battery is fully discharged before recharging it. Doing this 3-5 times will insure maximum battery efficiency and scooter performance. Once this has been done, for best results.

  • Page 15: Riding Your Emu

    Riding your EMU Always wear a helmet when riding the EMU If you are using your EMU outdoors please be aware of all state and local laws governing the use of such vehicles. State and local ordinances may vary and it is your responsibility to make sure you comply with all applicable laws.
  • Page 16 To stop your E.M.U., disengage the throttle and apply pressure to the handbrake. Beware the brake is very sensitive. When the brake is applied this kills the power to the throttle If you are parking your scooter on an incline, engage the handy parking brake by tightly holding the hand brake and pushing the parking brake paddle towards you.

  • Page 17: Adjusting Brakes

    Adjusting Brakes In order to adjust the sensitivity of the hand brake, turn the thumb turn on the front of the brake lever on the front wheel. Make sure the brake is off before adjusting. Front Facing Page 17...

  • Page 18: Maintenance

    Maintenance Your EMU requires minimum maintenance to give you years of service. Always follow these simple procedures before your ride. • Make sure battery is fully charged. • Never leave battery uncharged for more than 30 days, as this will negatively impact performance and battery lifespan.

  • Page 19: Trouble Shooting

    Contact your EMU dealer. EMU will not recharge within 10 hours. Check connector is correctly inserted into back of your EMU. Check power to outlet. Battery may be malfunctioning. Contact your EMU dealer. The front wheel spins on my EMU First of all and most importantly, lean trike when I try to accelerate.

  • Page 20: Warranty

    EMU trike or within this owners manual or other printed material provided with this product. Damage, failure and/or loss caused by the use of the EMU in any manner for which such products were not specifically designed.
  • Page 21 It is advised to always wear a safety helmet when riding your EMU. This warranty is void if the EMU is sold to a third party. Some states do not allow limitations on how long an implied Warranty lasts, so the above limitation may not apply to you.

Table of Contents
