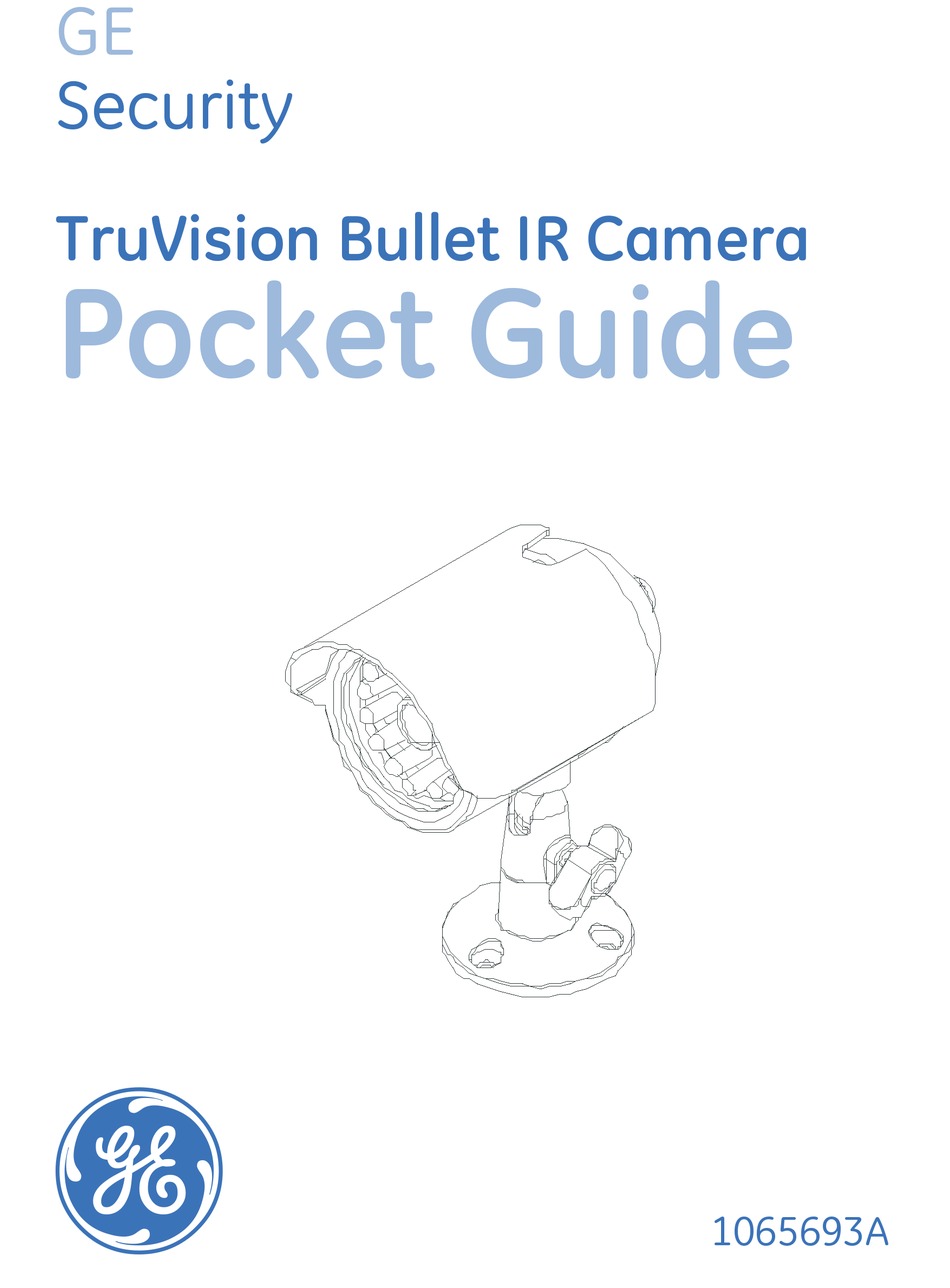

- Page 1 Security TruVision Bullet IR Camera Pocket Guide 1065693A...
- Page 2 GE and the GE monogram are registered trademarks and patents of General Electric Company. The TVC-BIR-SR TruVi- sion Bullet IR Camera is a trademark of GE Security. Other trade names used in this document may be trademarks or registered trademarks of the manu- facturers or vendors of the respective products.
- Page 3 2004/108/EC (EMC directive). Non-European manu- directives facturers must designate an authorized representa- tive in the Community. Our authorized manufacturing representative is GE Security B.V., Kelvinstraat 7, 6003 DH Weert, Nederland. 2002/96/EC (WEEE directive). Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
-
Page 5: Table Of Contents
TruVision Bullet IR Camera Pocket Guide Contents Contents ..... . . v Introduction ....1 Overview . -
Page 7: Introduction
TruVision Bullet IR Camera Pocket Guide Introduction This is the GE TruVision Bullet IR Camera Pocket Guide for model TVC-BIR-SR. This pocket guide describes a standard installa- tion. Overview The TruVision Bullet IR Camera consists of the following: • Camera with power and video output cable •... - Page 8 Sunshield Mounting bracket Power and video cable...
- Page 9 TruVision Bullet IR Camera Pocket Guide 18 pcs LED IR lights Light sensor Lens...
-
Page 10: Installation
Installation To install the TVC-BIR-SR camera, do the following. Using the mount as a template, place it level against the mounting surface and mark the position of the mounting holes. Following all local codes, drill and prepare the mounting holes. Securely fasten the mount to the mounting surface with the appro- priate fasteners. -
Page 11: Specifications
TruVision Bullet IR Camera Pocket Guide Connect a 75 ohm coaxial video cable to the video cable, and connect a 12 VDC power supply to the power cable. Adjust the camera position and angle as required. Specifications Image sensor 1/3 in. color CCD sensor Total pixels NTSC: 537(H) x 505(V) PAL:... - Page 12 Weatherproof IP67 IR distance 49 ft. (15 m) (18 IR LEDs) IR trigger 2.6 lux/2.7 lux (IR on/off) Power supply 12 VDC ± 1.2 VDC Current 120 mA (IR off) 270 mA (IR on) Power consumption 5.9 W maximum Weight 0.7 lb.
-
Page 13: Contacting Us
TruVision Bullet IR Camera Pocket Guide Contacting us For help installing, operating, maintaining, and troubleshooting this product, refer to this document and any other documentation provided. If you still have questions, see Contact information on page 9. Note: Be ready at the equipment before calling. - Page 14 Training. To view any available online training for GE Security products, select Training link. (Online training is not available for all products.) Warranty and terms. From the Customer Support menu, select Return and Warranty Policy Statement Terms and Conditions Policy Statement.
-
Page 15: Contact Information
TruVision Bullet IR Camera Pocket Guide Contact information North America T: 888 GE Security. Toll-free in US, Puerto Rico, Canada. 503.885.5700 outside the toll-free area. F: 888.329.0332 (Tualatin tech support) 561.998.6232 (Boca Raton tech support) nstechsrv@ge.com gesecurity.customerservice@ge.com Latin America T: 305.593.4301F:305.593.4300 InfraSec.TechnicalServicesLatinAmerica@ge.com...
