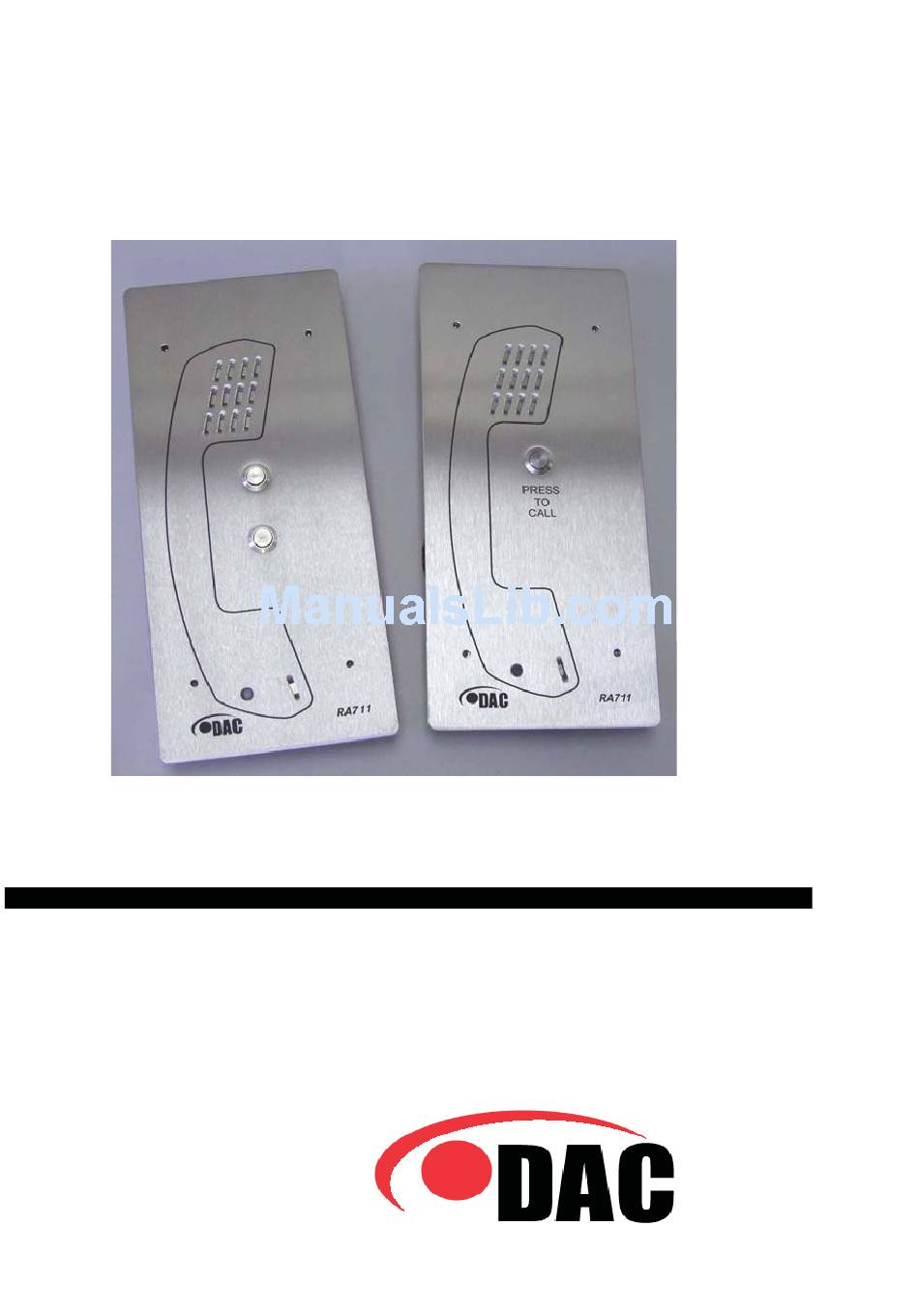

- Page 1 DAC LIMITED USER GUIDE Vandal Resistant Telephones 711 Autodial Telephone range...
-
Page 2: Table Of Contents
CONTENTS Page 2 Installation Page 4 Electrical Connection Page 5 Approved Facilities Page 6 Storing an Autodial Number Page 7 Set Up Features Page 8 RA711 PCB Page 9 Setting up Expansion Board** Page 10 Command Mode Page 11 General Care and Maintenance ** Only applicable if a DTMF Expansion Board is fitted Page 1... -
Page 3: Installation
INSTALLATION The following information is provided for use by the approved installer or telephone network supplier only. The RA711 telephone can be either wall mounted or top-of-pole mounted. Wall mounting can be surface, flush or inset into the wall. Various electrical options are available as defined under the Electrical Connections section. - Page 4 Wall Surface Installation Fix the surface mounting back box to the wall, with cut-out at the bottom, using size 8 or 10 screws with rawplugs (4 off). Connect the cabling, as detailed under Electrical Connections, and then fit to the back box (as described under Wall Flush Installation, item 3).
- Page 5 ELECTRICAL INSTALLATION Line Terminal Connections and Selections The number of telephones that can be connected to a direct exchange line or PBX extension is limited by the ringer equivalence number (REN) of all the telephones connected, this should not exceed a total value of 4. The REN value of this telephone is 1.
-
Page 6: Approved Facilities
APPROVED FACILITIES Any other usage will invalidate the approval of the apparatus and as a result it then ceases to comply with the standards against which the approval was granted. Connection is affected by plugging in to the appropriate line socket. - Page 7 TO STORE AN AUTODIAL NUMBER. Insert the keypad that is supplied with the telephone into connector marked CN13. [see page 8 for correct orientation] To store a number in a one button autodialler. Press the button on the front panel to go off hook. Press the key marked PG on the rear of the telephone followed by M1.
- Page 8 SETTING UP THE 711 FEATURES. Volume. To adjust the volume of the speaker use the V+ and V- keys on the rear of the phone. The volume once set will remain at the user set level until it is re adjusted. Call termination settings.
- Page 9 RA711 Printed Circuit Board HKSW HANDSET ON HK HFBUTS LP GAIN HFHLS HFLLS ENABLE DISABLE HS LOOP TYPE HF GAIN CN13 BOOT POWER LINE LOAD DIAL BREAK Page 8...
-
Page 10: Setting Up Expansion Board
SETTING UP THE EXPANSION BOARD. Overview. The DAC DTMF controller expansion board product consists of a Printed Circuit Board (PCB) which can be attached to the DAC range of telephone products which feature an expansion port. The PCB provides a DTMF decoder and controller which allow a voltage free contact to be energised. - Page 11 *1*nn Where nn represents the PIN/command mode timeout value 01-99 seconds (10 seconds default) *2*nn Where nn represents the voltage free contact energise time value 01-99 seconds (2 seconds default) *3*xxxxyyyy Where xxxx is the current PIN and yyyy is the new PIN (xxxx = 1234 default) *4*n Where n represents the PIN entry mode loudspeaker mute status 0 - disabled or 1 -...
-
Page 12: General Care And Maintenance
To clean the telephone wipe with a damp cloth. Do not use any abrasive cleaners on the telephone as this may cause the product to become discoloured. Distributed by:- DAC Limited 28 Lomeshaye Business Village Turner Road Nelson, Lancashire, UK...
