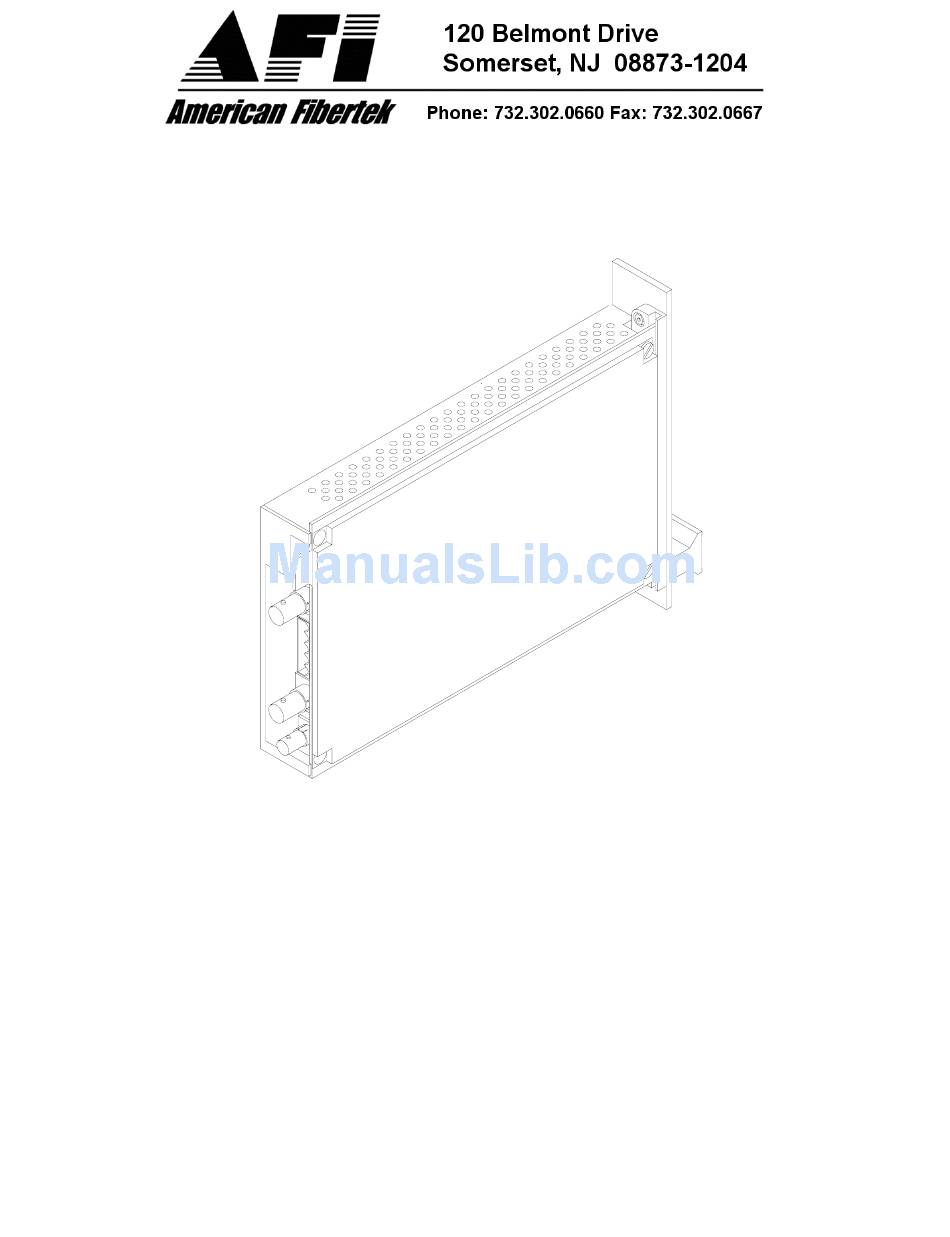

Page 1: Instruction Manual
Instruction Manual RR-2400 Bi-directional Video Transceiver With Bi-directional RS422 Data © Copyright 2006, American Fibertek, Inc. 1128JD... - Page 2 MT-2400 or RT-2400 video / RS422 data transceiver over a single multimode fiber optic cable. The RR-2400 converts a single video input and a single RS422 data input into an optical output using an 850 nm wavelength source. The RR-2400 also converts an optical input signal returning on the same fiber into a single video output and a single RS422 data output using a 1300 nm wavelength detector.
- Page 3 Power to the unit is supplied by the subrack. Please refer to the SR-20 and PSR instructions for further details. POWER CONNECTION Power is supplied to the unit via a four finger backplane connector. The RR-2400 can be inserted into the subrack or removed from the subrack with power applied to the backplane. FIBER CONNECTION The fiber optic connection is made via a ST connector located on the back of the unit.
- Page 4 The RR-2400 provides the following LED status indicators to aid in installation and troubleshooting: A bi-color LED indicator is provided for the video input to the RR-2400. Internal DC power and video status associated with this LED is summarized below.
