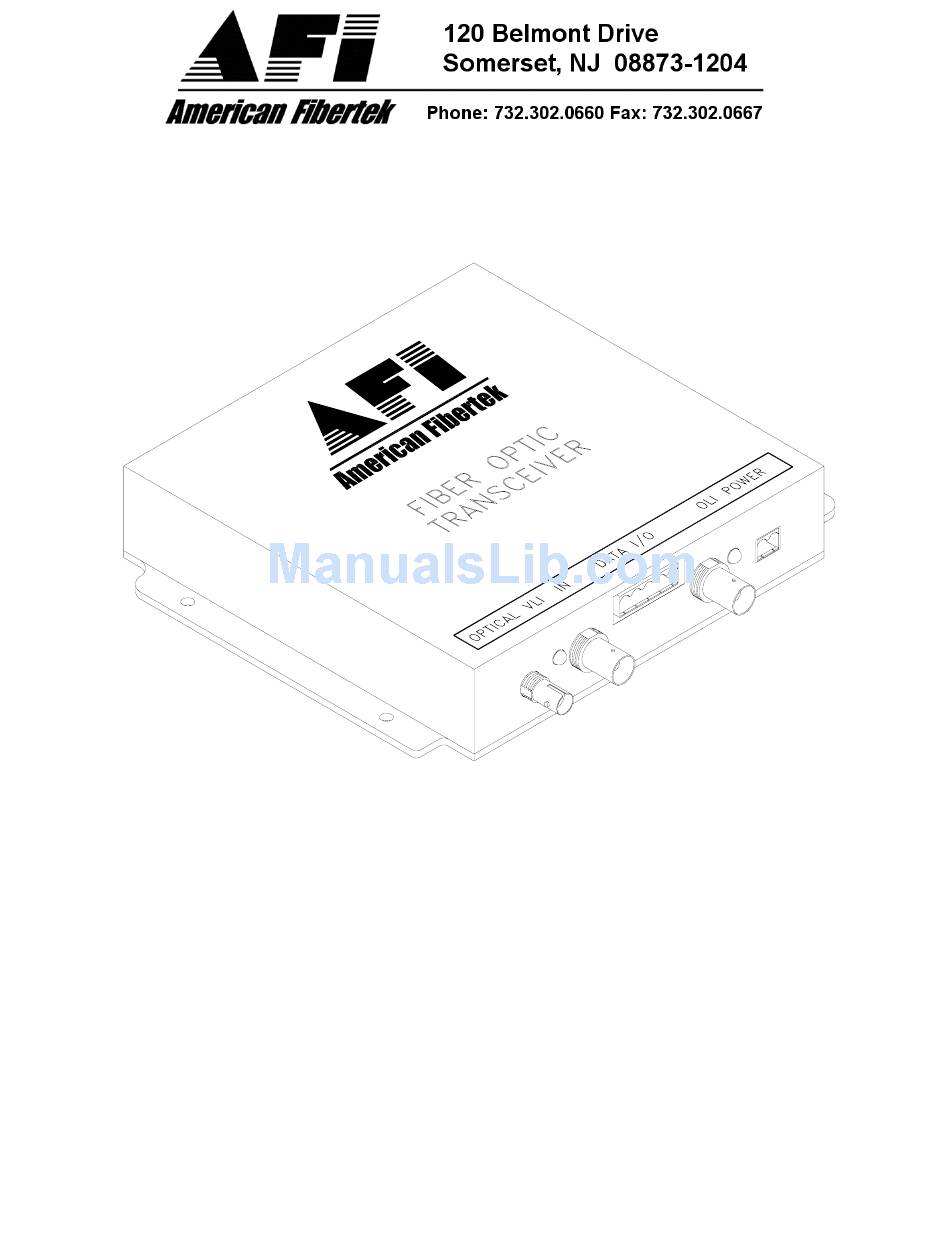

Page 1: Instruction Manual
Instruction Manual MT-2400 Bi-directional Video Transceiver With Bi-directional RS422 Data © Copyright 2006, American Fibertek, Inc. 1127JD... - Page 2 MR-2400 or RR-2400 video / RS422 data transceiver over a single multimode fiber optic cable. The MT-2400 converts a single video input and a single RS422 data input into an optical output using a 1300 nm wavelength source. The MT-2400 also converts an optical input signal returning on the same fiber into a single video output and a single RS422 data output using an 850 nm wavelength detector.
- Page 3 THIS PRODUCT SHALL BE POWERED BY A LISTED CLASS 2 POWER SUPPLY ONLY. This unit requires an isolated 24VAC power source for proper operation. In the USA and in Canada an American Fibertek PS-24 is supplied with this unit. ANSI/NFPA 70 Class 2 wiring is recommended. POWER CONNECTION Power is supplied to the unit via a two pin terminal connector on the side of the unit.
- Page 4 The MT-2400 provides the following LED status indicators to aid in installation and troubleshooting: A bi-color LED indicator is provided for the video input to the MT-2400. Internal DC power and video status associated with this LED is summarized below.
