S/M No. : FR33000011
Service Manual
Refrigerator
Model: FR-330
DAEWOO ELECTRONICS CO., LTD.

Advertisement

Table of Contents
loading

Related Manuals for Daewoo FR-330

Summary of Contents for Daewoo FR-330

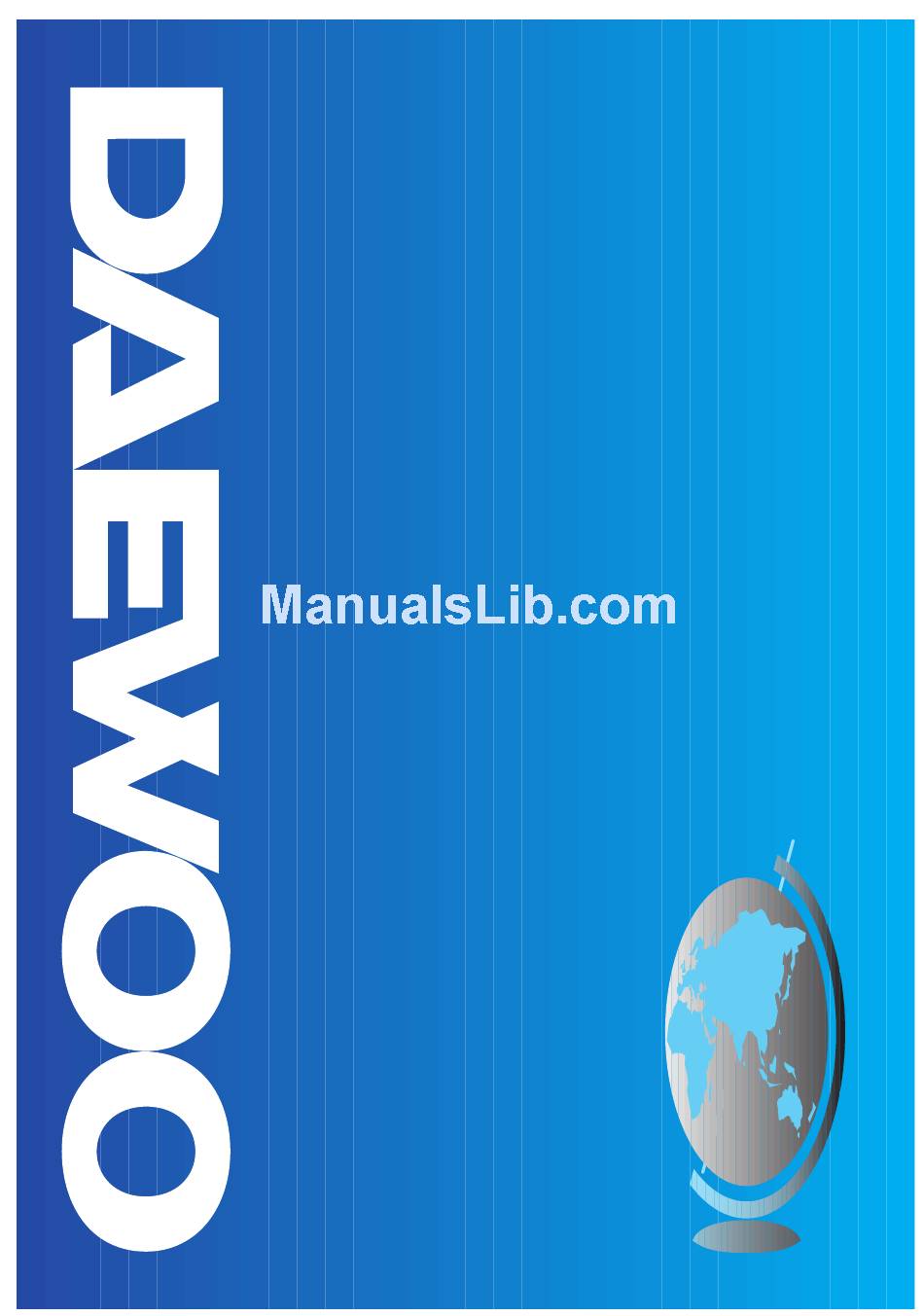

  • Page 1 S/M No. : FR33000011 Service Manual Refrigerator Model: FR-330 DAEWOO ELECTRONICS CO., LTD.

  • Page 2: Table Of Contents

    CONTENTS contents 1. SPECIFICATION ..................1 2. NAME OF PARTS ..................2 3. REFRIGERANT CYCLE DIAGRAM ............3 4. MACHINE ROOM VIEW AND PART LIST ..........4 5. METHODS OF EXCHANGING MAIN PARTS ..........5 6. EXPLODE VIEW AND PARTS LIST ............9 7. PARTS LIST .....................10...

  • Page 3: Specification

    1.Specification Refrigerant 100g R134a COOLING System Fan Cooling Convection Type Refrigeration System Air Forced Convection Defrost System Forced Fin-Evaporator Type Defrost Operation Automatic Start & Stop Cold Control Adjustable Dial Freezer Capacity 207L Refrigerator 268L Total Height 1636mm External 600mm Width Dimension 729mm...

  • Page 4: Name Of Parts

    2. NAME OF PARTS...

  • Page 5: Refrigerant Cycle Diagram

    3. REFRIGERANT CYCLE DIAGRAM...

  • Page 6: Machine Room View And Part List

    4. MACHINE ROOM VIEW AND PART LIST PART NAME PART NAME PART NAME 1 BASE CAB AS 7 WI-CON PIPE 13 BASE COMP AS 2 COMPRESSOR 8 DRYER AS 14 BRACKET EARTH 3 P-RELAY AS 9 PIPE SUC AS 15 POWER CORD AS 4 PIPE VAPORI AS 10 PIPE SUC CONN 16 ABSORBER PIPE A...

  • Page 7: Methods Of Exchanging Main Parts

    5. METHODS OF EXCHANGING MAIN PARTS (1) Freezing room louver 1) Unscrew, remove the F-louver by pulling forward with inserting screwdriver into the hole of F louver. 2) Assemble it by pressing triangle shape ( ) by hand. (2) R control box 1) After pressing both bottom surfaces of shade and pull forward.
  • Page 8 Methode of exchanging main parts 4) Pull slightly forward with instant force. 5) Remove the housing 6) After romoving the control switch knob and two screws for fixing control switch, change the control switch to new one.
  • Page 9 Methode of exchanging main parts (3) Bimetal 1) Cut off the wire bind. 2) Take out the bimetal. BIMETAL (4) Glass tube heater Evaporator fastening screw 1) Remove 2 screws that fasten the evaporator. 2) Slightly pull the evaporator to the arrow's direction.
  • Page 10 Methode of exchanging main parts 4) Cut the both ends of glass tube heater tube heater lead wires and insulate and seal lead tip remaining in refrigerator with tape etc. Raise Heater Heater Glass tube Cover fi t heater Lead wire 5) Pull out the glass tube heater from the heater supporter with heater covers remaining.

  • Page 11: Explode View And Parts List

    6. EXPLODE VIEW AND PARTS LIST 1. Expoloded views SPAIN DESPA (DAEWOO,FR-330)

  • Page 12: Parts List

    7. PARTS LIST SPAIN DESPA (DAEWOO , FR-330) PART CODE PART NAME DESCRIPTION Q'TY REMARK ASS'Y CAB URT HCFC-141B 4019R54111 GUIDE DRN 3012800501 HEATER GLAS AS 150W 4019R73571 COVER DEFR HTR *T GALVANIED 4019R73581 COVER DEFR HTR *U GALVANIED 4019R03208...

  • Page 13: Gpps

    CASE EGG GPPS 3019015900 POCKET EGG GPPS 3019016000 POCKET MULT GPPS 3019016100 POCKET BOTL GPPS 3012624200 HANDLE R A A TYPE 3011611110 DECO F HNDL AS A TYPE 3014443500 PIPE WI-CON AS FR-330 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN -11-...
