By Barbeques Galore.

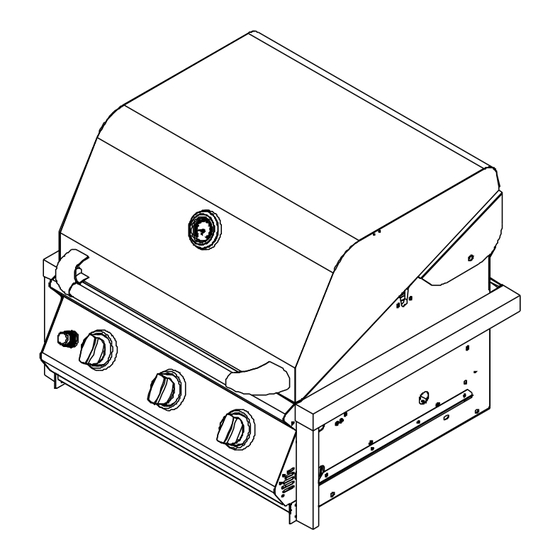

Liquid Propane Gas (LPG) Grill
Models BTH2610ALP, BTH3210LLP
Natural Gas (NG ) Grill
Models BTH2610ANG, BTH3210LNG
FREE HELP
Grill Information Center:
FROM THE GRILL EXPERTS
Grand Hall is the expert on this product
and trained to help you with:
Ÿ
Assembly Questions
Ÿ
Grill Operation
Ÿ
Replacement of Damaged or Missing parts
visit www.grandhall.com or call:
1-877-934-7455
Monday - Friday 8:00am-4:30pm CST
IMPORTANT:
Ÿ
NOTE TO ASSEMBLER / INSTALLER:
Leave this manual with the consumer.
Ÿ
NOTE TO CONSUMER:
Keep this manual for future reference.
Ÿ
RECORD YOUR SERIAL #
__________________
(see silver CSA label on main body of grill)
R
BTH2610ALP/NG
Operator's Manual
BTH3210LLP/NG
WARNING
!
Ÿ
Failure to comply with these instructions could
result in a fire or explosion that could cause
serious bodily injury, death or property damage.
Ÿ
Whether this grill was assembled by you or
someone else, you must read this entire manual
before using your grill to ensure the grill is
properly assembled, installed and maintained.
Ÿ
Use your grill at least 3 feet away from any
wall or surface. Use your grill at least 3 feet
away from combustible objects that can melt or
catch fire such as vinyl or wood siding, fences
and overhangs or sources of ignition including
pilot lights on water heaters and live electrical
appliances.
Ÿ
THIS GAS APPLIANCE IS DESIGNED FOR OUT-
DOOR USE ONLY.
Ÿ
Never use your gas grill in a garage, porch,
shed, breezeway or any other enclosed area.
Ÿ
Never obstruct the flow of ventilation air
around your gas grill housing.
Ÿ
Never disconnect the gas regulator or any gas
fitting while your grill is lit. A lit grill can ignite
leaking gas and cause a fire or explosion which
could result in property damage, personal injury
or death.
Manual # P80151106A -
!
Date:2010/04/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTH2610ALP and is the answer not in the manual?

Questions and answers

Related Manuals for Turbo BTH2610ALP

Summary of Contents for Turbo BTH2610ALP

  • Page 1: Primary Safety Warnings

    Operator's Manual By Barbeques Galore. Liquid Propane Gas (LPG) Grill Models BTH2610ALP, BTH3210LLP Natural Gas (NG ) Grill Models BTH2610ANG, BTH3210LNG BTH3210LLP/NG BTH2610ALP/NG FREE HELP WARNING Grill Information Center: FROM THE GRILL EXPERTS Ÿ Failure to comply with these instructions could...

  • Page 2: Table Of Contents

    Table of Contents WARNING Primary Safety Warnings......1-3 Pre-Assembly Instructions........3 Do not store or use gasoline or other Part Diagrams and Lists......4-11 flammable liquids or vapors in the Assembly Instructions.........12-15 vicinity of this or any other appli- Use & Care Instructions: ances.

  • Page 3: Pre-Assembly Instructions

    Pre-Assembly Instructions For Your Safety CAUTION PRE-ASSEMBLY Read and perform the following pre-assembly instruc- tions: Failure to comply with these instructions may result Tools Required for Assembly in a hazardous situation which, if not avoided, may • protective work gloves result in injury.

  • Page 4: Part Diagrams And Lists

    Hardware Parts List for Models BTH2610ALP PART # PART DESCRIPTION PURPOSE OF PART P06030016A Hardware Pack For use in assembly BTH2610ALP S112G0306A Phillips Head Screw 3/16"x3/8" Install the LP Regulator Bracket S313G0306A Flange Nut 3/16" S112G0306B Phillips Head Screw 3/16"x3/8"...
  • Page 5 Hardware Parts List for Models BTH3210LLP PART # PART DESCRIPTION PURPOSE OF PART P06030018A Hardware Pack For use in assembly for BTH3210LLP S112G0306A Phillips Head Screw 3/16"x3/8" Install the LP Regulator Bracket S313G0306A Flange Nut 3/16" S112G0306B Phillips Head Screw 3/16"x3/8" Install the Tank Holder Brackets S313G0306B Flange Nut 3/16"...
  • Page 6 Parts Diagram for Models BTH2610ALP/NG...
  • Page 7 Parts List for Model BTH2610ALP/NG DESCRIPTION PART# Lid Assem bly P0014631M4 Tem perature Gauge P00601071A Lid Handle Bracket P00309026E Protective Pad P05518002I Lid Handle P00219007M Lid Handle Heat Insulating Spacer P06801035A Cooking Rack/Secondary P01505031E Cooking Grid P01615043F Flame Tamer/Ceram ic Support...

  • Page 8: P05501020A

    Parts List for Models BTH2610ALP/NG DESCRIPTION PART# Control Panel, Lower P0291358IX Lid Hinge P05501020A P06030016A Hardware Pack (LPG) P06030017A Hardware Pack (NG) P80151106A Operator's Manual...
  • Page 9 Parts Diagram for Models BTH3210LLP/NG...

  • Page 10: P05518002I

    Parts List for Models BTH3210LLP/NG DESCRIPTION PART# Lid Assem bly P0015406M4 Tem perature Gauge P00601071A Lid Handle Bracket P00309026E Protective Pad P05518002I Lid Handle P00219008M Lid Handle Heat Insulating Spacer P06801035A Cooking Rack/Secondary P01515029E Cooking Grid P01615042F Flame Tamer/Ceram ic Support P01720040B Flame Tamer/Ceram ic P01801005A...

  • Page 11: P80151106A

    Parts List for Models BTH3210LLP/NG DESCRIPTION PART# Hose, 12 ft (NG) P03703001A Control Panel, Upper P02908481I Control Panel Heat Shield P069190044 Control Panel, Lower P0290849IX Lid Hinge P05501020A Transform er P05374003B Light Wire Set P05352008B Light, 12V, 10W P05383002B Light Cover Set P05383003B Switch for Light Assembly P05360002B...

  • Page 12: Assembly Instructions

    Assembly Instructions for BTH2610ALP/NG & BTH3210LLP/NG CAUTION : While it is possible for one person to assemble this grill, obtain assistance from 2 people when handling some of the larger, heavier pieces. Install Grill Head With the help of your assistants, place the Grill Head into the cutout of your grill island (See Diagram).
  • Page 13 Grill Head. Install Tank Holder Brackets, Tank Holder Assembly, and LP Gas Tank (for BTH2610ALP & BTH3210LLP Models) Install the Bracket with Regulator onto the Island Side Panel using 2 black Phillips Head Screws 3/16"x3/8" and 2 black Flange Nuts 3/16". (See diagram) Install the Stainless Steel Tube (not included in this unit) onto the manifold.
  • Page 14 Install Partition Panel (for BTH2610ALP & BTH3210LLP Models) Install the Partition Panel (not included in this unit) onto the right island. Make sure there is 22-24" of clearance between the Partition Panel and the Tank Holder Assembly. Partition Panel Vent Openings must (above the Gas Tank) be at least 1/8"...
  • Page 15 If no spark is seen, the Spark Gap needs to be adjusted as follows: • If the gap between the Spark Electrode Tip (for BTH2610ALP/NG) and Receiver is more than 3/16" wide use needle nose pliers to gently squeeze the Gas Collector Box to narrow gap.

  • Page 16: Use & Care Instructions

    Refer to the this table when designing the island unit for the BTH2610ALP/NG & BTH3210LLP/NG. Side* Always keep LP Gas tank in upright position. and Rear* show the minimum amount of distance the unit must be from combustibles (ex.

  • Page 17: Danger

    Secure a 20lb LP Gas Tank to Gas Grill Ÿ Many retailers that sell grills offer you the option of (for BTH2610ALP & BTH3210LLP) replacing your empty LP Gas tank through an exchange service. Use only those reputable exchange compa-...

  • Page 18: Warning

    USE AND CARE INSTRUCTIONS LP Gas Model only: Check all connections for LP Gas Leaks Connect Regulator with Hose to your LP Gas Tank Never test for leaks with an open flame. Prior to first use, at the beginning of each season, or every time Turn all Burner Valves to the OFF position.

  • Page 19: Natural Gas Connection

    Natural Gas Connection Fig.1 Natural Gas Model only: Connecting Natural Gas To Your Grill Connect the Swivel nut of the 12' Natural Gas Hose to the horizontal fitting of NG Regulator as shown in Fig.1. Connect the other hose end (male plug) to the gas supply line from your Vertical Fitting home.

  • Page 20: Lighting Instructions

    Main Burner Familiarize yourself with all Safety and Use and Care instructions in this manual. Do not smoke while (for BTH2610ALP/NG Models) lighting your grill or when checking the gas supply connections. Make sure that the LP Gas tank is filled.

  • Page 21: Troubleshooting

    USE AND CARE INSTRUCTIONS Troubleshooting WARNING If the grill fails to light : Turn gas off at source and turn Control Knobs to OFF. Wait at least 5 minutes for gas to clear, then retry. Should a FLASHBACK fire occur in or around the Burner Tubes, follow the instructions below.

  • Page 22: This Appliance, When Installed, Must Be Electri

    USE AND CARE INSTRUCTIONS CORRECT TRANSFORMER AND LIGHT USE ELECTRICAL EQUIPMENT USE Read all instructions before initial use. To protect against electric shock, do not immerse cord or plugs in water or other liquid. IMPORTANT: When using transformer appliances, basic safety precautions should always be used.

  • Page 23: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Cleaning Exterior Stainless Steel Surfaces: Routine care and maintenance is required to preserve Proper care and maintenance will keep your grill in top operating the appearance and corrosion resistance of stainless condition and prolong its life. Follow these cleaning procedures on steel.

  • Page 24: Warning

    2. 2. CLEANING THE BURNER TUBES AND BURNER PORTS Regardless of which Burner cleaning procedure you use, To reduce the chance of FLASHBACK FIRE you must clean we recommend that you also complete the following clean- the Burner Tubes as follows at least once a month in summer ing regimens to help prolong Burner life.

  • Page 25: Warning

    Cooking Instructions Indirect Cooking using Main Burners Burn-Off The indirect cooking method can also be used with Before cooking on your gas grill for the first time, you the supplied Cooking Grids. To cook indirectly, the should "burn off" the grill to eliminate any odor or foreign food should be placed on the left or right side of your matter.
  • Page 26 Guide to Grilling using the Main Burners and Direct Cooking Method Approximate Cooking Times Grilling Steak and Ribs Cut of Meat Rare: 4-8 minutes Turn the grill Burners on HI, close the Lid and preheat your T-bone steak Medium: 10-14 minutes grill 3 to 5 minutes.
  • Page 27 Guide to Using the Secondary Cooking Rack Vegetables are generally easy to cook on the grill. The The Secondary Cooking Rack can be used for purposes Secondary Cooking Rack makes it convenient because you other than just the obvious. Consider using the rack for can still use the main cooking area while the vegetables are warming French bread, garlic bread, croissants or even suspended above the grids.
  • Page 28 Guide to Roasting and Baking Using the Main Burners Food preparation An Important Note About Heat Settings Trim meat of excess fat. Truss meat and poultry with cooking The suggested heat settings shown are approximate. There string to retain shape if desired. Bacon strips can be used to are many factors such as outside temperature, wind condi- cover the outside surface of lean meat and poultry to help tions and grill location that affect your grill performance.

  • Page 29: On The Rear Bowl

    Question: Question: Can I convert my grill from one fuel type to another in Sometimes I hear a humming sound coming from my other words from LPG to NG or vice versa? regulator. What causes this? And - My grill has a low flame and sometimes will not light.
  • Page 30 Question: The Regulator and Hose supplied with my gas grill After every use (after your grill has cooled down), wipe stain- does not fit the older LP Gas tank I’ve used for years. less surfaces with a soft, soapy cloth or sponge then Why not? rinse with water.
  • Page 31 Grand Hall Limited Warranty Grand Hall will warrant to the ORIGINAL PURCHASER of this gas grill that it will be free of defects in material and workmanship for set periods below from the date of purchase when used under normal outdoor use and correct assembly.
