Summary of Contents for Lindemann 850

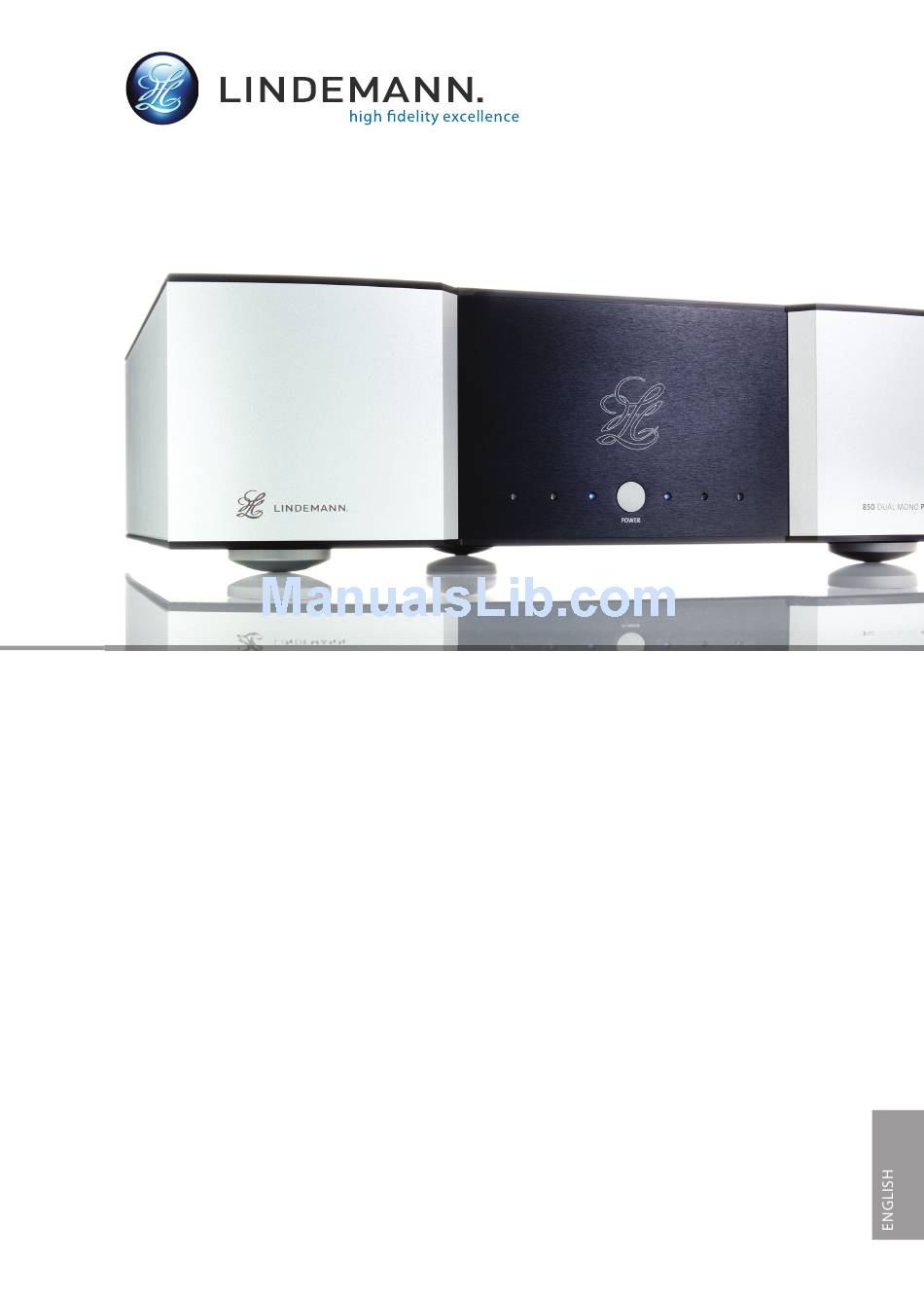

- Page 1 Dual Mono Power Amplifi er Owner’s Manual...
-
Page 2: Important Safety Precautions
850 Dual Mono Power Amplifier Important Safety Precautions • Use only an approved power cable and plug or distribution board to connect your amplifier to a power outlet. Do not use an extension cable. • Never touch the mains plug if your hands are wet. -
Page 3: Copyright And Trade Mark Acknowledgements
Keep the carton and packaging materials that your 850 came in. They will protect your amplifier should you need to transport it in the future. Transporting the 850 in anything other than the original packaging may result in physical damage not covered by your warranty. -
Page 4: Table Of Contents
Directive on waste electrical and electronic equipment Accessories supplied • 850 Dual Mono Power Amplifier • Power cord, 2.0m • SYSCOM connector cable, 1.0m • Owner's Manual We recommend that you keep the packaging for use when transporting the 850 in the future. - Page 5 Use a phase finder to determine which pin is life. Mark the appropriate side of the power outlet. The marked pin on the IEC power receptacle on the 850 should connect to the positive conductor.
-
Page 6: Front View
On LEDs The blue On LEDs flash every 5 seconds when the 850 is on standby. They stay on all the time when the amplifier is running. When the amplifier is switched off, the On LEDs will flash continuously for 5 seconds, during which time it is... -
Page 7: Rear View
850 Dual Mono Power Amplifier Overtemperature LEDs When the temperature first exceeds normal levels, these LED flash yellow. If the temperature continues to rise, the LEDs illuminate constantly and the output will be muted until the temperature returns to normal. -
Page 8: Audio Inputs
The SYCOM connector enables you to switch the 850 on remotely. Use the SYSCOM cable supplied with your amplifier to connect the amp to a 820 or 830. When you switch the 820 or 830 on, the 850 will power up automatically at the same time. -
Page 9: Setting Up
850 Dual Mono Power Amplifier Setting up Place the 850 in the location in which you intend to use it. Do not try to move the amplifier when there are cables connected or when it is switched on. Connect your other components using high quality interconnects and speaker cables. -
Page 10: Cooling
When installing the amplifier on a carpet, make sure that the feet of the 850 do not sink into the carpet and allow the carpet to block the air intake opening at the bottom of the amplifier. Make sure also that the location is protected against direct sunlight. -
Page 11: Specification
850 Dual Mono Power Amplifier Specification Measuring conditions: 22°C, 230V supply voltage. Dimensions ................440 x 142 x 363mm (W x H x D) Weight ............................22kg Power requirements ................... 230V 50/60Hz Power consumption ..................750W maximum Power consumption (normal operation) ............... 60W Power consumption (standby) .................. -
Page 12: Ce Declaration Of Conformity
Power amplifier Model: 850 DUAL MONO POWER AMPLIFIER LINDEMANN audiotechnik GmbH declares that this product complies with the Low Voltage Directive 73/23/EEC and the Electromagnetic Compatibility Directive 89/336/EEC, amended by the directives 92/31/EEC and 93/68/EEC. The conformity of the designated product with the provisions of directive... -
Page 13: Guarantee And Service
This product is guaranteed under the conditions that apply in the country of purchase and your statutory rights are not limited. In addition to any statutory rights you may have, Lindemann undertake to replace any parts that have failed due to faulty manufacture. To help us, please ask your Lindemann retailer about the Lindemann warranty scheme in operation in your country. -
Page 14: Directive On Waste Electrical And Electronic Equipment
850 Dual Mono Power Amplifier Directive on waste electrical and electronic equipment Electronic equipment should not be disposed of with household waste but in compliance with the Directive 2002/96/EU of the European Parliament and of the Council of 27 January 2003 on waste electrical and electronic equipment. -
Page 15: 850 Dual Mono Power Amplifier
850 Dual Mono Power Amplifier • Owner’s Manual / English / 07/06 Lindemann audiotechnik GmbH • Carl-Benz-Straße 12 • D-82205 Gilching • Germany Web www.lindemann-audio.de • E-mail info@lindemann-audio.de Tel +49 (0)8105-7785-30 • Fax +49 (0)8105-7785-55...
