LENCO SCR-1000 Instruction Manual

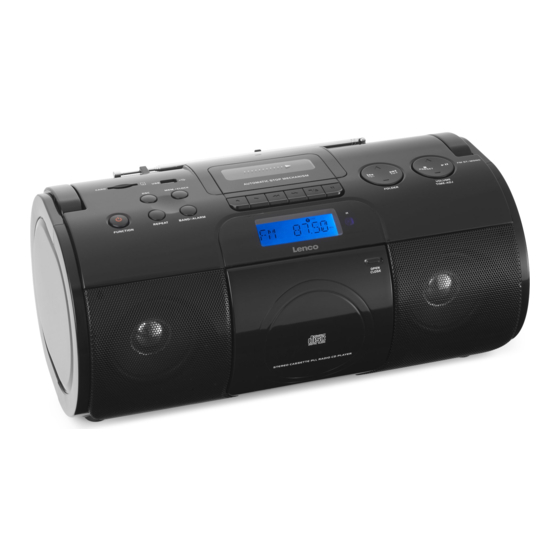

Cd/mp3 player & cassette recorder with pll fm radio & usb & sd/mmc card reader
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Enlarged version

INSTRUCTION MANUAL

CD/MP3 PLAYER & CASSETTE RECORDER
WITH PLL FM RADIO &
USB & SD/MMC CARD READER
MODEL: SCR-1000
Please read and follow these instructions before using your unit.
For information and support, www.lenco.eu
0
10
12
14
16
18
1 2 3 4 5 6 7 8 9
11
13
15
17
19
20 21 22
23 24 25 26
27
28
29
28
30
31 32
33
OVERVIEW OF THE PLAYER
1. FOLDING HANDLE
2. CARD SLOT
3. SLEEP/HR/MIN BUTTON
4. USB PORT
5. CLOCK/MEM BUTTON
6. CASSETTE DOOR
7. CASSETTE RECORD BUTTON
8. CASSETTE PLAY BUTTON
9. CASSETTE REWIND BUTTON
10. CASSETTE FAST FORWARD
BUTTON
11. CASSETTE STOP/EJECT BUTTON
12. CASSETTE PAUSE BUTTON
13. FM TELESCOPIC ANTENNA
14. TUNE -/PREVIOUS/FAST
BACKWARD BUTTON
15. CH +/FOLDER UP BUTTON
16. TUNE +/NEXT/FAST FORWARD
BUTTON
17. STOP BUTTON
18. VOL + BUTTON
19. PLAY/PAUSE & ST/MO BUTTON
20. STANDBY BUTTON
21. FUNCTION BUTTON
22. TONE/TIMER BUTTON
23. LCD DISPLAY
24. REMOTE SENSOR
25. CD DOOR OPEN/CLOSE AREA
26. CH -/FOLDER DOWN BUTTON
27. VOL - BUTTON
28. SPEAKERS
29. CD DOOR
30. BATTERY COMPARTMENT
31. PHONES JACK
32. AUX IN JACK
33. AC SOCKET
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCR-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for LENCO SCR-1000

Summary of Contents for LENCO SCR-1000

  • Page 1: Instruction Manual

    26. CH -/FOLDER DOWN BUTTON 27. VOL - BUTTON 28. SPEAKERS 29. CD DOOR 30. BATTERY COMPARTMENT 31. PHONES JACK 32. AUX IN JACK 33. AC SOCKET 31 32 Please read and follow these instructions before using your unit. For information and support, www.lenco.eu...
  • Page 2 POWER SUPPLY  BATTERY OPERATION 1. Remove the battery compartment cover gently. SLEEP CARD STANDBY 2. Install 8 x 'D' size batteries (UM-1 or equivalent) while observing the correct polarities. 3. Replace the battery compartment cover. TAPE AUX IN NOTE: ...
  • Page 3 4. Press FUNCTION button on the unit repeatedly or use CD, FM, USB and card buttons on the remote to set the timer modes among disc, radio, USB and card modes. The unit will be turned on at your selected mode at the time you set for the timer. FM RADIO TUNING THE FM RADIO 1.
  • Page 4 SKIP TRACKS AND SEARCH FOR A SPECIFIC POINT TO PLAY SKIP TRACKS AND SEARCH FOR A SPECIFIC POINT TO PLAY (MP3/USB/CARD) 1. Press once NEXT button in music play to skip to the next track. To skip to a specific track ahead, 1.
  • Page 5 CASSETTE OPERATION repeatedly or using TAPE button on the remote, then press cassette REWIND button to rewind the PAUSE BUTTON tape, press cassette PLAY button to start cassette playback. Press this button to pause cassette playback. STOP/EJECT BUTTON RECORD FROM OTHER AUDIO DEVICE Press this button to stop cassette playback and again to eject the cassette door.

  • Page 6: Cd Player Section

    CD PLAYER SECTION Playback system ....... Compact Disc Digital Audio System CASSETTE SECTION Recording system ......2 channel stereo Biasing system ......... Magnetic erase, AC Bias Frequency response ......125-6300 Hz AUDIO SECTION Power output ........Maximum 5 Watts per channel Speaker impedance ......
