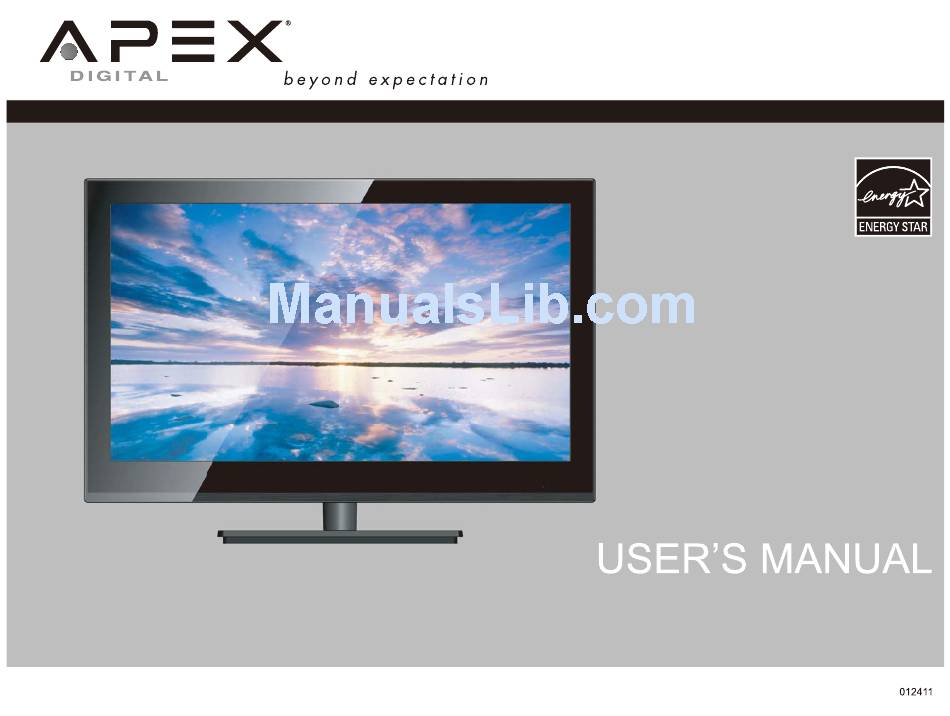

- Page 1 LE2612D 26” LED TV Combo...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Safety: TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS ARE INSIDE. REFER TO QUALIFIED PERSONNEL ONLY. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 5: Table Of Contents
Audio Settings Safety Instructions ....................Bass / Treble / Balance ..................Audio Language ....................Table of Contents ....................Introduction / What’s In the Box ................Date & Time Settings ..................Remote Control Setup Settings Remote Control Battery Install ................Menu Language ....................Remote Control Overview .................. - Page 7 Your remote control handset is powered by two (2) AAA type batteries • To insert batteries, turn the remote • Place two (2) AAA batteries into the • Replace the cover. control over and remove the battery compartment with correct polarity. cover.
- Page 8 Functions can be controlled using the remote control handset 1.POWER - To turn LCD Display(DVD) ON or OFF(STANDBY). 2.MUTE - Press to mute or restore sound.An icon will display when Mute is active. 3.SOURCE - Press to select TV Input source(TV,AV,Component,HDMI,VGA,DVD). 4.CH+/CH- - Select Channel up and down.
- Page 9 OPEN PLAY INPUT MENU VOL+ VOL- POWER 5. Channel (CH+ /CH-) - Press the CH+ /CH- buttons to 1. OPEN-To open and close the disc tray. select a channel in TV mode. 2. PLAY-Press PLAY button to play the disc. 3.
- Page 10 Wall Mounting Removal of TV Pedestal for Wall Mounting It is recommended that you call your local TV To remove the pedestal base from the dealer or a licensed contractor to secure the television, unscrew the (3) Philips head television to the wall using a suitable VESA screws and remove the entire assembly.
-
Page 11: Rear Panel
Roof Antenna / Cable Outlet Installation Ant./Cable How to connect to an indoor or rooftop antenna Wall Outlet RF/Coaxial Cable • Connect the RF coaxical (75 ohm) cable from your existing roof top / indoor antenna, or wall outlet.Finger tighten the RF-connector end to the TV input on the rear panel. - Page 12 Digital Cable / Satellite Set Top Box Optional HDMI cable DC +12V Cable / Satellite set top box How to connect with Digital Cable / Satellite Set Top Box • Connect the RF coaxial (75 ohm) cable from the video outlet of your cable / F - Connector Satellite box to the RF input on the TV’s rear panel.
- Page 13 Connecting External Equipment to Component Video IN (Y Pb Pr) Optional Component cables For BETTER video performance Connect to external equimpent that features component video output jacks Digital set top box, for better performance.Use the Component Y Pb Pr videl and audio gaming console or inputs with a set top box, gaming console or DVD player.
- Page 14 Connecting External Equipment to AV Composite IN on your television Optional cables For GOOD video performance Connect to external equimpent using optional video and audio cables.Composite output jacks are avaiable on most set top cable / satellite boxes and DVD players. Set top box, gaming console, DVD (HDMI and Component connections are recommended for the best performance.
- Page 15 Connecting a Personal Computer with VGA to your television Optional cables Recommended computer display resolution:1366 x 768 @ 60 Hz How to Connect a PC • Connect using an optional male to male VGA cable (not included) from INPUT SOURCE INPUT SOURCE your PC to the VGA input on the TV’s real panel.
-
Page 16: Playing The Dvd
Playing the DVD INPUT SOURCE INPUT SOURCE How to use * Press the INPUT button on the remote control .Use arrow buttons to highlight the INPUT to view (DVD) then Component press ENTER. * Insert the DVD disc and press Play button. HDMI 1 HDMI 2 HDMI 3... -
Page 17: Initial Setup Wizard
Initial Setup Wizard After connecting your TV antenna or cable wire, turn the television ON. A quick setup wizard will display on-screen for selecting your preferred picture setting followed by antenna op- tions and performing Auto Scan to receive local broadcast channels that will be stored in the TV tuner memory. - Page 18 Select antenna options and run Auto Channel Scan to receive television channels. To enter TV Mode: • Press the MENU button • Using the arrow buttons; scroll to highlight TV mode • Press the down arrow button to highlight CABLE or AIR Cable Mode Air Mode Select AIR when connected...
-
Page 19: Brightness
The PICTURE menu offers options to enhance and refine the picture displayed on your TV based on ambient room light and personal prefer- ences. Adjustment options include contrast, brightness, color, sharpness and color temperature. How to Navigate: Press the MENU button on the remote control. Navigate using t u arrow buttons to select PICTURE. Press the down q arrow button to highlight PICTURE MODE, then press the u arrow button to select your viewing preference from 5 factory options: STANDARD >... - Page 20 The AUDIO menu offers options to make sound enhancements while listening through the built-in speakers or to select digital audio options when connected to a Dolby Digital receiver though a (SPDIF) coaxial digital output. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select AUDIO.
- Page 21 The TIME menu includes adjustment of settings for your local time zone and daylight savings time. The clock will adjust automatically after the initial Channel Auto Scan of available broadcast channels in your area. (See page 17 for TV Setup) How to Navigate: Press the MENU button on the remote control.
-
Page 22: Transparency
In the SETUP menu you may change the initial set up of preferences that include settings for language, menu display, computer monitoring, closed captions, enhancement of black detail in the picture and resetting your TV back to its factory default status. How to Navigate: Press the MENU button on the remote control. -
Page 23: Closed Caption Settings
The SETUP menu includes adjustments for activating the Closed Caption feature for display on the television and customizing CC display types and font styles. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select SETUP. Press the down arrow button to highlight Closed Caption. -
Page 24: Advanced Setting For Pc
In the SETUP menu you may adjust the position of images displayed on screen once you connect an input signal from your PC. Recommended resolution is 1,980 x 1,080. For use with a laptop computer, refer to your computer’s owner manual on instruction for proper display output. -
Page 25: Parental Control - Us
In the Parental menu, you may block television and movie programming based on TV ratings and Motion Picture Association guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. How to Navigate: Press the MENU button on the remote control. -
Page 26: Parental Control - Canada
In the PARENTAL menu, you may block television and movie programming based on Canadian TV and movie rating guidelines. To gain ac- cess and select your preferences within the Parental menu make certain your input is set to TV. How to Navigate: Press the MENU button on the remote control. -
Page 27: Tv Settings 11 Favorite
The TV menu provides for the setup of your television to receive TV channels, store your favorites, add or skip channels and label them by their call letters. (For antenna and Channel Auto Scan setup, please refer to page 17.) How to Navigate: Press the MENU button on the remote control. - Page 28 The ZOOM function offers several viewing display options on the 16:9 screen. Press ZOOM to cycle through the following widescreen settings. 1. NORMAL Press ZOOM to cycle Recommended for viewing native widescreen content and through the following undistorted 4:3 images (with black bars). widescreen settings.
-
Page 29: Information Functions / Dvd Player Functions
Information Funtions Information Display An On Screen Display (OSD) indicator will be displayed at the upper part TV screen when certain functions are executed, or when pressing the OSD button on the remote control. The OSD indicator is a user friendly interface designed to display the status of playback type . When a different disc is loaded (DVD, CD, Music ready);... -
Page 30: Customizing The System Setup Settings
Customizing the SYSTEM SETUP Settings Press D.SETUP button to enter setup menu 1.Use the Left and Right buttons select SYSTEM SETUP option. 2.Use the Up and Down buttons to highlight an individual SYSTEM SETUP option. The SYSTEM SETUP menu includes the following options : There are NTSC / PAL / AUTO three modes, and choose one mode TV System according your TV mode. -
Page 31: Customizing The Digital Setup Settings
Customizing the DIGITAL SETUP Settings Press D.SETUP button to enter setup menu 1.Use the Left and Right buttons select DIGITAL SETUP option. 2.Use the Up and Down buttons to highlight an individual DIGITAL SETUP option. The DIGITAL SETUP menu includes the following options : You can choose the OSD Language. -
Page 32: Customizing The Audio Setup Settings
Customizing the AUDIO SETUP Settings Press D.SETUP button to enter setup menu 1.Use the Left and Right buttons select AUDIO SETUP option. 2.Use the Up and Down buttons to highlight an individual AUDIO SETUP option. The AUDIO SETUP menu includes the following options: Dynamic Range To optimize the dynamic sound output high volume outputs are softed, enabling you watch your favourite movie without disturbing others. -
Page 34: Troubleshooting
Check for a possible solution to a symptom before contacting a customer service representative. Symptom Possible Solutions • Perform Channel Scan to add channels into the TV tuner memory. Cannot receive certain See page 17. channels through the • Readjust your antenna and retry Auto Channel Scan. antenna •... -
Page 35: Warranty
Digital® authorized retailer. We also warrant labor charges for a period of one (1) year from the date of original purchase. During the limited warranty period, we will provide a technician to service repairs in your home for a TV that is 32" and above, or you may bring it in to an Apex Digital authorized service center.
