LG XH-TK9025KZ Owner's Manual

Dvd karaoke receiver
Hide thumbs

Advertisement

Quick Links

HT902TR-XK.NA6KALX_ENG_5856

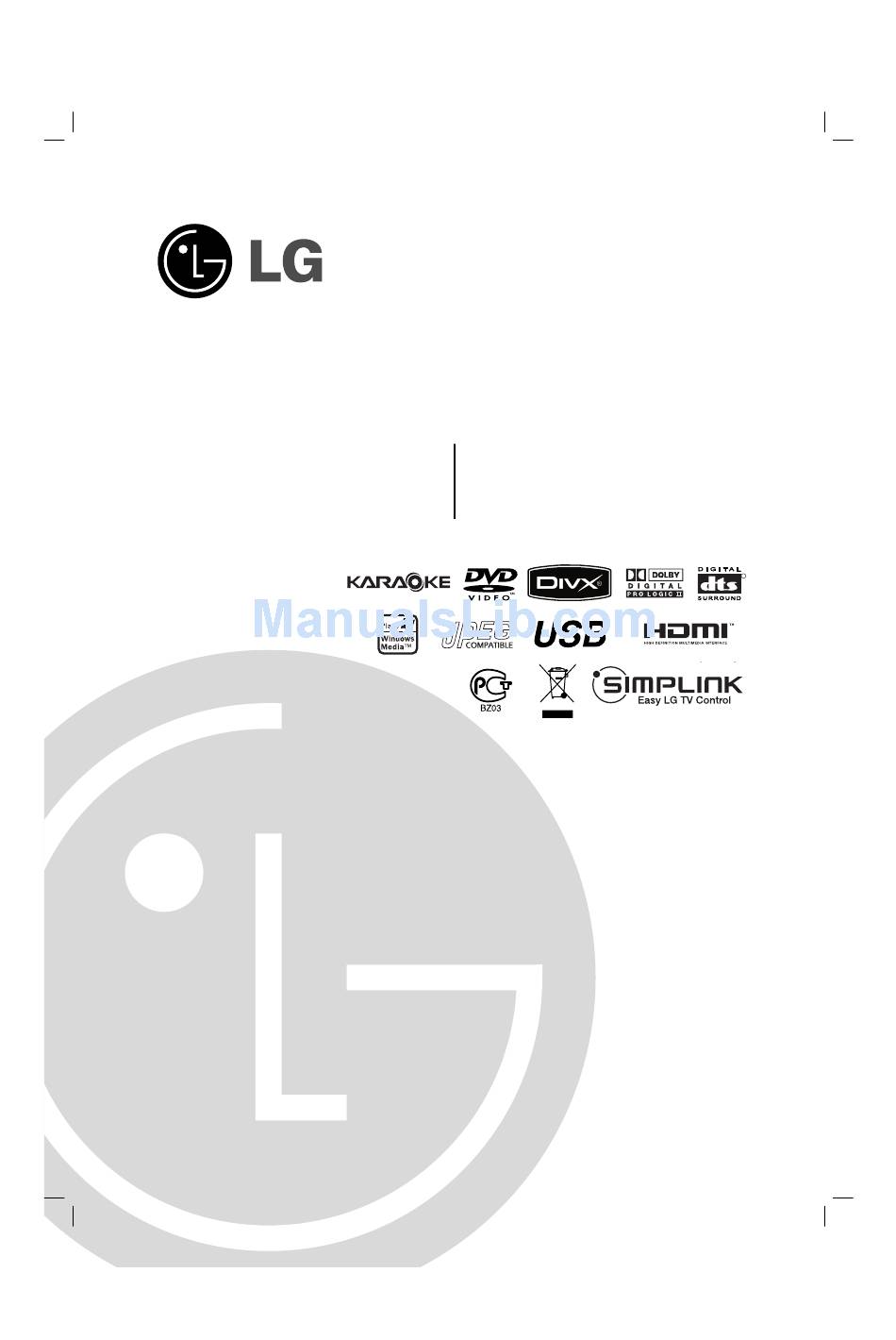

DVD KARAOKE RECEIVER
OWNER'S MANUAL
MODEL: XH-TK9025KZ
XH-TK9025KZ
SH92TR-S
SH92TR-C
SH92TR-W
Before connecting, operating or adjusting this product,
please read this instruction booklet carefully and
completely.
R

Advertisement

loading

  Related Manuals for LG XH-TK9025KZ

  Summary of Contents for LG XH-TK9025KZ

  • Page 1 HT902TR-XK.NA6KALX_ENG_5856 DVD KARAOKE RECEIVER OWNER’S MANUAL MODEL: XH-TK9025KZ XH-TK9025KZ SH92TR-S SH92TR-C SH92TR-W Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.
  • Page 2 CAUTION: The apparatus should not be exposed to water CAUTION (dripping or splashing) and no objects filled with liquids, such RISK OF ELECTRIC SHOCK as vases, should be placed on the apparatus. DO NOT OPEN CAUTION concerning the Power Cord Most appliances recommend they be placed upon CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK...
  • Page 3: Table Of Contents

    Introduction Maintenance and Service Maintenance and Service ....3 Before use ......4 Refer to the information in this chapter before Front Panel/Rear Panel .
  • Page 4: Before Use

    SIMPLINK function. wide patents issued and pending. "DTS" and "DTS Digital Surround” are registered trademarks of Digital Theater • LG TV with SIMPLINK function has the logo as shown above. Systems, Inc. Copyright 1996, 2003 Digital Theater Systems, Inc. All Rights Reserved.
  • Page 5: Front Panel/Rear Panel

    Front Panel/Rear Panel POWER DISC Tray DISPLAY Window VOLUME controller TUNING(-/+)/SKIP/ SEARCH(. . /> > )/ KEY CONTROL(b)/(#) AUDIO IN connector STOP (x) PAUSE ( X X )/ MONO/STEREO (ST.) USB port FUNC.(-)/PLAY(B) Connect to a USB port of a memory Press and hold down this button device (USB memory etc.) about 3 seconds, then press...
  • Page 6: Remote Control

    MENU RETURN Adjusts echo volume. FEMALE TEMPO(-/+) To sing a song of WOMEN’s. To play fast or slow. (LG karaoke disc only) MIC VOL. (V/v) ENTER b - KEY CON. - # Adjusts microphone volume. Adjust a vocal range. (LG karaoke...
  • Page 7: Installation And Setup

    Installation and Setup TV Connection Make one of the following connections, depending on Video connection the capabilities of your existing equipment. Connect the MONITOR OUT jack from the DVD/CD Receiver to the VIDEO IN jack on the TV using the Tips: video cable (V).
  • Page 8: Optional Equipment Connection

    Optional Equipment Connection OPTICAL IN connection (O) Auxiliary device DVD Player Connect an optical output of DVD Player (or Digital (or Digital Device etc) to the OPTICAL IN connector. Device, etc) VIDEO AUDIO (L) AUDIO IN connection (D) AUDIO (R) OPTICAL Connect a output of portable device (MP3 or PMP etc) To AUDIO OUT (L/R)
  • Page 9: Assembling The Speaker Stand To The Speaker

    Assembling the speaker stand Speaker System Connection to the speaker Connect the speakers using the supplied speaker cables. Before connecting the speakers, assemble the To obtain the best possible surround sound, adjust the speaker stand to the speaker as illustrated. speaker parameters (volume, distance, etc.).
  • Page 10: Hdmi Connection

    Rear of DVD/CD Receiver HDMI Connection About HDMI INPUT MONITOR HDMI (High Definition Multimedia Interface) supports L - AUX - R both video and audio on a single digital connection for HDMI OUT COMPONENT VIDEO (PROGRESSIVE SCAN) an easy all- digital output to an HDMI or DI-equipped TV. OUT PUT Connection to an HDMI TV requires an HDMI cable while connection to a DVI-equipped TV requires a DVI...
  • Page 11: Displaying Disc Information On-Screen

    Displaying Disc Information GENERAL OPERATION On - screen 1. Press SETUP. The Setup menu appears. 2. Use v / V to select the desired option then press You can display various information about the disc B to move to the second level. The screen shows loaded on-screen.
  • Page 12: Display

    DISPLAY DISPLAY 16 : 9 TV Aspect Widescreen Display Mode Progressive Scan Move Select TV Aspect 4:3 – Select when a standard 4:3 TV is connected. 16:9 – Select when a 16:9 wide TV is connected. Display Mode The display Mode setting works only when the TV Aspect mode is set to “4:3”.
  • Page 13: Audio

    AUDIO 5.1 Speaker Setup Make the following settings for the built-in 5.1 channel Each DVD disc has a variety of audio output options. surround decoder. Set the receiver’s AUDIO options according to the type of audio system you use. 1. Press ENTER, and the 5.1 Speaker Setup menu appears.
  • Page 14: Lock (Parental Control)

    LOCK (Parental Control) OTHERS OTHERS LOCK Rating Unlock DivX(R) Registration Select Password **** Semi Karaoke Area Code Move Select Move Select Rating Set Playback Control (PBC) to On or Off. Blocks playback of rated DVDs based on their On: Video CDs with PBC are played according to contents.
  • Page 15: Operation

    Operation General features Buttons Operations Discs Z (OPEN / CLOSE) Opens or closes the disc tray. X (PAUSE) During playback, press X to pause playback. Press X repeatedly to play Frame-by-Frame. DivX SKIP (. / >) During playback, press SKIP (. or >) to go to the next chapter/track or to return to the beginning of the current chapter/track.
  • Page 16: Additional Features

    DivX Your remote control is capable of operating your To enter a Marker DVD/CD Receiver as well as limited functions of LG You can start playback from up to nine memorized Follow the instructions below to operate your LG TV.
  • Page 17: Playing An Audio Cd Or Mp3/Wma File

    Playing an Audio CD or Programmed Playback MP3/WMA file The program function enables you to store your favorite tracks from any disc in the receiver memory. A This unit can play Audio CDs or MP3/WMA files. program can contain 300 tracks. MP3/ WMA/ Audio CD 1.
  • Page 18: Viewing A Jpeg File

    Viewing a JPEG file JPEG JPEG disc compatibility with this player is limited as follows: This unit can play discs with JPEG files. • Depending upon the size and the number of Before playing JPEG recordings, read the notes on JPEG files, it could take a long time for the JPEG Recordings on the right.
  • Page 19: Playing A Divx Movie File

    Playing a DivX Movie file DivX disc compatibility with this player is limited as follows: Using this DVD/CD Receiver you can play DivX disc. • Available resolution size of the DivX file is under 1. Insert a disc and close the tray. The MOVIE menu 800x600 (W x H) pixel.
  • Page 20: Presetting The Radio Stations

    Presetting the Radio Stations Listening to the Radio You can preset 50 stations for FM and AM (MW). Preset radio stations in the DVD/CD Receiver’s Before tuning, make sure that you have turned down memory first (see “Presetting radio stations” on the the volume.
  • Page 21: Sleep Timer Setting

    The SLEEP indicator and the sleep time appears in the display window. XTS-P ON The unique sound quality of the LG Technology 2. Each time you press SLEEP the setting creates the optimum sound for you to play the changes in the following order.
  • Page 22: Karaoke Operation

    KARAOKE Operation You can play KARAOKE (singing along) with karaoke disc by connecting a microphone to the unit. You can enjoy KARAOKE with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the singer’s voice. Karaoke Basic Playback Karaoke Advanced Playback 1.
  • Page 23: Karaoke Menu Playback

    Reserving the Songs Karaoke MENU Playback When you want to make a reservation of next melody, Preparation you can enjoy the most 8 melodies reservation Press MENU on the karaoke mode. Without waiting. The main MENU appears on the screen. Main MENU (On the TV screen) 1.
  • Page 24 SINGER LIST ( MUSIC LIST ( 1. Select and select the initial LOCAL SONG ( ) and POP of the singer you want by pressing the v/V in the SONG LIST and SINGER LIST menu, and press SONG ( ENTER. 1.
  • Page 25 COMPOSER LIST ( CLASSIC ( 1 Select and select the initial of Select by pressing the v v V V , the composer you want by pressing the v/V in the and press ENTER in the LOCAL SONG, POP SONG CLASSIC LIST and COMPOSER LIST menu, and and CLASSIC menu.
  • Page 26 5. Select number you want by pressing v/V/b/B RANDOM ( and press ENTER. 1. Select by pressing v/V on the Sing along with the accompaniment. main menu. 6. Repeat step 4-5. Change the team of red team or blue team alternately.
  • Page 27: Reference

    Reference Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Abkhazian 6566 Fiji 7074 Lingala 7678 Singhalese 8373 Afar 6565 Finnish 7073 Lithuanian...
  • Page 28: Troubleshooting

    Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Correction Symptom Cause • Plug the power cord securely into the • The power cord is disconnected. No power. wall outlet. • Insert a disc. (Check that the DVD or, •...
  • Page 29 Symptom Cause Correction • The antenna is positioned or connected • Connect the antenna securely. Radio stations cannot poorly. be tuned in. • Adjust the antennas and connect an external antenna if necessary. • The signal strength of the stations is too •...
  • Page 30: Specifications

    Specifications Power supply Refer to main label. Power consumption Refer to main label. Net Weight 3.9 kg External dimensions (W x H x D) 430 x 70 x 310 mm Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal Operating humidity 5% to 85% Laser Semiconductor laser, wavelength 650 nm...
