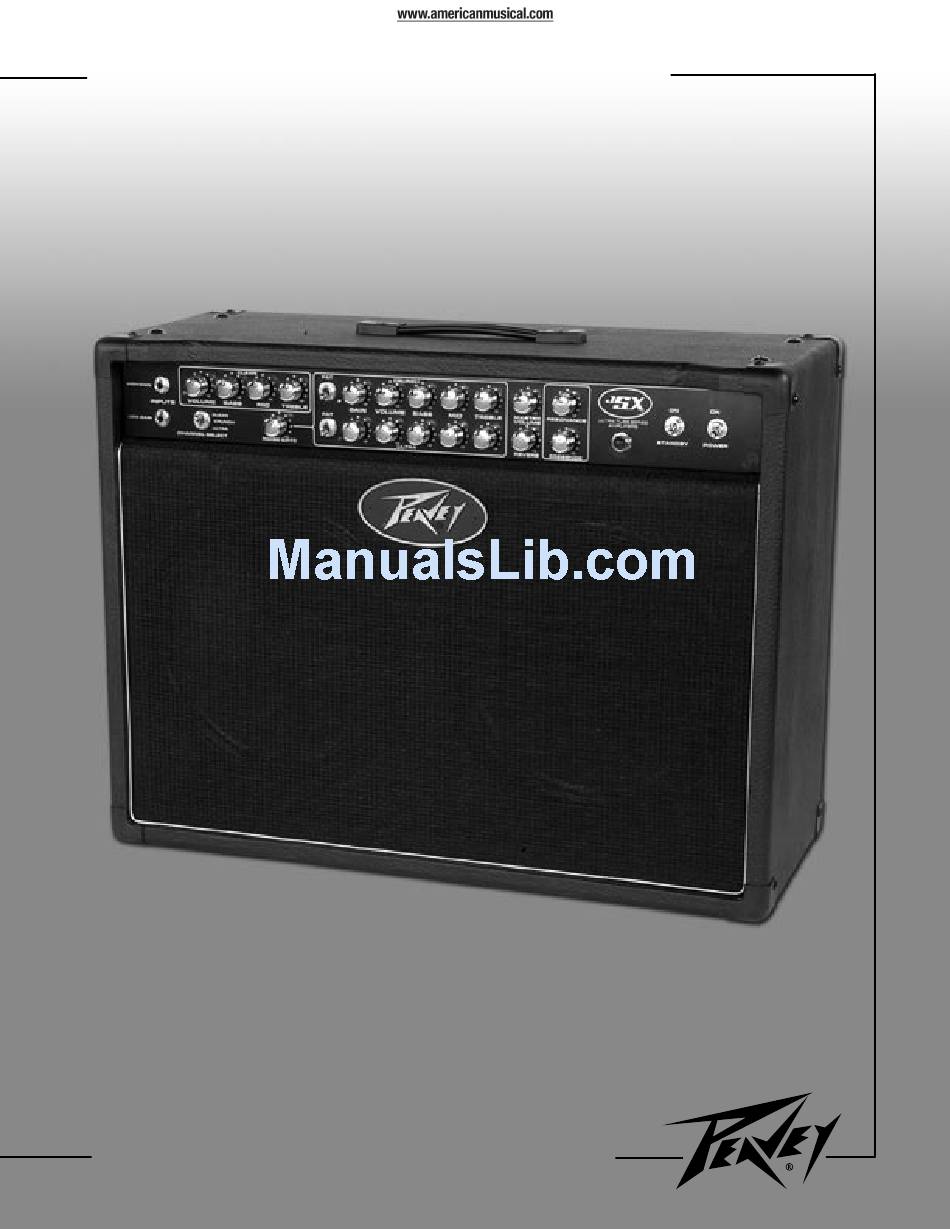

- Page 1 JSX 212 ™ Joe Satriani Signature All-Tube Amplifier For information on other great Peavey products, visit your local Peavey dealer or visit us online at www.peavey.com...
- Page 2 ATTENTION: Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à l’intérieur aucune pièce pouvant être reparée par l’utilisateur. Confiez I’entretien et la réparation de l’appareil à un réparateur Peavey agréé. AVERTISSEMENT: Afin de prévenir les risques de décharge électrique ou de feu, n’exposez pas cet appareil à...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electrical products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. -
Page 4: Wichtige Sicherheitshinweise
WICHTIGE SICHERHEITSHINWEISE ACHTUNG: Beim Einsatz von Elektrogeräten müssen u.a. grundlegende Vorsichtsmaßnahmen befolgt werden: Lesen Sie sich diese Anweisungen durch. Bewahren Sie diese Anweisungen auf. Beachten Sie alle Warnungen. Befolgen Sie alle Anweisungen. Setzen Sie dieses Gerät nicht in der Nähe von Wasser ein. Reinigen Sie es nur mit einem trockenen Tuch. -
Page 5: Instructions Importantes De Securite
INSTRUCTIONS IMPORTANTES DE SECURITE ATTENTION: L’utilisation de tout appareil électrique doit être soumise aux precautions d’usage incluant: Lire ces instructions. Gardez ce manuel pour de futures références. Prétez attention aux messages de précautions de ce manuel. Suivez ces instructions. N’utilisez pas cette unité proche de plans d’eau. N’utilisez qu’un tissu sec pour le nettoyage de votre unité. - Page 6 INSTRUCCIONES IMPORTANTES PARA SU SEGURIDAD CUIDADO: Cuando use productos electrónicos, debe tomar precauciones básicas, incluyendo las siguientes: Lea estas instrucciones. Guarde estas instrucciones. Haga caso de todos los consejos. Siga todas las instrucciones. No usar este aparato cerca del agua. Limpiar solamente con una tela seca.
- Page 7 ENGLISH ™ Congratulations on purchasing a Peavey JSX guitar amplifier. The JSX is a guitar player’s dream come true—an amp that delivers superior sound quality and high performance for any style of guitar playing. Only the finest materials are used to create this great-sounding, rugged, tour-worthy and very unique-looking tone machine.
-
Page 8: Master Volume
F R O N T P A N E L WARNING POWER SWITCH This two-way toggle switch applies mains power to the THE ON/OFF SWITCH IN THIS APPARATUS unit. The red POWER STATUS LAMP (3) will illuminate DOES NOT BREAK BOTH SIDES OF THE MAINS. HAZARDOUS ENERGY MAY BE PRESENT INSIDE when this switch is in the ON position. -
Page 9: Noise Gate
TREBLE On both the Ultra and Crunch channels, this control varies the high frequency response of the amplifier. It is an active control (shelving type) and allows approximately 12 dB of boost or cut. On both the Ultra and Crunch channels, this control varies the mid frequency response of the amplifier. It is an active control (peak/notch type) and allows approximately 12 dB of boost or cut. -
Page 10: High Gain Input
(16) TREBLE This passive control regulates the high frequencies for the Clean channel. (17) This passive control regulates the mid frequencies for the Clean channel. (18) BASS This passive control regulates the low frequencies for the Clean channel. (19) HIGH GAIN INPUT Used for most electronic guitars. - Page 11 R E A R P A N E L CAUTION (22) EFFECTS SEND LEVEL This calibrated (0 – 10) control sets the level of signal being sent to external effects and/or signal processors. Clockwise rotation increases the amount of signal being sent; counterclockwise rotation decreases the amount.
- Page 12 “+” or “-” position to minimize hum/noise. If changing the polarity does not alleviate the problem, consult your authorized Peavey dealer, the Peavey factory or a qualified service technician.
- Page 13 CAUTION (35) IEC MAINS CONNECTOR This is a standard IEC power connector. An AC mains cord with the appropriate AC plug and ratings for the intended operating voltage is included in the carton. The mains cord should be connected to the amplifier before connecting to a suitable AC outlet.
-
Page 14: Cable Connector
F O O T S W I T C H (36) CABLE CONNECTOR This seven-pin DIN connector is provided for connecting the footswitch to the amplifier REMOTE SWITCH (26) via the cable included in the carton. Connections at the switch and the amplifier should be made before the amp is powered up. - Page 15 JSX 212 Block Diagram ™...
-
Page 16: Specifications
JSX 212 ™ SPECIFICATIONS POWER AMPLIFIER SECTION: Clean Channel: Remote Footswitch: Nominal Input Level: -10 dBV, 300 mV RMS Special three-button metal footswitch Tubes: Minimum Input Level: -22 dBV, 80 mV RMS with LED indicators and detachable cord Four EL34 tubes with 12AX7 driver Maximum Input Level: 0 dBV, 1 .0 mV RMS... - Page 17 What Peavey Will Do We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.
- Page 18 Features and specifications subject to change without notice. Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com 80304951 ©2005...
