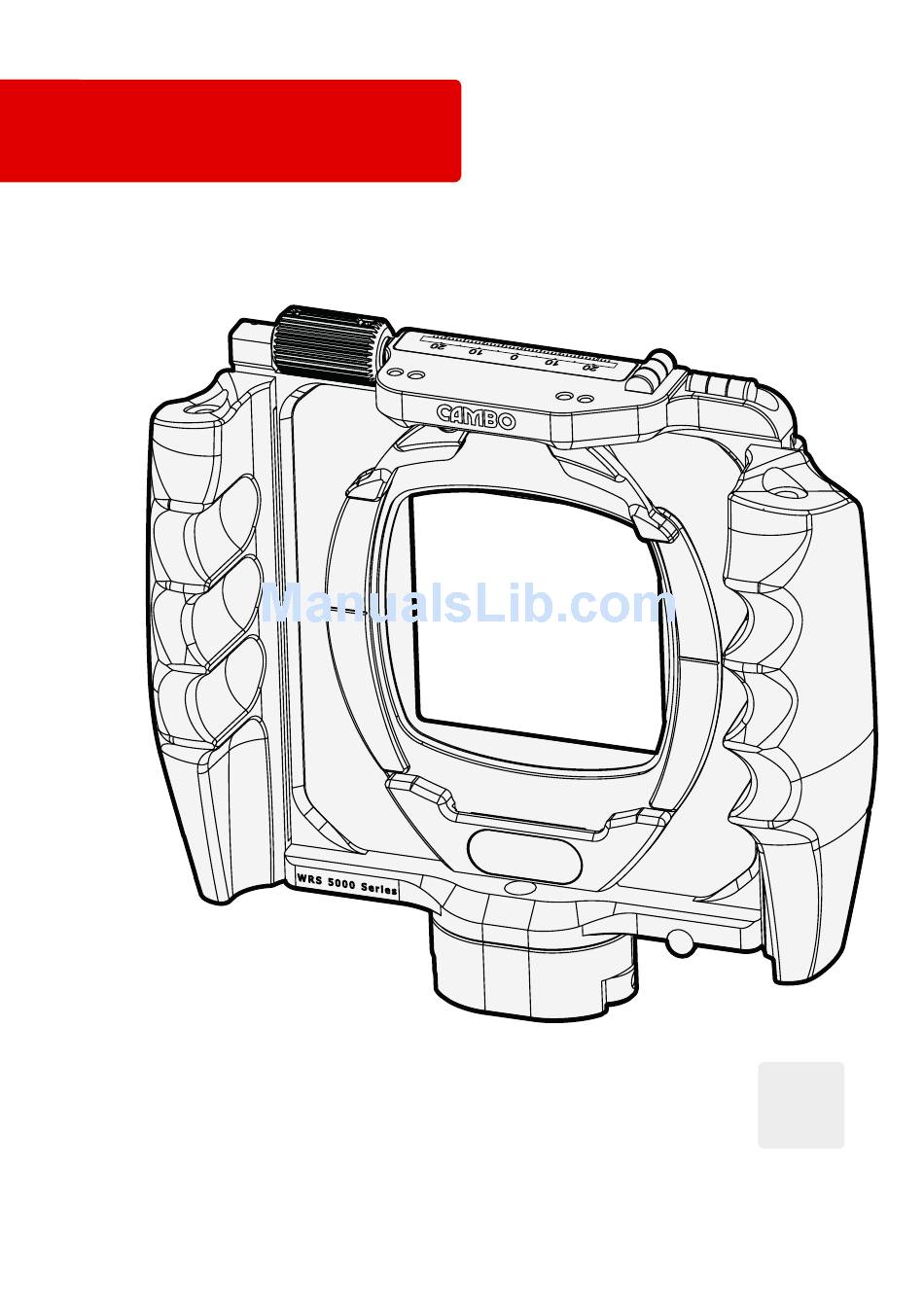

- Page 1 ® Wide RS 5000 series CAMBO ® CAMBO Wide RS 5000 series INSTRUCTION MANUAL REV-11-2012...
- Page 2 Copyright © 2012 Cambo fotografische Industrie. All rights reserved. Revised 15-10-2010...
- Page 3 ® Wide RS 5000 series CAMBO Horizontal shift indication Cambo accessory mount Spirit levels Horizontal shift drive knob Cable release mount Cable release mount Mount led light Lens panel lock Lens panel lock Hand grip Wide RS-5000 camera body Hand grip Tripod mount 3/8”...
- Page 4 Thank you for purchasing a Cambo product. The Wide RS is a compact medium format system camera featuring lateral and vertical shift of the rear standard. The precision rear shift/rise and fall control is ideal for architecture and landscape photography. It enables the photographer the use perspective control, image displacement and high- quality panoramic stitching.
- Page 5 3. Tilt the lens panel flat to the camera body 4. lock both lens panel lock B. MOUNTING AN INTERFACE ADAPTER The Wide RS system is compatible with the Cambo SLW interface plates. The available interface (adapter) plates are: Interface plate...
- Page 6 The interface adapter can be mounted 90° rotated, to change the orientation from landscape to portrait. The interface adapter can be exchanged with the Cambo WDS-619 ground glass frame with CCD-markings. The WDS-619 frame uses the same SLW mount as the interface adapters.
-
Page 7: Mounting The Digital Back
® Wide RS 5000 series CAMBO a Copal 0 shutter, with shutter speeds between 1/500 and 1 second, B and T. The mechanical shutter must be cocked between every exposure. WDS lens panels featuring the Schneider® or Rodenstock® electronic shutter are avail- able on request. - Page 8 G. TRIPOD MOUNTING BLOCK The Wide RS comes with a removable tripod mounting block, which is already mounted in place. It is equipped with a 3/8” thread. The height of the mount- ing block allows the user to take full advantage of the 25mm vertical shift when mounted on a larger tripod.
- Page 9 H. ACCESSORY MOUNT, VIEWFINDER AND COMPENDIUM At the top of the camera body features the Cambo accessory mount. The Cam- bo accessory modules are mounted using a two-way fixation, which results in a accurate and stable fixation.
- Page 10 The indicated image circle is defined by the circle containing acceptable image quality, defined by the quality standards of the lens manu- facturer. Cambo does not change these specifications. For detailed lens spec- ifications users are referred to data provided by Rodenstock® or Schneider- Kreuznach®.
- Page 11 ® Wide RS 5000 series CAMBO K. WTS TILT-SWING LENS PANELS The WTS panel allows an angle adjustment between +5 and -5 degrees in both swing and tilt direction for setting Scheimpflug corrections. These can be used separately as well as simultaneously, using the 2 adjustment knobs. The lens plane and CCD are parallel when the tilt (T) and swing (S) indicators are set to zero on the scale.
- Page 12 This instruction manual has been prepared with care. However, Cambo Fotografische Industrie BV can ac- cept no responsibility, financial or other for any consequences arising out of the use of this material. All specifications in this manual are subject to change without notice. Please check www.cambo.com for updates.
