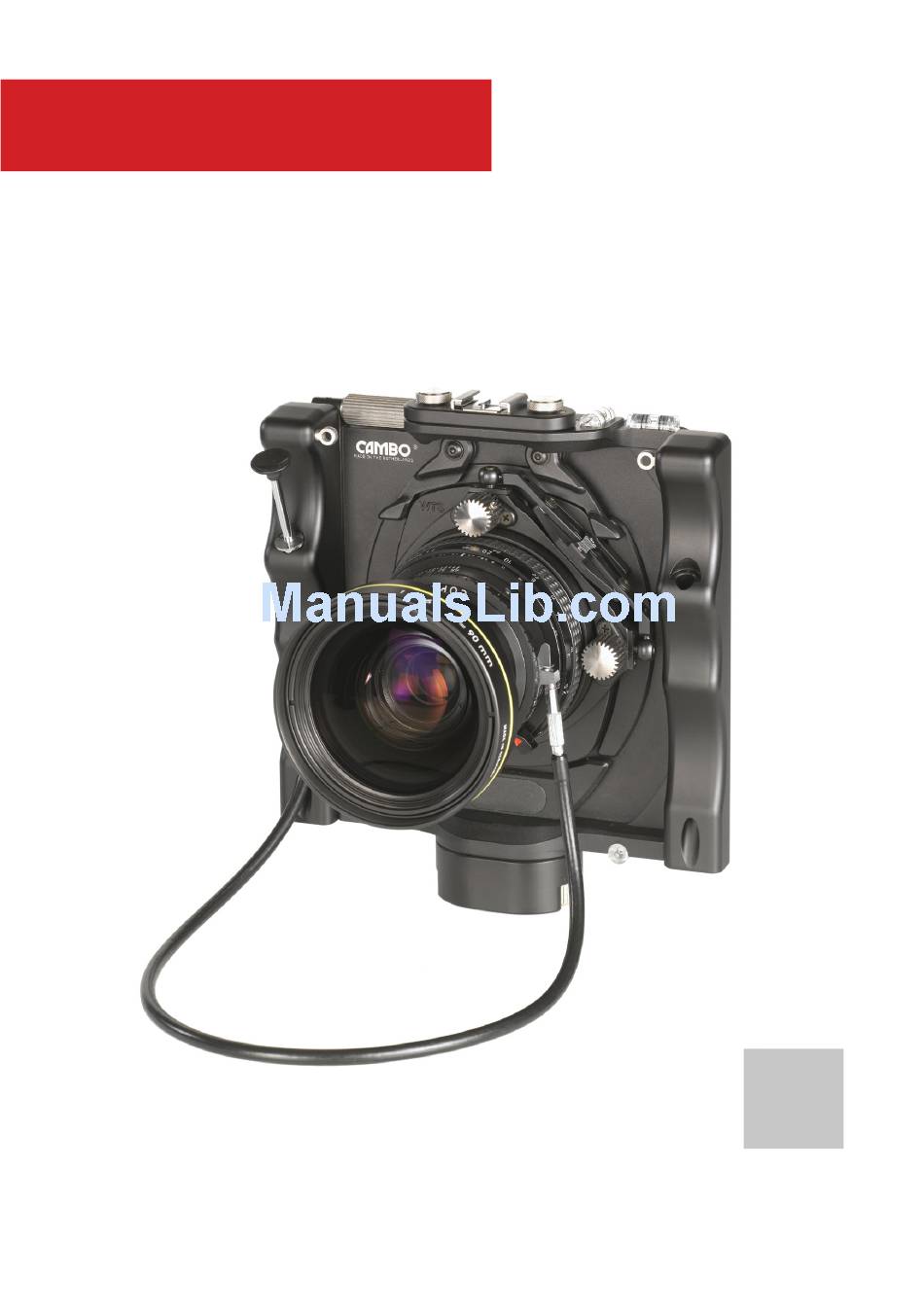

- Page 1 ® Wide RS 1200 series CAMBO ® CAMBO Wide RS 1200 series INSTRUCTION MANUAL Rev-10-2012...
- Page 2 Copyright © 20 12 Cambo fotografische Industrie. All rights reserved. Revised 15-10-2010...
- Page 3 ® Wide RS 1200 series CAMBO Horizontal shift indication Cambo accessory mount Horizontal shift drive knob Spirit levels Strap mount Strap mount Mount led light Lens panel lock Cable release mount Lens panel lock Cable release mount Hand grip Wide RS camera body...
- Page 4 Thank you for purchasing a Cambo product. The Wide RS is a compact medium format system camera featuring lateral and vertical shift of the rear standard. The precision rear shift/rise and fall control is ideal for architecture and landscape photography. It enables the photographer the use perspective control, image displacement and high- quality panoramic stitching.
- Page 5 3. Tilt the lens panel flat to the camera body 4. lock both lens panel lock B. MOUNTING AN INTERFACE ADAPTER The Wide RS system is compatible with the Cambo SLW interface plates. The available interface (adapter) plates are: Interface plate...
- Page 6 The interface adapter can be mounted 90° rotated, to change the orientation from landscape to portrait. The interface adapter can be exchanged with the Cambo WDS-619 ground glass frame with CCD-markings. The WDS-619 frame uses the same SLW mount as the interface adapters.
-
Page 7: Mounting The Digital Back
® Wide RS 1200 series CAMBO The mechanical shutter must be cocked between every exposure. WDS lens panels featuring the Schneider® or Rodenstock® electronic shutter are avail- able on request. D. MOUNTING THE DIGITAL BACK Please choose the SLW interface adapter corresponding to the interface mount of your digital back. - Page 8 hand back side of the horizontally moving plate which are always visible from behind the camera, independent of the position of the plates. WDS mask WRS-1090 compendium WDS-582 (extension bracket) WRS-1075 module (universal accessory shoe) LED module Spigot accessory mount 3/8”...
- Page 9 H. ACCESSORY MOUNT, VIEWFINDER AND COMPENDIUM At the top of the camera body features the Cambo accessory mount. The Cam- bo accessory modules are mounted using a two-way fixation, which results in a accurate and stable fixation.
- Page 10 The indicated image circle is defined by the circle containing acceptable image quality, defined by the quality standards of the lens manu- facturer. Cambo does not change these specifications. For detailed lens spec- ifications users are referred to data provided by Rodenstock® or Schneider- Kreuznach®.
- Page 11 ® Wide RS 1200 series CAMBO K. WTS TILT-SWING LENS PANELS The WTS panel allows an angle adjustment between +5 and -5 degrees in both swing and tilt direction for setting Scheimpflug corrections. These can be used separately as well as simultaneously, using the 2 adjustment knobs. The lens plane and CCD are parallel when the tilt (T) and swing (S) indicators are set to zero on the scale.
- Page 12 This instruction manual has been prepared with care. However, Cambo Fotografische Industrie BV can ac- cept no responsibility, financial or other for any consequences arising out of the use of this material. All specifications in this manual are subject to change without notice. Please check www.cambo.com for updates.
