Analog Camera User's Manual
CD-960H

Important Safeguards and Warnings

1.Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC or 24V AC in the IEC60950-1.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
2.Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-960H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Videosec CD-960H

  • Page 1: Important Safeguards And Warnings

    Analog Camera User’s Manual CD-960H Important Safeguards and Warnings 1.Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1.
  • Page 2 3.Installation Do not apply power to the camera before completing installation. Please install the proper power cut-off device during the installation connection. Always follow the instruction guide the manufacturer recommended. If this product is installed in the ceiling, please make sure the installation position can sustain the min 50N.
  • Page 3: General Introduction

    1 General Introduction This series analog camera adopts the high sensitivity CCD and advanced circuit design. It is featuring the high quality video, the lowest distortion, low noise and etc. This series product is suitable to be used in surveillance system and video process system. 1.1 Features High-performance SONY CCD, high resolution, 700 TVL, vivid and impressive video Support ICR (IR Cut Removal) auto switch, auto day/nigh mode switch or external activation...
  • Page 4 Auto gain function To output the standard video signal in the different illumination environments, the amplifier needs to adjust in a wide range. The system can enhance the camera sensitivity in low illumination and enhance the video signal output to get the clear and high definition video. It is the ratio value between the signal voltage and the noise voltage.
  • Page 5 Once there is strong light at the back of the object, the main object video may become dark. Backlight compensation technology is to automatically compensate the light to get vivid video. You can refer to the following two figures to see the result of the backlight compensation technology function.
  • Page 6: Specifications

    This function can allow you to clearly monitor the remote object. The camera can zoom in the remote object and then output. 1.3 Specifications Please refer to the following sheet for specification. CD-960H 1/3" SONY EX view HAD Video Processor Video Format...
  • Page 7 Video Output 1Vp-p Composite Output(75Ohm/BNC) Above 60dB Menu LENS Manual/Video/DC SHUTTER/AGC Auto/Manual BACKLIGHT Off/BLC/HLC(High light compensation ) (BLC) WHITE ATW/ ANTI CR /manual/push lock/push/user 1/user 2 BALANCE DAY/NIGHT Auto/external trigger/black and white/color MODE PICTURE Mirror/brightness/contrast/sharpness/hue/gain ADJUST Off/luminance/contrast MOTION Detect sensitivity/block display/area selection DETECT PRIVACY Area selection/color/transparent/mosaic...
  • Page 8 2 Framework 2.1 Dimension Please refer to the following figures for dimension information. See Figure 2-1 and Figure 2-2. Figure 2-1 Figure 2-2...
  • Page 9: Side Panel

    2.2 Side Panel This series analog camera side panel structure is shown as below. See Figure 2-3. 1: Flange-back. 2. Auto aperture port 3.Pedestal to secure the bracket Figure 2-3 1 Flange-back Usually the flange-back has been set to the proper position before it is shipped out of the factory. But sometimes, you may still need to adjust a little bit to let it be suitable for different lens.
  • Page 10: Rear Panel

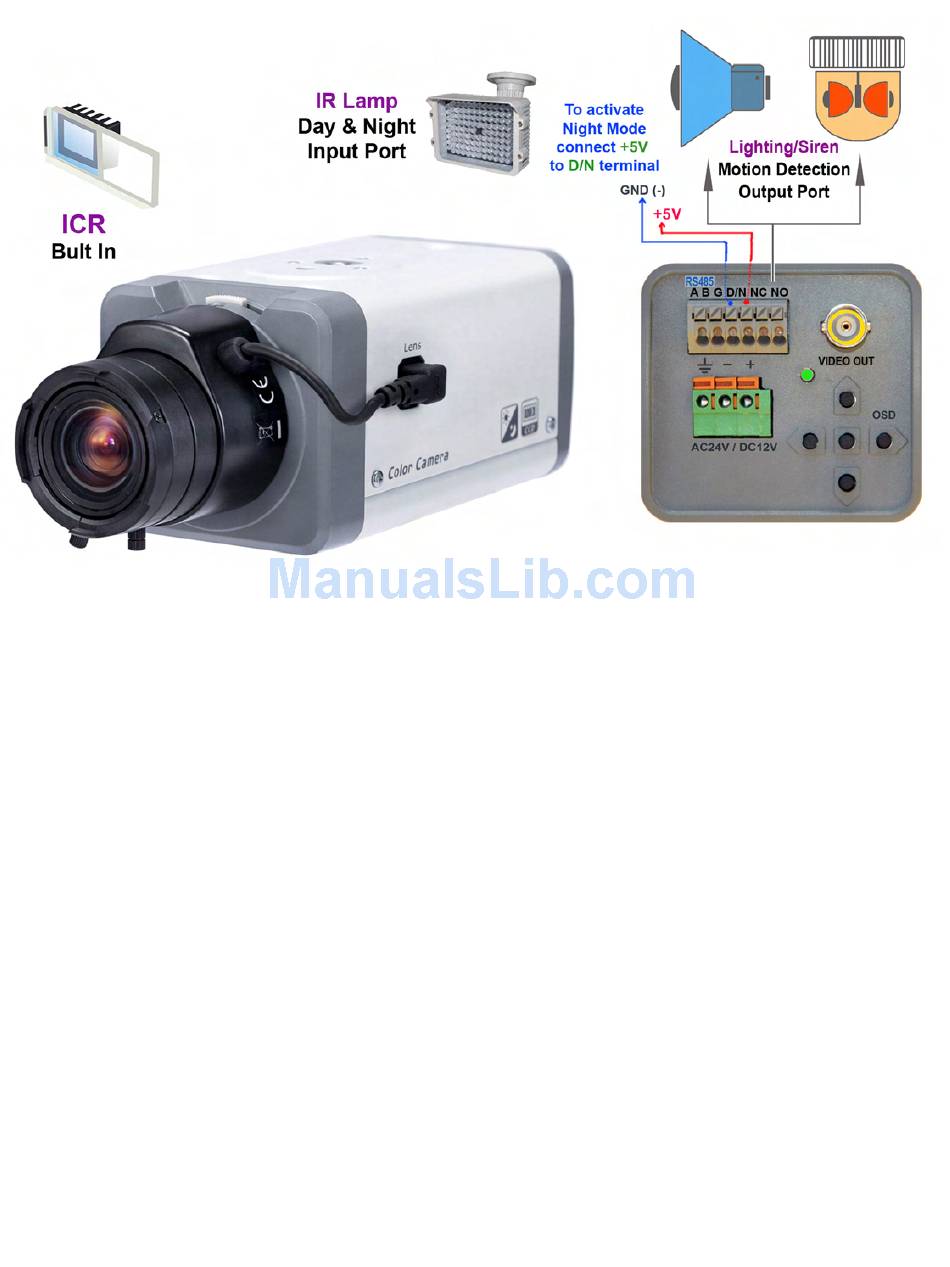

    3. The pedestal to secure the bracket It is to install the bracket. Important Please contact our local retailer if you want to use the video drive lens. 2.3 Rear Panel 2.3.1 CD-960H This series product rear panel is shown as in Figure 2-5. Figure 2-5...
  • Page 11: Installation

    Please refer to the following sheet for detailed information. Menu button Press it for two seconds to call the menu. Use the up/down button to move the function and use the left/right button to select the item. Power indication It is the power indication light. The LED light is on light when the power supply is proper.
  • Page 12: Hardware Installation

    Figure 2-6 Step 2 Install the camera. Please use the installation pedestal at the top of the camera to turn the camera into the bracket. Step 3 After adjust the camera to proper surveillance position, secure the knob of the bracket to fix the camera.
  • Page 13: Main Menu

    3 Menu 3.1 Main Menu Please refer to the following sheet for menu information. THE 1 MENU THE 2 MENU THE 1 MENU THE 2 MENU LENS TYPE DC,VIDEO AUTO LUMIN MIDDLE ANCE HIGH MIDLOW MODE AUTO. CONTR MIDHIGH HIGH SPEED MANUAL HIGH...
  • Page 14: Main Interface

    ADJUST CONTRAST 0-255 OFF,Y/C, Y, MODE SHARPNESS 0-255 000-015 LEVEL 0-255 000-015 LEVEL GAIN 0-255 SYNC CAMERA LANGUA ENGLISH CAMERA RESET 3.2 Main Interface Press the menu button for 2 seconds; you can see the OSD menu appear in the monitor. 3.2.1 F481EP and F480CP MENU MENU...
  • Page 15: Shutter Gain

    Manual It is the manual iris lens. 3.3.2 SHUTTER GAIN The parameter includes: auto , manual . AUTO AUTO SETUP HIGH LUMINANCE MODE SHUTTER+AUTO IRIS BRIGHTNESS LOW LUMINANCE MODE BRIGHTNESS ×1.00 RETURN High luminance/low luminance: It is the high brightness/low brightness. Mode: The high luminance parameter includes shutter+auto iris, auto iris, and shutter.
  • Page 16 User1 USER1 WB B-GAIN R-GAIN B-gain: It is to adjust the blue gain. Please use the left/right button to set. The value ranges from 0 to 255. R-gain: It is to adjust the red gain. Please use the left/right button to set. The value ranges from 0 to 255.
  • Page 17: Picture Adjust

    3.3.5 PICTURE ADJUST Click the confirm button to go to the sub-menu. PICT ADJUST MIRROR BRIGHTNESS CONTRAST SHARPNESS GAIN RETURN Mirror: It is to set the horizontal mirror. The parameter includes on, off. Brightness: The value ranges from 0 to 255. Please use the left/right button to setContrast: The value ranges from 0 to 255.
  • Page 18: Privacy Mask

    Detect sensitivity: The value ranges from 000 to 127. Please use the left/right button to set. Block: display: The parameter includes on, off, set . Click the set button; you can use the direction buttons to set the area to display the block. Monitor area: The parameter includes on, off.
  • Page 19 Burst: The parameter includes on, off. Delay control: The value ranges from 000 to 255. Please use the left/right button to set. Day-night: It is to set the minimum parameter to switch from the day mode to the night mode. The value ranges from 000 to 255.
  • Page 20: Digital Zoom

    3.3.11 DIGITAL ZOOM 000-255 000-1023 TILT 000-511 RETURN Note This function is null when the digital image stabilization function is on. 3.3.12 CAMERA ID The parameter includes on, off. Select the on button and then click the confirm button, you can go to the sub-menu. Please use the direction buttons to select the character or the function and then click the confirm button to select.
  • Page 21: Sync Mode

    3.3.13 RS485 RS485 addr: (1-255): For F481EP series product, please refer to the camera ID setup information for the RS485 setup. RS485 baud rate: 9600bps. RS485 protocol: Auto-adaptive PELCOD, PELCOP, DH-SD. Note: This function is for F481EP, F581EP and F781EP series product only. 3.3.14 SYNC MODE The system supports INT and LL setup.
  • Page 22: Appendix Toxic Or Hazardous Materials Or Elements

    Appendix Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Circuit Board ○ ○ ○ ○ ○ ○ Component Device ○ ○ ○ ○ ○ ○ Construction Material ○ ○ ○ ○ ○...
