Fisher-Price Smart Cycle Racer W5460 User Manual

W5460 W5460
PHYSICAL LEARNING ARCADE SYSTEM
Please keep this owner's manual for future reference, as it contains important information.
Requires four "D" (LR20) alkaline batteries (not included) for operation.
Age: 3-6 years.
This product is intended for indoor use only.
Use ONLY alkaline batteries for longest battery life.
www.fi sher-price.com

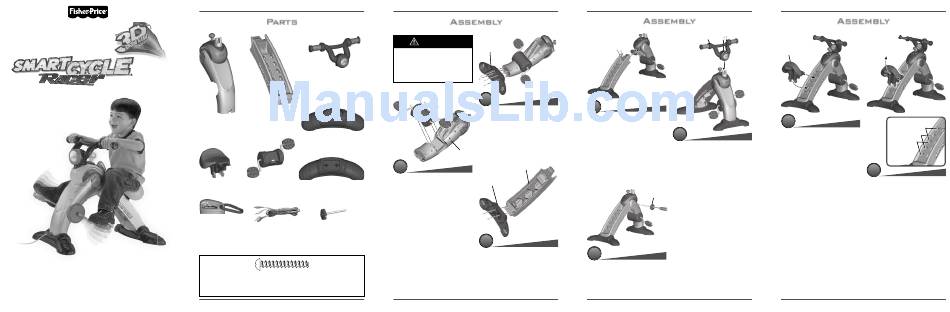

Parts
Handlebar
Seat Post
Frame
with Console
Front Base
(Small)
Seat Pedal Assembly Back Base
(Large)
Learning Adventure
Game Cartridge
Plug-and-Play Cord Frame Cover (with Bolt)
with Key Ring
Adult assembly is Required. Required tool:
Phillips screwdriver (not included).
#8 x 1,25" Screw - 14
Shown Actual Size
Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten.
2
Assembly
CAUTION
Front Base
(Small)
This product contains
small parts in an
unassembled state. Adult
assembly is required.
Pedal 2
Assembly
• Fit the front base (small) onto the
bottom of the frame, as shown.
Hint: The front base is designed to fi t
onto the frame one way. If it does not
seem to fi t, turn it around and try again.
• Insert four screws into the front base
and tighten.
Frame
1
Seat Post
Rear Base
• Fit the pedal assembly into the groove in
(Large)
the underside of the frame, as shown.
Hint: The pedal assembly is designed to
only fi t one way. If it does not seem to
fi t, turn it around and try again.
• Insert four screws into the pedal
assembly. Fully tighten the screws.
3
• Fit the rear base (large) onto the end
of the seat post, as shown.
Hint: The rear base is designed to fi t onto
the seat post one way. If it does not seem
to fi t, turn it around and try again.
• Insert two screws into the rear base
and tighten.
3
Assembly
Handlebar
4
• Turn both the frame and seat post
assemblies upright.
6
• Fit the seat post assembly onto the
frame assembly.
• Insert two screws into the seat post
• Fit the handlebar onto the frame,
and tighten.
as shown.
Hint: You may want to insert the
Hint: The handlebar will only fi t one way
frame cover with bolt into the frame
onto the console. If it does not seem to
assembly before inserting and
fi t, turn it around and try again!
tightening screws in the post.
• Insert two screws into the handlebar
and tighten.
Frame Cover
• Pull up on the handlebar to be sure it
(with Bolt)
is secure.
5
• Insert the frame cover with bolt into the
hole on the side of the frame assembly.
• Full tighten the bolt with a Phillips
screwdriver.
4
Assembly
Seat
7
Seat Height 3
(Shortest)
• At an angle, fi t the upper tabs on the
Seat Height 2
front of the seat into the slots on the
Seat Height 1
seat post.
(Tallest)
• Lower the seat to fi t the bottom tabs
on the seat into the slots on the seat
post. You should hear a "click".
8
• Push down on the seat to be sure it
is secure.
• For your child's comfort, the seat can
be adjusted to any of three seat heights
(upper slots for shorter children and
lower slots for taller children).
• To remove the seat, press the tabs
underneath and lift.
• Replace the seat at the desired height
and push down on the seat to be sure
it is secure in the slots in the seat post.
5
