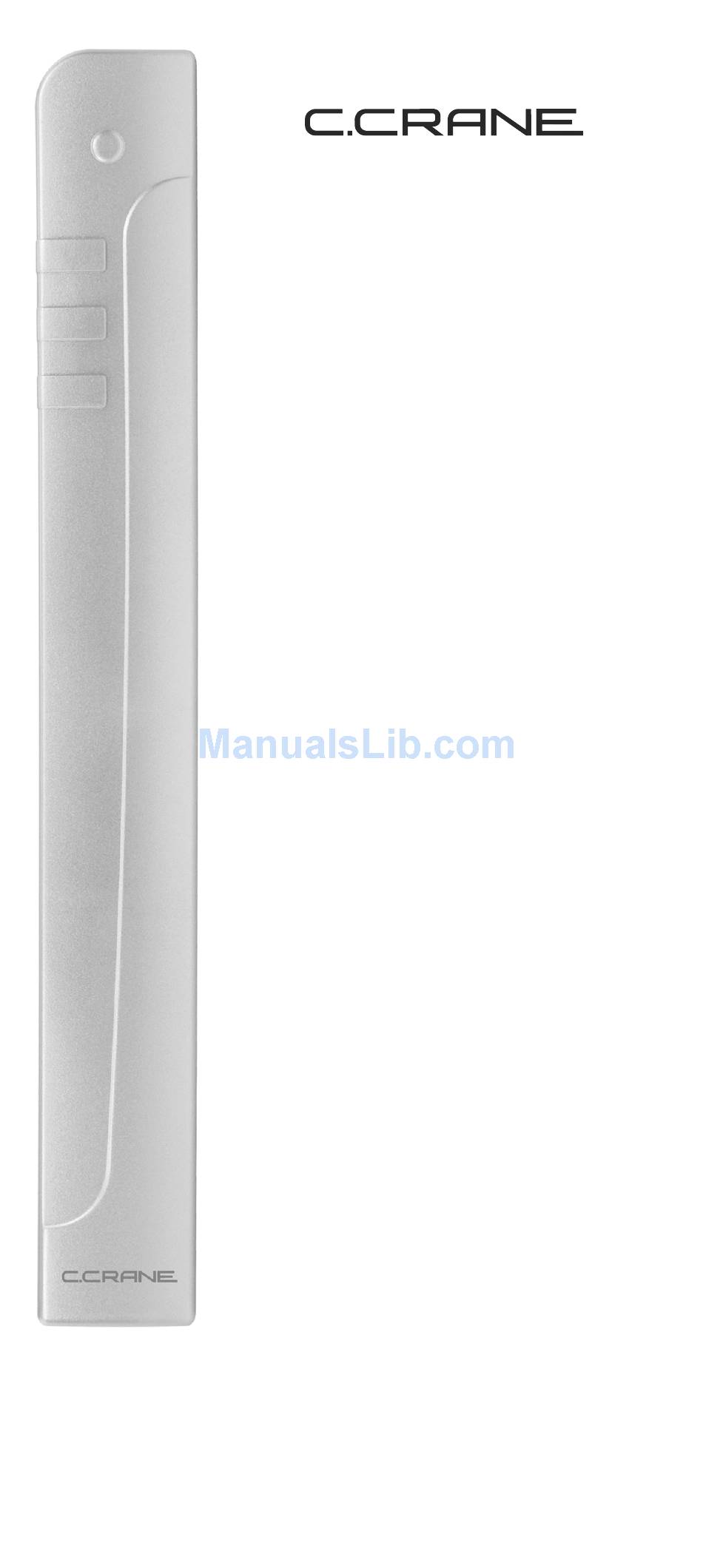

- Page 1 Super USB WiFi Antenna II INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS COMPLETELY BEFORE USE AND SAVE THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
USB Antenna Software CD 15' USB cable Suction Cups (2) Velcro Strips (2) Copyright © 2008 by C. Crane Company, Inc., Fortuna, CA 95540 Phone: 1-800-522-8863 Web: ccrane.com All rights reserved. No part of this booklet may be reproduced, in any form or means whatsoever, without permission in writing from C. -
Page 3: Introduction
Introduction Thank you for purchasing the Super WiFi USB Antenna II To help ensure many years of service please read this manual carefully. Specifications Compatability • Windows 98 through Windows Vista ™ ™ • Mac OS 10.3 through 10.5 ® •... -
Page 4: Windows 98 - Xp Installation
Windows 98 – XP Installation Installation 1. Insert the supplied CD into your computerʼs disk drive. The setup software should start automatically after a few seconds. 2. When the “Welcome” screen appears, click “Next”. 3. When the “Choose Destination” screen appears, click “Next”. - Page 5 Windows 98 – XP Installation Note: When connecting the USB cable to the Super USB WiFi Antenna, be sure that it is tightly connected and there is no gap between. Connecting to a WiFi Site 1. Double left click on the “ZD” icon that shows in the clock taskbar.
- Page 6 Windows 98 – XP Installation 5. Click “Change” and then enter in the required secu- rity key. When finished, click “Apply”, then exit the screen. Note: For a WEP security key; enter it into “Key Value #1”. 6. When “Connected to Access Point” is displayed in “Link Status”, you will be able to access the internet using your default web browser.
-
Page 7: Windows Vista Installation
Windows Vista Installation Installation 1. Connect the USB cable between the Super WiFi USB Antenna and your computerʼs USB port. The cable will plug in just one way and should not be forced in. 2. When connected, a window titled “Found New Hard- ware”... - Page 8 Windows Vista Installation Connecting to a WiFi Site 1. Click the “Start” button. Then click “Connect To”. 2. A window titled “Connect to a Network” will display. Click the “Refresh” button to scan for available WiFi networks in your area. 3.
-
Page 9: Mac Os 10.3 - 10.5 Installation
Mac OS 10.3 – 10.5 Installation Installation 1. Insert the supplied CD into your computerʼs disk drive. 2. Double click on the CD icon. 3. Double click on the “Mac” folder. 4. Double click on your Mac OS version. 5. When the “Introduction” screen appears, click “Continue”. - Page 10 Mac OS 10.3 – 10.5 Installation 7. When the “Installation Type” screen appears, click “Install”. 8. When the “Installation Type” screen appears, click “Install”. 9. When prompted, click “Continue Installation”. 10. When the “Summery” screen appears, click “Restart”. 11. When the computer is fully powered on, connect the USB cable between the Super WiFi USB Antenna and your computerʼs USB port.
- Page 11 Mac OS 10.3 – 10.5 Installation 12. MAC OS 10.5 users: Click “Network Prefer- ences … ” and then click “Apply” to activate the antenna. MAC OS 10.3 or 10.4 users: Go to the “System Preferences” panel and then click “Network”. A message displays “New Port Detected”.
- Page 12 Mac OS 10.3 – 10.5 Installation 4. Double-click your desired WiFi network from the “Available Network” list. 5. If the selected network requires a security key before connecting, then a message will ask if you would like to use your previously entered security key. Click “No”...
-
Page 13: Wifi Tips
WiFi Tips 1. Disable your internal WiFi Antenna: Laptop Users: There should be a button of switch that disables the internal WiFi antenna Windows XP: Access “Network Connections” from the “Control Panel”, then right click on the “Wireless Connection” icon and choose “Disable”. Window Vista: From the Start menu right-click on “Network”... -
Page 14: Faqs And Wifi Troubleshooting
WiFi source. Q. Is there a location on the web to download an- A. Yes, see the C. Crane web site at this address: other copy of the software CD? http://www.ccrane.com/antennas/wifi-antennas/ super-usb-wifi-antenna.aspx... -
Page 15: Fcc Interference Statement And Safety Instructions
FCC Interference Statement and Safety Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to pro- vide reasonable protection against harmful interference in a residential installation. -
Page 16: Warranty Information
Should service be necessary for any reason due to a manufacturing defect or malfunction during the warranty period, C. Crane Company Inc., at its sole discretion, will repair or re- place the defective merchandise at no charge, upon receipt of this item at its service cen- ter with a copy of proof of date of purchase.
