Image IMEX36580 User Manual

Recumbent cycle
Hide thumbs

Advertisement

Table of Contents

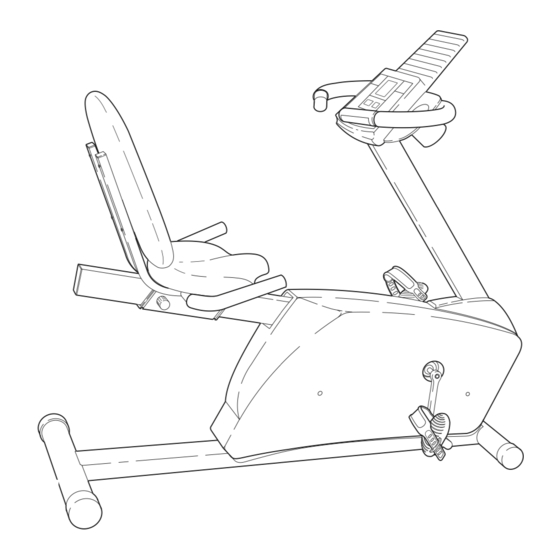

Model No. IMEX36580
Serial No.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
¨
USERÕS MANUAL
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!
Patent Pending

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMEX36580 and is the answer not in the manual?

Questions and answers

Sam Cherry
June 9, 2025

I need a ontrol board for a 3.4C

0
1 comments:
Mr. Anderson
June 9, 2025

The context does not provide any information about the availability of a control board for the Image IMEX36580 3.4C.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Image IMEX36580

Summary of Contents for Image IMEX36580

  • Page 1 Model No. IMEX36580 Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, we will guarantee complete satis- faction through direct assis- tance from our factory.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT PRECAUTIONS .............2 BEFORE YOU BEGIN .

  • Page 3: Before You Begin

    Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please ¨ mention the product model number and serial number when calling. The model number is IMEX36580. The serial number can be found on a decal attached to the IMAGE ¨...

  • Page 4: Assembly

    ASSEMBLY Assembly requires two persons. Place all parts of the recumbent cycle in a cleared area and remove the pack- ing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included tools and your own adjustable wrench PART CHART Use the part drawings below to identify the small parts used in assembly.
  • Page 5 1. Attach the Front Stabilizer (2) to the front of the Frame (1) with two M8 x 70mm Carriage Bolts (72), two M8 Curved Washers (28), and two M8 Nylon Locknuts (56). Make sure that the Front Stabilizer is turned so the Roller (75) is not touching the floor. 2.
  • Page 6 4. The Console (9) requires two ÒAAÓ batteries (not included); alkaline batteries are recommended. Refer to drawing A. Remove the four indicated screws and lift off the front of the Console. Press two batteries into the battery holder as shown in drawing B.
  • Page 7 7. Attach the Seat Carriage (11) to the Seat Frame (27) using four M8 x 35mm Carriage Bolts (7), four M8 Black Flat Washers (57), and four M8 Nylon Locknuts (56). 8. Attach the Seat (12) to the Seat Frame (27) with four M6 x 15mm Hex Screws (29) and four M8 Black Flat Washers (57).

  • Page 8: How To Operate The Recumbent Cycle

    10. Turn the Seat Knob (8) counterclockwise two or three turns to loosen it (if the Seat Knob is not loos- ened enough, the Seat Knob may scratch the Frame [1]). Next, pull the Seat Knob and slide the Seat Carriage (11) onto the Frame (1). Move the Seat (12) to the desired position and release the Seat Knob.
  • Page 9 DESCRIPTION OF THE CONSOLE If there is a thin sheet of clear plastic on the face of the console, remove it. The innovative console offers an impressive array of features to help you get the most from your workouts. When the manual program is selected, you can adjust the resistance of the pedals with a touch of a button.
  • Page 10 In addition to the matrix, the display will show your pedaling speed, the number of Calories you have burned, the elapsed time, and your total distance. The display will also show your heart rate when the pulse sensor is used (see step 5). Note: If your heart rate is not shown, press the reset button to reset the pulse sensor.
  • Page 11 Measure your heart rate if desired Refer to step 5 on page 10. Note: If your heart rate is not shown, press the reset button to reset the pulse sensor. When you are finished exercising, turn off the power To turn off the power, simply wait for about three minutes.

  • Page 12: Maintenance And Troubleshooting

    Measure your heart rate regularly During the program, slow your pedaling speed briefly and measure your heart rate regularly (refer to step 5 on page 10). Each time you mea- sure your heart rate, the resistance of the pedals will automatically increase or decrease, if neces- sary, to keep your heart rate near the preselect- ed percentage of your maximum heart rate.

  • Page 13: Exercise Guidelines

    EXERCISE GUIDELINES WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-exist- ing health problems. WARNING: The pulse sensor is not a medical device. Various factors may affect the accu- racy of heart rate readings.

  • Page 16: How To Order Replacement Parts

    Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling: ¥ The MODEL NUMBER of the product (IMEX36580) ¥ The NAME of the product (IMAGE ¥...
