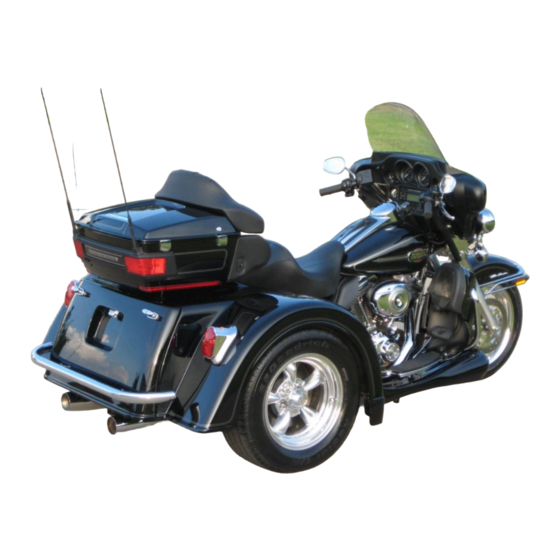

- Page 1 GLADIATOR OWNER’S MANUAL Motor Trike, Inc. P.O. Box 611 22667 FM 15 Troup, Texas 75789-0611 (800) 90-TRIKE Revision 2...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............................3 SAFELY OPERATING YOUR TRIKE ....................... 3 CAPACITY LIMITS ............................ 4 SPECIFICATIONS ............................4 AIR SUSPENSION OPERATION ....................... 5 TRUNK OPERATION ..........................6 PARKING ..............................7 AVAILABLE ACCESSORIES & OPTIONS ....................7 RECEIVER HITCH & DRAW BAR (IF EQUIPPED) ................8 ELECTRIC REVERSE (IF EQUIPPED) .................... -
Page 3: Introduction
This manual is a supplement to the motorcycle owner’s manual, not a replacement for it. Follow all procedures required and recommended by the motorcycle owner’s manual. For more information on Motor Trike, Inc. and the products we offer please visit our website. WWW.MOTORTRIKE.COM... -
Page 4: Capacity Limits
SERIOUSLY IMPAIR THE TRIKE'S HANDLING, BRAKING, AND STABILITY. DISREGARDING THE LOAD LIMITS AND GUIDELINES OUTLINED ABOVE CAN LEAD TO A CRASH, SERIOUS INJURY, OR DEATH. SPECIFICATIONS specifications shown in Table 2 are taken from a base model Gladiator kit without any additional accessories. Revision 2 Page 4 of 14... -
Page 5: Air Suspension Operation
Table 2: Gladiator Specifications OVERALL LENGTH*: 104" WHEEL BASE*: 64" OVERALL WIDTH: 55" TRACK WIDTH: 43.5" BASE WEIGHT: 1200 lbs TIRE SIZE: 225/60/R15 WHEEL SIZE: 15" X 7" Bolt Pattern: 5 X 4.5" MAX. LOAD CAPACITY: 500 lbs *Measured with stock rake. 4° rake kit adds 3 inches to the overall length and wheel base AIR SUSPENSION OPERATION An on-board air compressor allows for on-the-fly air suspension pressure adjustment. -
Page 6: Trunk Operation
11V despite how much you have ridden the bike, you may have a problem with the bikes charging system. Follow the recommended procedure for inspecting and charging the battery found in your owner’s manual. If this does not resolve the issue, contact your local Motor Trike dealer for assistance. -
Page 7: Parking
Apply parking brake if equipped. AVAILABLE ACCESSORIES & OPTIONS Motor Trike offers an extensive line of accessories in order to further customize your trike. The accessories can be ordered and installed through your local Motor Trike dealer or ordered directly through Motor Trike. -
Page 8: Receiver Hitch & Draw Bar (If Equipped)
RECEIVER HITCH & DRAW BAR (IF EQUIPPED) Proper installation of the draw bar into the receiver hitch is critical for your safety while towing a trailer. There is a bolt located on the bottom of the draw bar receiver tube that eliminates the draw bar from rattling. -

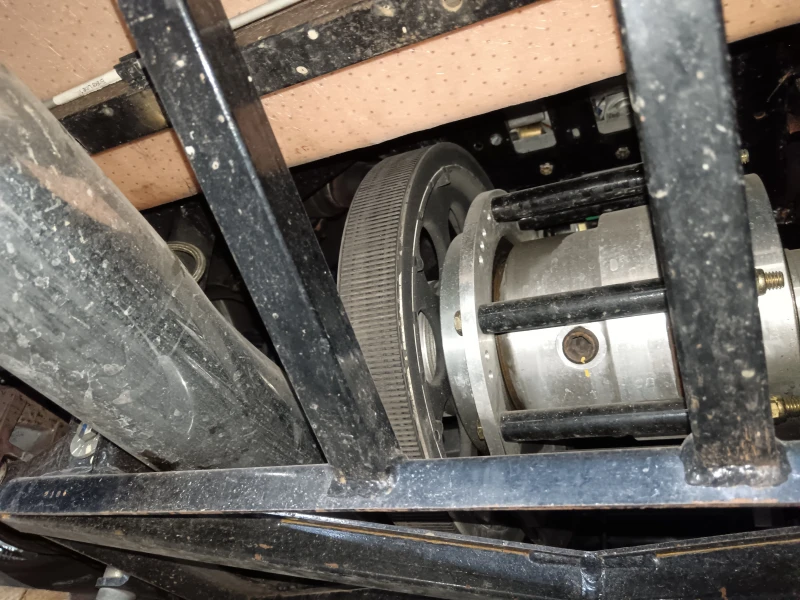

Page 9: Electric Reverse (If Equipped)
RECIEVER PROPERLY INSTALLED DRAW TUBE BAR WITH SAFETY CLIP DRAW BAR ANTI-RATTLE BOLT Figure 6: Properly Installed Draw Bar Safety Pin ELECTRIC REVERSE (IF EQUIPPED) If used within the recommendations below, the electric reverse will meet all of your expectations. Before reversing, always check that the path behind the trike is clear and announce that you are backing up to anyone nearby. - Page 10 HOW TO USE THE ELECTRIC REVERSE: 1. Turn the ignition on and start the bike. Never use the reverse when the bike is not running. 2. Put the bike in neutral. 3. Turn the activation switch on and look for the red indicator light on the switch to illuminate. See switch location in Figure 7.
-
Page 11: Maintenance
Figure 8: Resetting the Reverse Breaker(s) MAINTENANCE If your vehicle requires professional services, Motor Trike has an extensive dealer network with specially trained technicians capable of servicing or repairing your vehicle. To locate the authorized Motor Trike dealer nearest you, go to the Motor Trike web site (WWW.MOTORTRIKE.COM) and access the Dealer Locater link. - Page 12 Having properly inflated tires is essential to a comfortable and safe ride. The tire pressures on your unit should be checked before each use, this includes both the front and rear tires. Motor Trike recommends 24 PSI (166 KPa) for the rear tires. Follow the front tire air pressure recommendations provided by the motorcycle manufacturer.
- Page 13 CV joints. If you do encounter any damage to the CV boots, contact your local Motor Trike dealer and have it replaced as soon as possible. Prolonged use of the vehicle with a damaged CV boot will cause damage to the CV joint and surrounding components.
-
Page 14: Warranty
We invite you, in your travels, to stop by our manufacturing plant in Troup, Texas, for a tour and to meet the people who designed and manufactured your Motor Trike. We believe you will be impressed by what you witness and the people you will meet.
