6 scorpion Copter
FeiYu Y
Frame Instruction Manual
Please read the manual carefully before using FeiYu Y6
Guilin Feiyu Electronic Technology Co., Ltd
Rm. B305, Innovation Building, Information Industry Park, Chaoyang Road, Qixing
District, GuiLin, CN
h p: //w ww. fei y u- tech. com
Email:feiyudz@yahoo.cn
Advertisement
Related Manuals for FeiYu Tech Y6
Summary of Contents for FeiYu Tech Y6

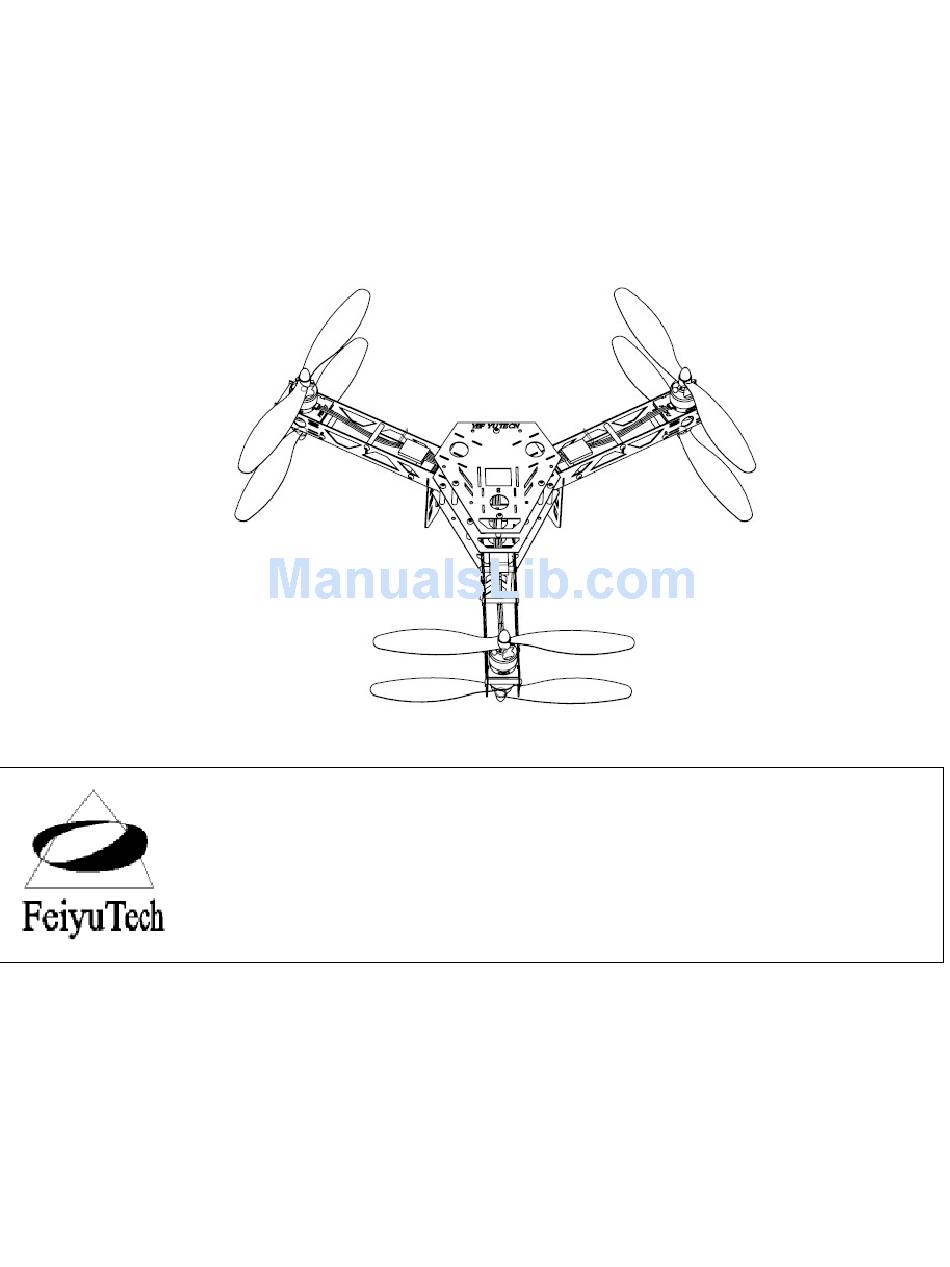

- Page 1 FeiYu Tech 6 scorpion Copter FeiYu Y Frame Instruction Manual Please read the manual carefully before using FeiYu Y6 Guilin Feiyu Electronic Technology Co., Ltd Rm. B305, Innovation Building, Information Industry Park, Chaoyang Road, Qixing District, GuiLin, CN h p: //w ww. fei y u- tech. com...
- Page 2 5 channels or more for expansion. Support most.Compatible with all the RC devices. Note:First and Foremost is Safety. This is Not A Toy. Used extreme caution when operating the Y6. Do Not Fly over Crowds or over people. Do Not use it as a chase copter.
-
Page 3: Step 1:Frame Arm Assembly
FeiYu Tech Install Tools needed to build the Y6: Soldering Iron Rosen Core Solder Allen Wrench (provided) Step 1:Frame Arm Assembly prop Brushless motro M3*5mm M3×30mm Pillar Scoket Screw Right Arm M3×5mm Scoket Screw soldering point Left Arm soldering point Note: There are three LED on the side of arm,The LED should on out side. - Page 4 Go through the same procedure for the remaining three frames. Inspect the assemblies to be sure that all the motors and the landing gears are seated properly. When assembled properly, the Feiyu Tech Logo’s will be facing upright and the Welding points will all be lined up.
- Page 5 FeiYu Tech necessary, loosen the screw(s) to properly fit the pieces. M3×25mm Pillar Fuselage with Cross any two wire , Electronic change Motor rotation components Magic cable through square groove welding Step 3: Welding (soldering) the frames to the bottom fuse plate with the electronics.
- Page 6 FeiYu Tech then glow steady. If some of the led’s do not light , inspect all your weld points. You can also take a volt meter and on DC range, check for proper voltage Aprox. 2.3vdc is present at the weld points.
-
Page 7: Propeller Installation
FeiYu Tech Propeller installation Pay attention to the installation of the propeller direction. Front Y6 SCORPION FLYER 1 (top) = ESC 1 CW 2 (top) = ESC 2 CW 3 (top) = ESC 3 CW 4 (bottom) = ESC 4 CCW...
