Geberit AquaClean 8000plus
Operating
instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AquaClean 8000plus and is the answer not in the manual?

Questions and answers

Related Manuals for Geberit AquaClean 8000plus

Summary of Contents for Geberit AquaClean 8000plus

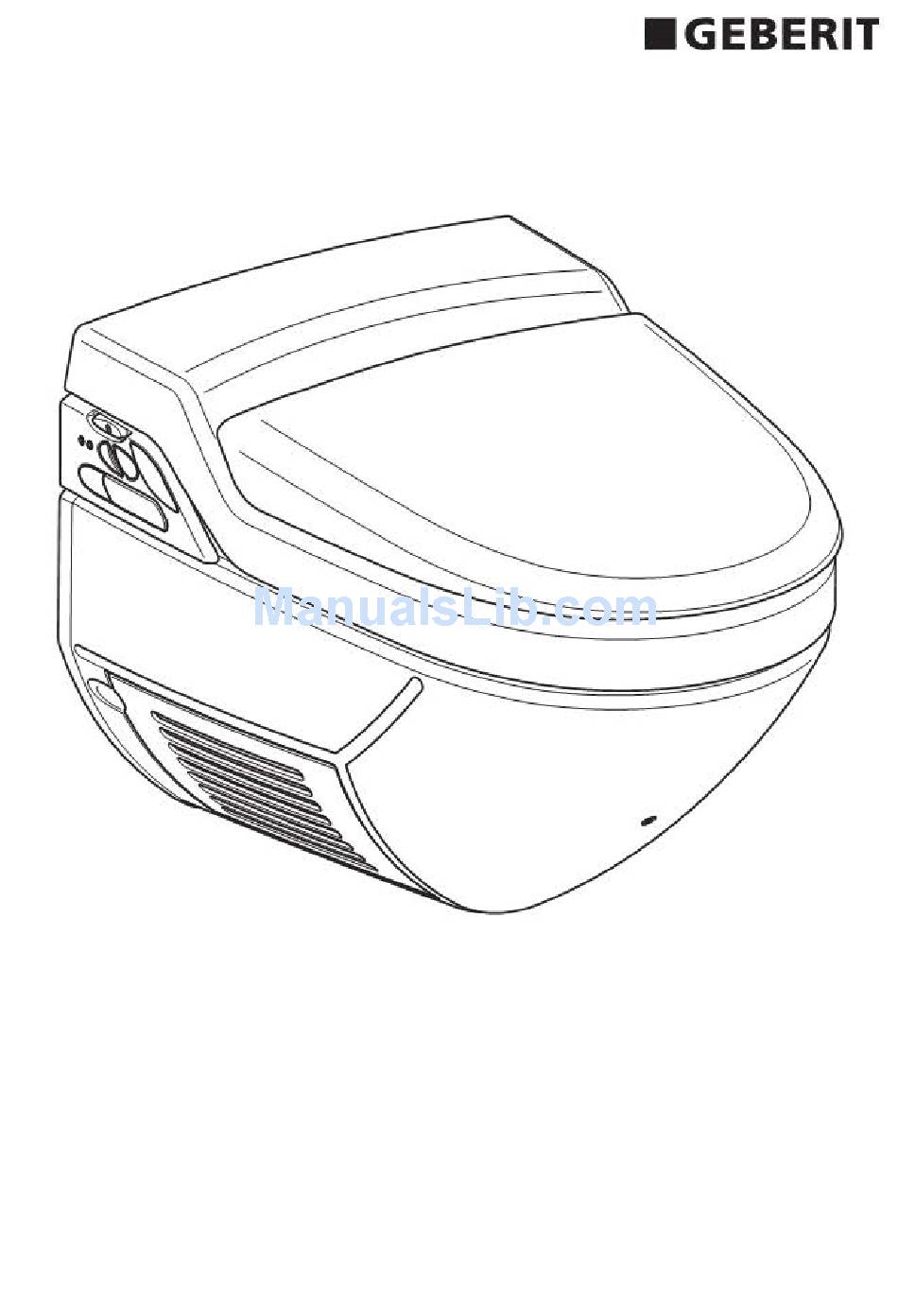

  • Page 1 Geberit AquaClean 8000plus Operating instructions...

  • Page 3: Table Of Contents

    Overview of controls ......................6 Control panel ........................6 Geberit AquaClean 8000plus remote control..............7 Additional functions of the Geberit AquaClean 8000plus remote control......8 Integrated control panel ....................10 Using Geberit AquaClean 8000plus ................11 Using the lady shower..................... 12 What you should know ..................

  • Page 4: For True Well-Being

    Substances" (2002/95/EC). It is largely free from hazardous substances such as lead, mercury, cadmium and chrome VI, which are environmental pollutants. All old Geberit AquaClean 8000plus can be returned to Geberit free of charge for proper disposal. This arrangement applies to all EU member states as well as to Switzerland and Norway.

  • Page 5: Important Notes

    Important notes Intended use The Geberit AquaClean 8000plus is a toilet which is also designed for cleansing the anal area and, with the lady shower, for cleansing the vaginal area. Its use for any other purpose is deemed improper. Geberit accepts no liability for the consequences of improper use.

  • Page 6: Geberit Aquaclean 8000Plus Operation

    Operating instructions Geberit AquaClean 8000plus Geberit AquaClean 8000plus operation Overview of controls 1 Control panel 2 Power switch 3 Active carbon filter compartment 4 Maintenance flap 5 Serial number 6 Filling tray for nozzle cleaner 7 Cleaning instructions for end users...

  • Page 7: Geberit Aquaclean 8000Plus Remote Control

    <User profiles I/II/III/IIII>, on and off <Lady shower> The Geberit AquaClean 8000plus with visible cistern supports three user profiles. This version also supports a <toilet flush> button for activating the toilet flush. Additional functions of the Geberit AquaClean 8000plus remote control You can use the remote control to call up all of the additional functions or to make and save personal settings.
  • Page 8 The shower stops after 20 s. You can stop the shower before this by pressing the <shower> button. <Toilet flush> Press the button: Triggers a full flush (Geberit AquaClean 8000plus with visible cistern). <User profile> Press the button: The user profile is activated with its saved settings. <Massage spray>...
  • Page 9 Press the button: The spray arm / dryer arm extends but is not in operation. See chapter "Troubleshooting" for more information. Geberit AquaClean 8000plus for concealed cisterns: • Press the actuator button on the actuator plate on the wall (large actuator button for full flush, small actuator button for partial flush) Geberit AquaClean 8000plus with visible cistern: •...

  • Page 10: Integrated Control Panel

    Operating instructions Geberit AquaClean 8000plus Integrated control panel <Shower>, starting and stopping Press the button: The spray arm moves into position and the shower procedure starts. The shower automatically stops after 20 s. You can stop the shower before this by pressing the <shower>...

  • Page 11: Using Geberit Aquaclean 8000Plus

    Odour extraction unit and drying are activated. Thanks to the user detection, the shower procedure can only be activated once someone sits down on the toilet. The Geberit AquaClean 8000plus can be used as a normal toilet at any time.

  • Page 12: Using The Lady Shower

    Operating instructions Geberit AquaClean 8000plus Using the lady shower You control the intensity and aim of the water jet. The shower spray gradually cools down continuously during the shower procedure. 1 Press the <lady shower> button. Result The lady shower starts and stops after 20 s.

  • Page 13: What You Should Know

    What you should know Spray shield The spray shield can be used to test the performance of the Geberit AquaClean 8000plus without anyone sitting on the toilet. You have to cover the user detection and can use the remote control to test all functions.

  • Page 14: User-Defined Settings

    • Oscillating spray on and off Simply use the memory function to avoid having to make your settings from scratch every time. Personal settings for the Geberit AquaClean 8000plus can be saved in a user profile. The Geberit AquaClean 8000plus with cistern supports three user profiles.

  • Page 15: Basic Settings

    Operating instructions Geberit AquaClean 8000plus Basic settings The following settings can be changed: • Spray intensity • Water temperature • Spray arm position • Dryer temperature • Massage spray on and off • Oscillating spray on and off 1 Touch any function once to activate the remote control.

  • Page 16: Care And Cleaning

    Components To meet demands for design and performance, the Geberit AquaClean 8000plus comprises a number of different components. Therefore, we ask that you follow the cleaning instructions below, as the warranty does not cover surface damage and material damage caused by improper use.

  • Page 17: Permissible Cleaning Agents And Cleaning Equipment

    Operating instructions Geberit AquaClean 8000plus Permissible cleaning agents and cleaning equipment Cleaning agents Cleaning agents are permitted to have a low acid content; e.g. they may contain citric acid. Cleaning agents should ideally be diluted with water. Cleaning agents must be fluid.

  • Page 18: Non-Permissible Cleaning Agents And Cleaning Equipment

    Operating instructions Geberit AquaClean 8000plus Non-permissible cleaning agents and cleaning equipment Cleaning agents The use of powdery cleaning agents, such as scouring powder or scouring agent, is not permitted. The use of corrosive cleaning agents, such as concentrated drain cleaners, is not permitted.

  • Page 19: Tips

    Operating instructions Geberit AquaClean 8000plus Tips Problem Fault clearance To clean, apply a mild bathroom cleaner (4 ≤ pH value ≤ 9) Urine scale deposits on the WC ceramic appliance and leave to work for 30 minutes, then rinse with water.

  • Page 20: Cleaning The Wc Seat, Wc Lid And Casing

    Operating instructions Geberit AquaClean 8000plus Cleaning the WC seat, WC lid and casing Do not use scratching sponges or scouring agents for cleaning. We also advise against the use of cleaners containing solvent or acid, limescale removers, vinegar and cleaning agents containing acetic acid. They corrode the surface and can lead to discolouration.

  • Page 21: Cleaning The Wc Ceramic Appliance

    Operating instructions Geberit AquaClean 8000plus Cleaning the WC ceramic appliance When cleaning the WC ceramic appliance, always lift up the WC seat and WC lid. Any vapours rising off cleaning agents can corrode the surface. Do not use scratching sponges or abrasive scouring agents for cleaning.

  • Page 22: Troubleshooting

    Operating instructions Geberit AquaClean 8000plus Troubleshooting DANGER Danger of fatal electric shock Never open and repair the device yourself Never replace damaged mains connection cables yourself Contact customer service Malfunctions during operation Malfunction Malfunction Cause Cause Fault clearance Fault clearance...
  • Page 23 Operating instructions Geberit AquaClean 8000plus Malfunction Malfunction Cause Cause Fault clearance Fault clearance Malfunction Malfunction Cause Cause Fault clearance Fault clearance Shower water temperature is Heating element is not switched Use the remote control to switch too low the <water heater function> ON...

  • Page 24: Replacing The Remote Control Batteries

    Operating instructions Geberit AquaClean 8000plus Malfunction Malfunction Cause Cause Fault clearance Fault clearance Malfunction Malfunction Cause Cause Fault clearance Fault clearance Water is dripping onto the There is a leak Switch off the shower toilet. floor Cut off the water supply and pull out the mains plug.

  • Page 25: Replacing The Active Carbon Filter

    Operating instructions Geberit AquaClean 8000plus Replacing the active carbon filter As soon as the icon starts to flash on the remote control and the red LED lights up on the control panel, the active carbon filter needs to be replaced.

  • Page 26: Refilling Nozzle Cleaner

    If the nozzle cleaner tank is empty, only fresh water will be used to clean the spray nozzle. Prerequisites Geberit AquaClean 8000plus is switched on. The nozzle cleaner may leak. Do not squeeze the refill bottle.

  • Page 27: Replacing The Spray Nozzle And Cleaning The Opening Of The Spray Arm

    Operating instructions Geberit AquaClean 8000plus Replacing the spray nozzle and cleaning the opening of the spray arm 1 Lift up the WC seat and WC lid. 2 Press the <service> button on the remote control. Result The spray arm extends without spraying any water.

  • Page 28: Replacing The Dryer Arm And Cleaning The Opening Of The Dryer Arm

    Operating instructions Geberit AquaClean 8000plus Replacing the dryer arm and cleaning the opening of the dryer arm 1 Lift up the WC seat and WC lid. 2 Press the <service> button on the remote control. Result The spray arm extends without spraying any water.

  • Page 29: Removing And Fitting The Wc Seat And Wc Lid

    Operating instructions Geberit AquaClean 8000plus Removing and fitting the WC seat and WC lid 1 Lift up the WC seat and WC lid and release the two hinges by pressing down and sliding to the centre. 2 Remove the WC seat and WC lid from the device.

  • Page 30: Technical Data

    Operating instructions Geberit AquaClean 8000plus Technical data Nominal voltage 230 V AC Mains frequency 50–60 Hz Power consumption 1000 W Power consumption in economy mode / with heating 0.5 / 9 W switched on Protection degree IP x4 Protection class...

  • Page 31: End User Warranty

    Geberit and contracted by the end user to repair the product. The end user shall not be entitled to assert more extensive claims against Geberit on the basis of this warranty.
  • Page 32 Operating instructions Geberit AquaClean 8000plus...
  • Page 35 First name: Surname: Company: Address: Postcode: Town: Installation date: Signature: Serial number [ ] bahama beige [ ] white alpine [ ] manhattan [ ] pergamon...
  • Page 36 East Wing, Bldg- 4A, 4th Floor, 401, Dubai - UAE T +971 4 204 5477 F +971 4 204 5497 → www.geberit.ae (ZA) Geberit Southern Africa (Pty.) Ltd. 17-15 Street, Eastgate Gardens Commercial Park Sandton, South Africa T +27 11 444 5070 F +27 11 444 5992 →...
