THERMOMATIC EC HOME
Wireless room sensor – Installation and User Manual
NOTE! This manual is primarily intended for installation and use of the
wireless room sensor for Thermomatic EC Home. Other installations and
functions are explained in the complete manual for EC Home.

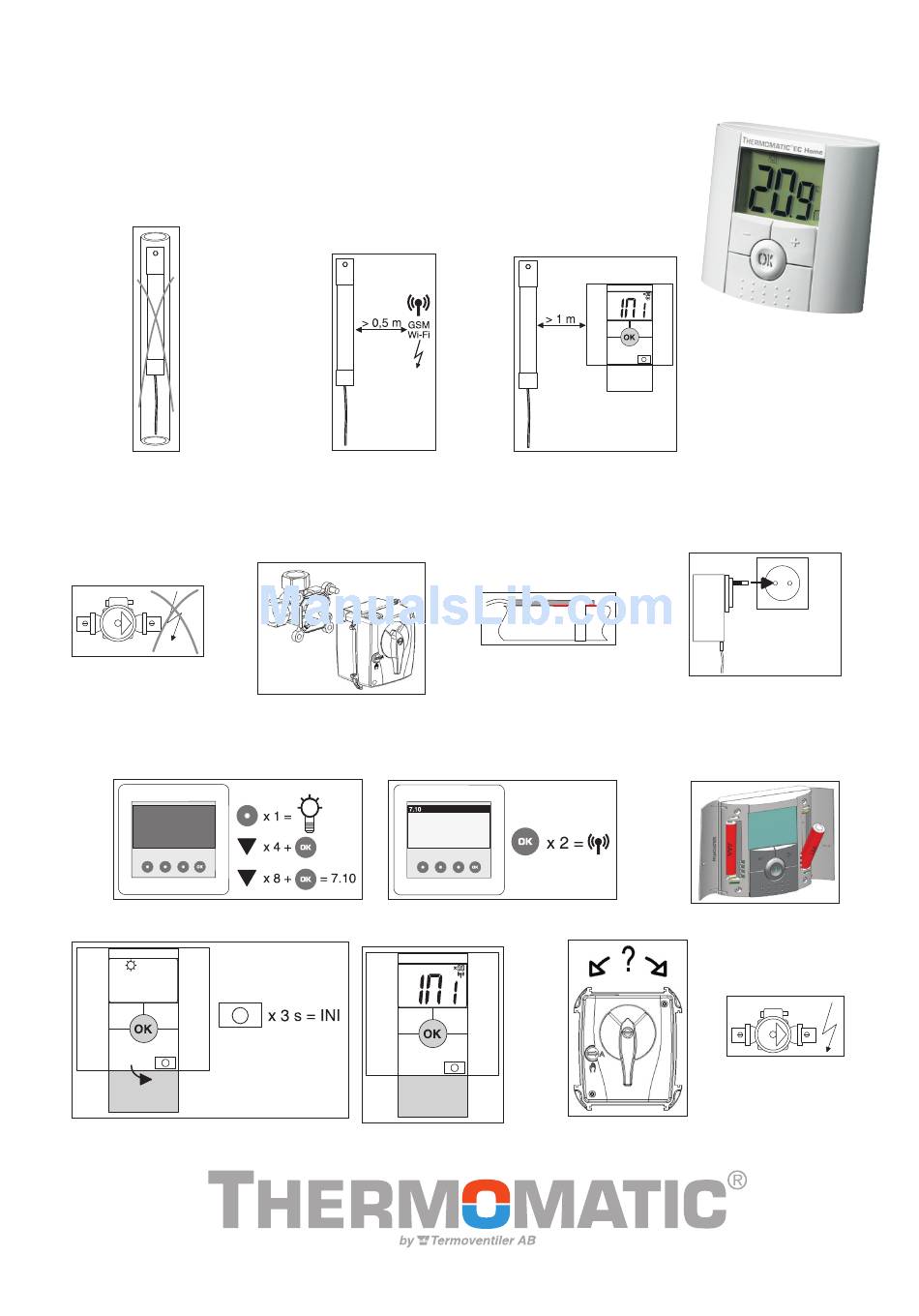

Locating the aerial:
Aerials should not be
placed on metallic objects
or on metal pipes.
Preparation:
1. Turn off the pump
Activation of radio communication:
5. Browse to section 7.10
of the menu
8. Close the cover and hold the
button depressed in order to start
the initiation
ECHOME_WL_Manual_E.indd
821505-E
121026
+46 (0)321 - 261 80 • info@termoventiler.se • www.termoventiler.se
Aerials should not be
located to close ot other
wireless units or power
cables.
2. Fit the motor to
the mixing valve
6. Click to start radio
communication
9. INI will light for some
seconds – Ready!
Termoventiler AB
Aerials should not be
located too close to
the room unit during
initiation.
3. Fit the fl ow
sensor
10. Enter the motor's direction
of rotation (menu 7.1)
®
110-240 V
4. Plug in the power
supply
7. Insert the batteries
11. Start the pump
