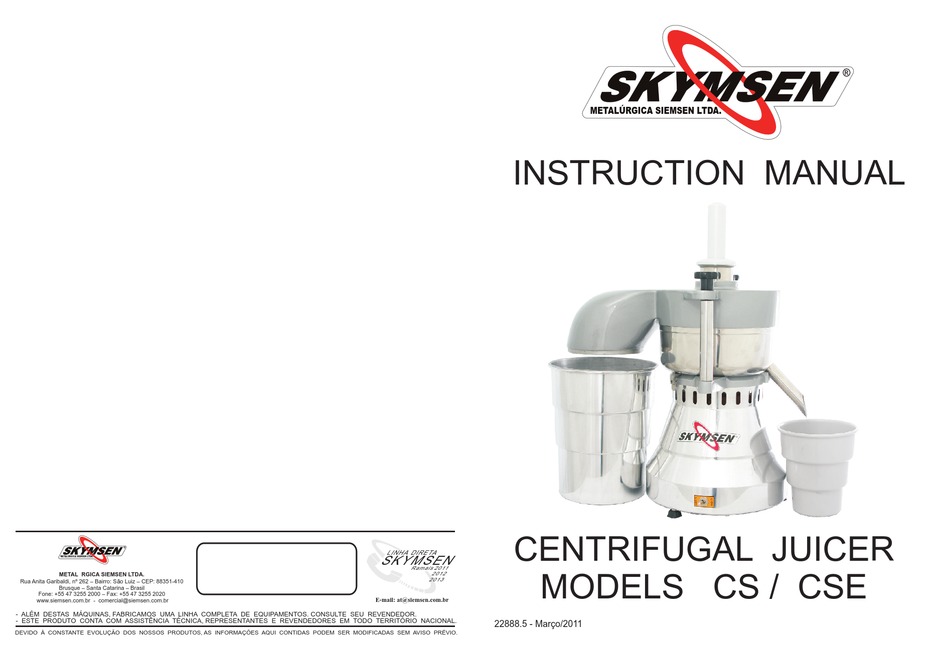

INSTRUCTION MANUAL
CENTRIFUGAL JUICER
LINHA DIRETA
SKYMSEN
Ramais 2011
2012
MODELS CS / CSE
2013
E-mail: at@siemsen.com.br
22888.5 - Março/2011
METALÚRGICA SIEMSEN LTDA.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skymsen CS
Summary of Contents for Skymsen CS
- Page 1 METALÚRGICA SIEMSEN LTDA. Ramais 2011 2012 METAL RGICA SIEMSEN LTDA. MODELS CS / CSE 2013 Rua Anita Garibaldi, nº 262 – Bairro: S o Luiz – CEP: 88351-410 Brusque – Santa Catarina – Brasil Fone: +55 47 3255 2000 – Fax: +55 47 3255 2020 E-mail: at@siemsen.com.br...
-
Page 3: Table Of Contents
SUMMARY 1. Introduction 1.1 Main Precautions 1.2 Main Components 1.3 Technical Characteristics 2. Installation and Pre-Operation 2.1 Installation 2.2 Pre-Operation Operation 3.1 Starting 3.2 How to feed the Centrifugal Juicer 3.3 How to clog the Sieve 3.4 Production 3.5 Cleaning General Warnings 4.1 Basic Operation Procedures Cares to be taken before to start the Juicer... -
Page 4: Introduction
1. Introduction 1.1 Main Precautions The Centrifugal Juicers Mod. CS/CSE are machines simple to operate and to clean They are useful to extract fruit and vegetable juices used by Restaurants , and Fast Food professionals . To avoid accidents read the following instructions : 1.1.1Before cleaning or maintenance unplug the machine from electric source . -
Page 5: Main Components
Plate(Pic5 -Page 15) 19-Central Shaft Clogging Pin Plate Picture 1 Ressaltos (Pic. 5 - Page 15) Picture 4 Picture 5 1.3 Technical Characteristics Characteristic unit CS/CSE Voltage 110 or 220 Frequency 60 or 50 (*) Power Rating Height Width Length Net weight 13.7... -
Page 6: Installation And Pre-Operation
Residual Exit (no 15 Pic 7) on the Lid residuals exit throat ( no.03 Pic 7 ), or place the Residual Collecting Vessel ( no. 17 Pic 1 ) below the exit throat ( see Pic 1 ) . Entrada Saída Contatora Chave Liga/Desliga Reed Switch 110/220V 60Hz (Mod. CS) Chave Seletora 110/220 Volts... -
Page 7: Operation
3.2 How to feed the Centrifugal Juicer Fitted ( mod. CSE To use the Centrifugal Juicer Mod. CS/CSE , proceed as follows : Only ) 1.Withdraw the Stump ( no.01 Pic 1 ) from the Lid Feeding Throat ( no.02 Pic 1 ) . -
Page 8: How To Clog The Sieve
3.3 How to clog the Sieve 4.6 Maintenance The Sieve may be clogged using the Central Shaft Clogging Pin ( no.19 Pic 5 ) . 4.6.1Dangers The consequence of the day to day Centrifugal Juicer use , will be after some time , a natural wear of some components . - Page 9 6. Assemble the parts back, following the description given by item 2.2 Pre-Operation ( 4.3 Routine Inspection Assembly ) . Watch out any abnormal noises coming from the motor or any moving parts . Important Never clean the machine if plugged to the electric network . Before cleaning unplug Check the safety devices to be normally operating .
-
Page 10: General Warnings
That is why such products must not be used for cleaning and sanitization. Scrapings made with sharp instruments or similar must also be avoided. 4.1.3 Advices Be sure this Manual INSTRUCTION has been fully understood . Each function or Main substances that cause stainless steel corrosion: operation procedure has to be perfectly clear .
