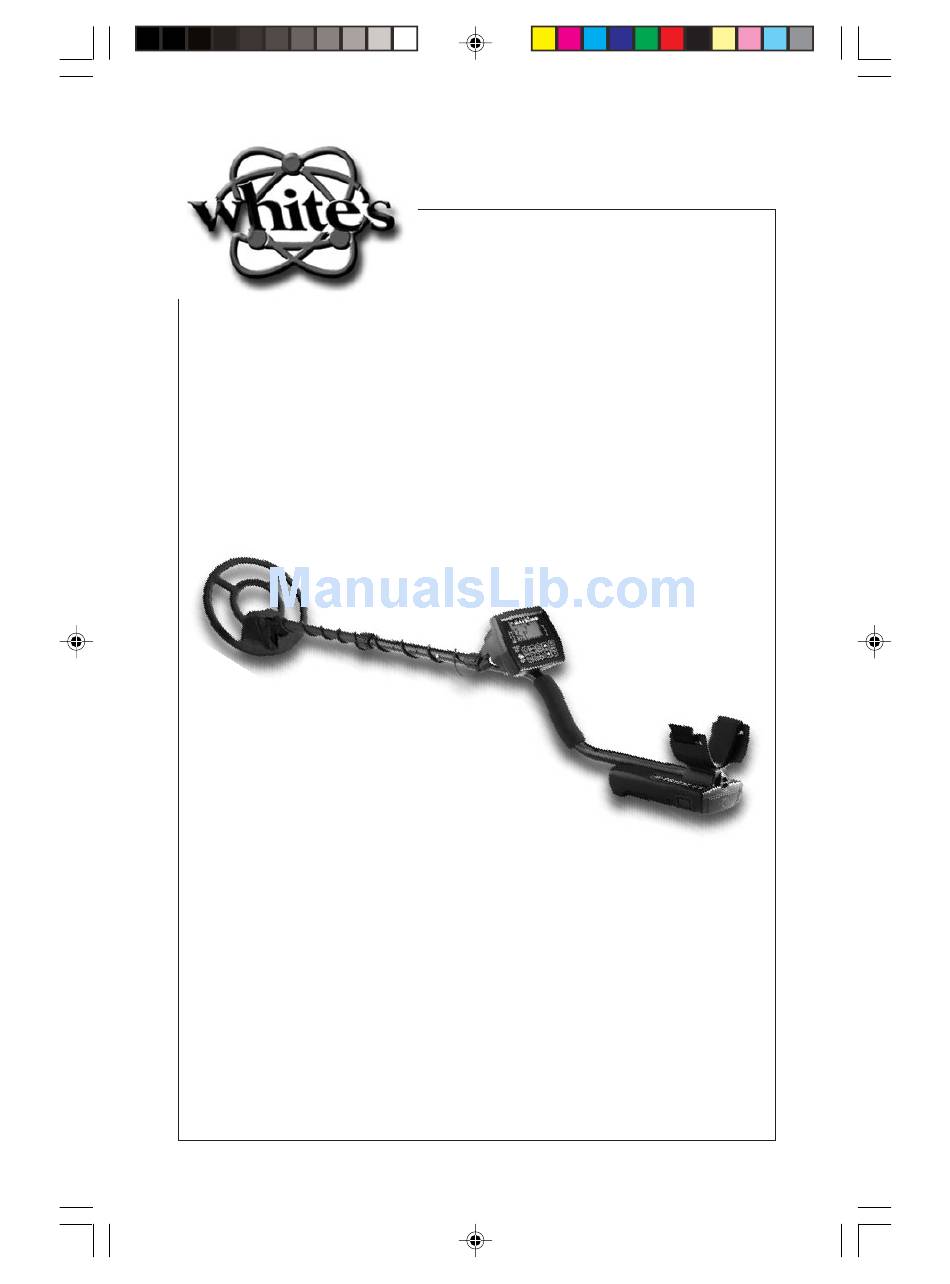

- Page 1 Prizm™ 6T ® Owner’s Guide Prizm 6T White’s Electronics, Inc. Manufacturers of the World’s Finest Metal Detectors...
- Page 2 Prizm™ 6T...
-
Page 3: Table Of Contents
Prizm™ 6T Guide to this Manual Assembly ....................4 Batteries ....................6 Getting Started ..................8 Controls/Features ................. 12 Displays ....................19 Repair Service ..................21 Warranty ....................24 Target Recovery ..................30 ® White’s Electronics, Inc. 1011 Pleasant Valley Road Sweet Home, OR 97386... - Page 4 Prizm™ 6T To Assemble 1. Remove all parts from shipping carton (see diagram next page). 2. Use nonmetallic washers (between round search coil and clevis fiber rod), and fiber bolt and thumbnut to secure search coil to fiber rod. 3. Unlock Camlock on “S” rod, insert fiber rod into curved rod, line up buttons into one of adjustment holes.
-
Page 5: Assembly
Prizm™ 6T Assembly Diagram Search Coil Fiber Bolt Search Coil Cable Thumbnut Non-metallic Washers Display Fiber Rod Control Buttons Camlock Search Coil Cable “S” Rod to Control Box Connector Handle Elbow Cup Large Nylon Strap Battery... - Page 6 Prizm™ 6T Batteries 1. Open battery door by pressing both buttons on sides of battery compart- ment (under arm cup) and pullling battery tray from unit. 2. Install eight (8) “AA” alkaline batteries taking note of correct (+) and (-) positions (only fit one way), and close door.
-
Page 7: Batteries
Prizm™ 6T 5. Batteries that are weak, or become weak during use, will automatically indicate Low Batt with a battery icon on the center portion of the display. Replace with eight good quality alkaline “AA” batteries. A three-beep alarm also sounds to indicate batteries are too low to operate the 6T. 6. - Page 8 Prizm™ 6T Prizm™ 6T Search Display...
-
Page 9: Getting Started
Holding ON/OFF for a few seconds will turn ON/OFF the display’s backlight. Lightbulb icon, center of display, indicates backlight ON. 2. The Prizm 6T has automatic ground tracking to eliminate false targets due to ground mineralization. After you turn the detector on, 6T will automatically balance to the local ground conditions to ensure proper target identification. - Page 10 Prizm™ 6T 5. Solid repeatable beeps and repeatable display after several passes indicates an interesting metal target. 6. Broken, sputter, or inconsis- tent beeps and display, indicates likely uninteresting metal targets. Ignore these targets. 7. Once a solid repeatable beep and display indication are located, press and HOLD the P/P button with loop near ground and...
- Page 11 Prizm™ 6T and livestock as well as detrimental to continued use of detectors. Fill all holes and remove all trash you encounter. Some areas have restrictions on the size and type of digging tool you may use which may present additional challenges. Check with your Dealer, Area Detecting Club, Local Police, or Parks &...
-
Page 12: Controls/Features
Prizm™ 6T Prizm™ 6T Controls/Features 1. Press ON/OFF (tap) to turn the 6T ON/OFF. Hold for a few seconds to turn Backlight ON/OFF. Backlight ON indicated by a light bulb icon on center of display. Good batteries produce HIGH PITCH BEEP for a few seconds upon turn on A LOW PITCHED BEEP upon turn on indicates low batteries. - Page 13 Prizm™ 6T (voltage controlled oscillator) which aids in both pinpointing and separating metals near each other. VCO varies the audio pitch with target strength, pitch increases as the search coil nears the center of the target. Release P/P automatically returns to the search mode. Areas of difficult ground mineral may be easier to search in All Metal mode, watching the display ID for DISC.
- Page 14 Prizm™ 6T 5. Depth Indication - A. The depth of coin-sized metals is automatically indicated on the left- hand portion of the display. When in the pinpoint mode (P/P button pressed and held) the large numerical number, which normally shows the VDI target reference, changes to show a more specific depth indication.
- Page 15 Prizm™ 6T D. Regardless of the metal detector used when searching, you are going to dig some trash targets. Use the tone, display, and depth reading, to increase the odds of recovering valued metal items. E. The depth bar graph indication (left side of display) continuously indicates the depth of the target from 10 plus inches (lower left) to zero inches on the upper left.
- Page 16 Prizm™ 6T 6. Tone ID (Tone Identification) turns ON/OFF Tone ID, which provides progressively higher pitch target beeps for targets progressively higher up the nine target ID display categories. Press and release Tone ID to turn ON/OFF. ON indicated by an icon shown on lower right portion of display.
- Page 17 Prizm™ 6T VCO audio. VCO audio varies the pitch of the beep as the search coil nears the center of the target allowing improved pinpointing and better multi target separation. VCO only performs when operating in the P/P and All Metal mode. VCO will not function in the DISC mode. A.
- Page 18 Prizm™ 6T some areas. Another option for difficult ground areas is searching in the All Metal mode. Automatic Ground Tracking provides optimum performance when the changes in the ground mineralization are progressive. Trac Locking tends to improve performance when search- ing highly spotty mineral changes or anytime an average ground setting doesn’t provide good results.
- Page 19 Prizm™ 6T Displays 1. Nine distinct target categories are listed across the top of the display and indicate the most common metals found within these categories. It is important to understand the display information should only be consulted after a solid repeatable audio target “beep” has been located. 2.
-
Page 20: Displays
Prizm™ 6T good quality “AA” alkaline batteries. Battery life will vary with intermit- tent use,backlight use, temperature, control settings, target indications, battery quality, battery condition upon purchase, and shelf life. One may add or subtract as much as 50% depending upon the above variables. -
Page 21: Repair Service
Prizm™ 6T Repair Service White’s reputation has been built on quality products backed by quality service. Our factory Authorized Service Centers are factory trained and equipped. They offer the same quality service as the factory. Service before and after the sale is the cornerstone of our customer relations. - Page 22 Prizm™ 6T Authorized Service Centers In the unlikely event your detector requires service please note our following Authorized Service Centers; White’s Electronics, Inc. Electronics Expoloration 1011 Pleasant Valley Road 575 West Harrison Sweet Home, OR 97386 Lombard, IL 60148 (541) 367-6121 • FAX (541) 367-6629 (630) 620-0618 •...
- Page 23 Prizm™ 6T UK, Europe, Northern Asia, Africa, Near East, Mid East White’s UK Ltd. 35J Harbour Road, Inverness, Scotland IV1 1UA Telephone: (011)441-463-223-456 Fax: 441-463-224-048 E-Mail: sales@whelects.demon.co.uk Web Site: www.whites.co.uk Australia, New Zealand, Far East, Southern Pacific Rim Gold Search Australia Tony Mills - Distributor 76c Broadway Dunolly, Victoria 3472 Telephone: (61) 03-5468-1877...
- Page 24 Prizm™ 6T Warranty If within two years (24 months) from the original date of purchase, your White's detector fails due to defects in either material or workmanship, White's will repair or replace at its option, all necessary parts without charge for parts or labor. Simply return the complete detector to the Dealer where you purchased it, or to your nearest Authorized Service Center.
-
Page 25: Warranty
Prizm™ 6T misuse, neglect, alterations, modifications, unauthorized service, or prolonged exposure to corrosive compounds, includ- ing salt. Duration of any implied warranty (e.g., merchantability and fitness for a particular purpose) shall not be longer than the stated warranty. Neither the manufacturer or the retailer shall be liable for any incidental or consequential damages. -
Page 26: Warranty Transfer
Prizm™ 6T Warranty Transfer If for any reason you should sell your Prizm™ prior to the date the warranty expires, the remaining warranty is transferable. Simply fill out the following information, seal it in a stamped envelope, and send it to White’s Electronics, 1011 Pleasant Valley Road, Sweet Home, Oregon 97386. - Page 27 Prizm™ 6T WHITE’S ELECTROINCS (UK) LTD. After Sales Service - Limited Warranty The serial number which is unique to your unit is on a white label inside the battery compartment. Please quote this number on any correspon- dence regading your detector. White’s Electronics has always been concerned with the absolute quality of their mineral/metal detectors.
- Page 28 Prizm™ 6T Limited Warranty continued ... This warranty does not cover damage to the detector caused by accident, misuse, neglect, alterations, modifications or unauthorized service. Duration of any implied warranties (e.g., merchantability and fitness for a particular purpose) shall not be longer than the stated warranty. Neither the manufacturer nor the retailer shall be liable for any inciden- tal or consequential damages resulting from defects or failures of the instrument to perform.
- Page 29 Prizm™ 6T Warranty Transfer UK If for any reason you should sell your Prizm™ prior to the date the warranty expires, the remaining warranty is transferable. Simply fill out the following information, including the Authorization Number, seal it in a stamped envelope, and send it to White's Electronics, (UK) Ltd.
-
Page 30: Target Recovery
Prizm™ 6T Target Recovery The following “Hinged Door Method” of digging is widely recom- mended to minimize damage to lawns. Careful recovery in multiple-use well-groomed areas is the responsibility of all metal- detector users. #2. Using a sturdy After locating a good #3. - Page 31 Prizm™ 6T NOTES ...
- Page 32 Prizm™ 6T White’s Electronics, Inc. 1011 Pleasant Valley Road Sweet Home, Oregon 97386 USA ww.whiteselectronics.com P/N 621-0490...
