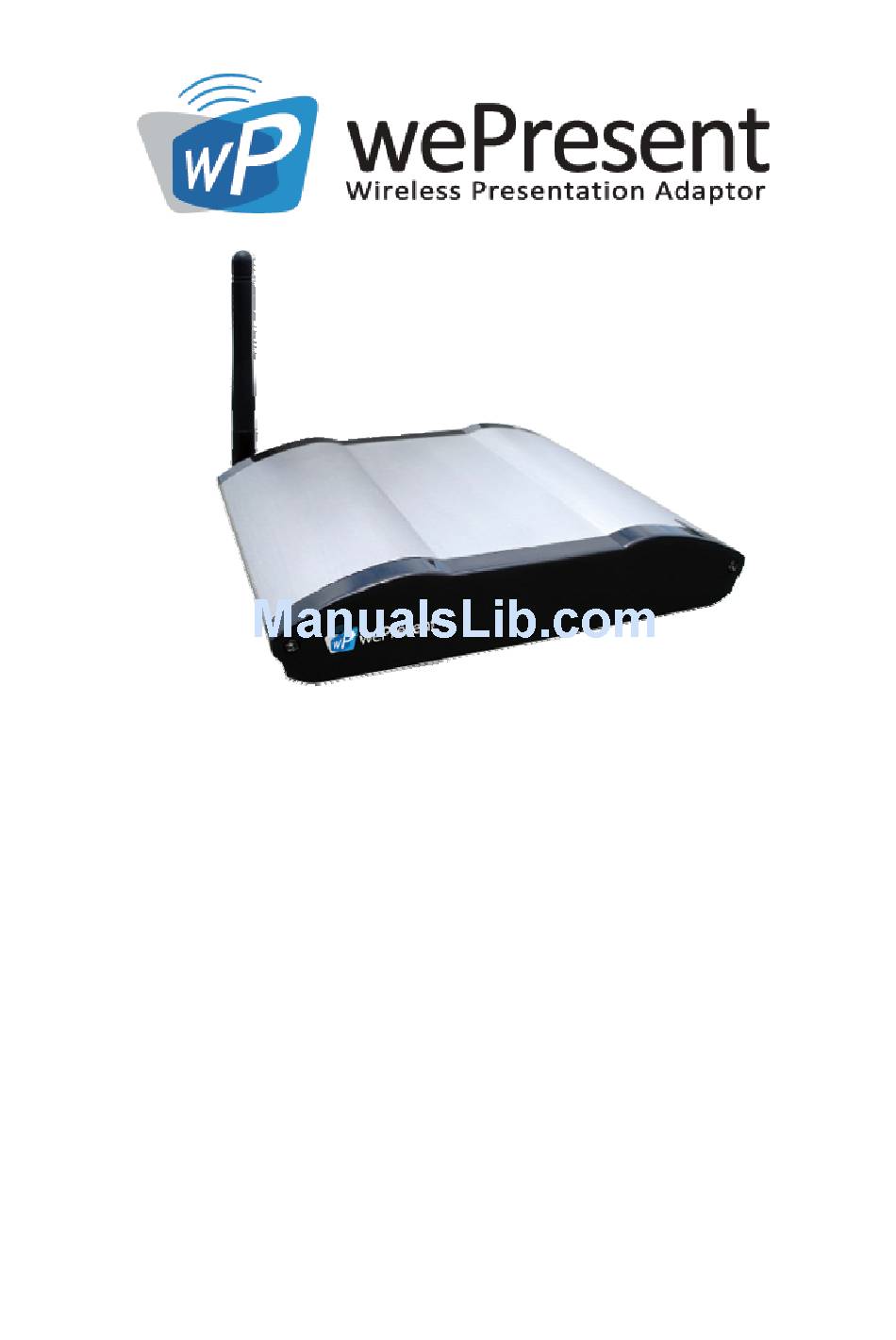

- Page 1 Wireless Presentation Adaptor (Model Name:WP-820) User’s Manual Version: 2.0 Date: Sep. 04, 2008...
-
Page 2: Table Of Contents
..............14 3.10 Magnifier Option………………………………………….……….. 3.11 System Information ..............17 3.12 wePresent for PDA ................18 3.13 Exit Program ...................18 wePresent for MAC Client……………………………………….. 5. Web Management .................20 Home Page ...................20 Download Software ................21 Conference Control ................22 Login Web Admin ................24 System Status ..................24... -
Page 3: Overview
1. Overview wePresent is a must-have device for your meeting room! It turns your existing "wired" projector into a "high-end wireless" projector. With the revolutionary Plug-and-Show, 4-to-1 split screen and PDA wireless projection features, wePresent makes every of your presentation and meeting efficient and successful. -
Page 4: Quick Start
■ Provide media playback feature, support music and video streaming. ■ Support Macintosh version 10.4 and above. (Projection feature) 2. Quick Start 1) Connect projector VGA cable to wePresent box VGA connector and turn on projector power. - Page 5 3) Make sure your PC WLAN is enabled already, and connect your PC with wePresent box. 4) Open your browser and it will redirect to wePresent main page automatically, or you can enter the IP address to access the WPS web home page.
- Page 6 5) Download the client software. Please select the” Windows Vista / XP / 2000” or ”Windows Mobile 5.0” and execute the installation program. ♦ After install the program, wePresent shortcut will come out on the PC screen.
- Page 7 6) Make sure your personal firewall allows wePresent software to pass through. 7) Enter the LOGIN CODE and ♦ You can see the login code on the projector screen 8) Click the “Play” button to start projection!
-
Page 8: Client Utility
1) Click wePresent icon to execute the program. 2) Program start to search for wePresen box automatically, 3) If wePresent box founded then “Login Code” dialog box will be pop up on the PC screen. Searching for wePresent box... -
Page 9: Login
1) After “Login Code” dialog box shown, enter login code to start presentation. 2) You can see the login code shown on the projector screen. 3.3 Buttons Description 1) After login successfully, you will see main UI of wePresent application. - Page 10 2) Click following buttons to manipulate wePresent Application. Presentation Mode Video Mode Project desktop screen to Full screen or split screen Full Screen projection Project to Split #1 Project to Split #2 Project to Split #3 Project to Split #4...
-
Page 11: Start/Stop Presentation
Open Video File Audio volume Audio volume strength bar Video time bar While playing video, it will be blinking Function menu Minimize the program Exit the program 3.4 Start/Stop Presentation Click to project desktop (Full screen or split screen) Click to stop presentation. -
Page 12: Start / Stop Playing Video
3.5 Start / Stop Playing Video/Music Click to switch to Video Mode. Click to open the video file and submit to play it. -
Page 13: Open Admin Web Page
* Supported Video Format: MPG, MPEG, DAT, VOB, WMV9, ASF, MP3, WAV. 3.6 Open Admin Web Page Click to open function menu and select “Web Admin” management web page. The web page detailed functions will be described on next chapter. 3.7 Searching Server Click “Search Server” to search for wePresent box. -
Page 14: Repeat
3.8 Repeat 3.9 Make wePresent Token Click “Make wePresent Token” to make a USB wePresent Token, please follow the steps with the wizard:... -
Page 16: Magnifier Option
3.10 Magnifier Option Click “Magnifier option” to change the aspect ratio of captured video region with magnifier feature. -
Page 17: System Information
3.11 System Information Click “Info” to show system information. It includes product model name, IP address and other information. -
Page 18: Wepresent For Pda
3.12 wePresent for PDA To project your PDA screen with wePresent, please follow the steps: Enable your WiFi and connect to wePresent Open the browser and enter Server IP address to download wePresent client software for PDA version. Install wePresent client software. - Page 19 4. wePresent for Mac Client To project your Mac screen with wePresnet, please follow the steps: Enable your WiFi and connect to wePresne device. Execute wePresent client software for Mac. Launch wePresent software and enter the login code.
-
Page 20: Web Management
Home Page 1. Make sure your PC connect to wePresent box successfully. 2. Open your browser, it will enter wePresent home page automatically. 3. If not, enter your IP address on the browser, you can see the IP on the projector screen. -
Page 21: Download Software
Download Software 1. Select “Download software” function. 2. Please select the”Windows Vista / XP / 2000” or ”Windows Mobile 5.0” and execute the installation program. 3. Follow Installation Wizard instructions to proceed till the installation process complete. 4. If pop up “Windows Security Alert” because Windows firewall block this program. -
Page 22: Conference Control
Conference Control 1) This function allows you to host a meeting smoothly without projector cable swapping and each participant can show their presentation easily. 2) Select “Conference Control” function. 3) Enter password, the default value is “trainer”, and then press [Login]. - Page 23 4) After login, you can see a User List on the screen which indicates all of users connected to WEPRESENT box. 5) There are three columns, “Computer Name”, “Play Control” and “IP Address”. 6) Play Control，There are six buttons, including Play(Full)
-
Page 24: Login Web Admin
Login Web Admin 1. Click [Admin] and then enter password to login web page. 2. The password default value is “admin”. System Status Click [System Status], shows current system status. Model Name: Product model name Versions: 1. Firmware version no.: Product firmware version number. -
Page 25: Network Setup
There are many kinds of operating configurations as below. Auto-Configuration Network Setup < > The default setting of the wePresent box is DHCP client. When the wePresent box is connected to a LAN that already has a DHCP server present, the wePresent box... - Page 26 IP address assigned to it by the server. When the wePresent box is connected to a LAN that does not have a DHCP server, the wePresent box becomes the DHCP server in the network. < IP Setup> ♦...
-
Page 27: Projection Setup
Click [Projection Setup] button ♦ <Resolution>: 1024*768, 1280x768 and 800*600. ♦ <Color Depth>: provide wePresent output with 16bit or 32 bit color depth. It depends on your PC settings. ♦ <Screen Refresh Rate>: This is VGA output refresh rate, provides 60 Hz and 75Hz to suit for different kinds of projectors. -
Page 28: Change Passwords
Change Passwords Click [Change Password] button, to change password value. ♦ <Enter New Password>: enter new password you want to change for each category. ♦ <Confirm New Password>: double confirm new password. ♦ <Apply>: Confirmation and Save modifications. Reset to Default Click [Reset to Default] button to restore factory default settings. -
Page 29: Firmware Upgrade
*** Another way to restore Factory Default Settings, Follow below procedures. 1. Press [Reset] button and Hold. 2. Turn on wePresent box. 3. Wait for over 10 seconds and relief [Reset] button. 4. It will take effect to restore factory default settings. -
Page 30: Reboot System
6. Restart wePresent box to take effect. Warning: Don’t power off wePresent while firmware upgrade in progress, otherwise will cause your Box doesn’t work and have to return device to your vendor for fixing. Reboot System Click [Reboot System] button, to restart system ♦... -
Page 31: Logout
Logout...
