Slide-In Range Specifications
Product Shipping Weight (approx.) – 250 Lbs.
Voltage Rating – 120V / 60 Hz / 15 Amps
Connected Load (kW Rating) @ 120 Volts = 0.7 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
Amps @ 120V = 6 Amps
Always consult local and national electric and gas codes.
Make sure wall coverings around range can withstand heat generated
by range.
Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
Range ships with 3/4" factory regulator.
LP Gas Conversion Kit supplied.
Gas supply piping can be through back wall or floor. Optimum
location is between 1" and 8" from floor through back wall within
3" of center line; can also be through floor against back wall within
12" of center line. Supply line must be equipped with approved
manual shutoff valve, accessibly located in same room as range.
Countertop MUST be level in all directions and adjustable range
height at least 1/16" greater than tallest cabinet height, to ensure
metal rangetop flange will fit properly on countertop edge.
When installing optional Backguard Kit, cutout depth of 21-3/4"
minimum / 22-1/8" maximum needs increased to 24".
Overhead cabinetry should not exceed a 13" maximum depth.
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
USA
10200 David Taylor Drive
Charlotte, NC 28262
CANADA
5855 Terry Fox Way
Mississauga, ON L5V 3E4
FFGS3025L 10/13

Countertop Preparation

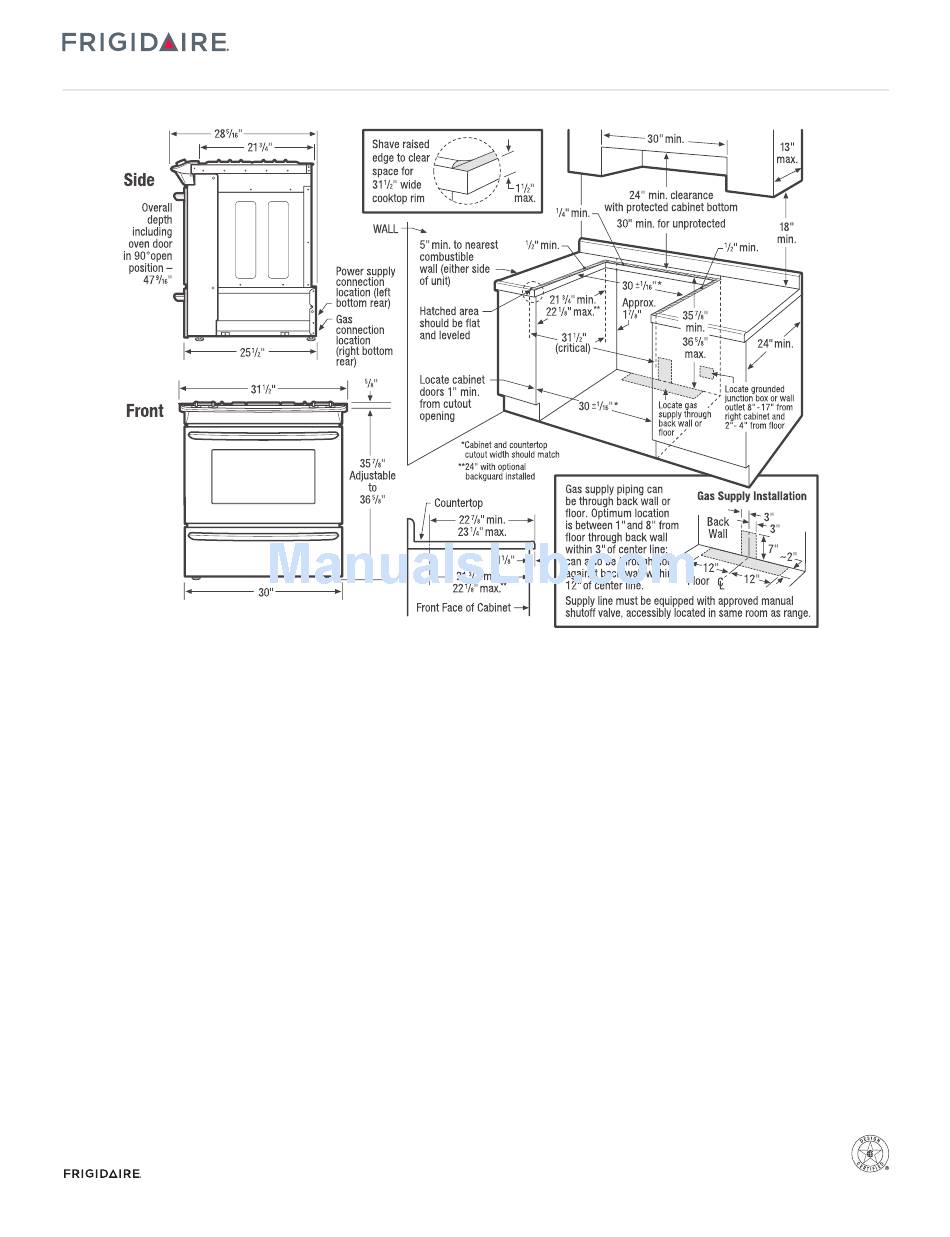

Rangetop's side flanges overlap countertop cutout edges – for detailed
preparation instructions, refer to product installation guide on the web.
Note: For planning purposes only. Refer to Product Installation Guide
Optional Accessories
1-800-FRIGIDAIRE
frigidaire.com
1-800-265-8352
frigidaire.ca
© 2013 Electrolux Home Products, Inc.
Allow 24" minimum clearance between rangetop and bottom of cabinet
when bottom of wood or metal cabinet is protected by not less than 1/4"
flame-retardant millboard covered with not less than No. 28 MSG sheet
steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper. Allow 30"
minimum clearance when cabinet is unprotected.
Allow 5" minimum clearance from edge of rangetop to nearest
combustible wall on either side of unit.
To reduce risk of fire when using overhead cabinetry, install range
hood that projects horizontally a recommended minimum of 5" beyond
bottom of cabinets.
Flat Square-Finish Countertops – require no preparation since
rangetop's flange lays directly on countertop edge.
Formed Front-Edged Countertops – require front molded edge to
be shaved flat 3/4" from each front corner of opening.
Tile Countertops – may need trim cut back 3/4" from each front corner
of opening and /or rounded edge flattened.
For existing cutout width greater than 30-1/16" reduce the 3/4" overlap
dimension; for cutout width of 29", replace actual side
trim panels with smaller side trim panels, available with optional
Side Trim Kit (refer to detailed kit installation instructions).
on the web at frigidaire.com for detailed instructions.
Rear Filler Kit: White – (PN # 901193-9011), Black – (PN # 901193-9010).
Side Panel Kit: White – (PN # 903074-9011), Black – (PN # 903074-9010).
Backguard Kit: White – (PN # 903046-9011), Black – (PN # 903046-9010).
Side Trim Kit: White – (PN # 903075-9011), Black – (PN # 903075-9010).
Slide-In Ranges
FFGS3025L S / W/ B
30" Gas
Specifications
subject to change.
