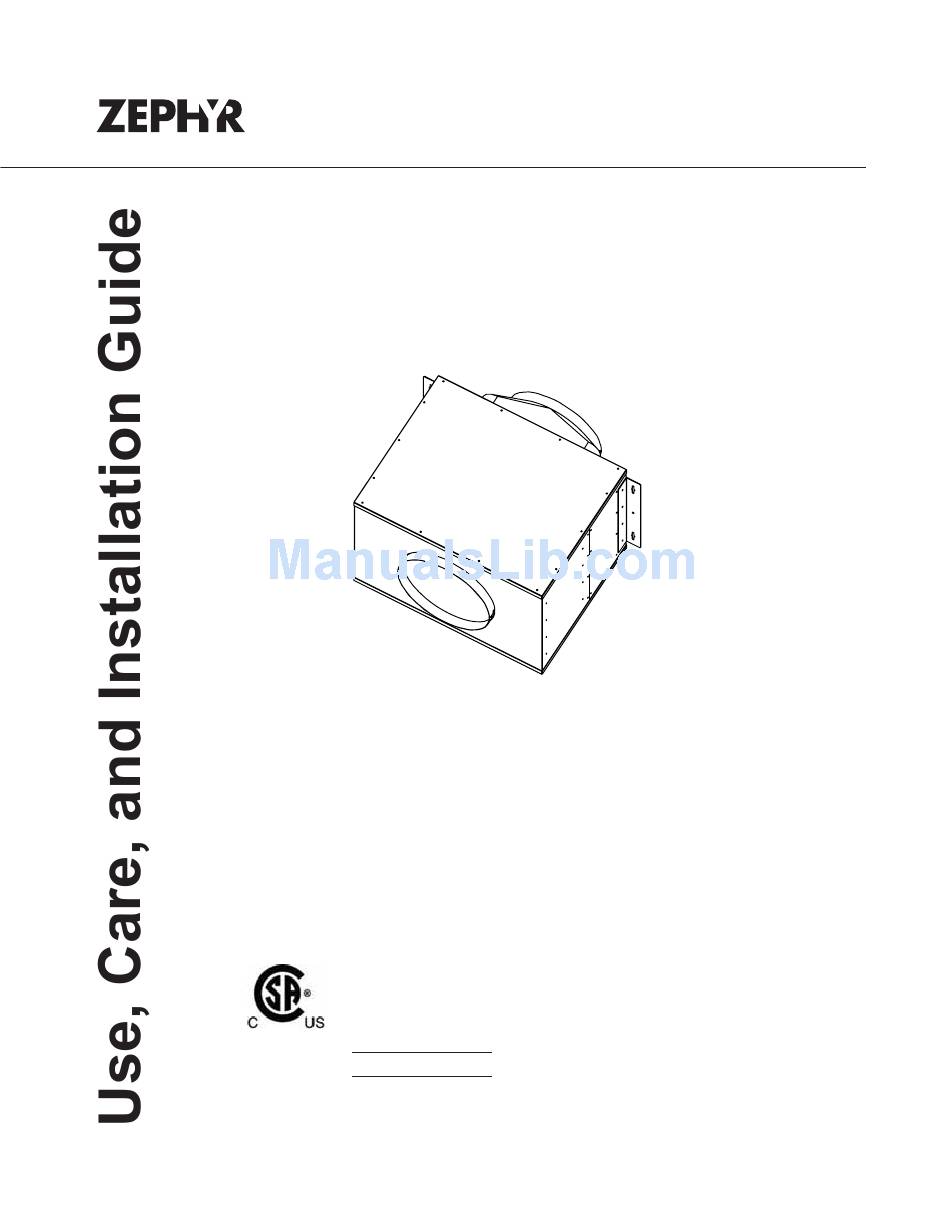

  • Page 1 In-Line Blower PBN-1000A Model number: Serial Number: JUL08.0101 © Zephyr Corporation...
  • Page 2 www.zephyronline.com...
  • Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ductwork Calculation Sheet ........Blower Positions ............Specifi cations ............... Mounting the Blower ..........
  • Page 4 6. Ducted fans must always be vented to the outdoors. 7. To reduce the risk of fire, use only metal ductwork. PBN-1000A Max. Watts - 640, Max. Amps - 5.45 8. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Interrupter) - protected branch circuit.

  • Page 5: Hardware Package Contents

    MODEL: PBN-1000A PARTS SUPPLIED 1 - In-Line blower 2 - Mounting brackets 1 - 10” to 8” transition 1 - Hardware package HARDWARE PACKAGE CONTENTS (4) M4 x 1-1/2” (8) M4 x 8 PARTS NOT SUPPLIED - Ducting, conduit, wiring and all installation tools...
  • Page 6 www.zephyronline.com Equivalent number Equivalent number Duct pieces Duct pieces T otal length x used length x used T otal 3-1/ 4” x 10” 1 Ft. 6” Round 30 Ft. Rect., wall cap straight with damper 6” Round, 1 Ft. 6” Round, 30 Ft.
  • Page 7 outlet outlet Plywood outlet WARNING: Check installation position so that the blower outlet is exhausting air away from the hood and out of the home. 1. Mount on top of ceiling joists with plywood 2. Vertical mount to cross-members tied to trusses 3.
  • Page 8 www.zephyronline.com front side (bracket positions) 1 9/16” outlet outlet bracket 7 5/16” 20 3/8” bottom (inlet) (outlet) 21 7/8” 23 7/16” 14 3/16”...
  • Page 9 Regulations. Connect wires to in-line blower and blower wiring harness on hood per the diagram in FIG. C. A cable lock (not supplied) might be required by local PBN-1000A PBN-1000A in-line blower in-line blower codes. Check with local code requirements, purchase and install appropriate connector if necessary.
