Summary of Contents for Zephyr CBE-1000

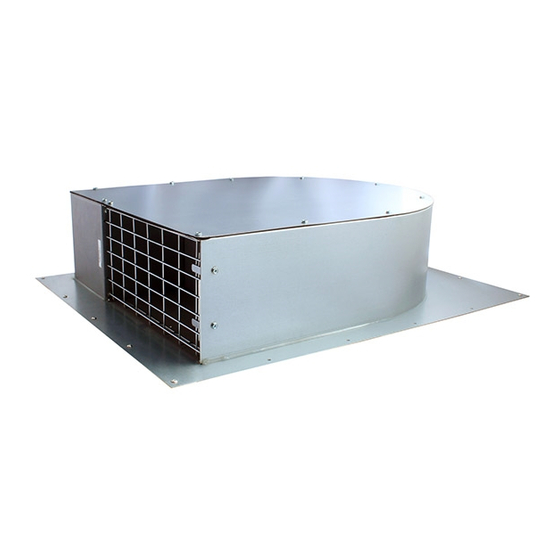

- Page 1 External Blower CBE-1000 Model number: CBE-1000 Serial number: Date of Purchase: Sales Dealer: MAY07.0101 © Zephyr Corporation.
- Page 2 To reduce risk of fire and to properly exhaust air, be sure to duct air outside - Do not vent exhaust air into spaces withinwalls or ceilings or into attics, crawl spaces or garages. CBE-1000 external blower is to be used only with compatible Zephyr hoods. Please refer to hood manual for external blower compatibility.
- Page 3 NOTE: The following instructions explain the mounting procedures for the CBE-1000 external blower. Please refer to your hood manual for instructions on preparing the hood for use with external blower. Fig-5 24" 3" 8" 4" 5 5/8" 10 1/4" 30"...
- Page 4 www.zephyronline.com 1. Remove and discard shipping brackets and wood support (attached to sides of motor and inlet collar). Fig. - 7 BEFORE INSTALLING , check to see if blower wheel turns freely and does not rub on motor brackets. Check damper door to be sure it moves freely and spring returns door to closed position.
- Page 5 8. Replace cover onto blower from step 5 and secure with screws provided. All screws must be in place on cover. Fig - 6 CBE-1000: WIRING DIAGRAM White (common) External Blower Black (high) Junction Box Wiring Box Blue (med) (CBE-1000) (hood) Red (low) Green (ground) CBE-1000: 1/2 HP 3 - Speed Motor. 115V AC, 60Hz /15 Amp Circuit Required...
