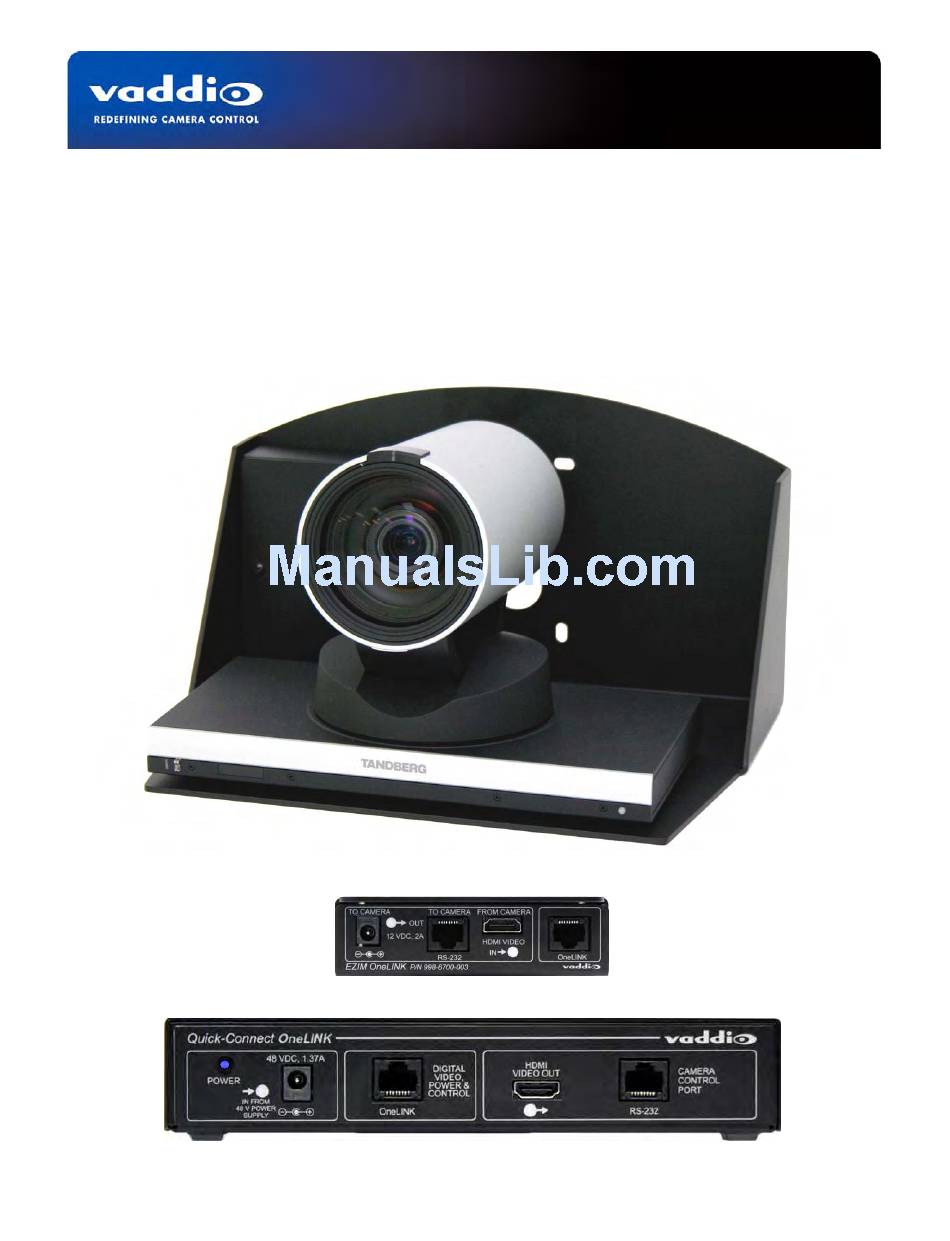

OneLINK - High Speed Digital Bus for HD Digital Video, Power and Control Over One Cat-5e Cable
Part Numbers:
999-9550-000 North America
999-9550-001 International
For the Cisco PrecisionHD 1080p 12x
and the PrecisionHD 720p Cameras
©2012 Vaddio - All Rights Reserved. OneLINK for Cisco Precision HD Cameras - Installation and User Guide 342-0122 Rev. F
O
L
I
N
K
™
O
L
I
N
K
™
N
E
N
E
H
D
C
H
D
C
A
M
E
R
A
M
E
Installation and User Guide
Installation and User Guide
C
C
F
O
R
I
S
F
O
R
I
S
A
S
R
A
S
Cameras and Controllers
For Integrators
®
S
®
S
C
O
E
L
E
C
O
E
L
E
C
T
C
T
Advertisement
Related Manuals for VADDIO OneLINK
Summary of Contents for VADDIO OneLINK
- Page 1 OneLINK - High Speed Digital Bus for HD Digital Video, Power and Control Over One Cat-5e Cable Part Numbers: 999-9550-000 North America 999-9550-001 International For the Cisco PrecisionHD 1080p 12x and the PrecisionHD 720p Cameras ©2012 Vaddio - All Rights Reserved. OneLINK for Cisco Precision HD Cameras - Installation and User Guide 342-0122 Rev. F...
- Page 2 OneLINK Inside Front Cover - Blank OneLINK for Cisco Precision HD Cameras - Installation and User Guide 342-0122 Rev. F Page 2 of 12...
- Page 3 (1) Cat-5e cable, hence the name, OneLINK. The OneLINK is a complete peripheral system and comes with the Quick-Connect, the EZIM, and three (3) 1’ (30.5cm) native cables at the camera (HDMI, 5.5mm OD x 2.1 mm ID Coax power cable, and RJ-45 patch cable).
- Page 4 OneLINK Unpacking Carefully remove all of the parts from the shipping box. Unpack and identify the following parts for the OneLINK system for Cisco PrecisionHD camera: One (1) EZIM OneLINK (EZ Interface Module) One (1) Quick-Connect OneLINK (1-RU, ½ rack width) ...
- Page 5 RS-232 HDMI Adapter Do not use the Cisco/TANDBERG Cable Cisco C60 Codec # 116627 to make this ** (Monitors not shown) connection OneLINK for Cisco Precision HD Cameras - Installation and User Guide 342-0122 Rev. F Page 5 of 12...
-
Page 6: Installation Instructions
Cisco PrecisionHD camera as shown below. PrecisionHD 720p Camera Shown Connect as Shown using the Provided Cables RS-232 HDMI HDMI 12VDC OneLINK for Cisco Precision HD Cameras - Installation and User Guide 342-0122 Rev. F Page 6 of 12... - Page 7 Port Head End Location Step 7: At the head end, connect the Cat-5e cable from the camera location to the OneLINK port on the Quick-Connect OneLINK port as shown above. Step 8: From the Quick Connect OneLINK, connect the HDMI output to the desired codec input. Use the provided 9-Pin RS-232 to RJ-45 adapter to connect the camera control port on the codec to the camera control port on the OneLINK with a Cat-5e cable as shown below.
- Page 8 With the Codec turned off, connect the 48 VDC power supply to the Quick-Connect OneLINK. The blue LED power light will illuminate and it is ready for the codec to be booted up. Note: If the OneLINK Cat-5e cable is incorrectly terminated or if intermittent connections are the result of the use of pass-thru, EZ type RJ-45 connectors, damage to the system may result.
-
Page 9: Warranty Information
Do not use the cable # 116627, DB-9M to RJ-45, to connect the Quick-Connect OneLINK to the camera control port of the Codec. Please use only garden variety Cat-5e cable, made with a real RJ-45 crimper and avoid use of the “pass-thru and cut-em-off” type RJ-45 connectors - see Safeguards on page 3. - Page 10 Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.
- Page 11 OneLINK NOTES: OneLINK for Cisco Precision HD Cameras - Installation and User Guide 342-0122 Rev. F Page 11 of 12...
- Page 12 Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464 www.vaddio.com ©2011 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, Quick-Connect, OneLINK, EZIM, EZCamera, HSDS, SHSDS, and PowerRite are trademarks of Vaddio.
