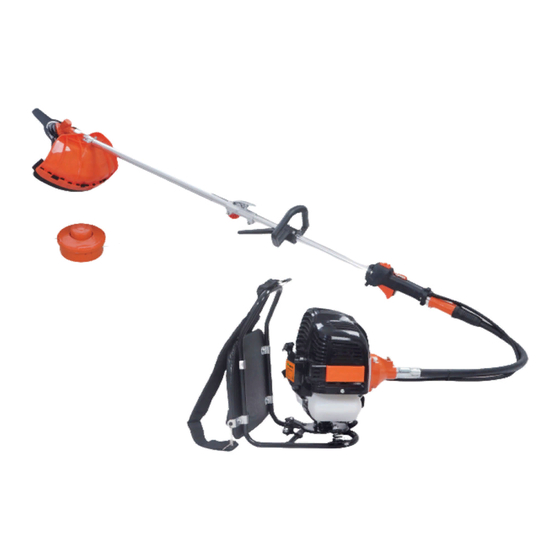

Zenoah EXZ2610DL Owner's Manual

Multi purpose trimmer
Hide thumbs Also See for EXZ2610DL:
Table of Contents

Advertisement

Quick Links

Download this manual
EXZ2610DL
115 62 07-26 (309)
OWNER'S MANUAL
MULTI PURPOSE
TRIMMER
EXZ2610DL
GB-1
Page 1
13.10.16, 9:26 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXZ2610DL and is the answer not in the manual?

Questions and answers

Related Manuals for Zenoah EXZ2610DL

Summary of Contents for Zenoah EXZ2610DL

  • Page 1 EXZ2610DL 115 62 07-26 (309) OWNER’S MANUAL MULTI PURPOSE TRIMMER EXZ2610DL GB-1 Page 1 13.10.16, 9:26 AM...
  • Page 2 EXZ2610DL EXPLANATION OF SYMBOLS AND SAFETY WARNINGS WARNING!!! RISK OF DAMAGING HEARING Wear head, eye and ear protection. SOUND LEVEL VIBRATION LEVEL ISO 22868 ISO 11094 ISO 22867 MODEL ISO 11680-1 LpAeq ahv.eq guaranteed BC-EX 25.4 cm 95 dB(A) 5.3 m/s LRT-EX 25.4 cm...

  • Page 3: Table Of Contents

    DESIGNATION : MULTI PURPOSE TRIMMER MANUFACTURER : Husqvarna Zenoah Co., Ltd. MODEL : EXZ2610DL SERIAL NUMBERS DATING : 2013 and onwards (The year is cleary stated on the rating plate, follwed by the serial number) This declaration conform with :...

  • Page 4: Parts Location

    EXZ2610DL 1. Parts location EXZ2610DL-PUO 11. Loop handle 12. Suspension point BC-EX 13. Stop switch 14. Throttle cable 15. Throttle trigger 16. Throttle set button 17. Shaft tube 18. Knob bolt 19. Spark arrester 10. Stater knob 11. Fuel tank 12.

  • Page 5: Specifications

    EXZ2610DL 2. Specification Engine Type ................Air-cooled 2-stroke gasoline Model .................... Zenoah GZ25N Displacement ................... 25.4 cm Max. output ..........1.2 Hp (0.9 kW) at 7500/min-1 (rpm) Idle speed ................3000 ±200/min-1 (rpm) Fuel ..................GASOLINE 25 : OIL 1...

  • Page 6: Warning Labels On The Machine

    EXZ2610DL 3. Warning labels on the machine (1) Read owner’s manual before operating this machine. (2) Wear head, eye and ear protection. (3) Wear foot protection. (4) Wear gloves. (5) Beware of thrown objects. (6) Warning / Attention (7) Keep all children, bystanders and helpers 15 meters away from the machine.

  • Page 7: For Safe Operation

    EXZ2610DL 5. For safe operation 1. Read this manual carefully until b. At night, at times of heavy fog, you completely understand and or at any other times when follow all safety and operating your field of vision might be instructions.
  • Page 8 EXZ2610DL 5. For safe operation BEFORE STARTING the cutting part nor the throttle THE ENGINE trigger come into contact with any 1. The area within a perimeter of obstacle when the engine starts. 15 m of the person using the...
  • Page 9 EXZ2610DL 5. For safe operation (PS-EX only) 7. Never operate the pruner at an manual must be performed, angle greater than 60° in order to please contact a representative reduce the risk of being struck by from the store nearest ZENOAH falling objects during operation.
  • Page 10 EXZ2610DL 5. For safe operation (PS-EX only) 1. When you finish cutting in one lo- back and maintain control of the cation and wish to continue work saw. (3) Make certain that the area in in another spot, turn off the en-...

  • Page 11: Set Up

    EXZ2610DL 6. Set up A Package contains the items as illustrated. EXZ2610DL-PUO BC-EX LRT-EX PS-EX (1) Shaft tube (10) Wrench (21) Shaft tube (2) Handle (11) Wrench (22) Cutting device (3) Bolt (12) Bar (23) Blade cover (4) Engine unit (13) Owner’s manual...
  • Page 12 EXZ2610DL 6. Set up MOUNTING ENGINE INSTALLING HANDLE (BC-EX, LRT-EX only) NOTE The handle is put during the arrow mark. 1. Push the shaft tube toward the clutch housing and rotate it by hand to check that the power transmission shaft is engaged with the gears.
  • Page 13 EXZ2610DL 6. Set up (BC-EX only) INSTALLING CUTTING ATTACHMENT GUARD 4. When correctly adjusted, check the correct working FOR TRIMMER HEAD of the harnesses' QUICK RELEASE. • Attach the cutting attachment guard with the bolts combined to the shaft tube while inserting the spacer between the guard and the shaft tube.
  • Page 14 EXZ2610DL 6. Set up 6. Set up (LRT-EX only) (PS-EX2 only) ATTACHING THE TRIMMING MECHANISM ATTACHING THE PRUNING MECHANISM (1) Tube (2) Transmission (3) Screw hole (4) Screw (5) Fastening bolt (1) Tube (2) Transmission (3) Screw hole (4) Fastening bolt 1.
  • Page 15 EXZ2610DL 6. Set up (PS-EX2 only) WARNING WARNING Pay attention to the correct direction of the saw It is very important to maintain the proper chain chain. tension. Rapid wear of the guide bar or the chain coming off easily can be caused by improper ten- 3.

  • Page 16: Fuel And Chain Oil

    EXZ2610DL 7. Fuel and chain oil ■ FUEL 4. Pour in the rest of gasoline and agitate again for at least one minute. As some oils may be difficult to agitate depending on oil ingredients, sufficient agi- WARNING tation is necessary for the engine to last long. Be careful that, if the agitation is insufficient, there is an •...

  • Page 17: Operation

    EXZ2610DL 8. Operation STARTING ENGINE 5. Set the stop switch to the “-” position. Set the throttle trigger to the start position (1 → 2 → 3). WARNING Place the unit on a flat, firm place. Keep the cutting head clear of everything around it.
  • Page 18 EXZ2610DL 8. Operation 7. Move the choke lever downward to open the choke. ADJUSTING THROTTLE CABLE And restart engine. • The normal play (1) of the throttle cable (2) is 1 or 2mm when measured at the carburetor side end.
  • Page 19 EXZ2610DL 8. Operation (BC-EX only) CUTTING WORK (TRIMMER HEAD USAGE) ADJUSTING THE LINE LENGTH • Your brush cutter is equipped with a semi- auto type WARNING nylon line head that allows the operator to advance the line without stopping the engine. When the line 1.
  • Page 20 EXZ2610DL 8. Operation (Optional blade usage BC-EX only) 9” 8-tooth: Trimmer 9” 4-tooth: Trimmer 9" 8-tooth: 9" 4-tooth: CUTTER head head CUTTER APPLI- 6298-15343 6298-14243 APPLICATION 848-BU3-6914 CATION CHART CHART Heavy Heavy weeds weeds Light Light weeds weeds Grass Grass...
  • Page 21 EXZ2610DL 8. Operation (Optional blade usage BC-EX only) STARTING THE ENGINE OPERATION Please refer to 5. For safe operation (P. 7 ~ 9), 8. Ope- 1. Check the bolt to fasten the blade and be sure the ration (P. 16 ~ 17).
  • Page 22 EXZ2610DL 8. Operation (Optional blade usage BC-EX only) WARNING MAINTENANCE BLADE Make sure to use harness and cutting attachment • Check the blade and the fasteners for looseness, guard. If not, it is very dangerous when you slip or cracking, or bending.
  • Page 23 EXZ2610DL 8. Operation 8. Operation (LRT-EX only) (PS-EX2 only) WARNING Checking oil supply After starting the engine, run the chain at medium speed This product is equipped with extremely sharp blades, and see if chain oil has scattered off, as shown in the and when used improperly these blades can be ex- figure.
  • Page 24 EXZ2610DL 8. Operation (PS-EX2 only) Adjust the pump as follows: 1. Stop the engine and make sure the stop switch is in the OFF position. 30° 30° 2. With a screwdriver, turn the oil flow rate adjusting screw to the desired direction.

  • Page 25: Maintenance

    EXZ2610DL 9. Maintenance Every Every Every Every Before System/components Procedure Note hours hours hours hours after after after after ✔ fuel leaks, fuel spillage wipe out ✔ ✔ fuel tank, air filter, fuel filter inspect/clean replace, if necessary see adjusting replace carburetor ✔...
  • Page 26 EXZ2610DL 9. Maintenance SPARK PLUG SPARK ARRESTER • Starting failure and misfiring are often caused by a • The muffler is equipped with a spark arrester to pre- fouled spark plug. Clean the spark plug and check vent red hot carbon from flying out of the exhaust out- that the plug gap is in the correct range.
  • Page 27 EXZ2610DL 9. Maintenance 9. Maintenance (BC-EX only) IMPORTANT REFILLING TRIMMING LINE 1. For replacement line, use a diameter of 2.4mm(.095in). • If waste gets stuck and causes blockage around the The spool is capable for a line upto 6m(20ft) on the intake air cooling vent, it may cause the engine to over- 10cm(4”) head.
  • Page 28 EXZ2610DL 9. Maintenance 9. Maintenance (BC-EX only) (LRT-EX only) ANGLE TRANSMISSION BLADES • When refilling the tank or resting, it is often a good idea to use the time to oil the cutting blades. • If a gap exists between the upper and lower blades, follow the procedure below to adjust them so that they fit more closely together.
  • Page 29 EXZ2610DL 9. Maintenance (PS-EX2 only) OILING PORT DRIVE SPROCKET Dismount the guide bar and check the oiling port for Regularly check the degree of wear on the drive clogging. sprocket. Replace if wear is excessive. (1) Oiling port GUIDE BAR Remove sawdust in the guide bar groove and the oiling port.

  • Page 30: Storage

    EXZ2610DL 9. Maintenance (PS-EX2 only) SAW CHAIN After every cutter has been set, check the depth gauge WARNING and file it to the proper level as illustrated. It is very important for smooth and safe operation to keep the cutters always sharp.

  • Page 31: Troubleshooting Guide

    EXZ2610DL 12. Troubleshooting guide Case 1. Starting failure CHECK PROBABLE CAUSES ACTION → incorrect fuel → drain it and use correct fuel fuel tank → fuel filter is clogged → clean fuel filter → out of normal range → adjust to normal range carburetor adjustment screw →...
  • Page 32 To Dealer: Please complete the following form at time of sale. Product Model: Equipment No.: ZENOAH EXZ2610 BC-EX LRT-EX Engine No.: PS-EX2 Date of Purchase: D / M / Y Use: Private: Professional Rental Purchaser: Name: Dealer: Name: Address/Phone: Address/Phone: To Purchaser: When your unit requires any repair, please bring or send it to the dealer with this sheet attached.
