Innovatek IN-403DTM Owner's Manual

Mobile video system
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER's MANUAL
Mobile Video System
REL
E O N
CLK
BND
MU
PTY
MOTORIZED SLIDE DOWN AND
4 INCH
W
IDE COLOR DIGITAL SCREEN TFT
CAR DVD/VCD/CD/MP3 PLAYER
AM/FM- RDS DIGITAL PLL TUNING RADIO
MPEG4 PLAYER
USB CONNECT
TV TUNER
IN-403DTM
CAR DVD/VCD/CD/MP3/MPEG4/TV PLAYER
DVD/RECEIVER CONTROL
DVD/RECEIVER CONTROL
POWER
MUTE
PLAY/PAUSE
REPEAT
ANGLE
MENU
MODE
EQ
LO/DX
OSD
BAND
ENTER
TITLE/PBC
A/PS
VOL
TOP
1
2
VOL
RDM
4
5
7
8
SEL
+10
SETUP
GOTO
STOP
MO/ST
CLK
INT
3
6
9
0
DETACHABLE PANEL
TA/AF
MOD
CH 1-6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN-403DTM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Innovatek IN-403DTM

Summary of Contents for Innovatek IN-403DTM

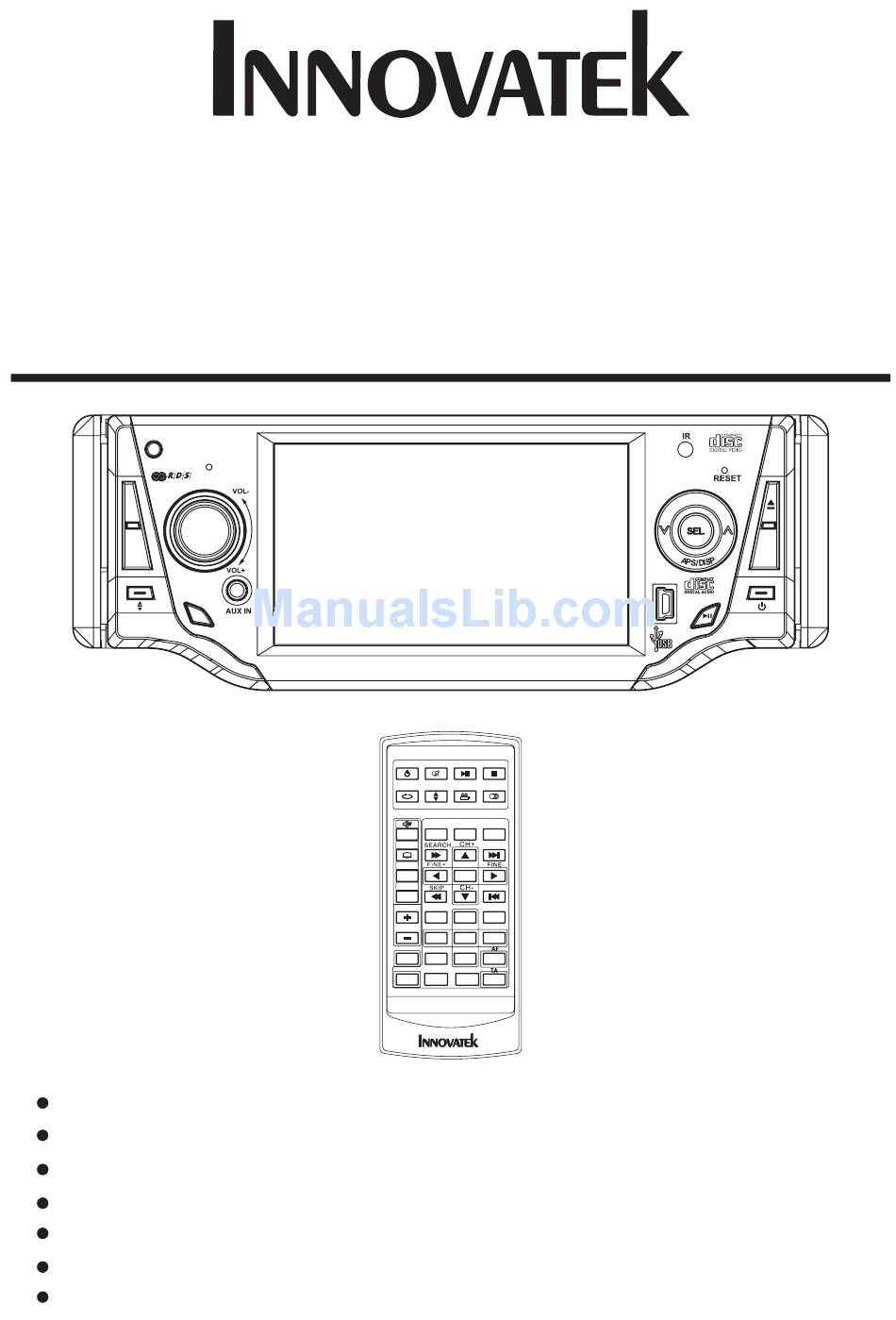

  • Page 1 IN-403DTM OWNER's MANUAL Mobile Video System E O N TA/AF CH 1-6 CAR DVD/VCD/CD/MP3/MPEG4/TV PLAYER DVD/RECEIVER CONTROL DVD/RECEIVER CONTROL POWER MUTE PLAY/PAUSE STOP REPEAT ANGLE MO/ST MENU MODE LO/DX BAND ENTER TITLE/PBC A/PS SETUP GOTO MOTORIZED SLIDE DOWN AND DETACHABLE PANEL...

  • Page 2: Table Of Contents

    CONTENTS Safety Information..................Disc Notes ....................Installation ....................Panel Angle Adjustment ................Electric Connection ..................Remote Control ..................Basic Operation ..................MP3/WMA/JPEG Disc Play ..............AUX Operation ..................Scroll Caption Operation ................Video Quality Operation ................Rear View Camera ................. MPEG4 Player ..................

  • Page 3: Safety Information

    SAFETY INFORMATION CAUTION: THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE . HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT...

  • Page 4: Disc Notes

    DISC NOTES Disc formats supported by this unusable) depending on your handle it and conditions in the usage environment. player Note these scratches are not an Audio and Video indication of any problem with the player. Disc size 12 cm Label side Audio and Video Disc size 12 cm...

  • Page 5: Installation

    INSTALLATION NOTES: Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. Use only the parts included with the unit to ensure proper installation.
  • Page 6 INSTALLATION DASH BOARD HEX NUT METAL MOUNTING STRAP SPRING WASHER CONSOLE PLAIN WASHER SLIDE BRACKET TAPPING SCREW HOUSING HEX BOLT KEY PLATE PLASTIC COVER KEY PLATE If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove the PLASTIC COVER of the both sides away, then insert the two KEY PLATE into left and right side of chassis as above illustration.
  • Page 7 INSTALLATION How To Remove And Install The Front Panel When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. Detaching The Front Panel Before detaching the control panel, be sure to turn off the power. 1).

  • Page 8: Panel Angle Adjustment

    PANEL ANGLE ADJUSTMENT CHANGING THE CONTROL PANEL ANGLE When you want to change the viewing angle of the operating unit to play, you can press the (angle)button repeatedly to select the desired angle as follows: Angle 1 Angle 2 Angle 4 Angle 3 Caution: Do not insert your finger behind the control panel.

  • Page 9: Electric Connection

    ELECTRIC CONNECTION WIRING CONNECTION MAIN UNIT (B+)12V WHITE REAR CAMERA SWITCH GREEN (B-)PARKING BRAKE TV ANT IN YELLOW REAR CAMERA INPUT AUX(optional) VIDEO IN YELLOW RCH IN RED ANTENNA CONNECTOR LCH IN WHITE RCA CABLE GREY SUBWOOFER VIDEO OUT 2 YELLOW IGNITION COAXIAL OUT BROWN SWITCH(B+)

  • Page 10: Remote Control

    REMOTE CONTROL DVD/RECEIVER CONTROL DVD/RECEIVER CONTROL POWER MUTE PLAY/PAUSE STOP MO/ST REPEAT ANGLE MENU MODE LO/DX BAND ENTER TITLE/PBC A/PS SETUP GOTO Press it briefly to show/hide the clock, press longer to set the time. 1.CLK Press it to change between TV, RADIO ,DISC and AUX IN mode. 2.MODE Press it to stop playback, press PLAY/PAUSE to resume playback .

  • Page 11: Preparing The Remote Control

    REMOTE CONTROL Preparing the Remote Control Inserting the Batteries 1.First push to inside as the direction indicated by the arrow (See )And then Remove the battery holder as the direction indicated by the arrow (See 2.Replace the battery Set a new battery property with (+)side up as illustrated (See 3.Insert the battery holder.

  • Page 12: Basic Operation

    BASIC OPERATION E O N TA/AF CH 1-6 CAR DVD/VCD/CD/MP3/MPEG4/TV PLAYER 1.REL BUTTON Press the REL button to detach the removable front panel. Refer to see page 6 . (POWER On/Off )BUTTON Press this button to switch the device on. WELCOME appears in the display. Press it again to switch the device off.
  • Page 13 BASIC OPERATION 6. TA/AF BUTTON TA Function [traffic Announcement] Button(for Rds Only) In RADIO mode When swing the SEL knob briefly in the TA/AF direction, it is activated as TA mode ON or OFF. During radio operation in one FM frequency band the search for a traffic announ- cement station is started automatically (TA SEEK) .
  • Page 14 BASIC OPERATION TV System Select In TV mode, Swing the SEL knob in the direction of APS/DISP to cycle through the different TV standards (“PAL-BG”, “PAL-DK”, “PAL-I”,“PAL-MN” ) , if you are in European frequency mode , you can use the VOL+/- to select among the PAL options.
  • Page 15 BASIC OPERATION To wind through the tracks keep the SEL button pressed in the direction for about 2 seconds. FF X2 appears in the display. Operating the SEL button again, the speed of rapid forward/reverse changes according to the disc as follow: Normal Playback 2x DVD/VCD/CD/MP3:...
  • Page 16 BASIC OPERATION TOP/RPT/INT/RDM FUNCTION (Only for the RC.) A.To memorize the current frequency, press any one of the six preset buttons[1-6] on the remote controller hold for more than 2 seconds. B.To recall the preset memory, press one of the preset buttons [1-6]. C.Press 1/(TOP) button to select the first track/chapter to play.

  • Page 17: Mp3/Wma/Jpeg Disc Play

    BASIC OPERATION MP3/WMA/JPEG DISC PLAY 1.When inserting an MP3/WMA/JPEG disc. Ex: When Mp3 file is detected. .Current track(file)(highlighted bar) .Current track (file) number/total 00:56 04:07 number of tracks(files) in the current folder. Repeat folder 003/112 .Elapsed playing time of the current track( not available for JPEG disc) 03–...

  • Page 18: Video Quality Operation

    BASIC OPERATION Video Quality Adjustment Press SEL button briefly to across the sound/picture mode selection menu by repeatedly pressing the SEL button you can select the individual menu items such as volume, bass, treble, balance, fader, color, bright, contrast and tint . Then rotate the VOL + / - to adjust the selected mode.

  • Page 19: Usb Operation

    BASIC OPERATION USB Operation On-Screen Display Function Following the diagram below, connect Press the OSD button during playback your USB device to the front panel USB to display the contents of the current port . If it is properly connected, disc on the screen.

  • Page 20: Multi-Audio Language Function

    BASIC OPERATION Notes: e.Press for the fifth time: - The language number is different The message on the screen will be according to the disc. cleared for SVCD and VCD. - Some discs only contain one subtitle C.Example for MP3: language.

  • Page 21: Setup

    SETUP GENERAL SETUP --- GENERAL PAGE --- DOLBY DOLBY -----General setup page---- -----General setup page---- TV Display Normal/PS TV Display Normal/LB Angle Mark Angle Mark Wide OSD Lang OSD Lang SPDIF/RAW Spdif Output Spdif Output Captions Captions Screen Saver Screen Saver Last Memory Last Memory Set TV Display Mode...
  • Page 22 SETUP DOLBY DOLBY -----General setup page---- -----General setup page---- TV Display TV Display Angle Mark Angle Mark OSD Lang Osd Lang SPDIF OFF Spdif Output Spdif Output SPDIF/RAW Captions Captions SPDIF/PCM Screen Saver Screen Saver Last Memory Last Memory Set Angle Mark Setup SPDIF ANGLE MARK DISPLAY SETUP 4.SPDIF OUTPUT...

  • Page 23: Speaker Setup

    SETUP SPEAKER SETUP DOLBY --- SPEAKER SETUP PAGE --- DOLBY -----General setup page---- TV Display -----Speaker Setup Page---- Angle Mark OSDLang DOWNMIX LT/RT Spdif Output STEREO Captions Screen Saver Set Downmix Mode Last Memory Screen Saver This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode.

  • Page 24: Preferences Setup

    SETUP PREFERENCES SETUP --- PREFERENCES PAGE --- DOLBY DOLBY -----Preference Page---- -----Preference Page---- TV Type English TV Type Audio French AUTO Audio Subtitle Spanish NTSC Subtitle Disc Menu German Disc Menu Parental Italian Parental Password Portuguese Password Default Greek Default Set TV standard Preferred Subtitle Language 1.TV TYPE SETUP...

  • Page 25: Defaults Table

    SETUP DOLBY DOLBY -----Preference Page---- -----Preference Page---- 1KID SAF TV Type TV Type Audio Audio Subtitle Subtitle 4PG13 Disc Menu Disc Menu 5PGR Parental Parental Password Password 7NC 17 Default Default RESET 8 ADULT Load Fcatory Setting 7.DEFAULTS Set Parental Control Select reset to become factory initial 5.PARENTAL setting.

  • Page 26: Specifications

    SPECIFICATION Supply Voltage: 12V DC (11V-15V) Current Consumption: Less than10 A Signal System: Compositive video 1.0Vp-p 75 Discs Played: (1)DVD-VIDEO Disc 5"(12 cm) single-sided, single-layer 5"(12 cm) single-sided, double-layer (2)Compact Disc (CD-DA, VIDEO CD) 5"(12cm) disc TV System: NTSC or PAL TV Sensitivity: Audio Signal Output: 2ch&4ch line out...

  • Page 27: Trouble Shooting

    TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. SYMPTOM CAUSE SOLUTION If the power supply is properly connected to the car accessory The car ignition switch is terminal,switch the ignition key not on...
