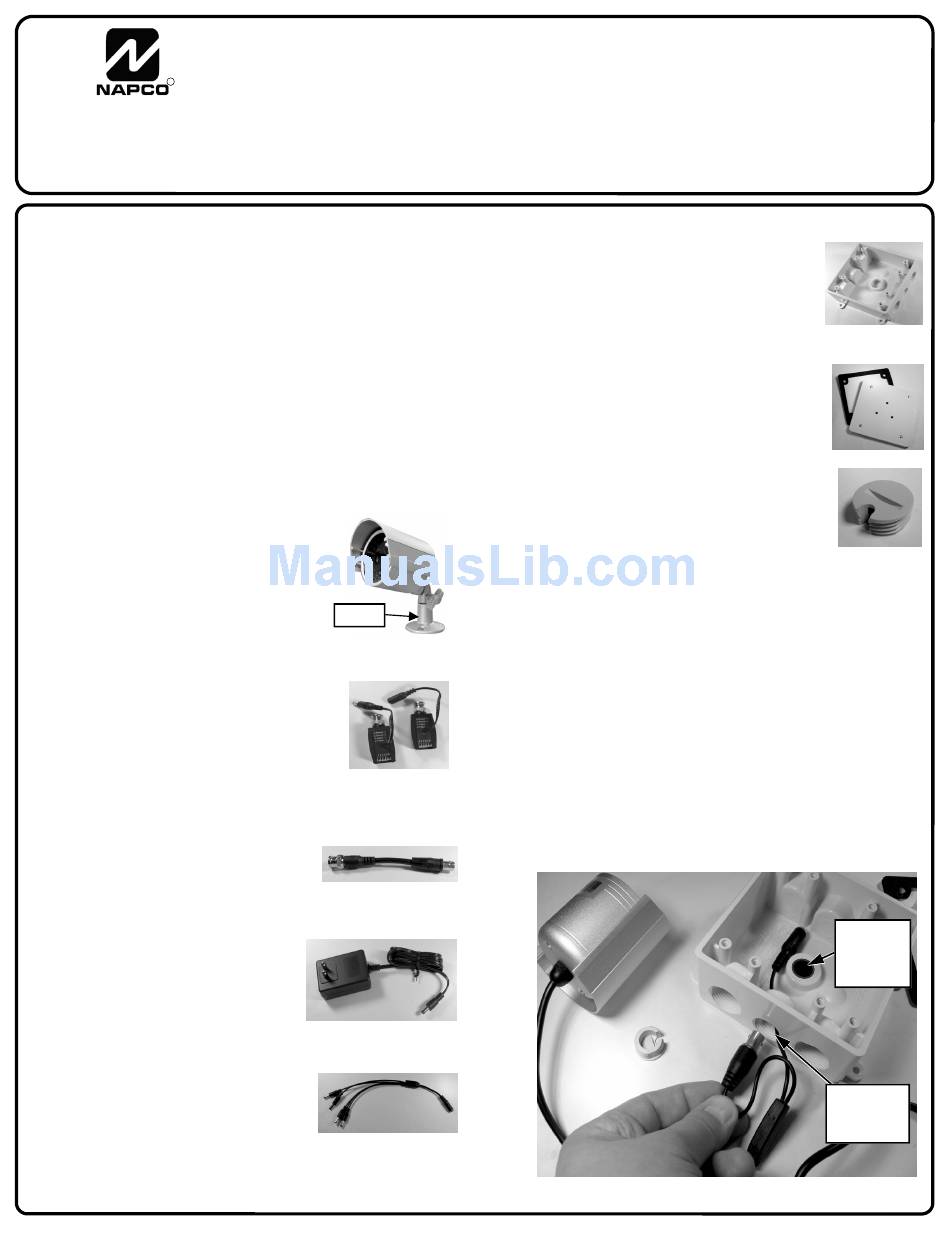

NAPCO ISEE-QC2CAMKIT Installation Instructions

R
333 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440
Publicly traded on NASDAQ Symbol: NSSC
© NAPCO 2008
OVERVIEW
The NAPCO ISEE-QC2CAMKIT is a quick-connect installa-
tion system that allows a simplified, standardized camera
installation using CAT5 cable and is intended for use with
the NAPCO VIP-Gateway. This installation kit includes two
(2) high quality IR cameras, passive video baluns with
power leads, and a rugged PVC camera mounting / wiring
enclosure system. This kit also includes a power distribu-
tion system that can provide power to a maximum of four (4)
cameras from one economical plug-in 12VDC, 2 Amp
power supply. These instructions also apply to the ISEE-
QC1CAM for individual cameras to be added to an existing
installation.

SYSTEM COMPONENTS

ISEE-CAMIR24 IR Bullet style camera,
24 IR LEDs, 50' IR range, 1/4"
Color CCD image sensor, 3.6mm /
f2.0 Standard Lens, 12VDC Op-
eration.
ISEE-VBALUN-P1 Passive Video Balun
allows video and power transmis-
sion over CAT5 cable, 6 push pin
terminals. Set of (1) male and (1)
female with 2.1mm CCTV power
lead connectors
ISEE-BNC P-CBL Patch Cable, BNC Male to Female,
RG59, 120mm (for connecting
ISEE-VBALUN-P1 Video Balun
to VIP-Gateway)
ISEE -TRF12VDC2A Plug in style
power transformer/adapter,
provides regulated 12VDC @
2,000mA output with 2.1mm
male connector.
ISEE-PWR1-4 Power
CCTV, 1 Female to 4 Male
2.1mm. Provides power to up to
(4) cameras when using ISEE -
TRF12VDC2A power supply
Note: The product images shown in this manual may be slightly different from the actual product.
ISEE-QC2CAMKIT Two-Camera Kit
ISEE-QC1CAM Single Camera Kit
(Base)
Splitter,
Installation Instructions
PVC double gang style weatherproof enclo-
sure, white, provides a watertight enclo-
sure for wiring and allows the camera
to be easily and quickly mounted out-
doors.
PVC double gang weatherproof cover with
gasket, prepped for mounting of camera
base, white.
PVC plug for sealing of wire entry hole, white,
is slotted to allow the camera cable to
exit the enclosure.
INSTALLATION
The PVC camera mounting / wiring enclosure system al-
lows the camera to be easily and quickly installed on the
side of a building or under an eave. Before wiring the en-
closure, attach the camera mounting bracket base to the
enclosure cover using the three supplied mounting nuts and
bolts.
1. Pull the CAT5 wire through the wall or eave to the loca-
tion where the camera is to be installed. Punch through
the knock-out on the bottom of the enclosure and one
1/2 inch threaded knock-out on the side. Push the
camera signal and power connectors (one at a time)
through the 1/2 inch threaded hole on the side of the
enclosure.
Fig. 1: Route the camera wires into enclosure
WI1679 2/08
Knockout
for CAT5
cable
Threaded
hole plug
1
