NAPCO iSeeVideo
R
ISEE-VCMPT
333 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
Installation Guide
For Technical Service, (800) 645-9440
Publicly traded on NASDAQ
Symbol: NSSC
WI1800.2 12/08
© NAPCO 2008
ISEE-VCMPT
Pan / Tilt IP Camera
Internet
VideoAlert.net
SERVER
Designed exclusively for use with NAPCO iSeeVideo VideoAlert.net Server
COMPATIBLE
1
Advertisement
Table of Contents
Related Manuals for NAPCO iSeeVideo ISEE-VCMPT
Summary of Contents for NAPCO iSeeVideo ISEE-VCMPT
- Page 1 For Sales and Repairs, (800) 645-9445 Installation Guide For Technical Service, (800) 645-9440 Publicly traded on NASDAQ Symbol: NSSC WI1800.2 12/08 © NAPCO 2008 ISEE-VCMPT Pan / Tilt IP Camera Internet VideoAlert.net SERVER Designed exclusively for use with NAPCO iSeeVideo VideoAlert.net Server COMPATIBLE...
-
Page 2: Table Of Contents
Account Activation..........7 Adding Cameras to an Existing Account..10 Configuring Motion Detection......12 Setting a Motion Schedule .......13 NAPCO Security Systems, Inc. 333 Bayview Avenue, Amityville, New York 11701 Viewing Stored Video........14 For Sales and Repair, call toll free: (800) 645-9445 Setting up the EOP modules......15 For direct line to Technical Service, Creating a Secure EOP Network .....16... -
Page 3: System Overview

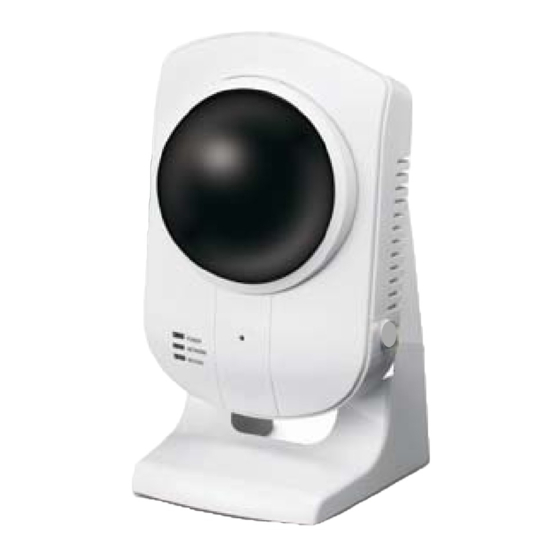

CCTV video installations. The iSeeVideo ISEE-VCMPT is a digital IP camera that provides remote viewing with Pan-Tilt control over the internet using any PC, from anywhere in the world. -
Page 4: Installation Overview
INSTALLING, ACTIVATING AND CONFIGURING THE ISEE-VCMPT The installation and activation of the VideoAlert system has been designed to be "plug and play", requiring no special training or tools and no knowledge of TCP/IP or networking for typical installations. The primary installation steps de- picted below are covered in detail on the following pages: Install the ISEE-VCMPT cameras, (page 5) Wire The Network Connection. -
Page 5: Installing The Isee-Vcmpt
INSTALL AND WIRE THE ISEE-VCMPT Installing the ISEE-VCMPT using the supplied mounting base ISEE-VCMPT Table top installation Wall mount installation Ceiling mount installation The ISEE-VCMPT may also be mounted using any conventional camera bracket with standard 0.25-20 stud. Descriptions of Terminals and Connections and Indicators Connect CAT5 cable from broadband modem, network or EOP module to RJ-45 LAN terminal. -
Page 6: Connecting To The Internet
WIRE THE NETWORK CONNECTION Cable Modem Service Installation The use of the optional G-BOX in Cable Broadband service applications is highly recommended to provide optimum frame rate and resolution performance. Follow the installation and connection steps below: NOTE: If no G-BOX is available, the Cable installation may be wired in same configuration as DSL Modem, below. Power down Cable Modem and Router IP Devices Wire G-BOX in standard configuration as shown... -
Page 7: Account Activation
ACTIVATE THE VideoAlert.net ACCOUNT Once the ISEE-VCMPT and G-BOX have been completely wired and powered up, the VideoAlert.net account is ready to be activated. These activation steps, include the branding of the camera to your Company's personalized VideoAlert.net web page, registration of the camera and the adding of Users to the account. - Page 8 3. Create Subscriber Account Now Click to bring up the Subscriber Details screen, where the basic account information is entered. Enter your name, address, telephone number and other information in the appropriate fields as shown in the im- age at right. The User ID and Password entered at this step will be- come the Master User of the account and will be the only User to have administrative privileges (the ability to...
- Page 9 7. My Account Click My Account to view account information. From this screen, you can update your account informa- tion (My Information), and add Users to the account. To add a new User to the account, click Add a New User.
-
Page 10: Adding Cameras To An Existing Account
Adding or Replacing a camera on an existing account. Once the camera has been registered and the account has been created, additional cameras, if any may be added to the account through the following steps: 1. Return to the www.videoalert.net login screen and click the NEW ACTIVATION button. - Page 11 4. The next screen that appear will allow the regis- tration of the camera to the correct account. A pull-down menu will appear, listing all accounts assigned to the Dealer ID entered in the branding screen. Select the correct account from the list by clicking it and then click Next to continue.
-
Page 12: Configuring Motion Detection
Configuring the ISEE-VCMPT for Motion Detection (Optional) Once the ISEE-VCMPT and G-BOX have been completely wired and powered up, and the account has been activated, the ISEE-VCMPT may be configured. The next several pages will guide you through the on-line configuration process. Note: If the ISEE-VCMPT is only to be used for live viewing and there are no plans to trigger video mo- tion events to the VideoAlert.net server, configuration is not required. -
Page 13: Setting A Motion Schedule
ADVANCED FEATURES (OPTIONAL) The ISEE-VCMPT supports pixel-based motion detection which allows the camera to send motion triggered video clips to the VideoAlert.net video server upon motion in a selected area. To configure the camera for motion detection, enter Video Motion Set- tings mode my clicking the Video Motion icon and the screen Video Motion Settings screen will appear. -
Page 14: Viewing Stored Video
Camera Time & Date Use drop down menu to set the time zone of the camera. The time and date is automatically set by the server. Enable Time Stamp To enable a time and date stamp on the live and saved images, click the check box next to Enable Time Stamp. -
Page 15: Setting Up The Eop Modules
SETTING UP THE EOP MODULES Setup Connect the CAT5 cable from an EOP module to the camera and plug into AC wall socket. Connect the CAT5 cable from an EOP module to the G-BOX and plug into AC wall socket. Wait a minute for startup to be completed, and then check the LEDs •... -
Page 16: Creating A Secure Eop Network
Creating a secure EOP network (optional) The EOP modules are designed for plug and play installation - once two or more modules are plugged in they will begin communicating as indicated by the flashing PLC Link LED. However, this network is not yet secure. -
Page 17: Frequently Asked Questions
4. What does this G-BOX actually do? The NAPCO G-BOX (Patented, is an optional Internet Video accessory that allows optimum performance on cable broadband service installations by establishing a point to point connection between the video camera and the PC. -
Page 18: Troubleshooting
Yes – the Dealer has complete control over the account – The Dealer can terminate one user and re-program the ISEE-VCMPT to a new user. NAPCO iSeeVideo Troubleshooting 19. I have Cable Internet service. When I install the G-BOX, I lose my Internet connection. -
Page 20: Napco Limited Warranty
