First Heating Frame WIST W30 Installation And Operation Manual

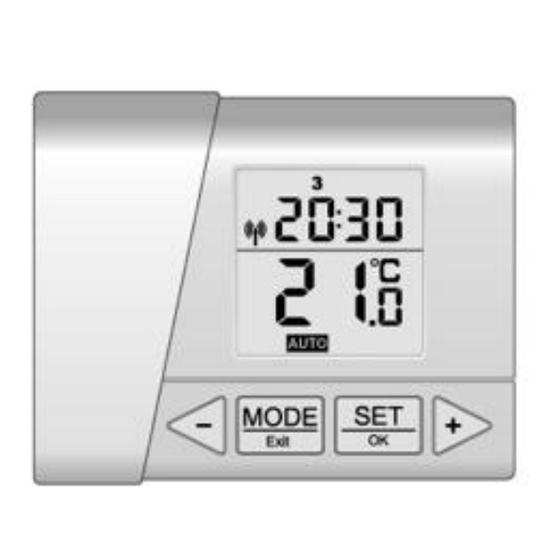

Frame wist series infrared panel heater with wireless thermostat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Infrared Panel Heater with Wireless Thermostat
"Frame WIST" Series W 30/60/90/120/150
INSTALLATION AND OPERATION
1
MANUAL-2011-WIST-v3-eng

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Frame WIST W30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for First Heating Frame WIST W30

Summary of Contents for First Heating Frame WIST W30

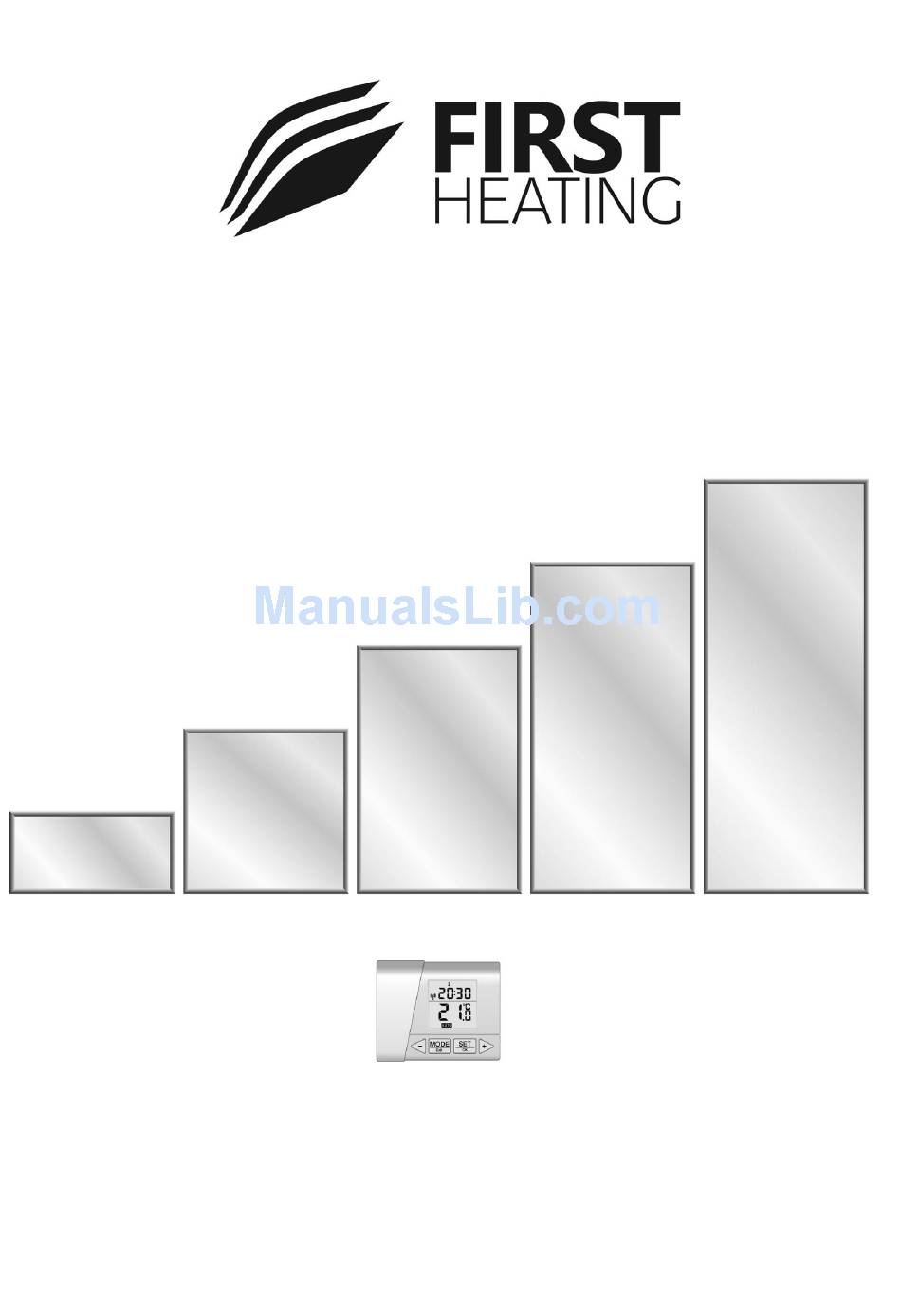

  • Page 1 Infrared Panel Heater with Wireless Thermostat “Frame WIST” Series W 30/60/90/120/150 INSTALLATION AND OPERATION MANUAL-2011-WIST-v3-eng...

  • Page 2: Table Of Contents

    CONTENTS PRODUCT SPECIFICATIONS..........................3 PACKAGE CONTENTS ............................3 2.2..........................3 SSEMBLED EATING ANEL 2.3............................... 4 HERMOSTAT INSTALLATION ................................ 4 3.1............................... 4 IRST TIME ETUP 3.2..........................4 ETTING THE IME AND FUNCTIONALITY SETS ............................5 SERVICE MENU (PR1 – PR15)..........................5 Pr 1 LCD Backlight ..............................

  • Page 3: Product Specifications

    1. PRODUCT SPECIFICATIONS: Model Number W120 W150 596mm x 296mm x 596mm x 596mm x 596mm x 896mm x 596mm x 1196mm x 596mm x 1496mm x Dimensions* 58mm 58mm 58mm 58mm 58mm Max. Wattage 500W 500W 800W 1000W 1300W Panel Weight 4.5 kg 7.2 kg...

  • Page 4: Thermostat

    2.3. Thermostat 3. INSTALLATION: The heater should not be obstructed by or placed behind furniture or other objects (see also safety notes). Because of its IP rating (IP50), when installing in bathrooms or kitchens, the panel must be placed at a position where it will not come into contact with water (see Safety notes, page #10).

  • Page 5: Functionality Sets

    4. FUNCTIONALITY SETS: After initial start-up, SIMPLE functionality is enabled by default. There are two types of functionality sets: SIMPLE functionality set - without the option to schedule ENHANCED functionality set means that all functions heating programs. The thermostat has limited functions on the described in this manual are enabled and may be modified.

  • Page 6: Pr 5 On-Off Regulation Hysteresis Parameter

    Pr 5 ON-OFF regulation hysteresis parameter 5 seconds, defaults: [0.2°C / 0.4°F] This setting defines temperature increments at which the thermostat controls the heating panel and monitors room temperature. It may be set from 0.1°C to 10°C at an accuracy of 0.1°C. If the Fahrenheit scale is used, the value may be changed from 0.2°F to 18°F at an accuracy of 0.2°F.

  • Page 7: Pr 11 Display Temperature In Celsius Or Fahrenheit Scale

    8. The LCD displays the message “AN INFRAPANEL FOUND” and the message that it is not yet saved “NONE” 9. Press the buttons to select the position where the panel will be saved. 10. Press and then 11. Next, the LCD displays the ID number of the panel and the position number will flash.

  • Page 8: Pr 14 Temperature Sensor Calibration

    5 seconds, Pr 14 Temperature sensor calibration default [0]=0°C/°F: May be set from -2.5°C to +2.5°C at increments of 0.1°C, or from -4.5°F to 4.5°F at increments of 0.1°F. Pr 15 Thermostat functionality set 5 seconds, default [0]=SIMPLE: [0] SIMPLE functionality. Temperature is controlled (up/down) with no additional programming.

  • Page 9: Auto Mode

    10.2. Auto Mode (Accessible in ENHANCED functionality) To enter this mode from another mode (heating program), click the button until the symbol appears at the bottom of the display. The pre- programmed weekly program then becomes active – see section 11.1 below for programming instructions. 10.3.

  • Page 10: Home Mode ( ) - Daily Programming

    Friday). 14. Press to confirm the hour. The pre-set times and temperatures for 5+2 weekends are: 15. Choose the minute for T1 with 16. Press to confirm the minute. 17. The desired temperature will flash. Use to select. 07:00 08:00 14:00 20:00 23:00...

  • Page 11: Safety Notes

    14. SAFETY NOTES: • Heating panel models W30, W60, W90, W120, and W150 are suitable for wall or ceiling installation and are equipped with mounting brackets to provide support. Please read the installation guidelines before installing the panel. • The appliance is safe to touch; however, prolonged contact with the panel while it is in operation may cause injury.
  • Page 12 FIRST Heating s.r.o. Tel: (+420) 227 629 790 / 791 Revoluční 3 info@firstheating.com 110 00 Praha 1 www.firstheating.com Czech Republic ©2011 FIRST Heating s.r.o. MANUAL-2011-WIST-v3-eng...
