- Page 1 Infrared Panel Heater WIST NG / WIST Elegant NG Wireless Temperature Controller Wireless Switching Unit RFTC-50 RFSFH-61...
- Page 2 They also may be supplied in RAL colors or printed individual photos/graphics. • The surface temperature of WIST NG and WIST Elegant NG panels will not exceed 125°C. This allows the panels to be placed either on walls, ceilings, or vertical stands.

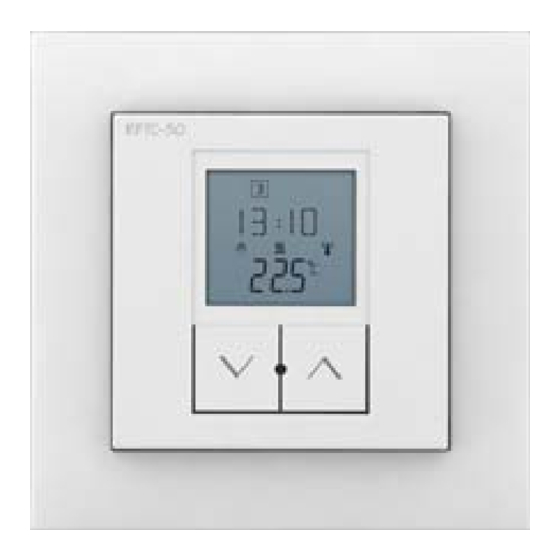

- Page 3 Description of device RFSFH-61 Description of device RFTC-50 Description of device Front panel Display the day of the week Current time in selected format 12/24 ON/OFF switch Connector for power cable Current temperature LED indicators Control button ( Control button ( Program button ( The synchronization button...
-
Page 4: Battery Replacement
Battery replacement Installation of heating panel - Low battery power is indicated by displaying a battery icon . - Use a screwdriver to remove the back plate (Fig.1). It is not recommended to install the panel behind furniture or other obstacles as this will reduce its performance and it is also a - Use a screwdriver to carefully unclip the device from the frame (Fig.2). -
Page 5: Selecting The Heating Mode
Selecting the heating mode Entering the programming menu - Only possible from the default display by pressing and holding the middle button . In the upper row of the display, the indicator rEG appears and the symbol of the - The display indicates ProG. - At the default display, press and hold the button currently chosen heating mode fl ashes, or the indicator OFF appears. -
Page 6: Entering The Settings Menu
Entering the settings menu °C °C Setting the OFF - setting the FL-H - this setting is for Corr - correction of °C temperature and time non-freezing fl oor heating, which time deviation for vacation mode** temperature for the should remain OFF - sets the number of OFF mode, seconds for 10 days,... -
Page 7: Technical Parameters
Technical parameters Technical parameters WIST NG WIST Elegant NG Model number: W120 W150 W180 Model number: WE30 WE60 WE90 WE120 WE150 Dimensions (mm): * 596 x 296 x 52 596 x 596 x 52 596 x 896 x 52 596 x 1196 x 52... -
Page 8: Safety Notes
Safety notes • Heating panels WIST NG and WIST Elegant NG are suitable for wall or • FIRST panels are designed to withstand moderate power drops/surges at ceiling installation and are equipped with mounting brackets to provide voltages between 220V and 250V. Verify before use that the panel you are support. - Page 9 Rev.: 0...
