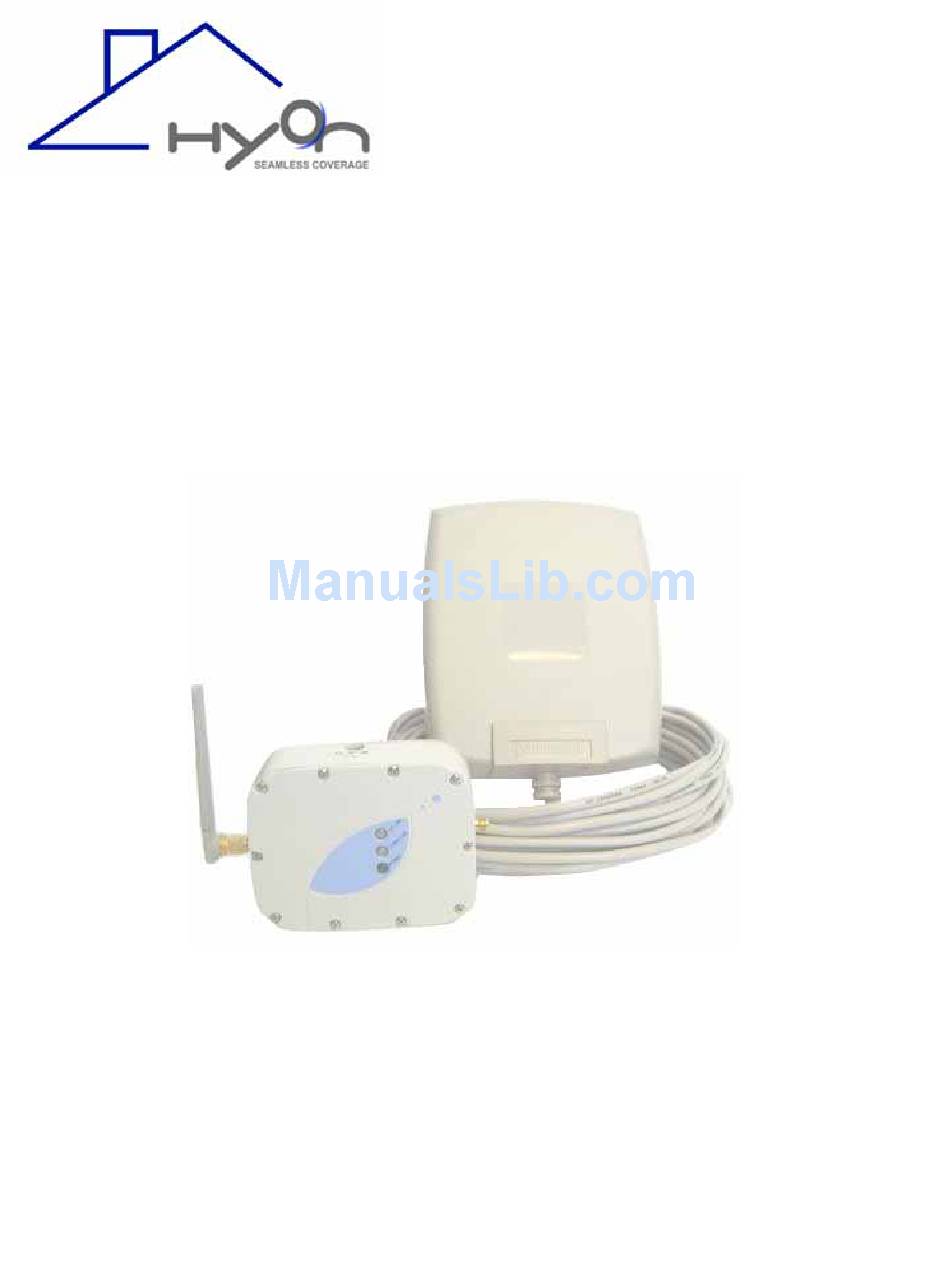

- Page 1 HR900G HR900G Operation Manual Operation Manual Small Office & Home Office Repeater HYON, Inc. 3470 Wilshire Blvd Suite 640 Los Angeles CA 90010 Tel: 213 – 382 – 3131 Fax: 213 – 382 – 3181 info@hyoninc.com www.hyoninc.com...
-
Page 2: Table Of Contents
Operation Manual & Installation Guide Operation Manual & Installation Guide Important Safety Information………………………….………… 2 Limited Warranty…………………………………………………. 3 Limitation on Liability…………………………………………….. 3 FCC Declaration of Conformity…………………………………. 4 Security Precautions……………………………………………... 4 Operational Concept …………………………………………….. 5 Introduction…………………………………………….………….. 6 Package Contents …………………………………….…………. 6 Understanding the Repeater Unit & LED Display.…...……….. 7 Understanding the Antenna Unit…………………………………8 System Configuration……………………………………………. -
Page 3: Important Safety Information
Important Safety Information Important Safety Information The HR900G complies with all FCC, CE, UL, RoHS rules and regulations. Read completely and follow all guidelines before beginning the installation procedure. Do not deviate or disregard any of the safety features included in the manual or with the equipment, nor operated the system in an unintended application. -
Page 4: Limited Warranty
Customer’s specifications previously accepted by HYON, Inc. in writing. If products sold hereunder are not as warranted, HYON, Inc. shall, at its option either refund the purchase price, or repair or replace the product, provided proof of purchase and written notice of nonconformance are received by HYON, Inc. -
Page 5: Fcc Declaration Of Conformity
FCC Declaration of Conformity FCC Declaration of Conformity This equipment complies with CFR 47, Part 15,19 of the FCC rule. Operation of the equipment is subject to the following conditions: •This device may not cause harmful interference •This device must accept any interference received, including interference that may cause undesired operation. -
Page 6: Operational Concept
KEY SOLUTION TURN KEY SOLUTION Every home, every office, every application is complex. The HR900G are engineered to specifically address these challenges. The HR900G seamlessly relay radio communication signals between a cell tower and mobile handset located inside an environment. The system consists two main components: a bi-directional repeater unit and the directional patch antenna unit. -
Page 7: Introduction
You have purchased the finest, most comprehensive SOHO (small office, home office) repeater kit available. The HR900G extends cellular coverage for low signal strength areas. You will experience broader coverage through enhanced filtering and superior amplifying performance. Understanding tomorrow’s market demands and the mix of technology standards, the HR900G is intelligently designed to provide interference protection of any existing wireless networks and/or radio communications frequencies. -
Page 8: Understanding The Repeater Unit & Led Display
Understanding the Repeater Unit Understanding the Repeater Unit Power status indicator DC 5V power jack Downlink signal transmission indicator (from cell site to handset) Uplink signal transmission indicator (from handset to cell site) TO MOBILE: Port to Product Label connect dipole antenna supplied TO BASE: Port to co Connect coaxial cable... -
Page 9: Understanding The Antenna Unit
Understanding the Antenna Unit Understanding the Antenna Unit 33 feet RG58 Low Loss Coaxial cable attached to Antenna Unit Wall Panel disk SMA male connector to be connected where indicated TO BASE on side panel of Tightening pole Repeater Unit. ring Antenna Unit Mount for tightening attachment. -
Page 10: System Configuration
System Configuration System Configuration The basic HR900G Standard Repeater Kit configuration consist *Repeater Unit connected with coaxial cable to the *Antenna Unit. The HR900G Repeater’s power is supplied by the power adapter connected to power outlet. Installation Guidelines Installation Guidelines OUTDOOR SIGNAL STRENGTH The Antenna unit receives/transmits cellular signals from/to the nearest cell site. -
Page 11: Home/Office Installation Procedure
Home/Office Installation Procedure Locate an area with strong cellular signal to place the antenna unit. Typically 1 to 2 bars or -90dBm ~ 95dBm will be sufficient for the HR900G Repeater to relay cellular reception to desired area. Inside home window Roof top of home or office Use of cellular phone’s... - Page 12 Connect power plug to repeater unit jack first. Then connect the power adapter to the power outlet. Verify the system is working by checking for the GREEN light on the repeater unit’s LED display. Compare signal level from step 2. If there is improvement, skip to STEP 5.
-
Page 13: Specification
Permanently mount antenna unit and repeater unit that resulted in the strongest signal level in the coverage area. Installation is now complete. For additional information refer to page 12 or visit www.hyoninc.com. Repeater Unit Specification Repeater Unit Specification... -
Page 14: Trouble Shooting
Trouble Shooting Trouble Shooting If the HR900G does not operate properly after installation and the signal level is same as before, refer to the following steps below: Most Common FAULTS Most Common FAULTS NO LIGHT – Indicates HR900G is missing power source.
