  • Page 1 User‟s Manual for Victor 88E Digital Multimeter© Distributed and Copyrighted by www.FiredragonEnt.com...

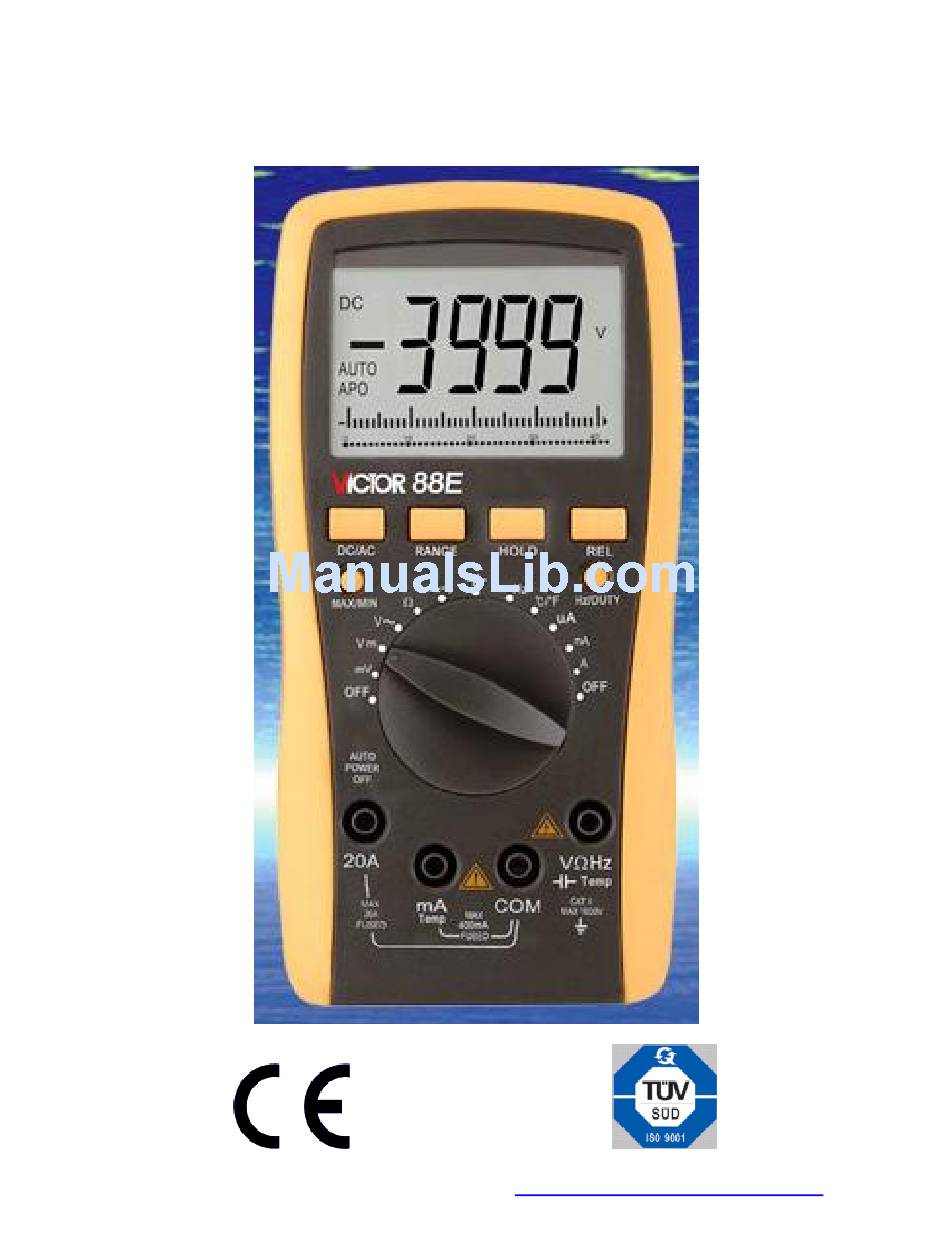

  • Page 3 OVERVIEW The Victor 88E digital multimeter is a battery-driven 3-3/4” digital multimeter. It uses an LCD with a 1" display for easy reading. The 15 second backlight and overload protection make all types of operation more convenient. The digital multimeter has the function of measuring DCV, ACV, DCA, ACA, resistance, capacitance, frequency, temperature, duty cycle and diodes and acts as a continuity performance tester .

  • Page 4: Safety Notes

    SAFETY NOTES The instrument is designed according to IEC1010 standard (safety standard issued by International Electro Technical Committee). Please read the following before operation. Voltage is less than 36V and is a control and safety voltage. When measuring voltage higher than DC 36V, AC 25V, check the connection and insulation of test leads to avoid electric shock.

  • Page 5: Specifications

    Safety symbols: = high voltage present; = GND; = dual insulation; = refer to manual; = Low battery SPECIFICATIONS General Features Display: LCD; Max display: 3999 (3-3/4") digits automatic polarity and unit symbol display. Measurement method: double integral A/D conversion. Sampling rate: approximately 3 times/sec.
  • Page 6 Test leads, #C1 Clip Set, TP3 Temperature Probe, Duracell batteries and P25 hard case. The Victor 88E-C comes with Standard Package, L36 Test Leads, FSG1 Flame Safeguard Adapter, GA1 and GA2 Gas Burner Thermocouple Adapters, PT1 Probe Pins and one pair of J1 Jumpers.

  • Page 7: Technical Features

    TECHNICAL FEATURES Accuracy: ± (a% × reading data + digits), environment temperature at (23°C±5), relative humidity less than 75%, DC Voltage DCV Range Accuracy Resolution 400mV ±(1.5%+6) 0.1mV ±(0.5%+6) 10mV 400V 100mV 1000V ±(1.0%+4) Input impedance 400mV Range 10MΩ, other range is 40MΩ. Overload protection 1000V DC or 750V AC.
  • Page 8 DC Current DCA Range Accuracy Resolution 0.1μA 400uA 1μA 4000uA ±(1.0%+5) 10μA 40mA 100μA 400mA ±(1.2%+10) 10mA MAX measurement voltage drop: full range mA: 1.2VA :100mV Max input current: 20A (within 15 seconds) Overload protection: 400mA/ 250V and 20A/250V fast acting fuse. AC Current ACA Range Accuracy...
  • Page 9 Resistance Ω Range Accuracy Resolution 400Ω ±(0.8%+5d) 0.1Ω 1Ω 4kΩ 10Ω 40kΩ ±(0.8%+4d) 100Ω 400kΩ 1kΩ 4MΩ 10kΩ 40MΩ ±(1.2%+5d) Open circuit voltage: 400mV Overload protection: 250V DC or AC peak value; NOTE: At a range of less than 400 Ω, short-circuit the test leads to measure the wire resistance, and then subtract it from the real measurement.
  • Page 10 Frequency F Range Accuracy Resolution 100Hz 0.1Hz 1000Hz 10kHz 10Hz ±(0.5%+4d) 100kHz 100Hz 1MHz 1kHz 30MHz 10kHz Input sensitivity: 1.0V. Overload protection: 250V DC or AC peak value; Diode and continuity performance test Range Value displayed Testing condition Forward DCA is approx. Forward voltage drop of 0.5mA, the backward voltage diode...
  • Page 11 Temperature Range Accuracy Resolution -0°C ±(1.0%+4) -40°C-1000°C 0°C - 400°C ±(1.0%+4) 1°C +400C ±(1.5%+15) -750°F ±(0.8%+5) 0°F-1832°F 1°F +750°F ±(1.5%+15) Sensor: TP01 (K type thermocouple) CAUTION: DO NOT INPUT VOLTAGE WHEN OPERATING IN THIS RANGE! FIGURE 1...

  • Page 12: Operation

    OPERATION Meter Layout, see Figure 1 1. LCD: displays the measuring value and unit. 2. Function keys: 2-1. SELECT key: DC /AC mode, temperature C/F, Diode / Continuity performance switch. 2-2. RANGE key: select auto range or manual range mode. Auto range is the normal mode, it will display AUTO symbol.
  • Page 13 auto power off and analog bar display in this mode. Press it more than 2 seconds, it exits MAX/MIN mode. 2-6. Hz/DUTY key: When measuring AC Voltage (Current), press it, meter switches to Frequency/duty cycle/Voltage (Current). When measuring the Frequency, it will switch frequency/duty cycle 1~99%.
  • Page 14 DCV Measurements 1. Insert the black test lead into the “COM” terminal and the red one to “V/Ω/Hz” terminal. 2. Turn the selector knob to range; 3. Auto range is the normal mode, it will display AUTO symbol. Press the RANGE key to change to the manual range mode, 400mV, 4V, 40V, 400V, 1000V range is selective;...
  • Page 15 ACV Measurements 1. .Insert the black test lead into the COM terminal and the red one into the V/Ω/Hz terminal. 2. Turn the selector knob to range. 3. Auto range is the original mode, it will display AUTO symbol. Press the RANGE key to change to the manual range mode, 400mV, 4V, 40V, 400V, 750V range is selective.
  • Page 16 DCA Measurements 1. Insert the black test lead into the COM terminal and the red one into the mA terminal (the Max. 400mA) or into the 20A terminal (Max.20A). When measuring μA DC use the FSG1 adapter between the meter leads and the control. 2.
  • Page 17 ACA Measurements 1. Insert the black test lead into the COM terminal and the red one into the mA terminal (maximum 400mA) or to the 20A terminal (maximum 20A) 2. Use the selector knob to set the proper ACA range, press the DC/AC key to select the measurement mode, and then connect the leads in series to the electric circuit under test.
  • Page 18 3. Auto range is the original mode; press the RANGE key change to the manual range mode. 4. When measuring the actual minimum resistance, short-circuit the test leads first, press the REL button and then test the resistance, it will now display the actual resistance.
  • Page 19 5. Place the test leads in parallel with the capacitor being tested. The red test lead is for the positive pole. LCD displays capacitance value. Note: Never input voltage or current to the VΩHz terminal when measuring capacitance. In order to assure an accurate reading, press the REL button to clear the reading before testing.
  • Page 20 The meter can still work if the input is higher than 10Vrms, but the accuracy is not guaranteed. In an RFI noise environment, you should use shielded cable to measure a low signal. When measuring high voltage circuits, no part of your body should touch the high voltage circuit.
  • Page 21 Diode Performance Test 1. Insert the black test lead into the COM terminal and the red one into the V/Ω/Hz terminal (the polarity of the red lead is “+”. 2. Turn the selector knob to range, press the SELECT key to select the measurement mode.
  • Page 22 Temperature Measurements 1. Turn the selector knob to the °C/°F range. 2. Using the TP1 temperature probe insert the cathode (black pin) of the cold end (free end) of the probe into the mA terminal jack and the anode (red pin) into the VΩHz terminal. Put the working end (temperature measurement end) of he thermocouple on the surface or inside the object to be tested.
  • Page 23 Data Hold The presently measured value is held on the LCD and the HOLD symbol displays. Press the HOLD button again, the HOLD function is cancelled. Auto Power Off When the meter has not been used for about 15 minutes, the built-in buzzer will sound 5 times and the meter goes into sleeping mode, one minute later, the buzzer sounds a long tone one time and the meter powers off.
  • Page 24 When the symbol displays, you should replace the battery following the steps: 5-1. Unscrew the retaining screw and remove the battery cover; 5-2. Take out the old batteries and replace with new ones. Alkaline batteries are better and have a longer service life. 5-3.
  • Page 25 These specifications are subject to change without notice. We hereby will not be responsible for any accident and damage caused by improper operation .The functions stated in this User Manual cannot be exceeded by special usage.
  • Page 26 OPERATING INSTRUCTIONS FOR 88CP9 AMP KLAMP Thank you for purchasing the 88CP9, a smaller sized, convenient to use AC Current Clamp-On Adapter for the Victor 88E Multimeter. The 88CP9 is a 200Amp AC Clamp-on Adapter using the voltage output of the adapter and the standard meter inputs of a multimeter.
  • Page 27 Klamp jaws. Keep your fingers behind the safety barrier as shown in Figure 2. General Specifications Output Impedance: <1kΩ AC Bandwidth: 40 to 400Hz Jaw opening: ½ inch or 16 mm Operating conditions: 32ºF to 86ºF (0ºC to 30ºC) 90%RH; 86ºF to 104ºF (30ºC to 40ºC) 75% RH;...
  • Page 28 Using the Amp Klamp To use the Amp Klamp, follow these instructions: Connect the test leads of the Klamp probe to the terminals of the 88E Multimeter. Insert the black test lead to “COM” terminal and the red test lead to “V/Ω/Hz”...
  • Page 29 When measuring input to typical small powerburner PSC motor, multimeter reads 1.30 mV, actual reading is 1.3 amps. Figure 2 Description of Amp Klamp 88CP9 Current sensing jaw. Klamp trigger (to open). Safety barrier. Voltage output lead. 04/11 88CP9FD FIREDRAGON ENTERPRISES...
