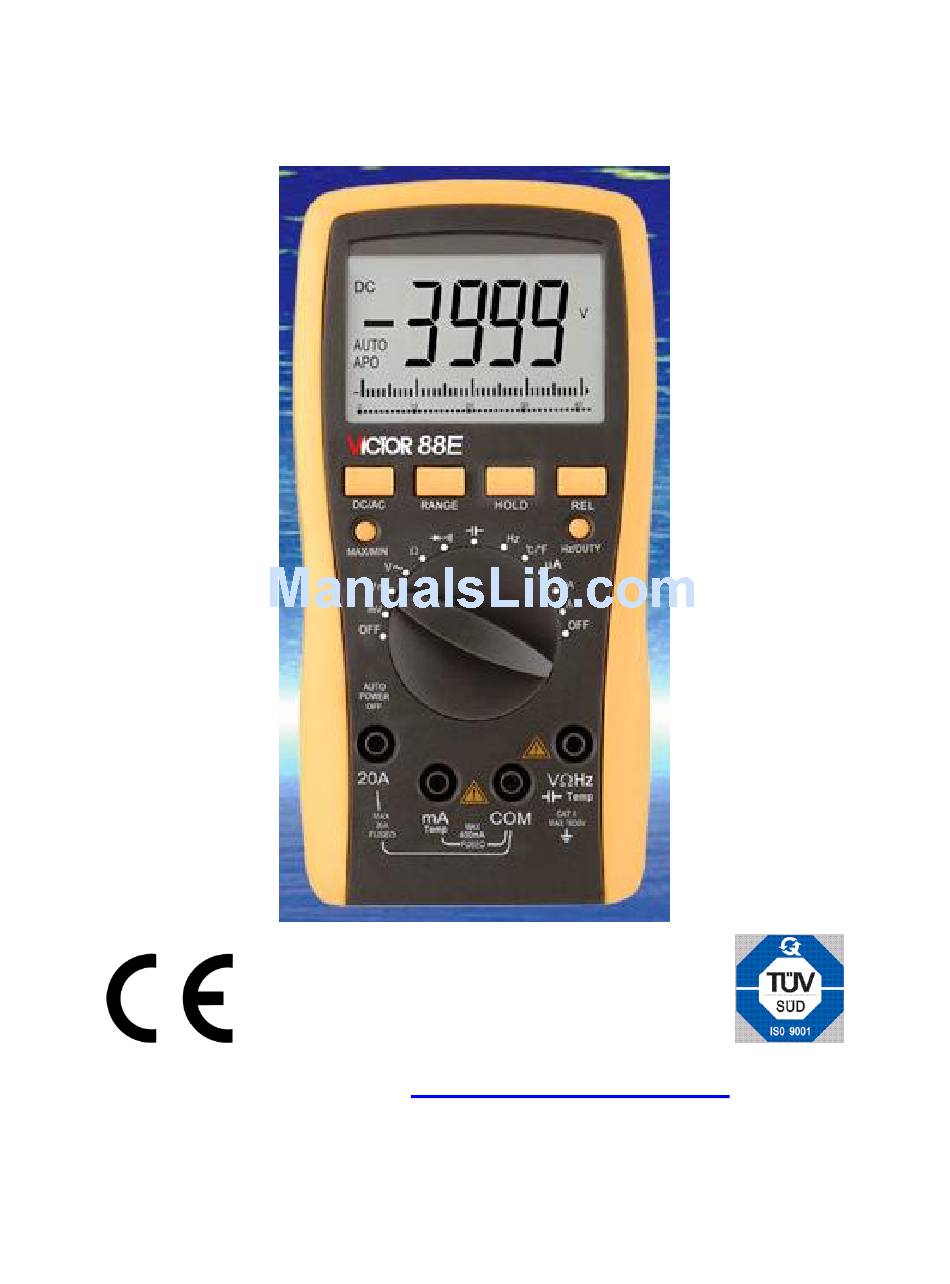

- Page 1 User’s Manual for Victor 88E Digital Multimeter Distributed by www.FiredragonEnt.com...
-
Page 2: Safety Notes
OVERVIEW The Victor 88E digital multimeter is a battery-driven 3-3/4” digital multimeter. It uses an LCD with a 1" display for easy reading. The 15 second backlight and overload protection make all types of operation more convenient. The digital multimeter has the function of measuring DCV, ACV, DCA, ACA, resistance, capacitance, frequency, temperature, duty cycle and diode and a continuity performance test .The meter can provide functions including... -
Page 3: Technical Features
TECHNICAL FEATURES 2-1. Accuracy: ± (a% × reading data + digits), environment temperature at (23°C±5), relative humidity less than 75%, 2-2. DC Voltage DCV Range Accuracy Resolution 400mV ±(1.5%+6) 0.1mV ±(0.5%+6) 10mV 400V 100mV 1000V ±(1.0%+4) Input impedance 400mV Range 10MΩ, other range is 40MΩ. Overload protection 1000V DC or 750V AC. - Page 4 2-6. Resistance Ω Range Accuracy Resolution 400Ω ±(0.8%+5d) 0.1Ω 1Ω 4kΩ 10Ω 40kΩ ±(0.8%+4d) 100Ω 400kΩ 1kΩ 4MΩ 10kΩ 40MΩ ±(1.2%+5d) Open circuit voltage: 400mV Overload protection: 250V DC or AC peak value; NOTE: At a range of less than 400 Ω, short-circuit the test leads to measure the wire resistance, and then subtract it from the real measurement.
-
Page 5: Operation
OPERATION 4-1. Panel description 1. LCD: display the measuring value and unit. 2. Function key: 2-1. SELECT key: DC /AC mode, temperature C/F, Diode / Continuity performance switch. 2-2. RANGE key: select auto range or manual range mode. Auto range is the normal mode, it will display AUTO symbol. - Page 6 3. Be careful while measuring a high voltage. DO NOT touch the high voltage circuit. 4-3. ACV measurement 1. .Insert the black test lead into the COM terminal and the red one to the V/Ω/Hz terminal. 2. Turn the selector knob to range.
- Page 7 4-6. Resistance measurement 1. Insert the black lest lead into the COM terminal and the red lead into the V/Ω/Hz terminal. 2. Turn the selector knob to Ω range. 3. Connect the leads in parallel with the resistance being measured. 3.
- Page 8 4-9. Diode performance test: 1. Insert the black test lead into the COM terminal and the red one into the V/Ω/Hz terminal (the polarity of the red lead is “+”). 2. Turn the selector knob to range, press the SELECT key to select the measurement mode. Connect the test leads to the diode being tested, the red test lead connects to the diode positive polarity, the black test lead to the diode cathode polarity, the reading is the approx.
- Page 9 OPERATING INSTRUCTIONS FOR 88CP9 AMP KLAMP Thank you for purchasing the 88CP9, a smaller sized, convenient to use AC Current Clamp-On Adapter for the Victor 88E Multimeter. The 88CP9 is a 200Amp AC Clamp-on Adapter using the voltage output of the adapter and the standard meter inputs of a multimeter.
- Page 10 current Clamp and follow these procedures. Do not use the clamp on circuits rated higher than 600V in Installation Category II. Use caution when clamping around un-insulated conductors or bus bars. Do not use a Klamp that is cracked, damaged, or has a defective cable. Such Klamps should be made inoperative by taping the Klamp shut to prevent operation and disposed of.
-
Page 11: Safety Information
This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present This symbol denotes Double Insulation 03/10 88CP9FD FIREDRAGON ENTERPRISES...
