Summary of Contents for TELES iGATE FCT

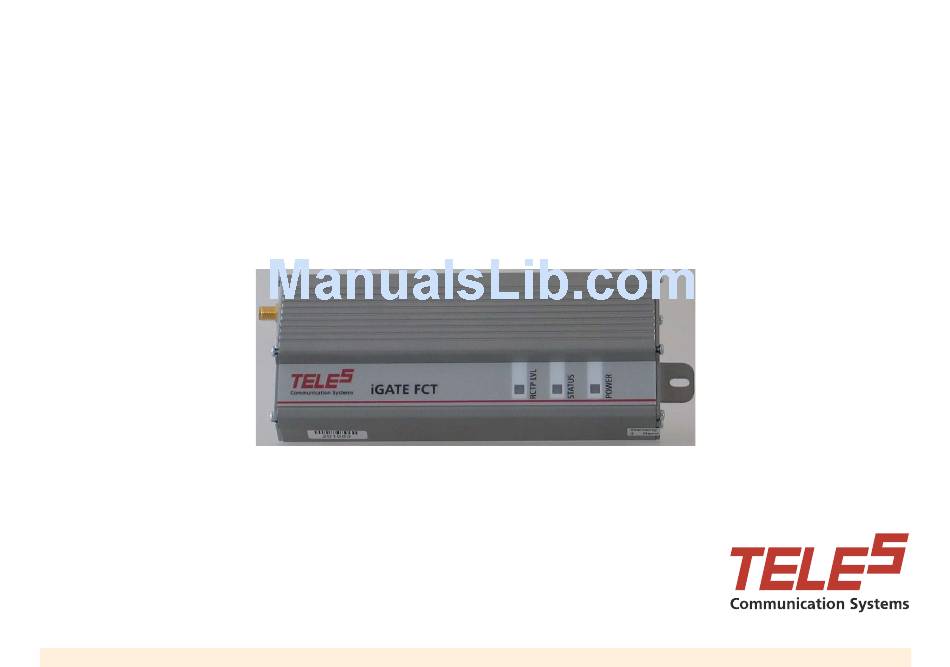

- Page 1 TELES iGATE FCT User’s Manual Table of Contents Next Page...
- Page 2 Certification, Version Information, and Disclaimer iGATE FCT carries CE Certification. TELES AG Headquarters Ernst-Reuter-Platz 8 This manual is applicable to TELES iGATE FCT with soft- Berlin, Germany ware versions 0218 or higher. These apply to units with 10587 part number Q11-111093 (900/1800MHz) and Q11-...
-
Page 3: Table Of Contents
TELES iGATE FCT User’s Guide Table of Contents Calling Line Identification Restriction (CLIR) ..14 Clearing a Lock ............14 Erase SMS Inbox of the SIM card......14 Immediate Dialing ..........15 Interdigit Timeout ........... 15 INTRODUCTION ............1 Network Lock ............16 Overview................. -
Page 4: Introduction
TELES iGATE FCT User’s Guide Chapter 1 This section includes: • “Overview” on page 2 Introduction • “Product Components & ID” on page 2 • “Contents of Package” on page 3 • “Safety Precautions” on page 3 Previous Page Table of Contents... -
Page 5: Overview
LED Panel of the iGATE FCT is transparent. The PABX recognizes iGATE FCT as a trunk interface and the routing is done in Figure 1: iGATE FCT Components the PABX itself. In a PABX that does not support LCR, the user must select the proper trunk for the call. -
Page 6: Contents Of Package
The following items may be supplied on a separate order: • Do not connect the iGATE FCT to any power source • Data cable for Fax and SMS other than the nominal source indicated on the front •... -
Page 7: Getting Started
TELES iGATE FCT User’s Guide Chapter 2 This section includes: • “Installing the Unit” on page 5 Getting Started • “Initial Start-up and LEDs” on page 7 • “Testing the Installation” on page 8 • “Instructions for Users” on page 9... -
Page 8: Installing The Unit
To install the iGATE FCT: • with room for the metal plate 1. Select a location for the iGATE FCT. The location • with room for the antenna to stand in an upright must meet the following criteria: position •... -
Page 9: Position
TELES iGATE FCT User’s Guide 10. Close the SIM card tray. Table 1: RJ-11 Connector Pin Layout 11. Connect the routed trunk port of the PABX (FXO) to PIN # FUNCTION the LINE port (FXS) of the iGATE FCT. Reserved Ring Ring Reserved Warning: Do not use the reserved pins. -
Page 10: Initial Start-Up And Leds
Calls that should indicates that the unit is initializing. Once the SIM card is not be made on the iGATE FCT can be registered and operational, the STATUS LED stops blocked by using the Toll Restriction feature blinking. -
Page 11: Testing The Installation
26. To verify a SIM card number: remove the SIM card from the iGATE FCT and insert it in a cellular phone. Dial out to another 3. Dial out to a known cellular telephone number. The phone with a display or use the incoming number identification ring-back tone should be heard. -
Page 12: Instructions For Users
• If Call Duration Limit is active, calls longer than the time limit will be cut. • The iGATE FCT collects the dialed digits and places the call when one of the following occur: • the # key is pressed •... -
Page 13: Programming
TELES iGATE FCT User’s Guide Chapter 3 This section includes: • “How to Program” on page 11 Programming • “Programming Summary” on page 12 • “Features” on page 13 • “Factory Default Values” on page 20 Previous Page Table of Contents... -
Page 14: How To Program
- use the "Restore Factory Default" feature. Note: Alternately, dial through the PABX to the iGATE FCT unit. 4. Hang-up to leave the programming mode. 2. Dial the sequence **1343**#. The iGATE FCT will respond with 3 short beeps to confirm it. If the code... -
Page 15: Programming Summary
TELES iGATE FCT User’s Guide Programming Summary Table 3: DTMF Programming Summary Call Duration See “Call Duration Limit” on *6133*# Limit page 13. Table 3: DTMF Programming Summary Erase SMS mail- See “Erase SMS Inbox of the SIM Code Function... -
Page 16: Features
TELES iGATE FCT User’s Guide Features Table 4: Audio Gain Commands Result This section lists the various iGATE FCT features, which Increase gain * can be programmed by the user. Section 4.10, has a con- Decrease gain * cise summary of the programming details. -
Page 17: Calling Line Identification Restriction (Clir)
PIN code. The unit notes that the SIM card does not require a PIN code and, consequently, This parameter determines whether or not the iGATE FCT clears the lock. sends its SIM number to the called party. -
Page 18: Immediate Dialing
# sign. For example, if you dial 10#, quence, remote control of the unit is disabled. the iGATE FCT will place the call after 10 digits have been dialed. 1. Dial ** 1343**#. The unit enters the programming mode and emits the confirmation tone. -
Page 19: Network Lock
Network Lock prevents the use of an unauthorized SIM only be unlocked with the PUK number. card in the iGATE FCT. Once Network Lock is enabled, if an unauthorized SIM card is used, the iGATE FCT will not The PIN code protection can be used in several ways: process either incoming or outgoing calls. - Page 20 If you do not know the current PIN code of the unit: After the inserting the SIM card into the iGATE FCT, 1. Reset the unit to the factory default setting. (See clear the lock. See “Clearing a Lock” on page 14.
-
Page 21: Restore Factory Default
TELES iGATE FCT User’s Guide Restore Factory Default Set Pulse Drop Signaling Method Use this feature to restore the parameters the unit had If the PABX trunk connected to the unit supports Pulse when it was shipped from the factory. -
Page 22: Set Reverse Polarity Signaling Method
TELES iGATE FCT User’s Guide The pulse width is measured in units of 100 millisec- The list of allowed prefixes can include up to 10 entries. onds and can be between 100–9900 ms. For exam- The minimum length of a prefix to enter the table is two ple, to set the pulse drop width to 2 seconds dial 20#. -
Page 23: Factory Default Values
TELES iGATE FCT User’s Guide Other DTMF commands include: Factory Default Values Table 5: Toll Restriction Commands Command Result • Toll restriction is disabled Disables the Toll Restriction fea- • Network lock default depends on the version *9193*# ture. This does not erase the •... - Page 24 TELES iGATE FCT User’s Guide Chapter 4 This section includes: • “SMS Commands Overview” on page 22 • “GET Command Table” on page 22 • “SET Command Table” on page 23 Previous Page Table of Contents Next Page...
- Page 25 TELES iGATE FCT User’s Guide SMS Commands Overview GET Command Table The iGATE FCT may be controlled remotely using SMS Table 6: GET Command Table commands. The SMS message must match the structure Command described in tables Table 6 and Table 7. Both lowercase...
-
Page 26: Get Command Table
TELES iGATE FCT User’s Guide Table 6: GET Command Table SET Command Table Command Command Feature Applicable Response Syntax TRANSMIT GAIN (+6 - -24) Table 7: SET Command Table Gets the Tx Audio gain intervals of 2 db Command Main Cell is: "Response... -
Page 27: Miscellaneous
TELES iGATE FCT User’s Guide Chapter 5 This section includes: • “Call Progress Tones” on page 25 Miscellaneous • “LED Indications” on page 25 • “Troubleshooting” on page 26 • “Specifications” on page 27 Previous Page Table of Contents Next Page... -
Page 28: Call Progress Tones
TELES iGATE FCT User’s Guide Call Progress Tones STATUS The channel is handling a call. Blinking (0.2S on, 0.2S off) - During ringing The channel is idle. Indications Type ON cadence OFF cadence Remarks Slow blinking (0.5S on, 0.5S off):... -
Page 29: Troubleshooting
TELES iGATE FCT User’s Guide Troubleshooting Problem Indications Solution - Verify that you have a valid SIM The chan- card Can not nel responds - Check that the destination does connect to with an error not conflict with the toll restriction... -
Page 30: Specifications
TELES iGATE FCT User’s Guide Specifications GSM module WaveCOM Wismo 2D Optional Features Requires a data connection between the iGATE FCT and a PC with Winfax General Specifications version 10 and up. Mains Supply Voltage 100-240 VAC, 50-60 Hz Requires a data connection between the...
