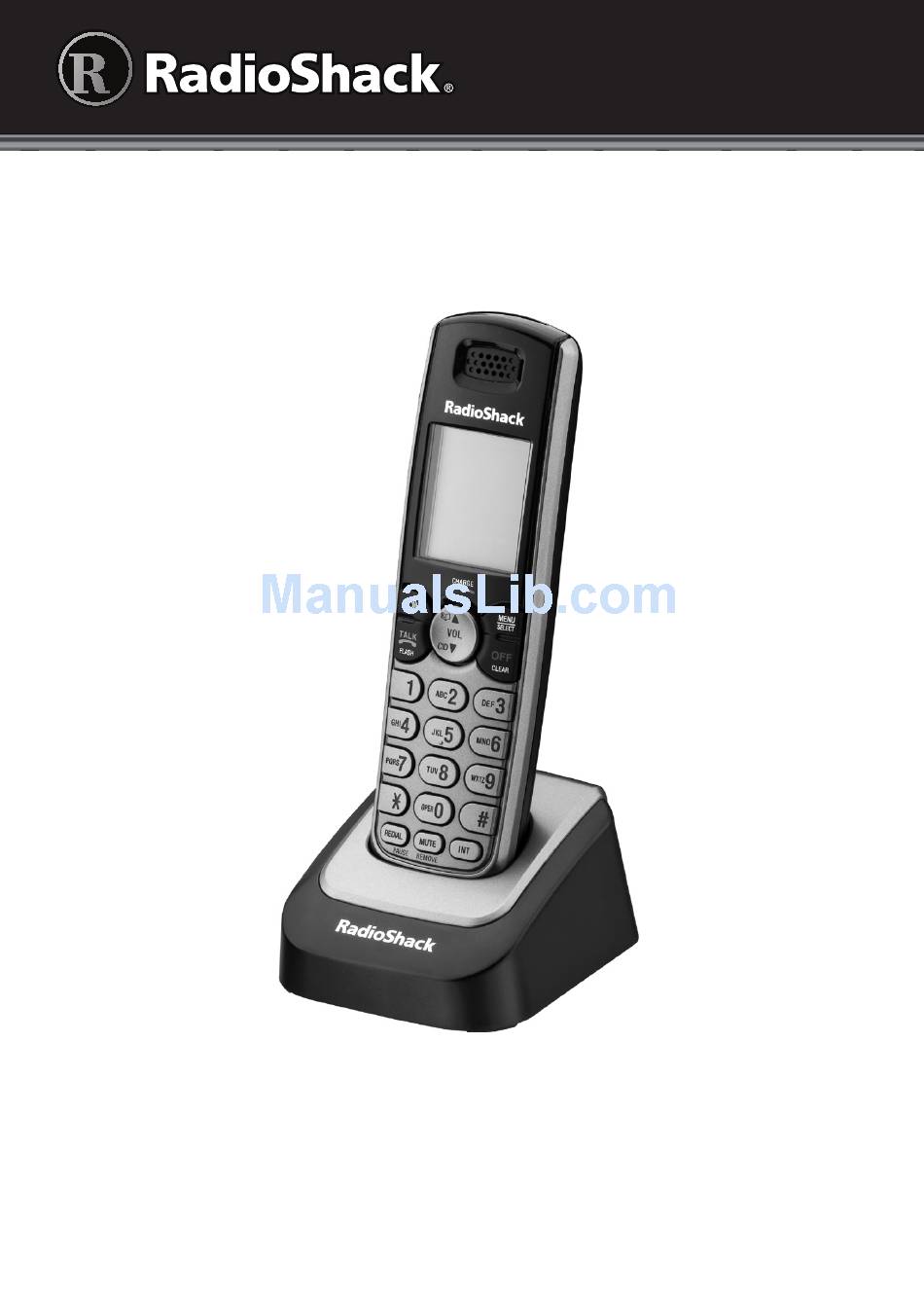

- Page 1 User’s Guide 43-331 Caller ID Accessory Handset Handset for 43-329 and 43-330 Thank you for purchasing your new handset from RadioShack. Please read this user’s guide before installing, setting up, and using your new phone.
-
Page 2: Table Of Contents
Contents Package Contents ......................2 Features ..........................2 Telephone Setup ................3 Telephone Charger Installation ..................3 Battery Installation and Charging .................4 Add and Register Your Handset ...................6 Replacing a Handset ......................7 Handset Layout ......................8 Additional Information ..............10 Important Safety Instructions ..................10 Battery ...........................12 Operating Range......................13 Maintenance .........................13 About Cordless Telephones ..................14... -
Page 3: Telephone Setup
Telephone Setup Telephone Charger Installation Install the telephone charger as shown below. Make sure that the electrical outlet is not controlled by a wall switch. Note: Use only the power adapters supplied with this product. Charger adapter Charger... -
Page 4: Battery Installation And Charging
Battery Installation and Charging Install the battery as shown below. After installing the battery, you might be able to make and receive short calls. For best performance, charge the handset for at least 16 hours before use. When not in use, place the handset in the telephone base or charger. - Page 5 Notes: • When the screen shows LOW BATTERY, the backlight stays off. • If the handset will not be used for a long time, disconnect and remove the battery to prevent possible leakage. • To purchase replacement batteries, visit your local RadioShack store or go to www.RadioShack.com.
-
Page 6: Add And Register Your Handset
Add and Register Your Handset Your handset must be registered with the telephone base before use. When first purchased, the handset shows NOT REGISTERED. You may need to charge the handset before registering to the telephone base. For more details on battery charging, see the table on page 3. To register a handset: Place the unregistered handset in the telephone base or charger. -
Page 7: Replacing A Handset
Replacing a Handset If you want to replace a handset or re-assign the designated handset number of a registered handset, you must de-register all the handsets and then individually register each handset. To make de-registration easier, read all of the instructions on this page before you begin. -
Page 8: Handset Layout
Handset Layout CHARGE light On when the handset is charging in the telephone base or charger. (Speakerphone) Press to switch between speakerphone and handset. / FLASH • Press to make or answer a call. • During a call, press to receive an incoming call when you receive a call waiting alert. - Page 9 (Directory) / VOL • Press to enter the directory when the telephone is not in use. • While in a menu, press to scroll up. • During a call, press to raise the listening volume. CID (Caller ID) / VOL •...
-
Page 10: Additional Information
Additional Information Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. - Page 11 • If liquid has been spilled onto the product. • If the product has been exposed to rain or water. • If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operation instructions.
-
Page 12: Battery
Battery It takes up to 16 hours for the battery to be fully charged. When it is fully charged, you can expect the following performance: Operation Operating time While in handset use (talking*) Up to eight hours While in speakerphone mode (talking*) Up to five hours While not in use (standby**) Up to six days... -
Page 13: Operating Range
Operating Range This cordless telephone operates with the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset and telephone base can communicate over only a certain distance - which can vary with the locations of the telephone base and handset, the weather, and the layout of your home or office. -
Page 14: About Cordless Telephones
About Cordless Telephones • Privacy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between the telephone base and the cordless handset by radio waves, so there is a possibility that the cordless telephone conversations could be intercepted by radio receiving equipment within range of the cordless handset. -
Page 15: Specifications
Specifications Frequency Crystal controlled PLL synthesizer control Transmit Handset: 1921.536-1928.448 MHz frequency Channels Nominal Maximum power allowed by FCC and IC. Actual operating effective range might vary according to environmental conditions at range the time of use. Size Handset: 6.38 X 1.85 X 1.23 in (162.00 X 47.00 X 31.20 mm) Charger: 3.13 X 3.67 X 1.85 in (79.60 X 93.30 X 47.00 mm) Weight Handset: 4.62oz (131.00g) (including battery) -
Page 16: Fcc Information
FCC Information This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. - Page 17 The plug and jack used to connect this equipment to premises wiring and the telephone network must comply with applicable Part 68 rules and technical requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant.
-
Page 18: Limited Warranty
Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for one (1) year after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES. - Page 19 INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some States do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
- Page 20 Protect the environment by recyclying your used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. ©2009. RadioShack Corporation. 43-331 08A09 All rights reserved. RadioShack and RadioShack.com are Printed in China trademarks used by RadioShack Corporation.
